Precision Shafts Chrome Dowel Pins, Bearing rollers

Product Overview

Description

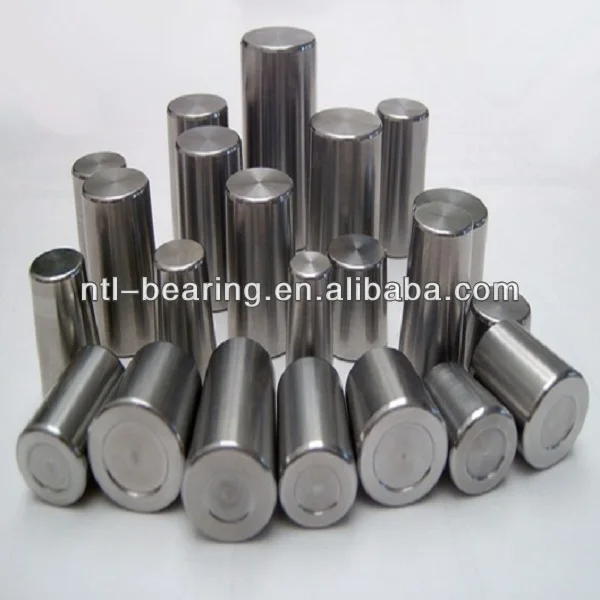

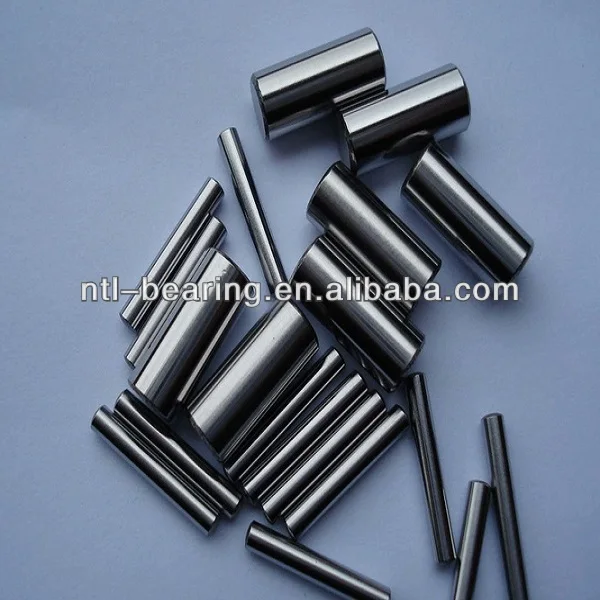

Precision Pins, Precision Shafts Chrome Dowel Pins



Precision Pins, Precision Shafts, Dowels and Dowel Pins are custom-manufactured to your specifications, with length and diameter tolerances depending upon the size and end configuration.



Crowned, rounded spherical, and chamfered ends (including chamfer on both ends) are available. All materials
are through-hardened, except carbon steel.





Size Range

Diameter: 031" to 1.000" (.787mm to 31.750mm)
Length: 125" to 3.000" (3.17mm to 76.2mm)



Standard Material

- 52100 chromium steel - 8620 alloy steel
- 440C stainless steel - 1008/1010 carbon steel



Design Attributes

Needle rollers with a controlled contour profile are available to reduce end stresses.
Special end forms provide performance benefits for specific kinds of applications.



Application

- Alignment pins



- Cylindrical roller bearing



- U-Joints (needle rollers)



- Small motor shafts

- Mechanical timer pins

- CV Joints

- Clutches

- Starter Drives



Other Applications for Dowel Pins

- Rolling elements in bearings (needle roller bearings, thrust bearings, etc.)



- Universal joints

- Constant velocity joints

- Roller clutches

- Cam rollers

- Rocker arms

- Transmission pins











                                   Welcome to enquire for more details!
