JY A02 silicone slap band wristband bracelet making machine

Product Overview

Description

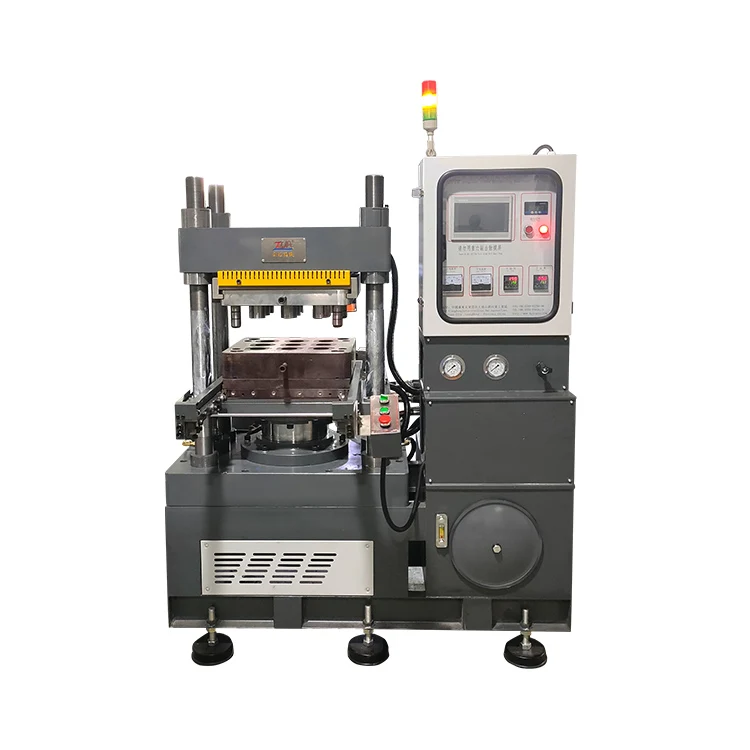

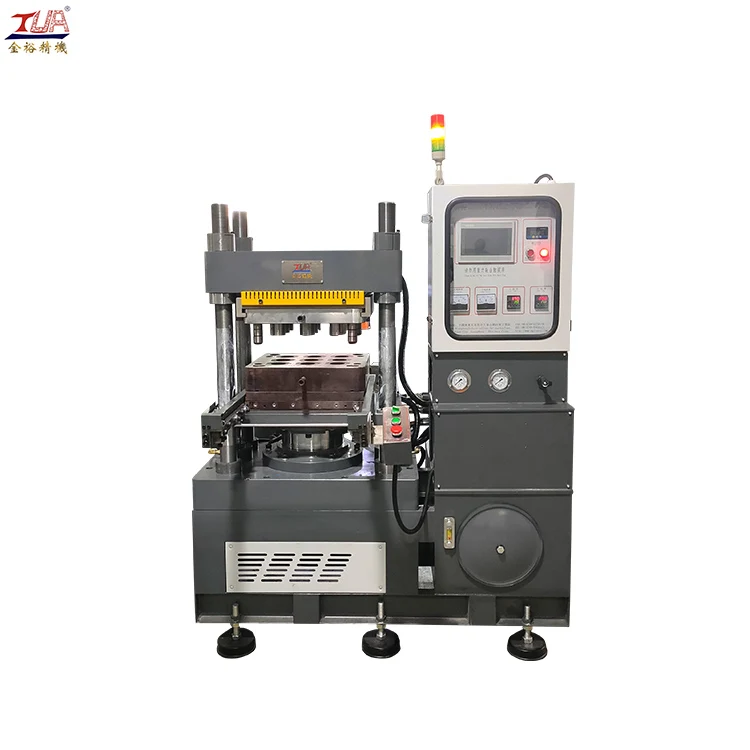

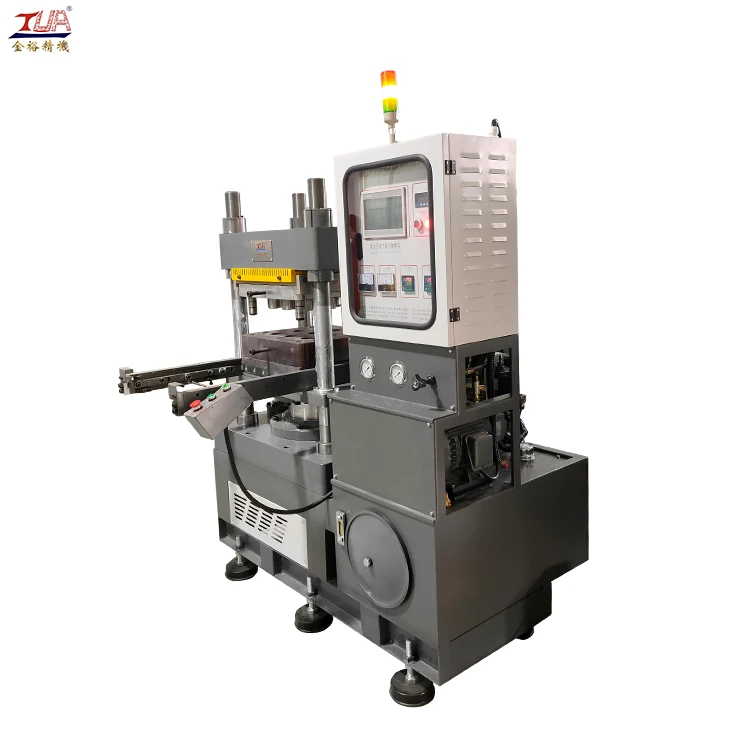

JY-A02 silicone slap band wristband bracelet making machine

application of silicone  wristband making  machine:

wildly applies  to  variouis silicone products ,like :mobile phone cover ,trademark   gifrs ,cup coaster  ,  USB   case  ,  wristband , keychain  oil and other rubber  producrs .

technical  specification of silicone  wristband making  machine:

clamping  force	100 ton
locking  moulding pressure	200kg/cm2
stroke	160mm
horse power	7.5HP
electrical power	10.8kw
gross weight	2500kg
working table size	450*450mm
size	1700*1650*1700mm

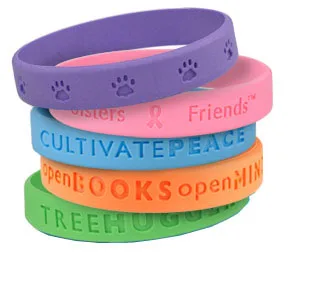

samples of silicone  wristband making  machine:

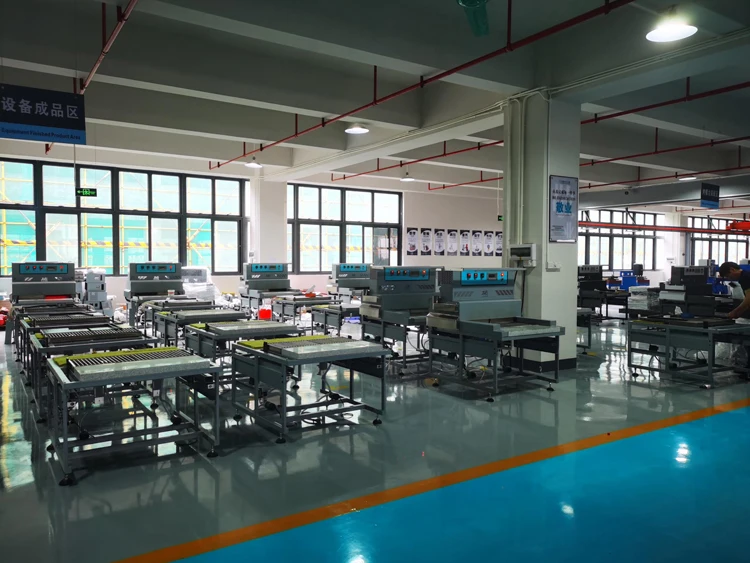

factory  workshop:

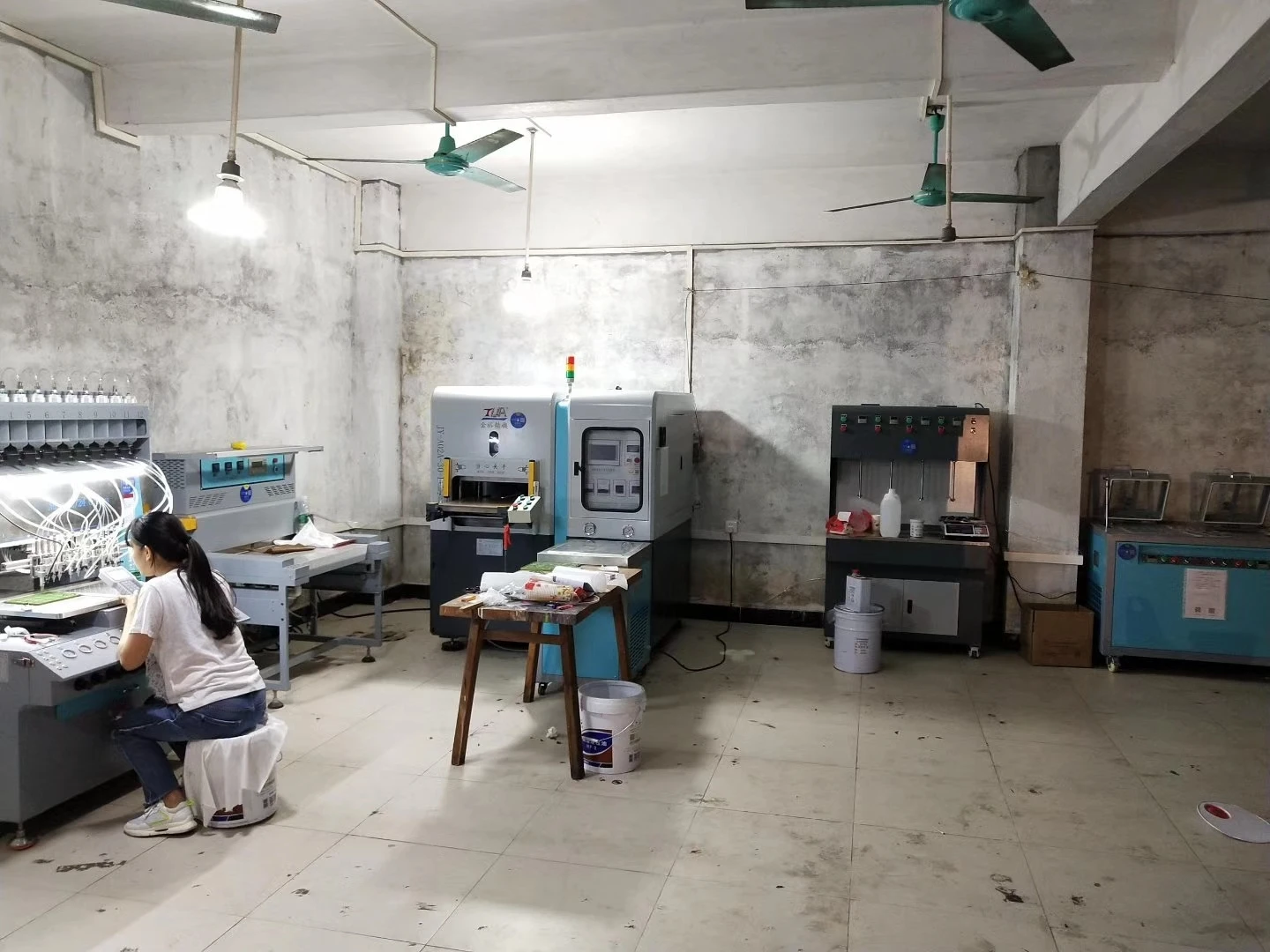

customers' factory:





main features of silicone  wristband making  machine:

1),adopt  the world advanced SOLIDEWORK 3D sofeware and  finite element  analysis of  mechanical design,the optimum design is integrally  molded high rigidity  ,precise structure ,long service  life.

2),heating plate adopt deep hole processing ,and after carburzing ,after grinding nitriding ,using the principle

of heat ,get the high p[recision ,and the optimal design with average temperature ,HRC50-55 hardness ,long time wear-resisting ,not easy to be out of shape and it has high plane  precision .

3),using the technology  of planar  pressure correction ,the maximum pressure  (200KG)nut leveling  device,the highest plane precision can reach 0.05MM

4),unique  oil  circuit design ,the oil circuit non impact and low nosie in operation ,increase the

effectiveness ,reduce the energy consumption .

5),using circulation radiation cooling device ,to ensure good heat exchange ,low oil temperature ,long life hydraulic parts,stability  forming .

6),intelligent  PID control output ,the difference of set temperature and actual  temperature controlled in

+ -1degree.it's  economic and energy -saving

7),importing the latest digital prototype testing technology  ,higher thermal perfomance ,better stability than the traditional design

8),adopt imported famous brand digital temperature  control ,the precision of temperature controlled in + -2 degrees  the program has a week preheating  function .
