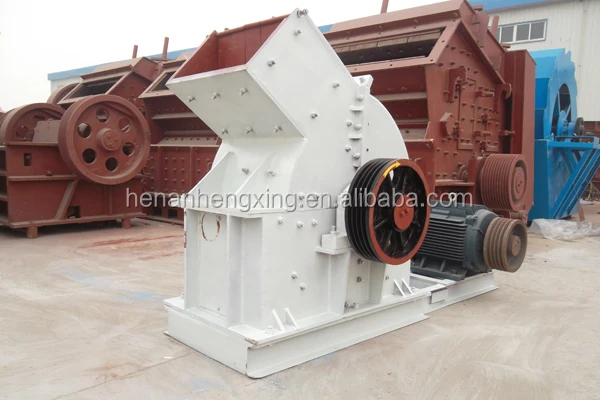

PC 400*300 Hammer Mill Hammer Crusher For Coal,Coke,Gypsum,Clinker
- Category: >>>
- Supplier: Zhengzhou Hengxing Heavy Equipment Co. Ltd.
Share on (1743686535):
Product Overview
Description

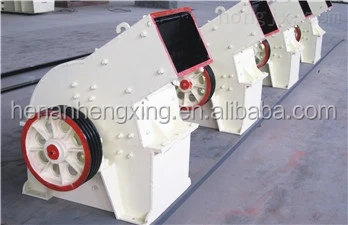

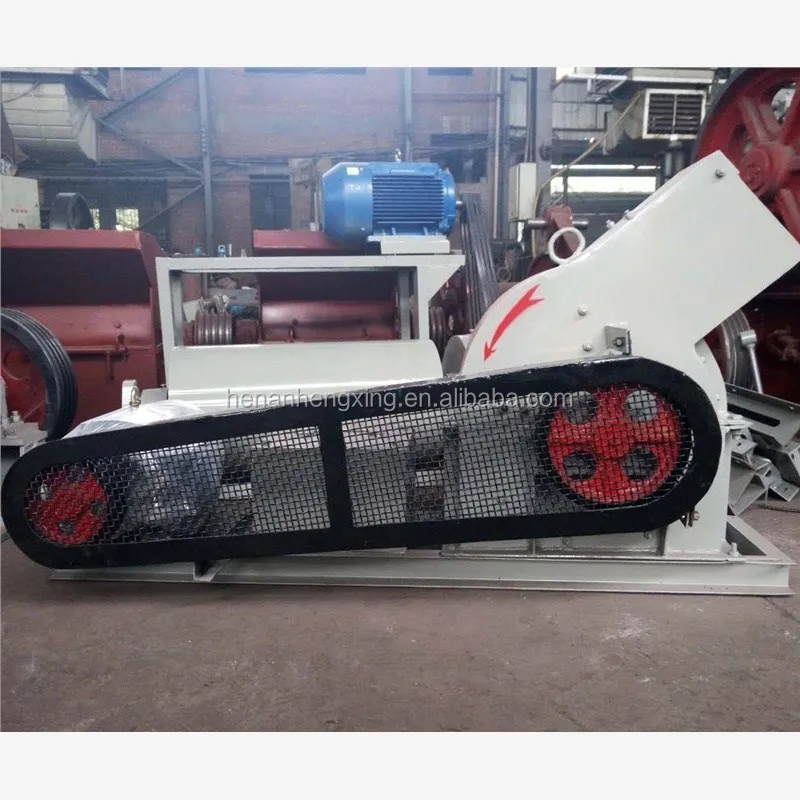

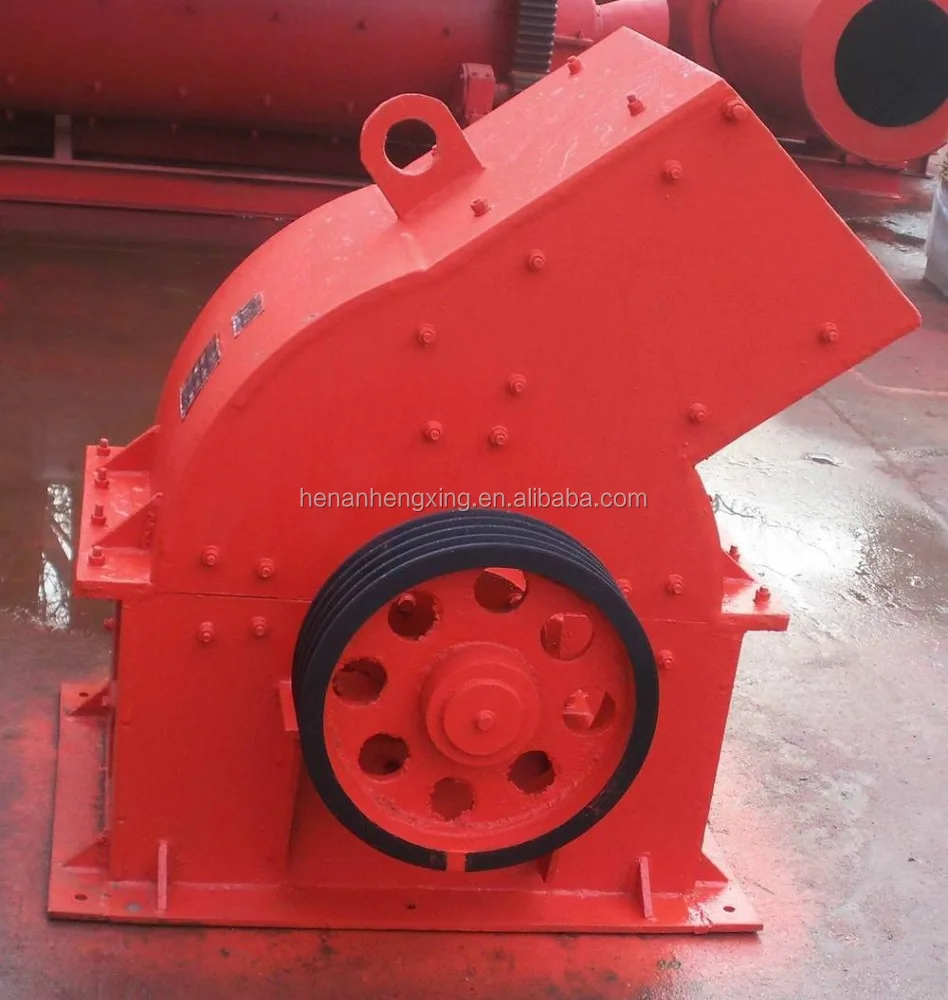

PC 400*300 Hammer Mill Hammer Crusher For Coal,Coke,Gypsum,Clinker
Product Description
The Application of PC hammer mill crusher:
PC hammer mill hammer crushers were developed for the both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and Petroleum & Chemical industries.The capacity of our hammer crusher varies from 8~80 t/h.And the weight of our hammer crusher varies from 0.8~6.5 ton.

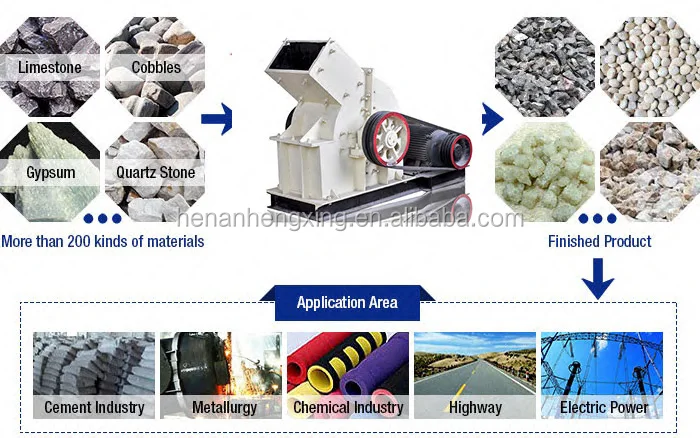

Processible materials: limestone, furnace slag, coke, cola, salt, chalk, gypsum, alums, iron ore, non-ferrous metals, granite, quartz stone, sandstone, cobbles etc.
Application range: cement plant, metallurgy department, electric power department, construction material industry, mining and road construction industry.

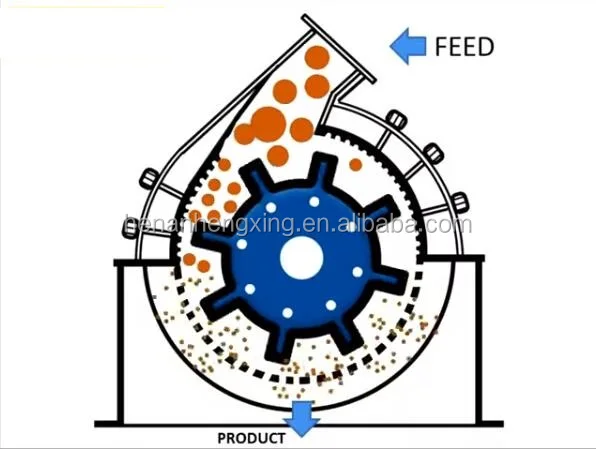

Hammer mill hammer crusher working principles:
PC hammer mill hammer crusher crushes material by impacting it against a rotating hammer, by the collisions between high-speed hammer and material.Then the material is forced against a rugged solid plate called a "breaker plate" which further degrades the particle size. Finally, the material is forced over a discharge grate by the hammers.
Hammer mill hammer crusher features:
1.Inlet large, high crushing chamber adapted material hardness, block degree, the product
powder less
2.Materials vacant, broken power consumption
3.New hammer, impact force
4.Hammer shaft mounted adjustable, hammer, long life
5.Hammer mill hammer crusher Grid size is adjustable, controllable particle size, particle shape is good
6.Chassis can be flipped, maintenance more convenient
2.Materials vacant, broken power consumption
3.New hammer, impact force
4.Hammer shaft mounted adjustable, hammer, long life
5.Hammer mill hammer crusher Grid size is adjustable, controllable particle size, particle shape is good
6.Chassis can be flipped, maintenance more convenient
7.Square shank bolts, impact resistance, wear and tear
8.Compact, machine rigidity
9.Fight structure, handling, easy to install
10.The machine shocks, counter, strike (rock stone) fragmentation functions in a high production efficiency, mechanical abrasion is small, the overall efficiency significantly, widely used in artifical sand industry
Hammer mill hammer crusher technical data:
| Specification | Feeding size(mm) | Discharging size(mm) | Output(t/h) | Power(kw) | Weight(kg) |
| PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 800 |
| PC600×400 | ≤120 | ≤15 | 10-25 | 18.8 | 1500 |
| PC800×600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
| PC1000×800 | ≤200 | ≤13 | 20-40 | 115 | 7900 |
| PC1000×1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
| PC1300×1200 | ≤250 | ≤19 | 80-200 | 240 | 13600 |

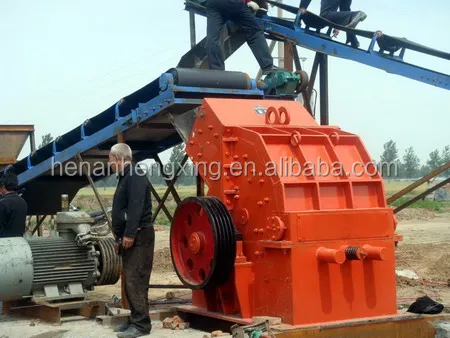

Hammer mill hammer crusher installation site :
Packaging & Shipping
The hammer mill crusher will start delivery in 30 days after payment. It will be packed in the export standard container, its main motor and spare parts will be put in the water-proof and sealed wooden case.
We promise that the hammer mill crusher will be shipped to you timely and safely.

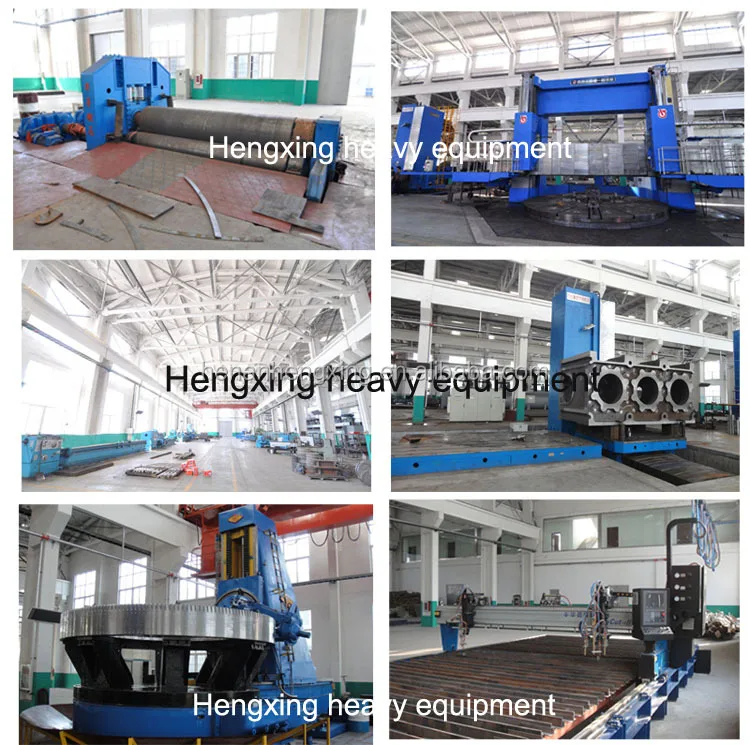

Company Information
Zhengzhou HengxingHeavy Equipment Co.,Ltd is a professional manufacturer of mining, crushing, screening and drying equipments, with a long-term supply of ore dressing and gravel aggregate industries with crushers, vibrating screens, washing equipments and belt conveyors, drying equipment,rotary kiln,AAC equipement ,etc. we persist in providing highly customized solutions according to different requirements, including single machines, and complete production lines. While expanding domestic market percentage constantly, our products are being exported to Europe, Africa, Central Asia, Southeast Asia, South America, North America, Australia and so on, more than 20 countries and regions totally.
Our Services
- Pre-sale service
Provide you with project and process design, formulate the plan for purchasing, design and manufacture the products according to your special requirements and train your operators.
- Selling service
Help you to check the equipments before acceptance, draw up the construction scheme and the detailed process.
- After-sale service
Dispatch our technicians to your construction site to guide the installation, test the site and train your operators.
FAQ
1.How is the quality of your product?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
If product quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about Price?
We are manufacturer of 20 years experiences, and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.

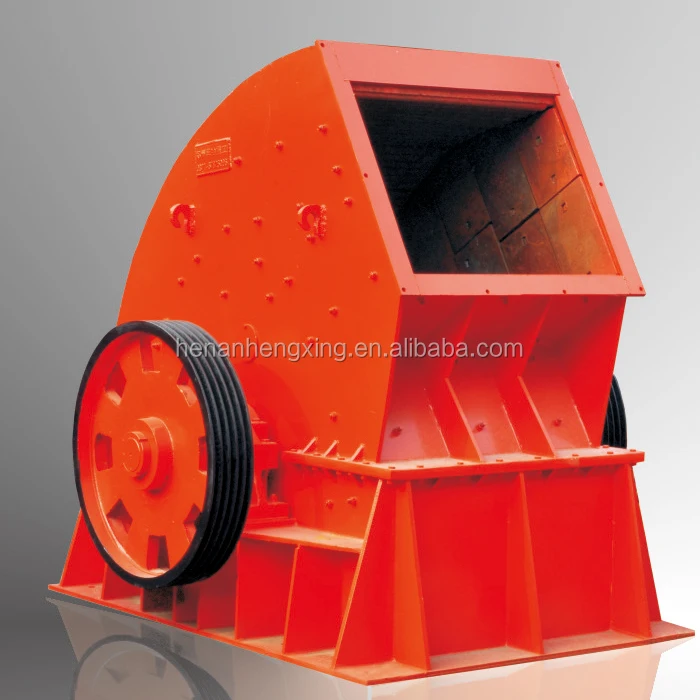

Related product:-heavy hammer crusher :
