10 Micron PP Water Filter Cartridge membrane filter

Product Overview

Description

10 Micron PP Water Filter Cartridge membrane filter



--High dust holding capacity

--High flow rates and long service life

--Reliable retention of particulates

--Wide chemical compatibility

--Ideal for viscous and colloidal liquid filtration





Application:



Industrial :	Municipal water, RO Prefiltration, reclaimed water, coolant, nozzle protection, boiler condensate
Chemical:	Quench water, aqueous salt solutions, final products
Petrochemicals:	Waterflooding, produced water, enhanced oil recovery, completion fluids, amine sweetening,final products
Electronics:	RO prefiltration, process water
Food and Beverage:	Process and blending water, bottled water
Pharmaceutical:	Process water







Specificaton (10")

Micron(um)	0.1,0.22,0.45,1,3,5,10,20,30,60,100
Filter Area	0.4-0.7m²

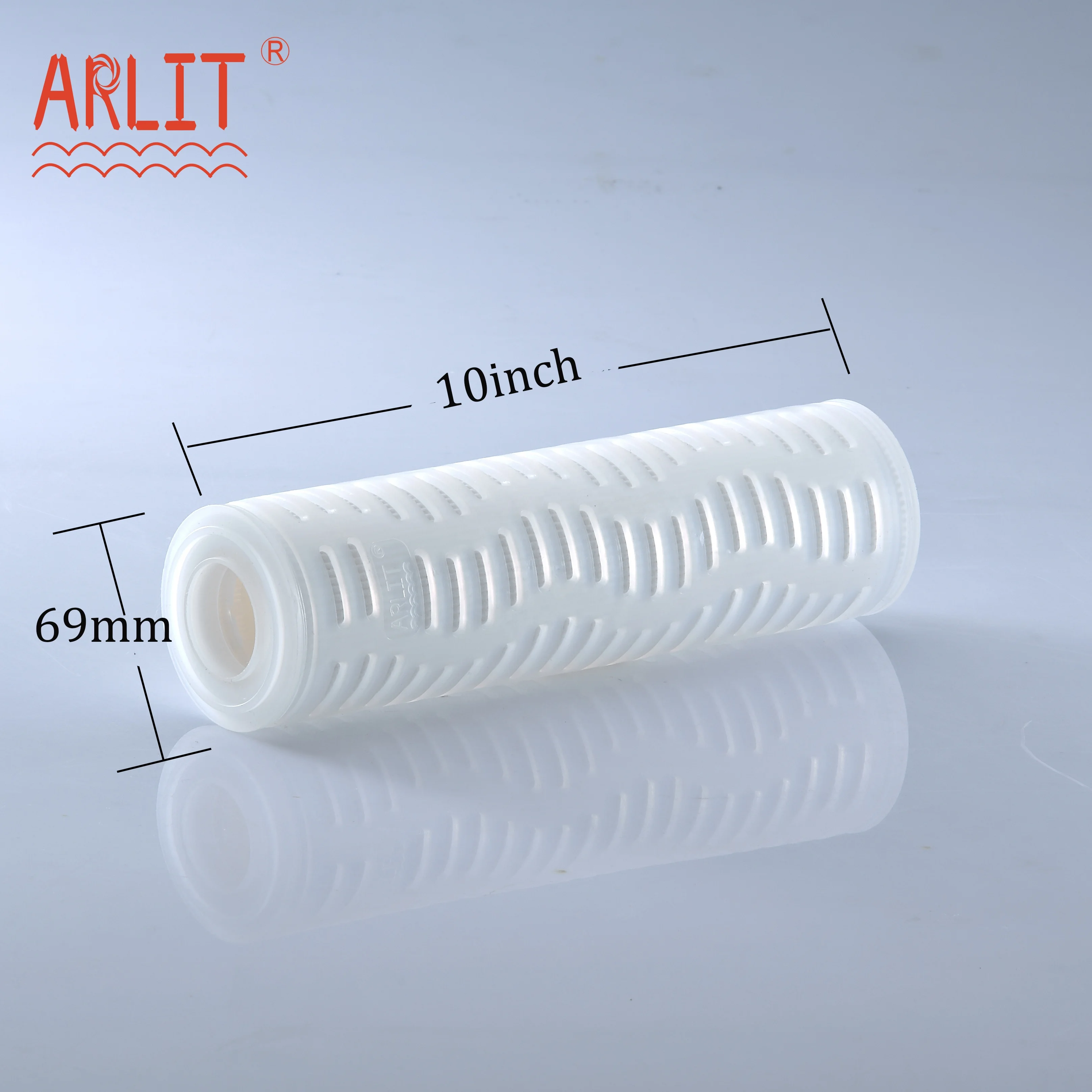

OD	69mm
Differential Pressure	ΔP≤0.42MPa at25°C
Reverse Differential Pressure	ΔP≤0.28MPa at25°C
Working Temperature	≤80°C
Sterilization Temperature	30min @121°C



Configuration:

Filter Medium	Polypropylene membrane  (PP)
Distribution Layer	Polypropylene
Core	Polypropylene
End Cap	Polypropylene
Support Cage	Polypropylene
Seal Part Material	Silicone    EPDM     NBR     Viton





Features and Benefits:

Excellent performance of chemical compatibility.

High flow rate, low pressure drop, long work life.

Better performance removal rating meets all-purpose application.

Hot melting seal enhances the strength and reduce the dissolved matter.

Pleated design provides high dirt holding and suspended solids capture.



Ordering information:

Filter medium	PP MEMBRANE
Length	5, 10, 20, 30, 40, 50 inches
Micron	0.1/ 0.2/0.45/0.65/1/3/5/10/20/30/60 microns
End caps	DOE, SOE, 222/FLAT, 222/FINS, 226/FLAT, 226/FINS
OD	69mm



Other types of water filter cartridge for your choice.























Sample Informations:

1. Sample charge: According to your design. Sampling time:5-7days


2. Sample charge: Reimbursement in regular order for existing products. Sampling time:1 day

Advantage:

1. Flexible MOQ:     1 pc is available. It can meet your promotional business very well. Lower Risk.


2. OEM Accepted:   We could produce the customed item as your wish.


3. Good Service:     We treat clients as friends.


4. Good Quality:      Professional R&D team,strict QC system.  Arlit has years on filtration   engineering system.


5. Fast & Cheap Delivery for small order Qty: Long-term stable cooperation with Fedex,DHL,UPS,SF and TNT helps us provide big discounts for clients.
