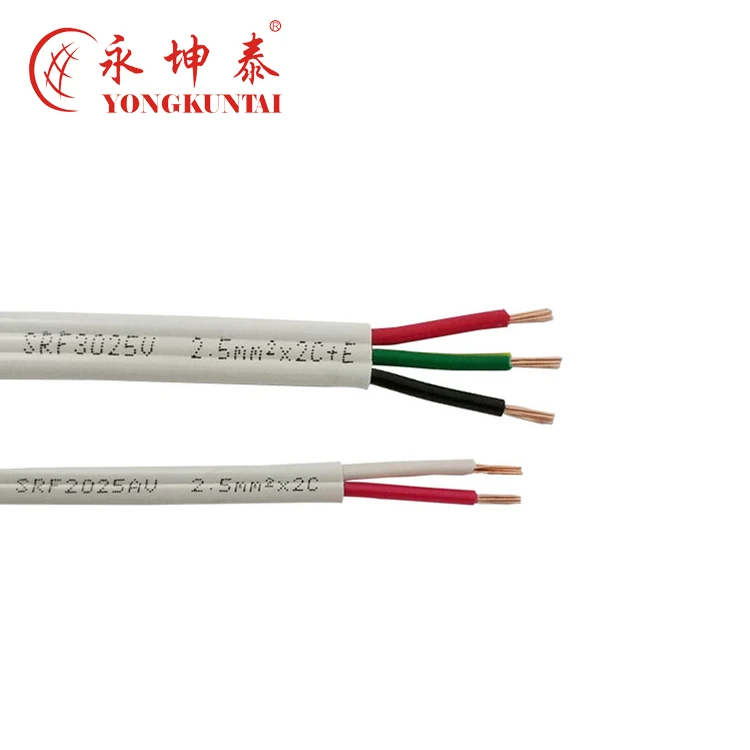

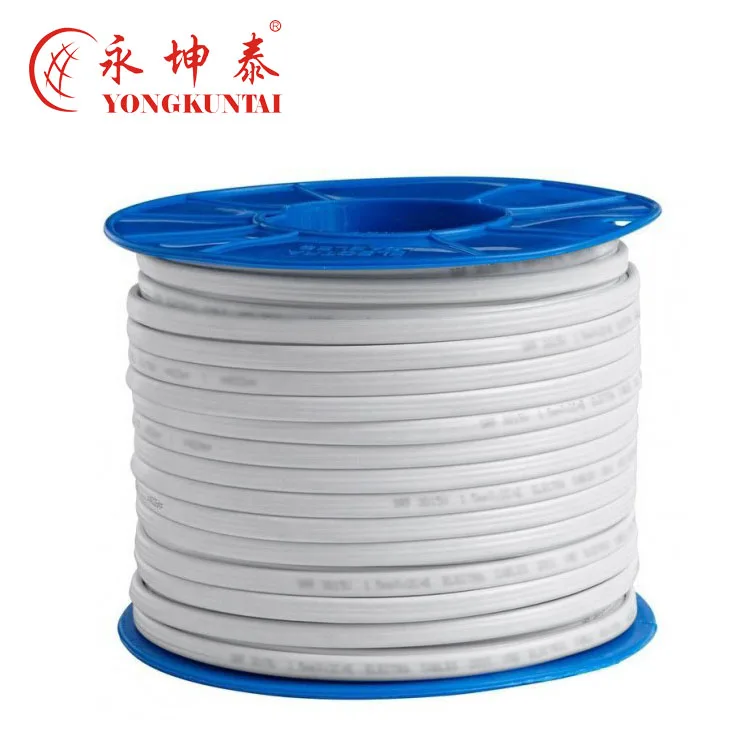

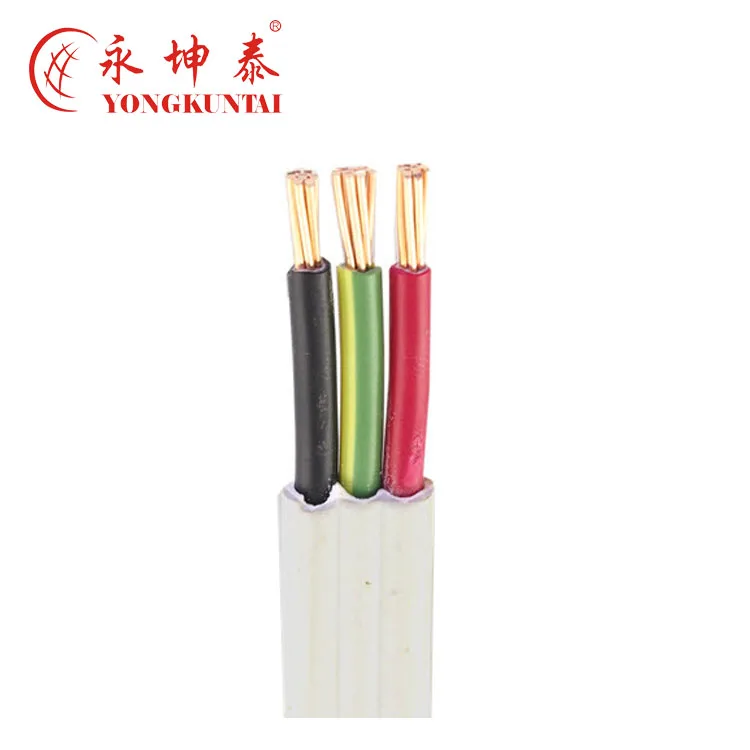

450/750V two core (2*2.5mm2) earth(2.5mm2) flat TPS electrical cable

Product Overview

Description

450/750V two core (2*2.5mm2) +earth(2.5mm2) flat TPS electrical cable



Porduct name	450/750V two core (2*2.5mm2) +earth(2.5mm2) flat TPS electrical cable
size(mm²)	1,1.5,2.5,4,6,10,16
Insulation Material	PVC
Sheath/Jack/coating Material	PVC:EU RoHS environmental protection and low smoke halogen free material
Conductor Material	Anaerobic Copper Wire:Pure 99.99% Copper Conductor
Rated Voltage(V)	300/500
Pakege	100 ,300,500 meter/roll or as you wish
Delivery period	20-40 days,depending on your order quantity and destination
Sample service	support





For England cable

Standards: BS6004

Flame propagation: BS EN 50265.

Conductor: Plain Annealed Copper Conductor

Insulation: PVC

Insulation Colours: N/A

Bedding: N/A

Armouring: N/A

Sheath: PVC

Sheath Colour: Grey

Voltage Rating: 300/500 Volts

Temperature Rating: -15°C to +70°C

Should not be installed at temperatures below 0°C or above +60°C.

For more information please consult a member of the Cleveland Cable Sales Team.

CORE IDENTIFICATION

1 Core -  Brown   or  Blue
2 Core -  Brown         Blue
3 Core -  Brown         Blue     Grey

Nominalcrosssectionalarea/ CPC(mm²)	Approx.overalldiameter(mm)	Approximatecableweight(kg/km)	Maximumconductorresistanceat 20°C(Ohms/km)	Shortcircuitrating ofconductor(1 sec)(kA)	Current rating			Volt dropDC orsinglephase AC(mV/A/m)	Volt dropthreephase AC(mV/A/m)
					DC or Single phase AC clipped direct (Amps)	DC or Single phase AC enclosed in conduit in an insulated wall (Amps)	Three phase AC clipped direct (Amps)
single core
1.0/1.0	4.5x5.6	41	18.1	0.12	16	11.5	13.5	44	38
1.5/1.5	4.7x5.8	49	12.1	0.17	20	14.5	17.5	29	25
Two core
1.0/1.0	4.5x8.2	68	18.1	0.12	16	11.5	-	44	-
1.5/1.0	4.7x8.6	85	12.1	0.17	20	14.5	-	29	-
2.5/1.5	5.3x9.9	124	7.41	0.28	27	20	-	18	-
4.0/1.5	6.1x11.4	172	4.61	0.46	37	26	-	11	-
6.0/2.5	6.8x13.1	238	3.08	0.69	47	32	-	7.3	-
10/4.0	8.4x16.8	390	1.83	1.15	64	44	-	4.4	-
16/6.0	9.6x19.5	575	1.15	1.84	85	57	-	2.8	-
Three core
1.0/1.0	4.5x10.7	95	18.1	0.12	16	11.5	13.5	44	38
1.5/1.0	4.7x11.7	115	12.1	0.17	20	14.5	17.5	29	25
2.5/1.5	5.3x12.8	170	7.41	0.28	27	20	24	18	15
4.0/1.5	6.4x16.0	155	4.61	0.46	37	26	32	11	9.5
6.0/2.5	7.0x18.1	340	3.08	0.69	47	32	41	7.3	6.4
10/4.0	8.3x22.5	550	1.83	1.15	64	44	57	4.4	3.8
16/6.0	9.5x26.3	790	1.15	1.84	85	57	76	2.8	2.4



For Australia cable

standards:national:AS/NZS 1125;AS/NZS 5000.2

       2&3 core +earth flat

       450/750v V-90 insulation

       PVC sheathed to AS/NZS 5000.2

       copper condutors,90 degree.

CONDUCTOR			CABLE							MINIMUM INSTALLED BENDING RADIUS MM
NOMINAL AREA MM	NUMBER &DIAMETEROF WIRESNO./MM	NOMINAL DIAMETER MM	NOMINAL THICK-NESS MM	NOMINAL SHEATHTHICK-NESS MM	MINIUMUM OVERDIAMETER				APPROXMASS PER100 KG
					MAJOR AXIS MM	MINOR AXIS MM	MAJOR AXIS MM	MINOR AXIS MM
1.0 e(1.5)	1/1.13	1.13	0.6	0.9	9.1	4.5	9.3	4.6	8.0	20
	7/0.5	1.50	0.6
1.5 e(1.5)	7/0.5	1.50	0.6	0.9	9.8	4.5	10.1	4.6	9.1	20
	7/0.5	1.50	0.6
2.5 e(2.5)	7/0.67	2.01	0.7	1.0	12.1	5.4	12.4	5.5	14.4	20
	7/0.67	2.01	0.7
4 e(2.5)	7/0.85	2.55	0.8	1.1	13.7	6.3	14.0	6.4	19.0	30
	7/0.67	2.01	0.7
6 e(2.5)	7/1.04	3.12	0.8	1.1	14.8	6.8	15.2	7.0	23.7	30
	7/0.67	2.01	0.7

  This table is just part of the date.If you are not sure where it is what you need,you need  our support.

 package 1:2+4+5

 package 2:1+5

 package 3:3+5

 package 4:6 (this package is use for big size cable.)

Which package as you wish.



 Similar Products

 Application

1.Flat tps cable For general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts forAustralia, commercial and industrial installations where not subject to mechanical damage.



2.6241Y, 6242Y, 6243Y cable- PVC sheathed surface wiring cables, or Twin and Earth cables, are generally used in domestic wiring of fixed installations. This British standard BS6004 cable is suitable to be fixed directly onto surfaces, ran through cable tray, or, free air if there are no hazards from mechanical impact damage. The cable features plain annealed copper conductors, PVC insulation and a grey PVC sheath.
