G80 European Type Connecting Link

Product Overview

Description

G80 European Type Connecting Link

Material: alloy steel

Heat treatment: tempered and quenched

Surface treatment: powder coated

MBL: 4 times WLL

Sizes: from 6mm-32mm





20RH470 G80 EUROPEAN TYPE CONNECTING LINK

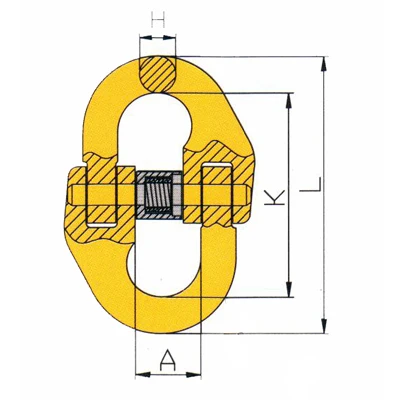

Item No./Size(mm)	Weight/KG	WLL/T	MBL/T	A	L	K	H
20RH470-06	0.08	1.12	4.48	15	58	42	7
20RH470-07	0.145	1.5	6	19	71.8	54.8	8.5
20RH470-7/8	0.146	2	8	18	79.5	62.5	8.5
20RH470-08	0.16	2	8	18	79.5	60.5	8.5
20RH470-10	0.3	3.15	12.6	25	93	68	10.8
20RH470-13	0.7	5.3	21.2	29	117	87	15
20RH470-16	1.1	8	32	34.5	148	108.4	19.8
20RH470-18	1.84	10	40	38	154	112	21
20RH470-18/20	1.8	12.5	50	41	169.5	121.5	24
20RH470-22	3.2	15	60	48	193.5	141.5	26
20RH470-26	4.5	21.2	84.8	57.5	220	158	30
20RH470-32	9	31.5	126	67	281	205	37

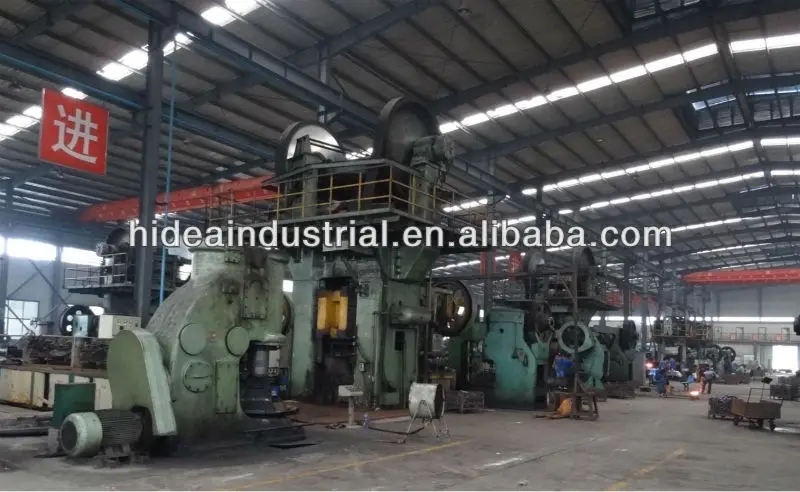

Qingdao Hidea Industrial Co. was established in early 1990s, located in Qingdao - a northern coastal city in China with convenient traffic facilities & communication means. In the year of 2007, Qingdao Hidea Industrial & Trade Co., Ltd. was established with incorporation of different manufacturing bases and gained more powerful supply & service capabilities.We manufacture and supply rigging hardware ,wire rope, chain, lifting products.our products are of high quality and competitive price. for detailed informations, please visit our website : www.hidea-intl.com





G80 European Type Connecting Link Hammerlock Coupling link

Material: alloy steel

Heat treatment: tempered and quenched

Surface treatment: powder coated

MBL: 4 times WLL

Sizes: from 6mm-32mm
