Kaishan Hot sale KA 30 piston hand operated air compressor

Product Overview

Description

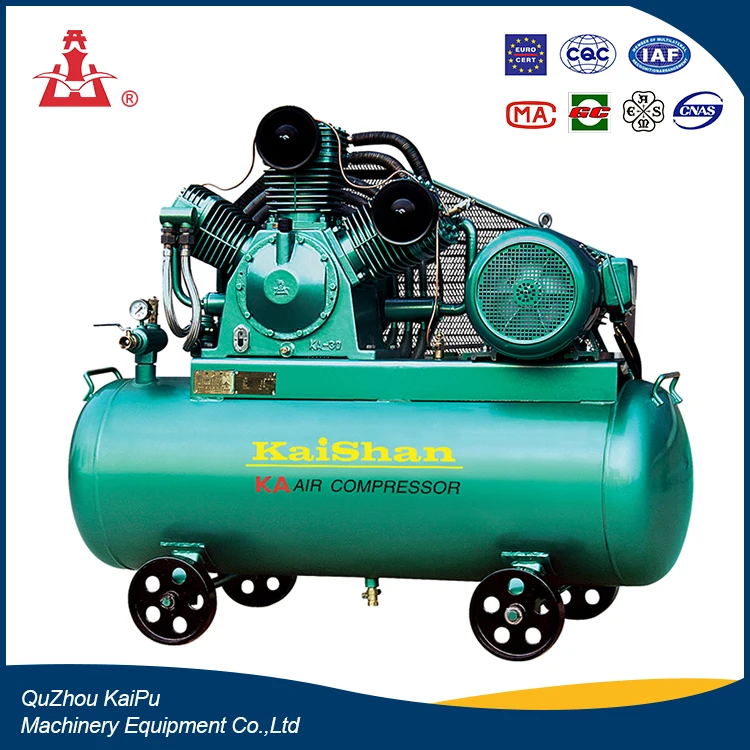

Kaishan Hot-sale KA-30 piston hand operated air compressor



  1.Model: KA-30

  2.Power: 30HP 22KW
  3.Pressure:0.8Mpa
  4.Capacity: 3m³/min
  5.Tank: 450L
  6.Suitable for 24 hours to work



  7.ISO,CCC,ROHS

Application

This seires air compressor widely used in pneumatuic lock, pneumatic tool, tire inflation,blowing process,spray, paint,sand bklsting and fluidic element.

Characteistics

a.Strongly power driven and big air end with design, the air compressor owns bigger and heavier main parts than other products in the same trade with better selection and sufficient using of materials especially with main fittings, In addition ,it is more suitable to be applied in the continuous operation under heavy load for long working time with higher reliability and longer lifespan



b.Special designed is made in heat emission and air flow, which leads to low air-output temperature and low  possibility of carbon deposit



c.Composite ring valve is adopted in design, with the vavle plate made of stainless steel from Swden and the spring of  vavle block made of special sping steel wire from Japan withno bending motion in operation, the vavle compresses excellent property and ideal lifespan index.



d.The piston ring imported from Japan is introduce in designing pistol ring , which is durable and sealable .

 KA series compressor  Technical Parameters



No.	Model	Motor Power HP/kW	Capacity m3/min	Working Pressure MPa(kg/cm2G)
1	KA30	30/22	3	0.8(8)
2	KA25	25/18.5	2.5	0.8(8)
3	KA20	20/15	2	0.8(8)
4	KA15	11/15	1.51	0.8(8)
5	KA10	10/7.5	1	0.8(8)
6	KA7.5	7.5/5.5	0.67	0.8(8)
7	KA5.5	5.5/4	0.52	0.8(8)
8	KA4	4/3	0.4	0.8(8)
9	KA3	3/2.2	0.3	0.8(8)
10	KAH30	30/22	2.5	1.25(12.5)
11	KAH25	25/18.5	2	1.25(12.5)
12	KAH20	20/15	1.6	1.25(12.5)
13	KAH15	11/15	1.22	1.25(12.5)
14	KAH10	10/7.5	0.84	1.25(12.5)
15	KAH7.5	7.5/5.5	0.65	1.25(12.5)
16	KAH5.5	5.5/4	0.45	1.25(12.5)
