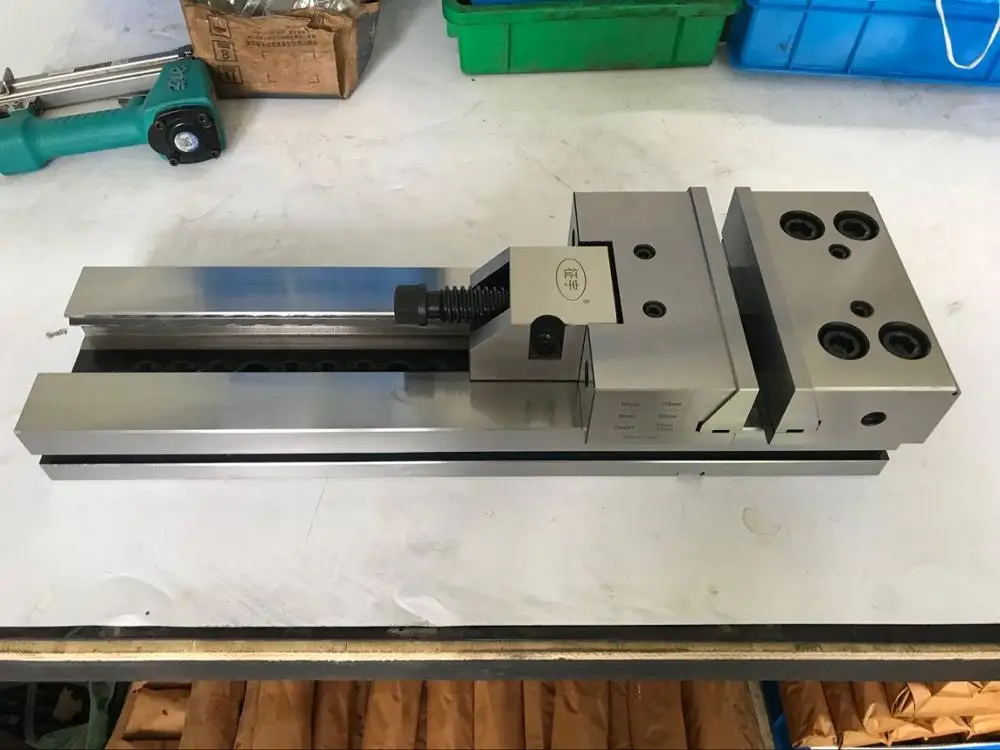

vise manufacturers for workholding GT type precision modular vise used on machining center and other precision machine tool

Product Overview

Description

vise manufacturers for workholding GT type precision modular vises used on machining center and other precision maching tool:



1)Made of high quality alloy steel.

2)Squareness and parallelism are within 0.005mm.
3)The hardness of working surface is HRC58-62 and precision ground to a mirror finish.
4)Jaws can be with V groove.

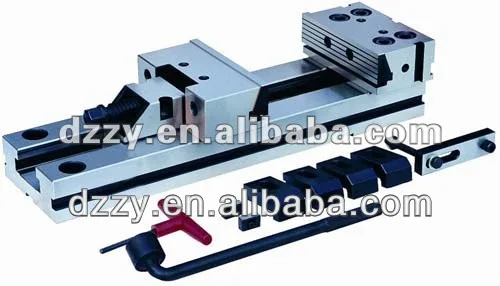

5)Clamping blocks, keys and spanners attached.

6)It have interchangeable base,fix or move jawsit is quickly.It is quickly to clamp workpiece.And easily for operation.
7)It is widely used on machining center and other precision machine.Ideal for CNC grinding.

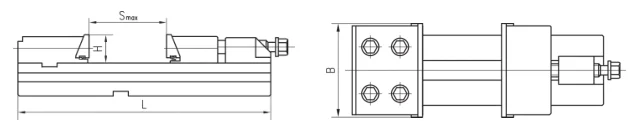

The specification is given below:



model no.	B(mm)	H(mm)	Smax(mm)	L(mm)	Max clamping force(Kg)
GT100-I	100	30	100	270	3000
GT125-I	125	40	150	345	3000
GT150A-I	150	50	200	420	5000
GT150B-I	150	50	300	520	5000
GT175A-I	175	60	200	455	6000
GT175B-I	175	60	300	555	6000
GT175C-I	175	60	400	655	6000
GT175D-I	175	60	500	755	6000
GT175E-I	175	60	600	855	6000
GT200A-I	200	65	200	495	10000
GT200B-I	200	65	300	595	10000
GT200C-I	200	65	400	695	10000
GT200D-I	200	65	500	795	10000
GT200E-I	200	65	600	895	10000
GT300A-I	300	80	200	535	12000
GT300B-I	300	80	300	635	12000
GT300C-I	300	80	400	735	12000
GT300D-I	300	80	500	835	12000
GT300E-I	300	80	600	935	12000
GT300F-I	300	80	700	1035	12000
GT300G-I	300	80	800	1135	12000
