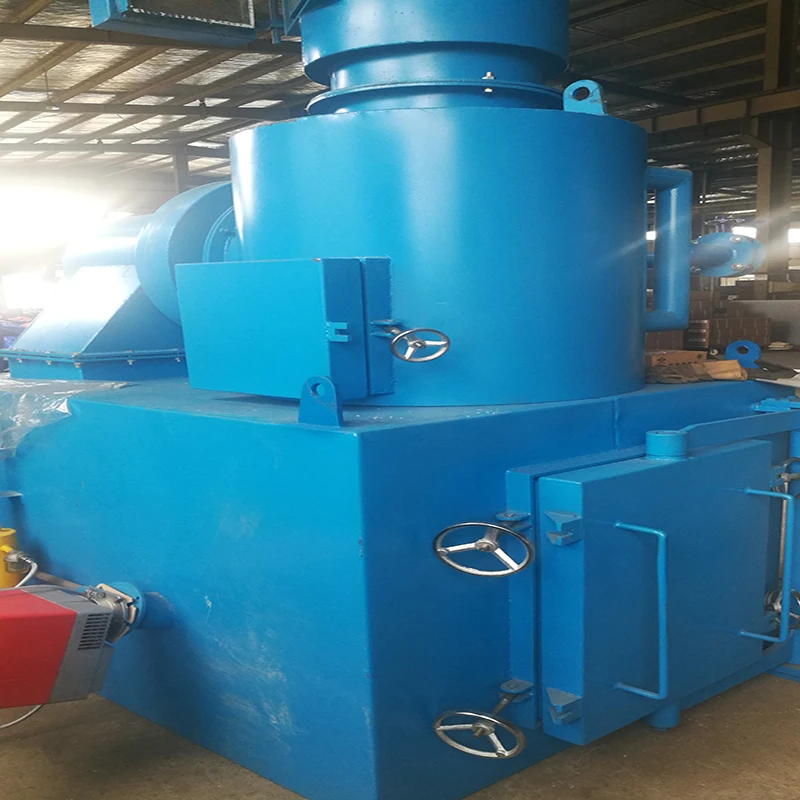

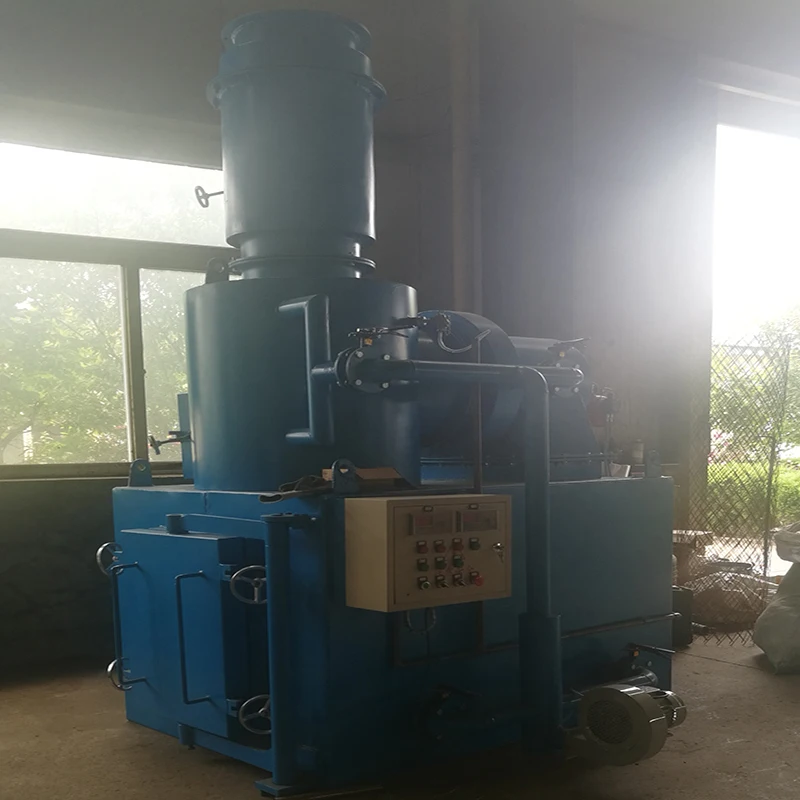

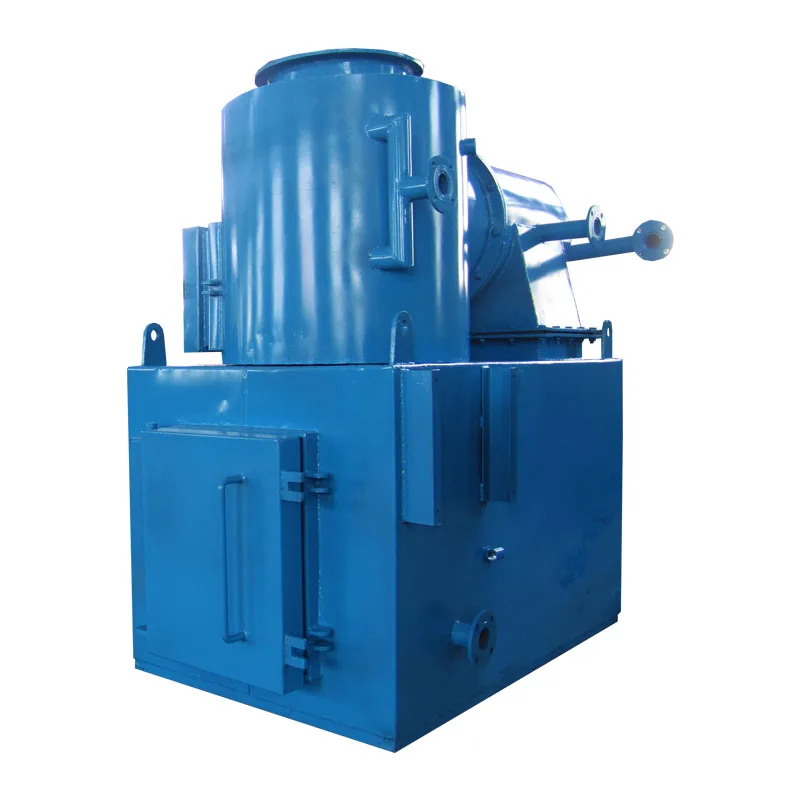

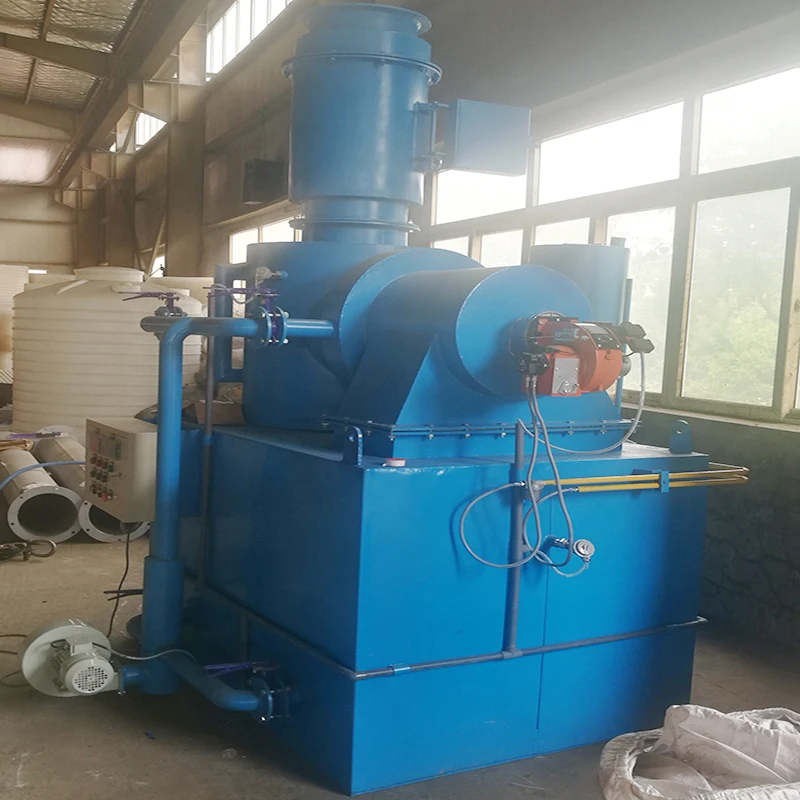

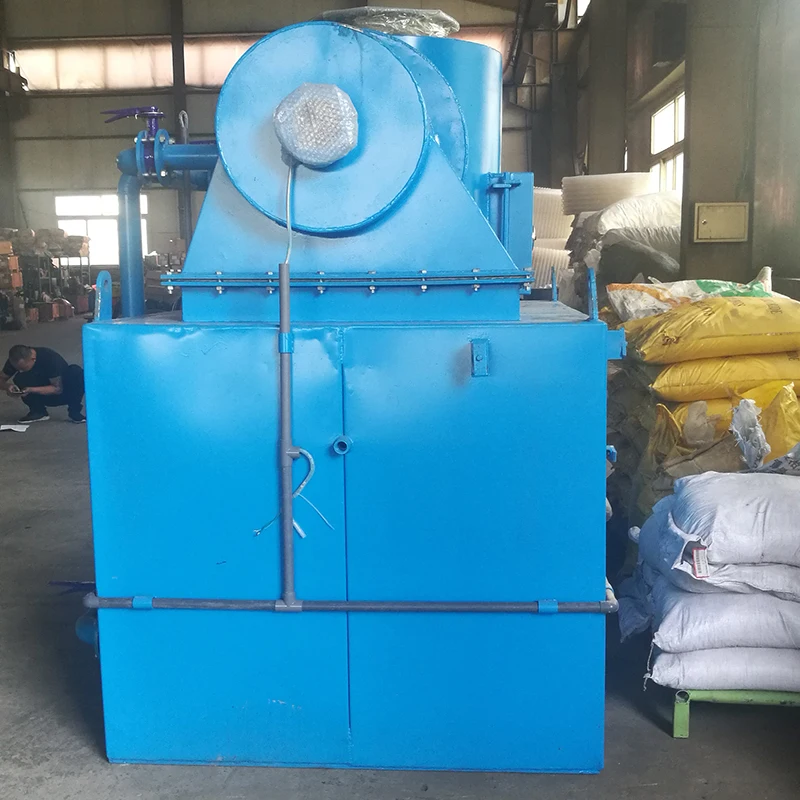

Small Waste Diesel Incinerator plants
- Category: Waste Treatment Machinery >>>
- Supplier: Qingdao Yimei Environment Project Co. Ltd.
Share on (1744270554):
Product Overview
Description
Description:
1)Multi-Function,It can disposal different kind of Waste,including medical waste,animal carcase,Industrial Waste;
2)Capacity:50kg-500kg/hour;
3)Incinerator Type: horizontal stationery grate;
4)Fuel Type:Diesel;
5)Ignite System:Electronic automatic Ignition;
6)Incinerator Pressure:-50Pa to -100Pa;
7)Designed Thermal Value:6300kj-12500kj;
8)Primary Chamber:800~850degree;
9)Secondary Chamber:1000degree;
10)Flue Gas Residence Time:2s;
11)Ash Emission :Emission from the Ash outlet door at the bottom of Primary Chamber;
Model item |
LDF-20 | LDF-30 | LDF-50 | LDF-150 | LDF-300 | LDF-500 |
Burning Capacity | 10-20KG/time 3-6 times per day | 20-30kg/time (3-6 times per day) | 30-50kg/ time (3-6 times per day) | 100-150kg/ time (3-6 times per day) | 200-300kg/ time (3-6 times per day) | 300-400kg/ time (3-6 times per day) |
Size of the Burner (m)(L*H*B) |
| 1.45*0.9*1.75 | 1.8*1.15*3 | 2*1.4*3.5 | 2.2*1.4*3.8 | 3*2*4.8 |
Size of the filling entrance (mm) |
380*480 | 480*600 | 620*800 | 760*960 | 900*1100 | 1080*1280 |
Chimney(mm) | Ø280(OD) | Ø280(OD) | Ø280(OD) | Ø300(OD) | Ø400(OD) | Ø460(OD) |
Air-blower |
0.25kw | 0.37kw | 0.37kw | 0.5kw | 1.1kw | 1.1kw 0.55kw |
Auxiliary machine | Power 0.11kw oil consumption 4-6kg/h | Power 0.11kw Oil consumption 4-6kg/h | Power 0.11kw Oil consumption 4-10kg/h | Power 0.11kw Oil consumption 4-10kg/h | Power 0.22kw Oil consumption 7-14kg/h | Power 0.22kw Oil consumption 7-14kg/h |
Re-burning machine | Power 0.11kw oil consumption 4-6kg/h | Power 0.11kw Oil consumption 4-6kg/h | Power 0.11kw Oil consumption 4-10kg/h | Power 0.22kw Oil consumption 7-14kg/h | Power 0.37kw Oil consumption 10-20kg/h | Power 0.37kw Oil consumption 15-26kg/h |
Running voltage | 380V or 220V | 380V or 220V | 380V or 220V | 380V or 220V | 380V or 220V | 380V or 220V |
Weigh(kg) | 1600 | 2800 | 4500 | 7600 | 8600 | 14500 |
