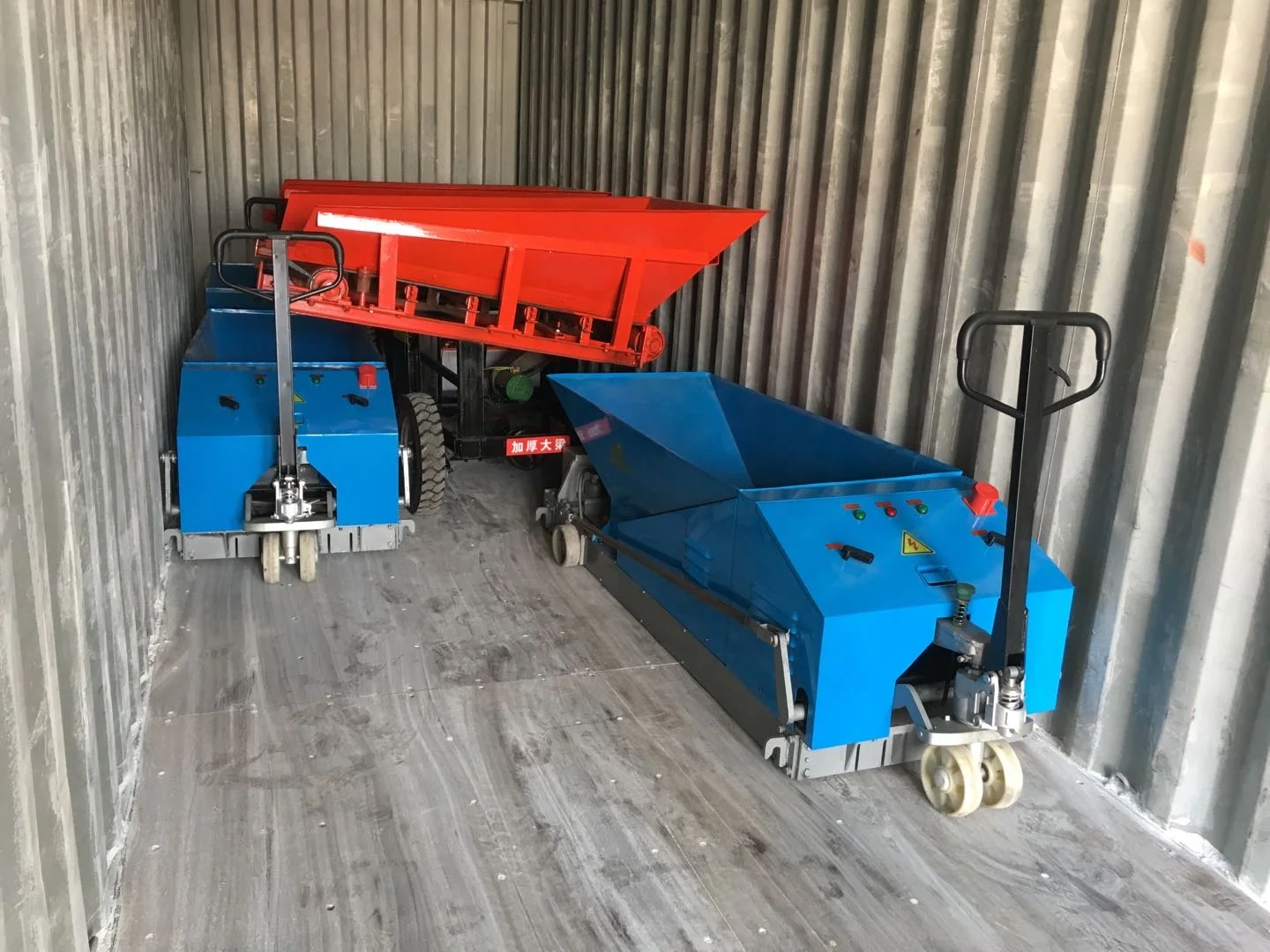

light concrete wall panel making machine

Product Overview

Description

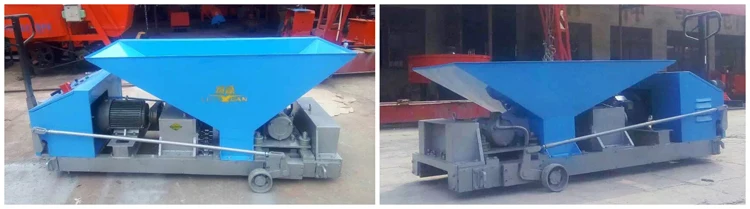

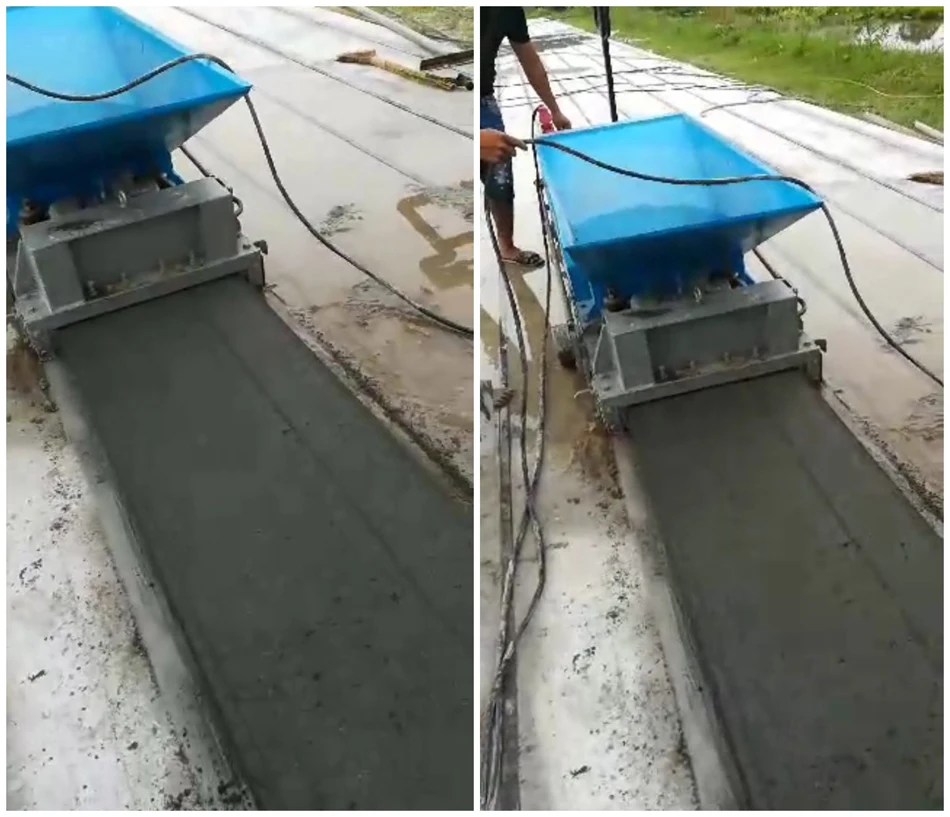

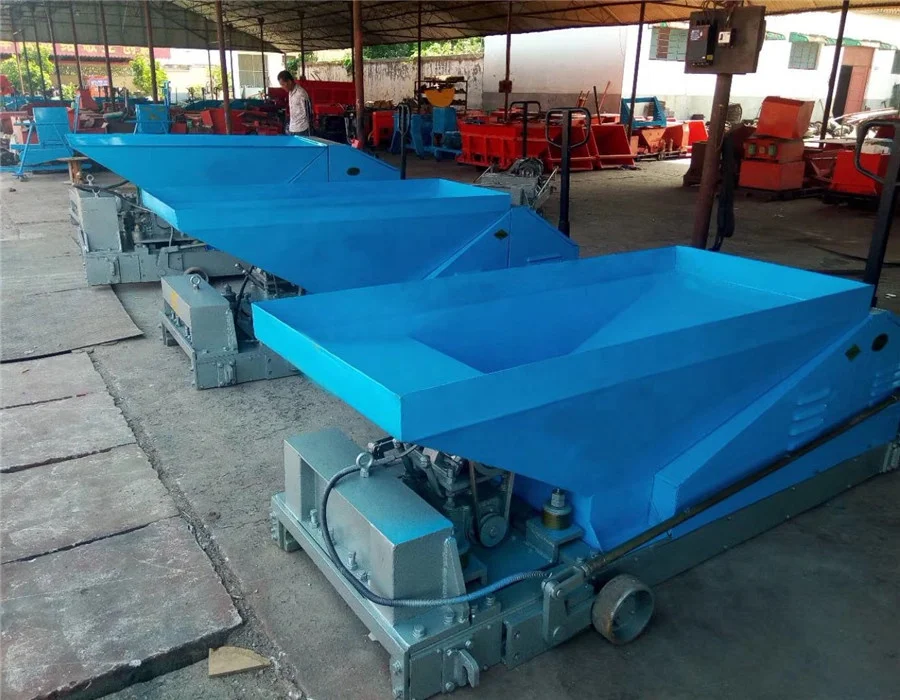

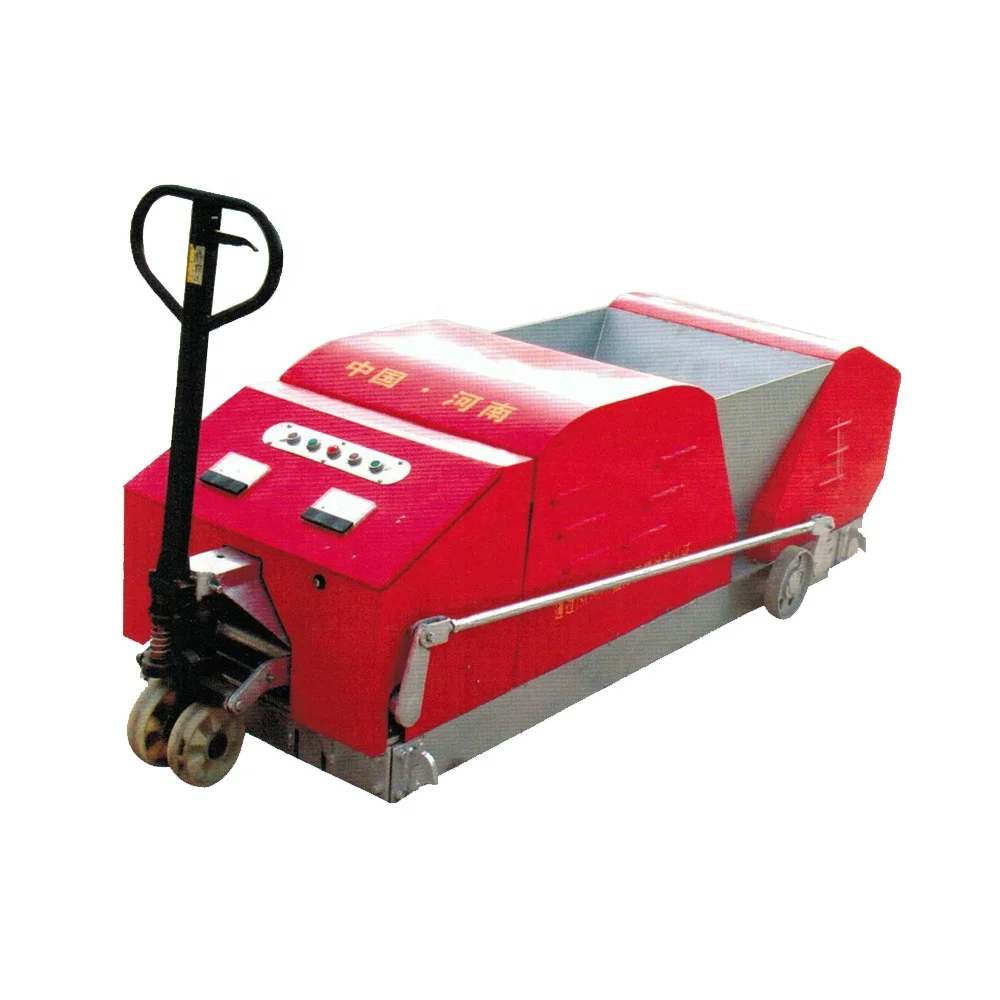

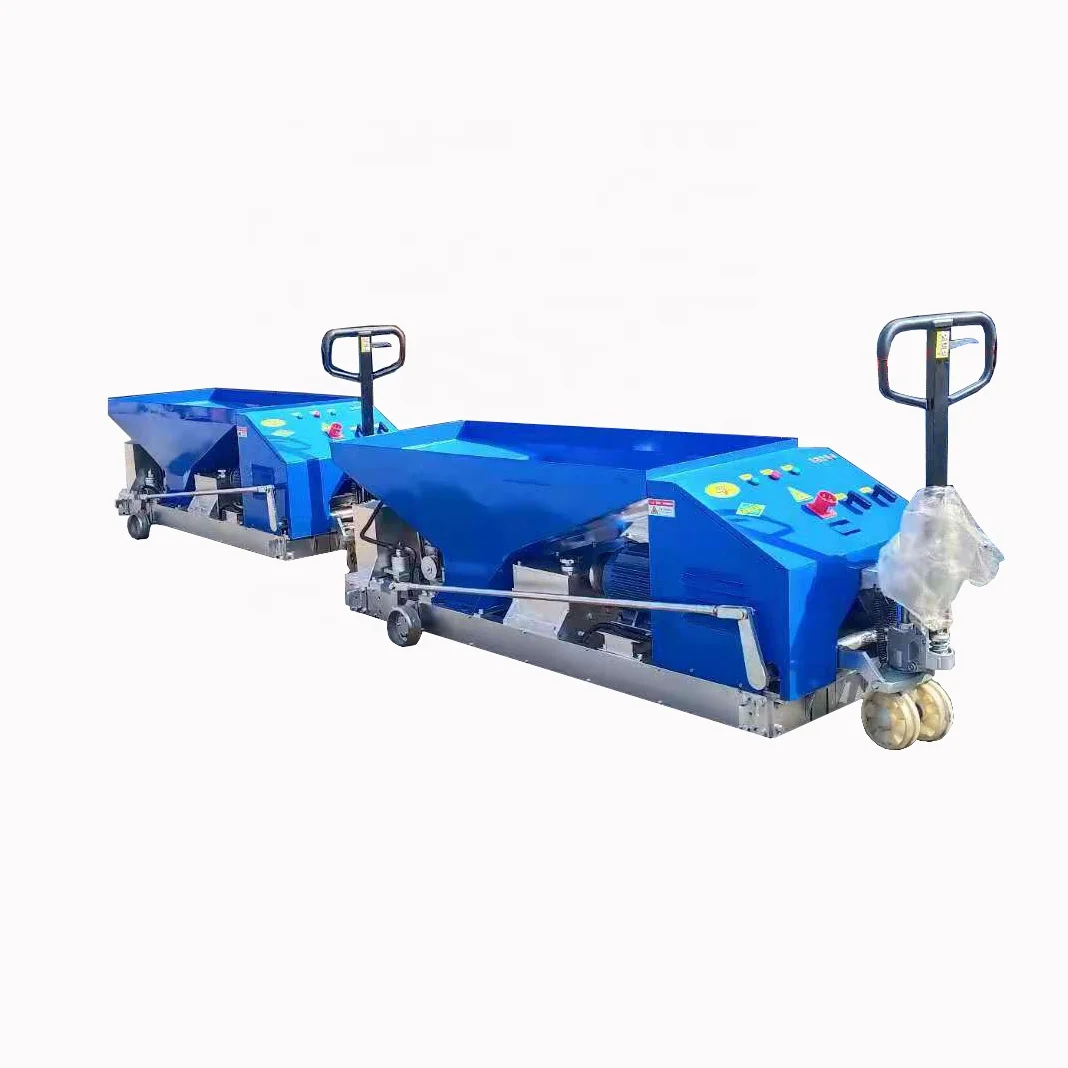

Light Concrete Wall Panel Extruding Machine

Prestretching or pretensioning rebar (1.6-2.5mm), up 4 pieces, and lower 4pcs,

Portland cement as the gelling agent

Low carbon steel wire as the reinforced material

Rich Materials: Expanded Perlite, Ceramsite, Cinder, Fly ash, River Sand, Grain Slag, Staw etc.



Specific of main machine:

Interior wall panel making machine: 80*600mm, 90*600mm, 100*600mm, 120*600mm

Exterior wall panel making machine: 150*600mm, 180*600mm, 200*600mm

Characteristics:

1-      High efficiency, can produce 1.4m~1.8m/min board;

2-      Uniform board density;

3-      High mechanization degree, hydraulic lifting;

4-      Save energy;

5-      Long lifetime, Reamer can produce more than 8000meter boards, vibration layering can produce more than 100000meters boards.



Lightweight wall panel making machine technical parameters:

Model	Slab Width (mm)	Slab Thickness (mm)	Holes Qty.* Dia. (mm)	Forming Speed (m/min)	Motor Power (KW)	Vibrator (KW)	Weight (KG)
80*600	595±2	78±1	8xΦ43	>=1.4	4	0.8	1010
90*600	595±2	88±1	7Xφ58	>=1.4	5.5	0.8	1050
100*600	595±2	98±1	7xΦ62	>=1.4	5.5	0.8	1150
120*600	595±2	118±1	5xΦ88	>=1.4	5.5	0.8	1300
150*600	595±2	148±1	5xΦ95	>=1.4	5.5	1.1	1500
180*600	595±2	178±1	5xΦ132	>=1.4	7.5	1.1	1800
200*600	595±2	198±1	3xΦ145	>=1.4	7.5	3	2000

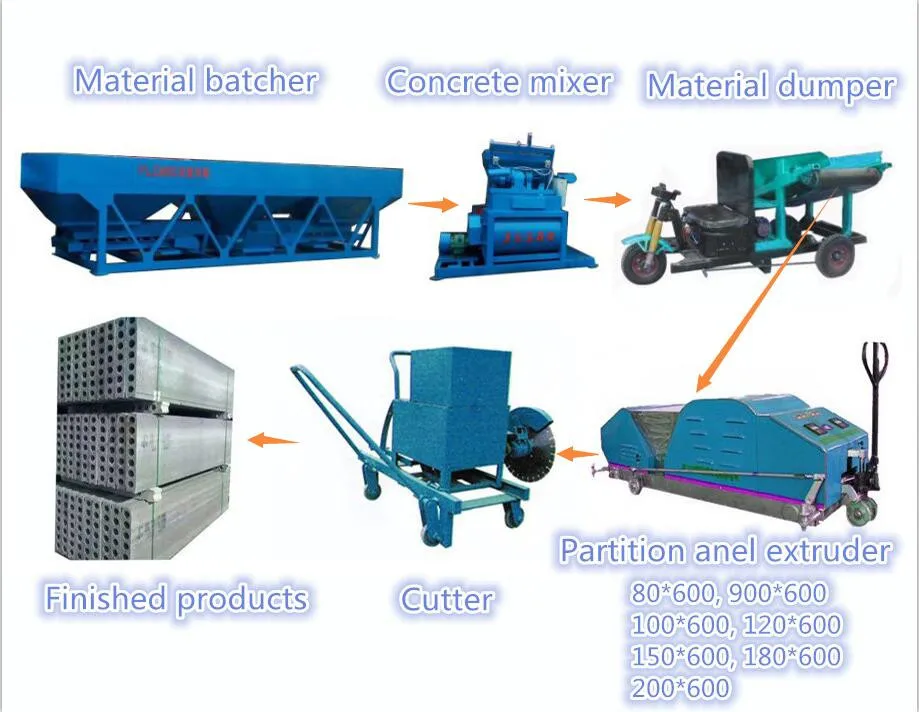

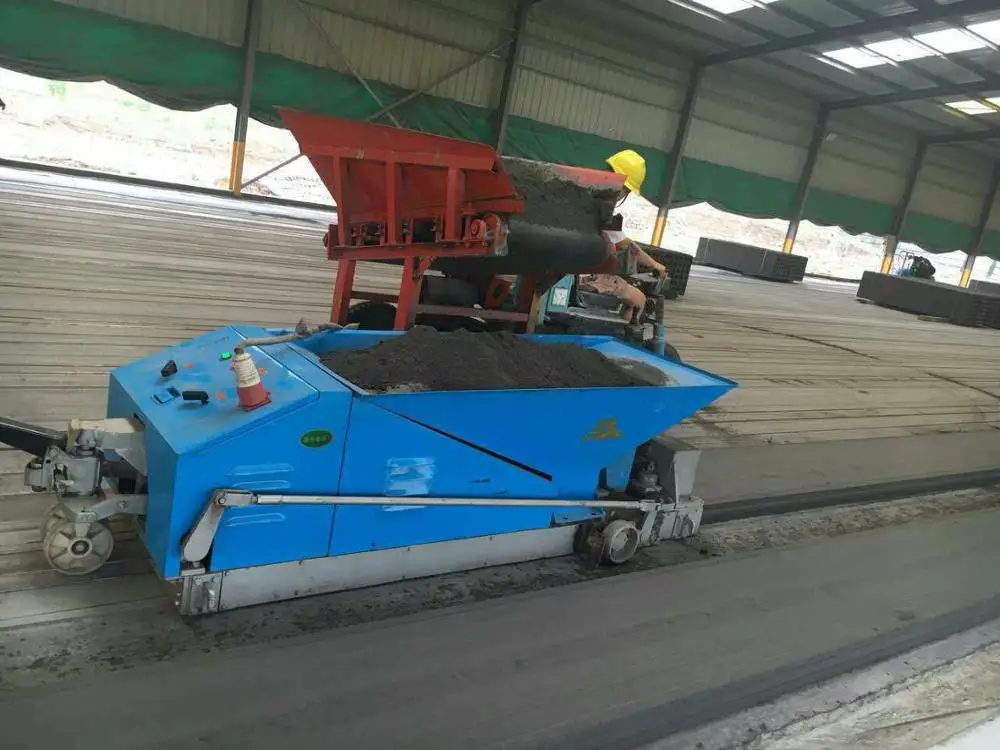

Patition panel processig line:

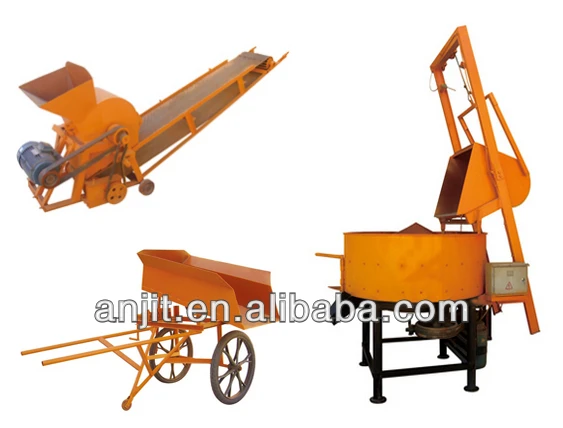

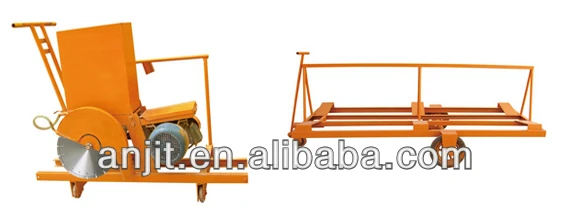

Other accessories: Screen, Crusher, Mixer, Cutter, Dumper, Board Carrier, Wire Rack, etc.

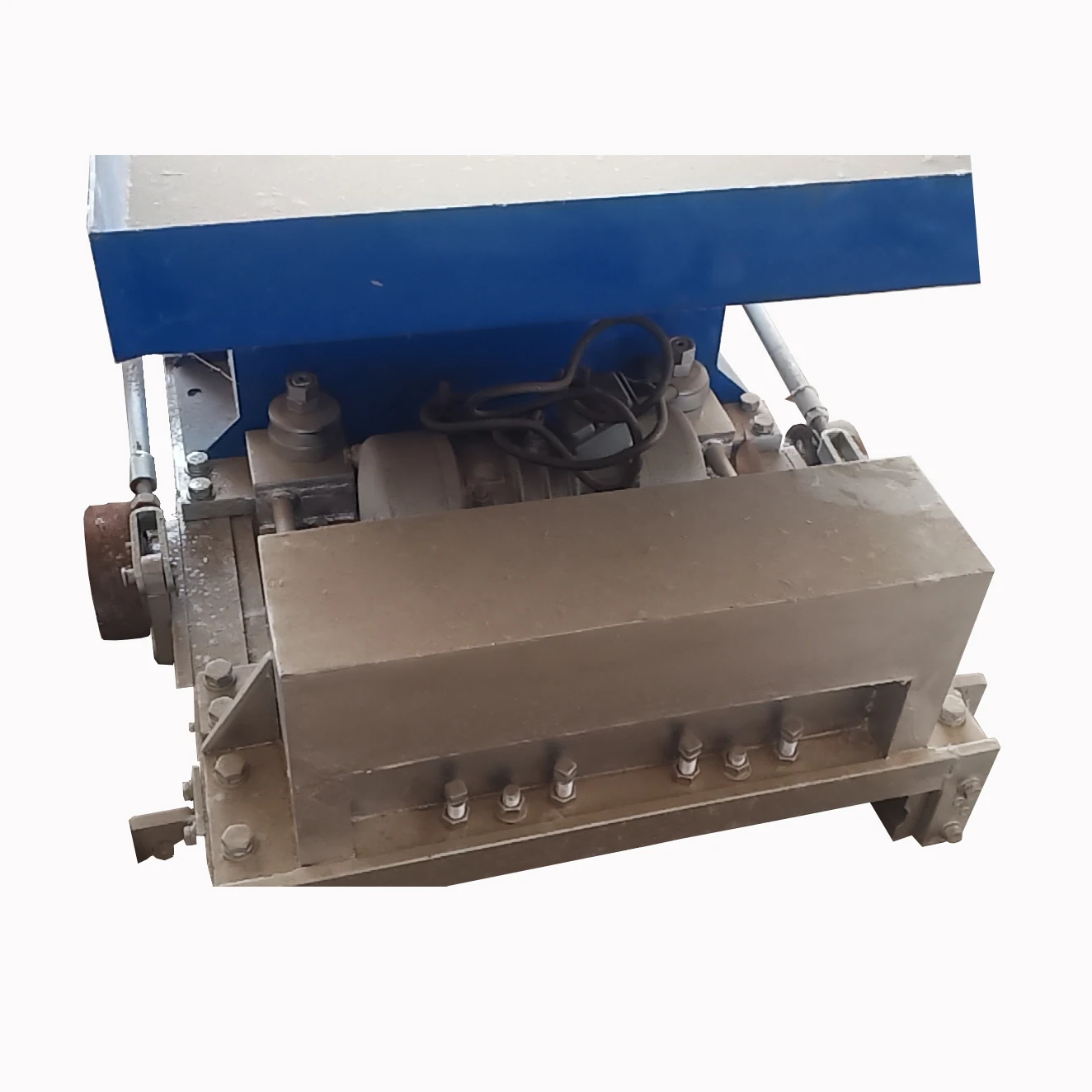

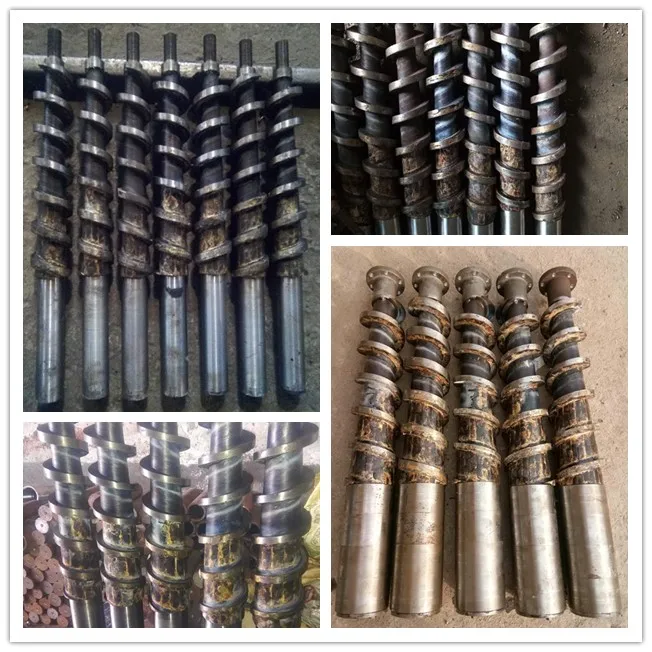

Main spare parts of insulation panel machine:

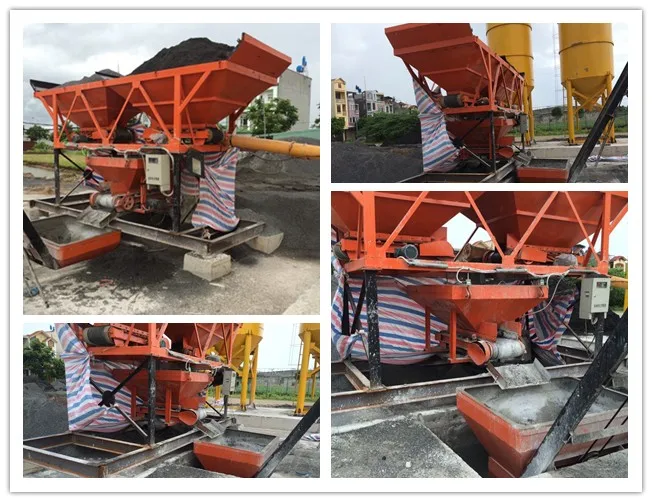

Service after sales:

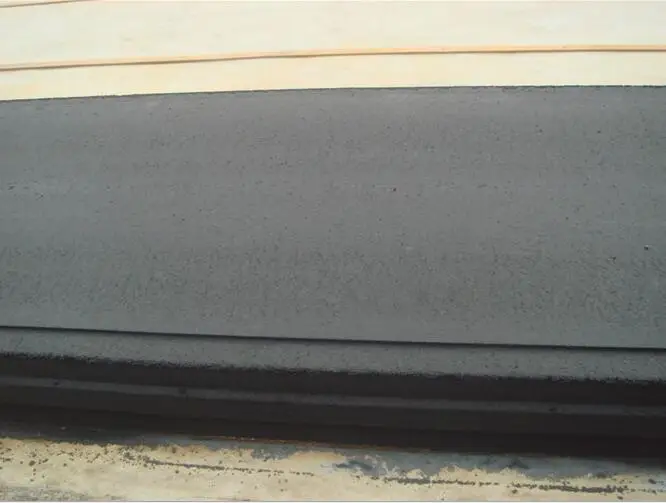

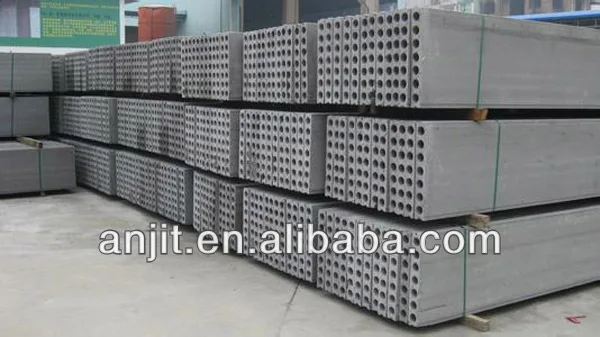

Finished Products:

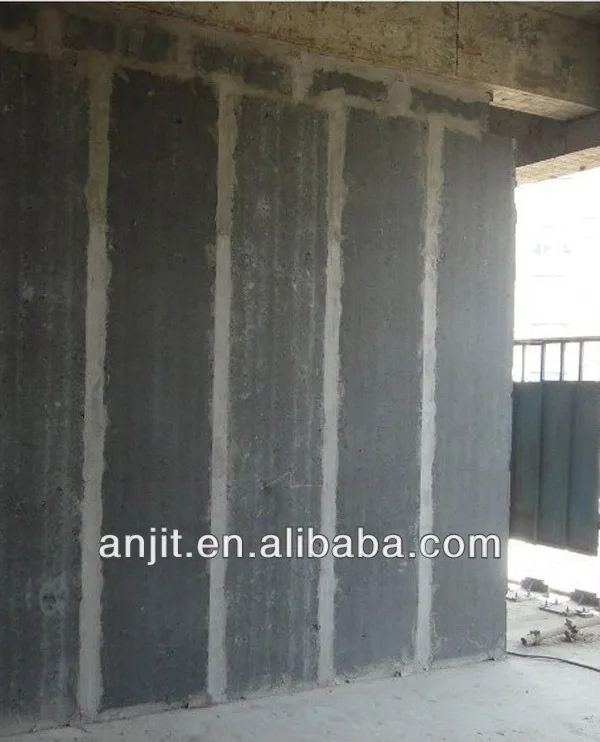

Panels for building houses:









Welcome worldwide clients to visit us and do business with us!
