Product Overview

Description

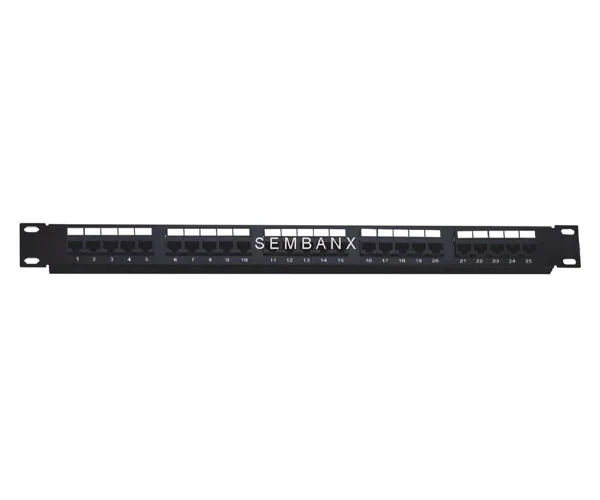

  Item name Patch Panel
  Model Number SMB-PP-CAT3-007
  IDC Type 110, KRONE,DUAL IDC
  Port 25 Port
  Height 1u Patch Panel
  Color Black
  Application Networking
  Category Cat5e/6/6A
  Packing 1pc/box
  MOQ 100pcs
  Lead Time about 7-25 days
  Payment Terms T.T / L.C / PAYPAL / WESTERN UNION
  OEM Service Welcome





CAT3 25 ports

Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC , Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC,
0.45mm(0.018") Diameter Phosphor bronze with Gold plating on contact area.
