jiangsu fabric heat insulation fiber non static fabric made in china ptfe belt conveyor
- Category: 100% Polyester Fabric >>>
- Supplier: Jiangsu VEIK Technology & Materials Co. Ltd.
Share on (1747028735):
Product Overview
Description
product introduction

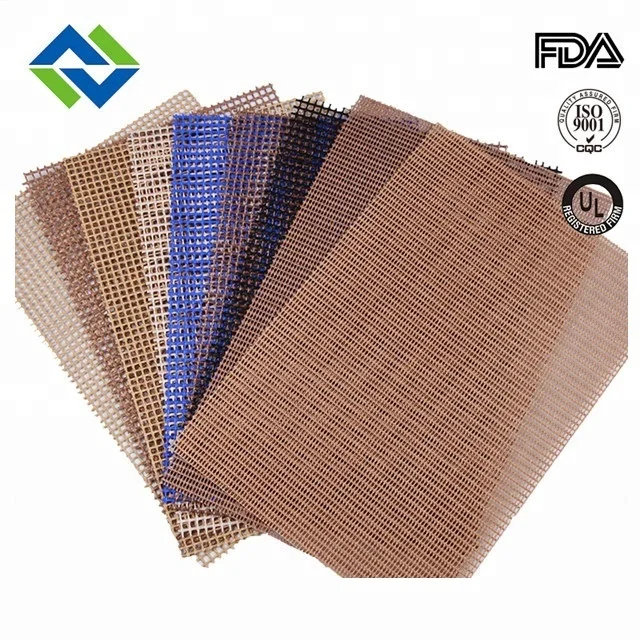

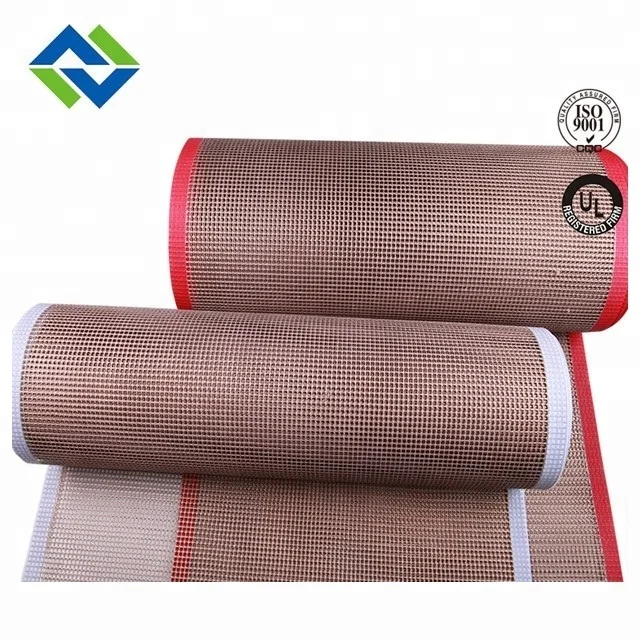

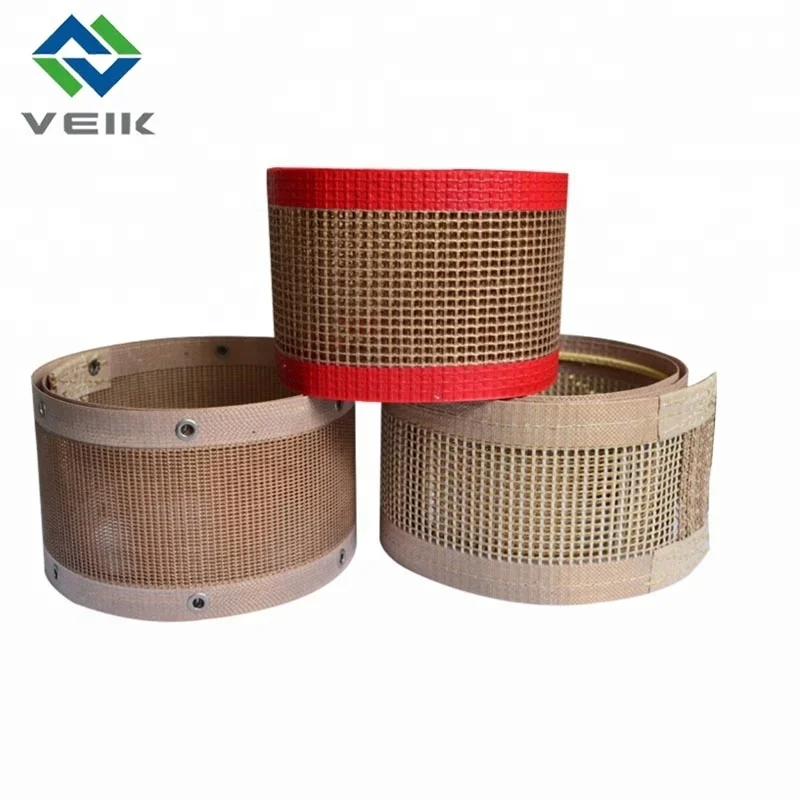

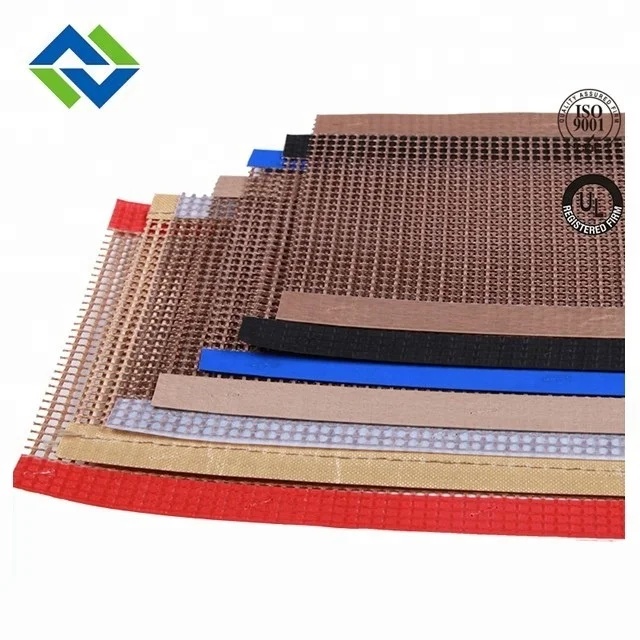

PTFE coated fiberglass mesh conveyor belt
| Item | Color |
fabric weight (g/m²)±3% |
Total weight (g/m²)±5% |
Tensile Strength (N/5cm)±5% |

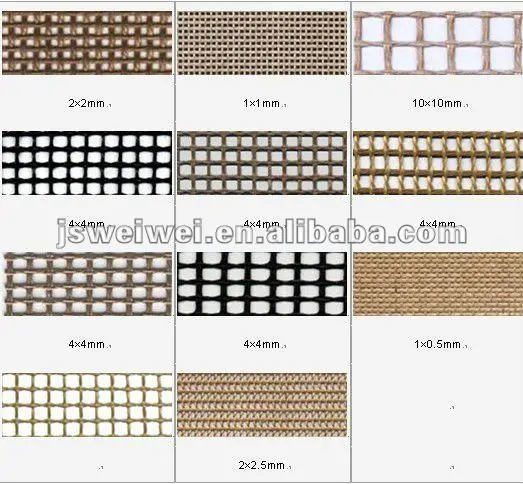

mesh size(mm) | yarn counts | ||
| warp | weft | |||||||
| 6001 | beige | 367 | 440 | 1800 | 1650 | 1*1 | single weft single warp | |
| 6001B | black | 367 | 440 | 1650 | 1330 | 1*1 | single weft single warp | |
| 6003 | black | 343 | 480 | 1350 | 1700 | 4*4 | single weft double warp | |
| 6004 | beige | 343 | 475 | 1350 | 1700 | 4*4 | single weft double warp | |
| 6007K | yellow,double weft made of Aramid material | 417 | 570 | 3200 | 2300 | 4*4 | double weft double warp | |
| 6008 | brown | 414 | 570 | 1800 | 3000 | 4*4 | double weft double warp | |
| 6012 | black | 414 | 570 | 1800 | 3000 | 4*4 | double weft double warp | |
| 6010K | yellow,made of Aramid material | 247 | 410 | 3300 | 2050 | 4*4 | single weft double warp | |
| 6013 | beige | 306 | 430 | 1400 | 1000 | 10*10 | double weft double warp | |
| 6014 | beige | 307 | 440 | 1500 | 1100 | single weft single warp | ||
| 6015 | beige | 416 | 520 | 2000 | 1450 | 2*2.5 | single weft double warp | |

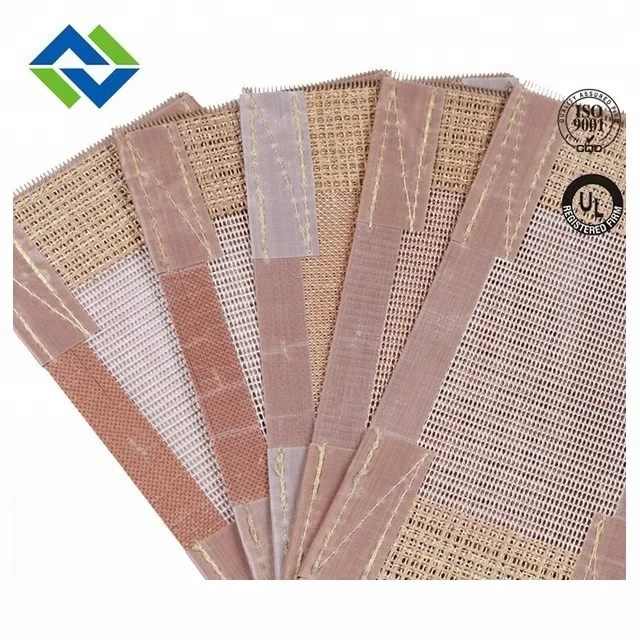

| 6016 | brown, used for joint | 417 | 615 | 3000 | 2000 | double weft double warp | ||
| 6018 | beige | 490 | 735 | 2000 | 4000 | 4*4 | double weft double warp | |
| 6019 | beige | 465 | 690 | 1800 | 3500 | 4*4 | double weft double warp | |
| 6032 | creamy white | 420 | 710 | 2500 | 3000 | 4*4 | double weft triple warp |
|
