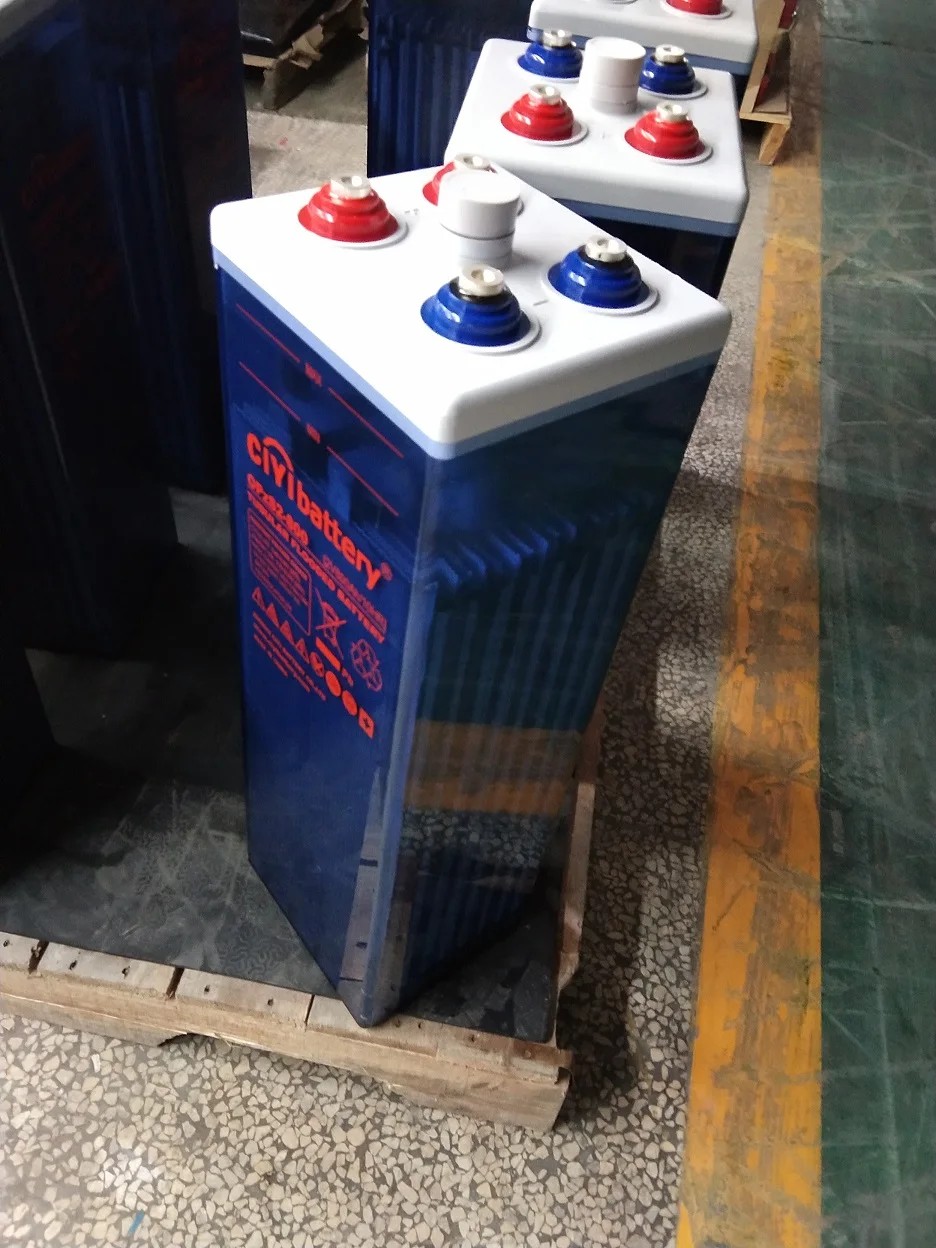

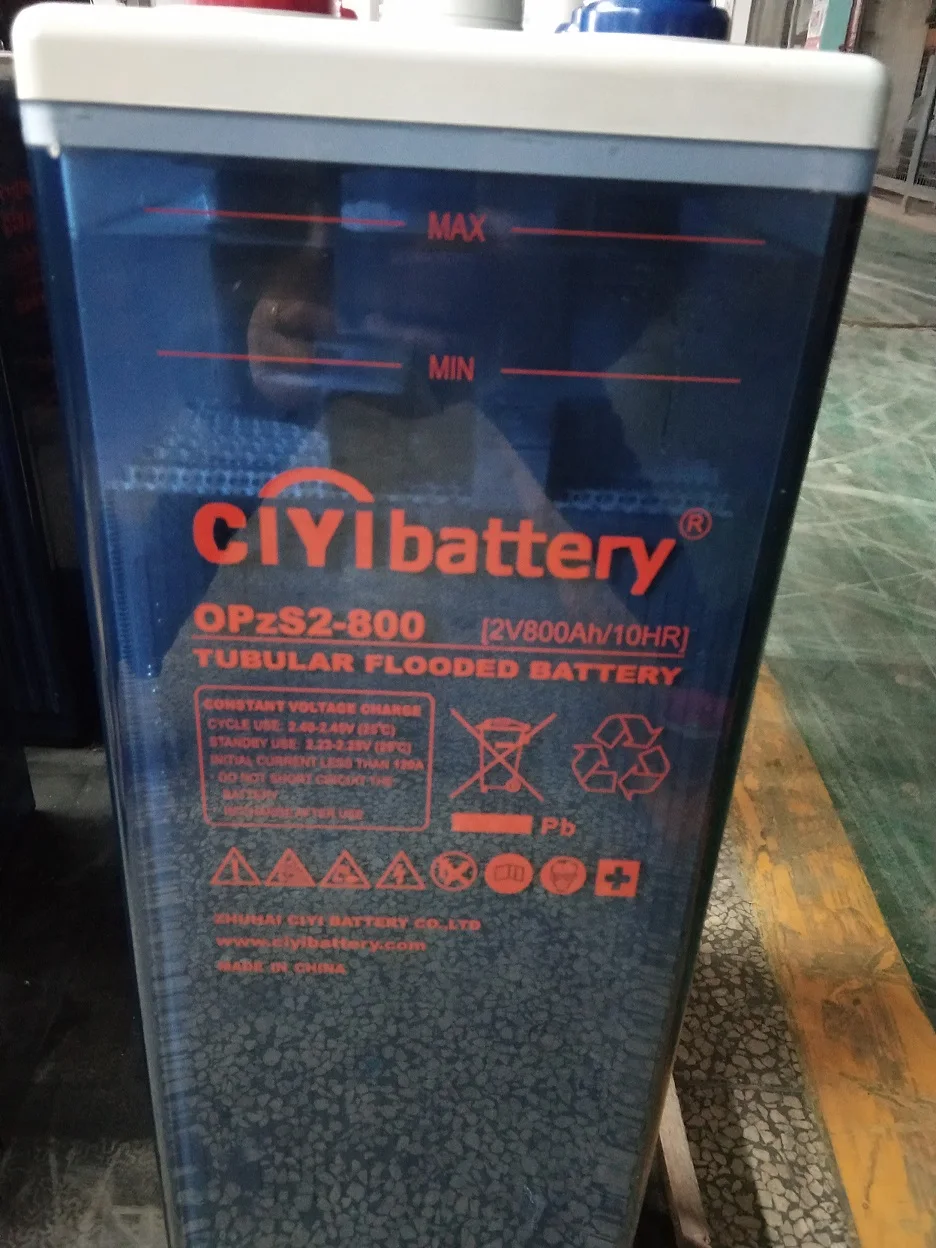

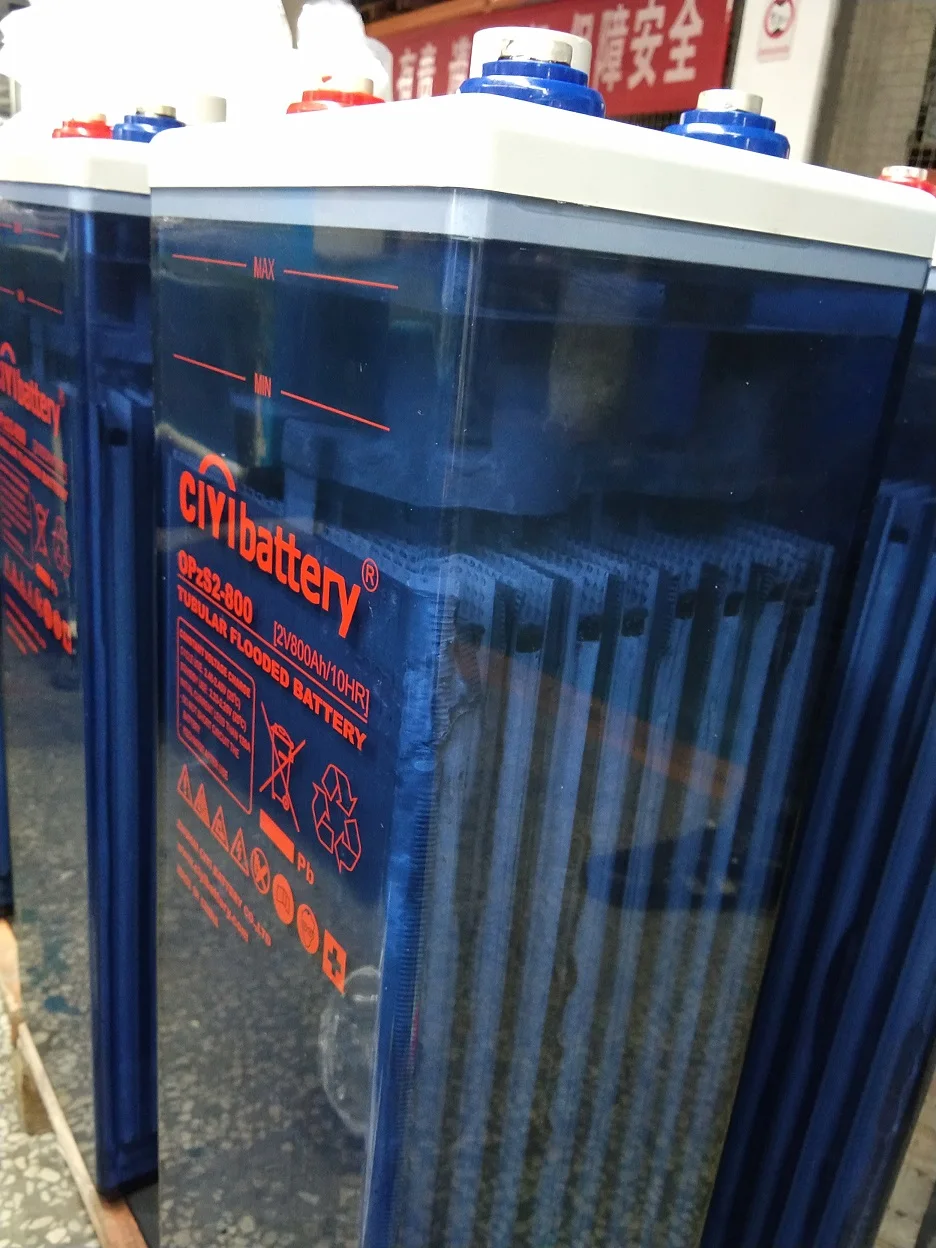

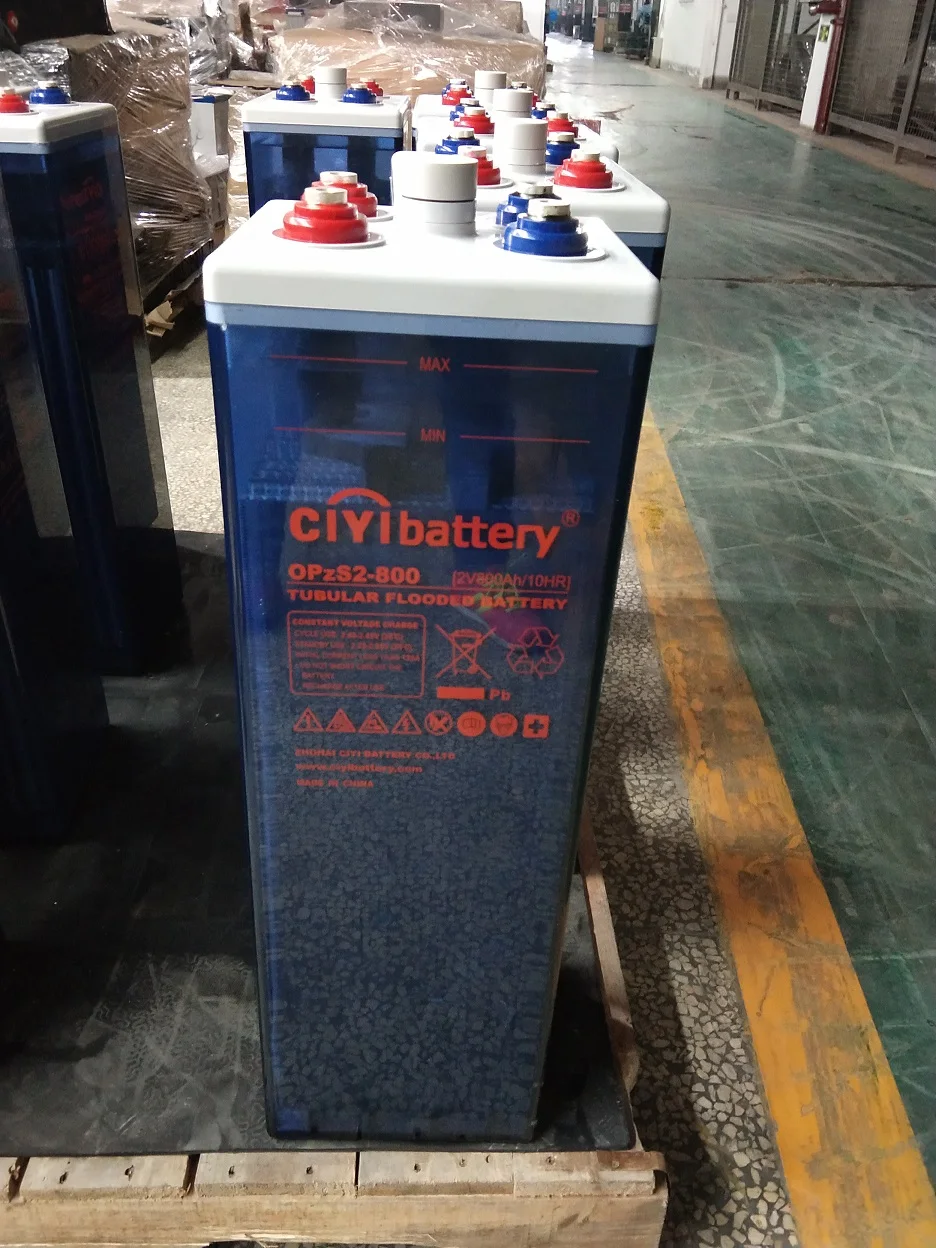

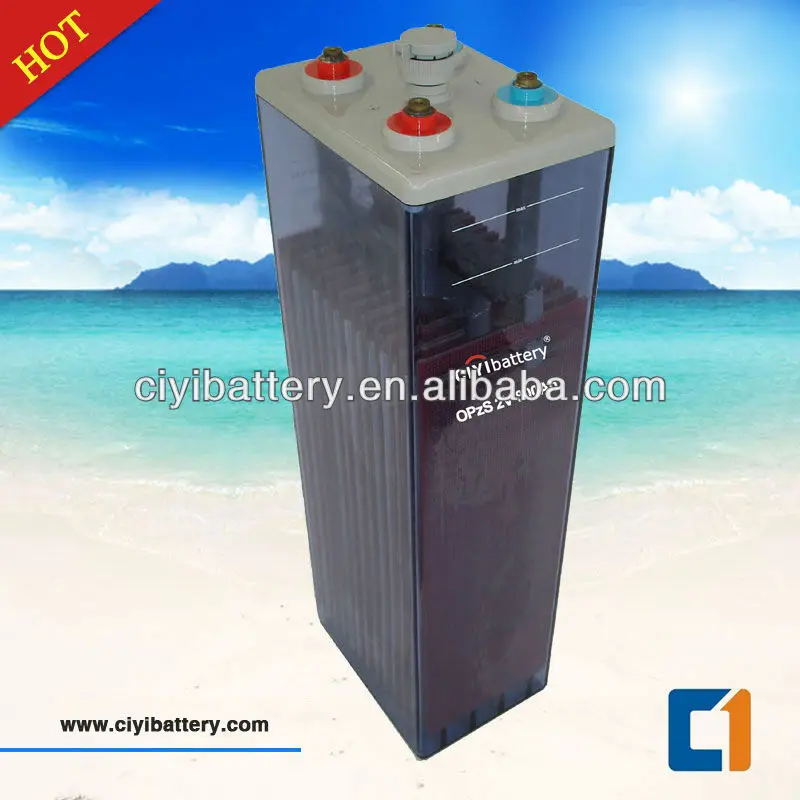

28 Years Super Quality Flooded Lead Acid Battery 2V 800AH OPZS battery

Product Overview

Description

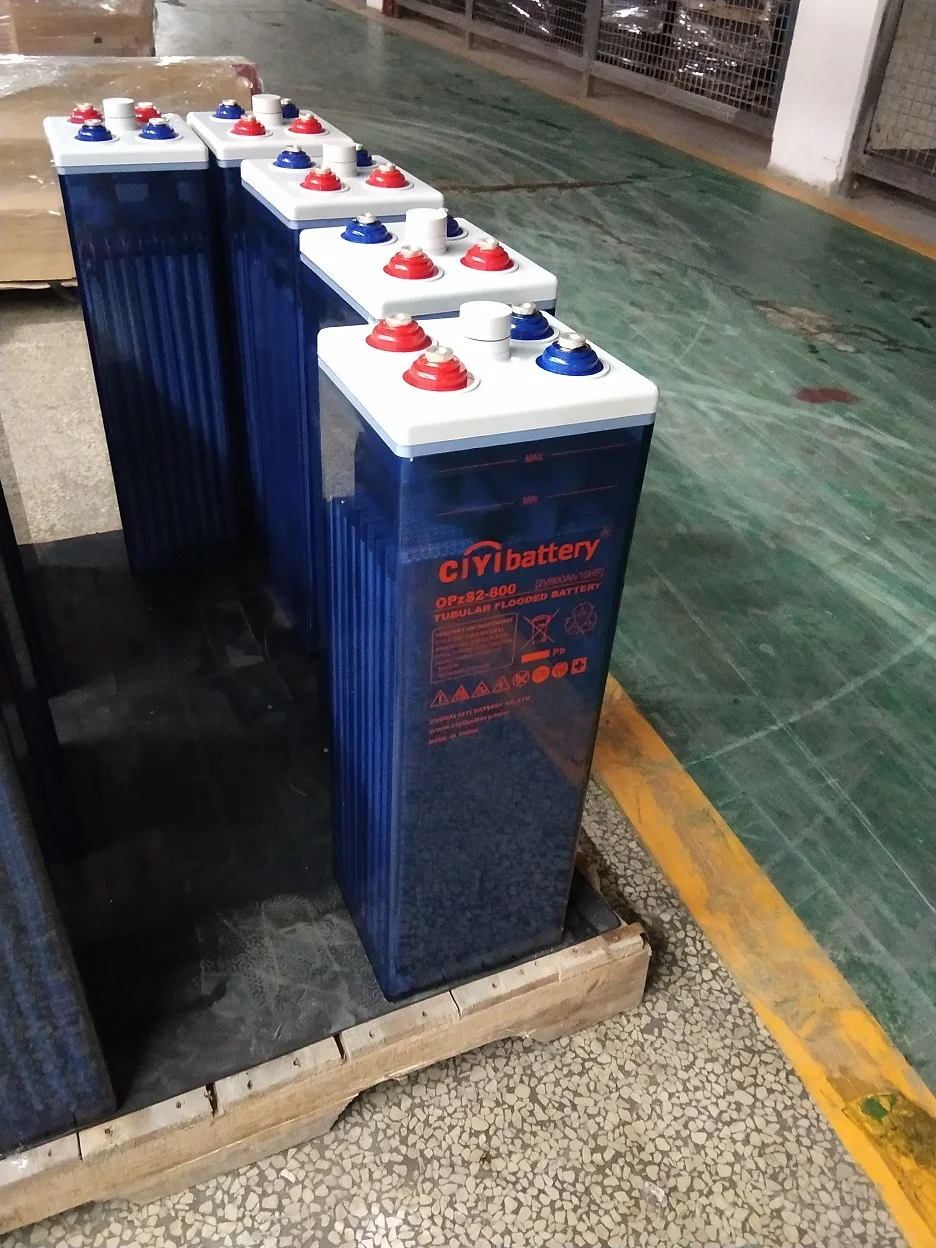

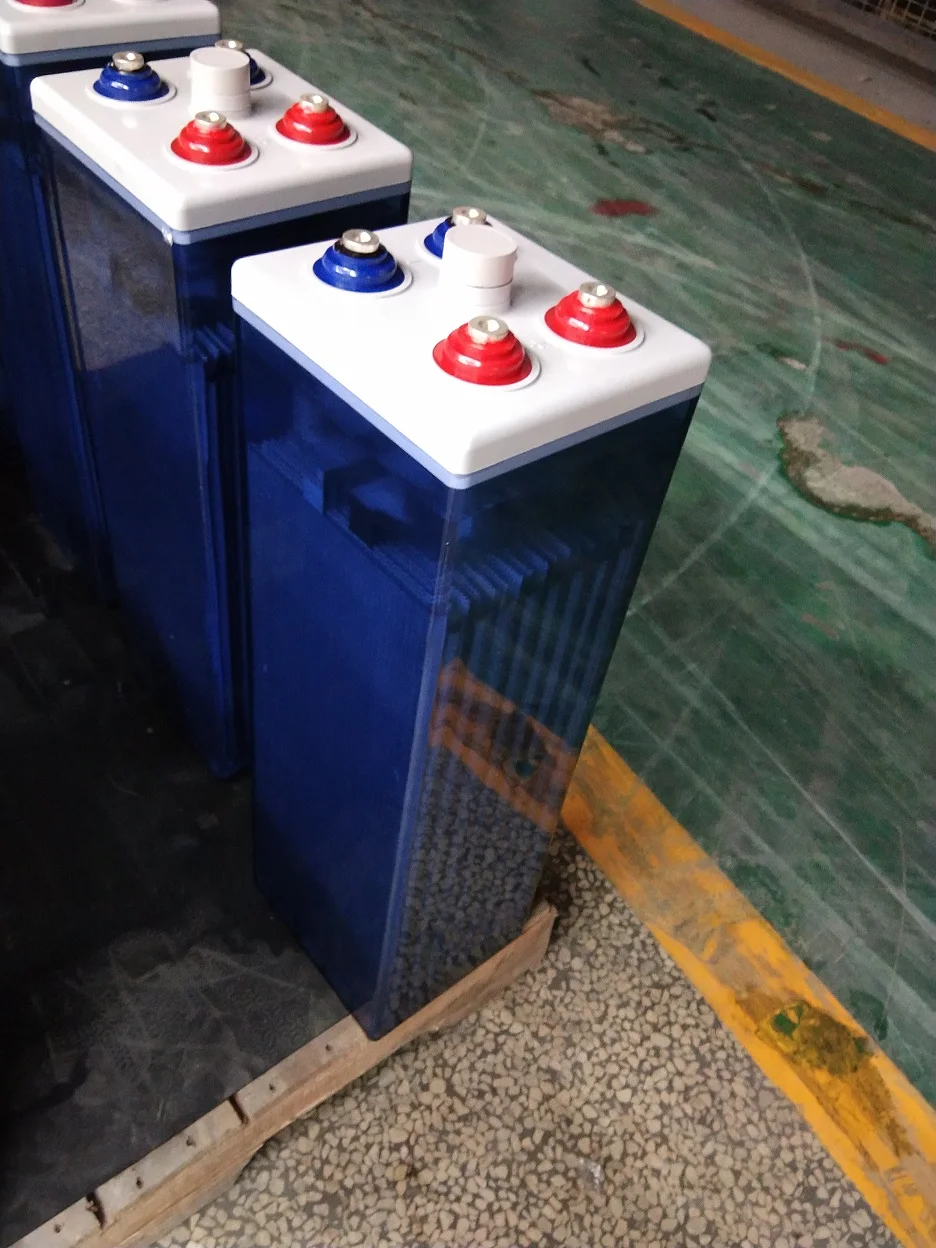

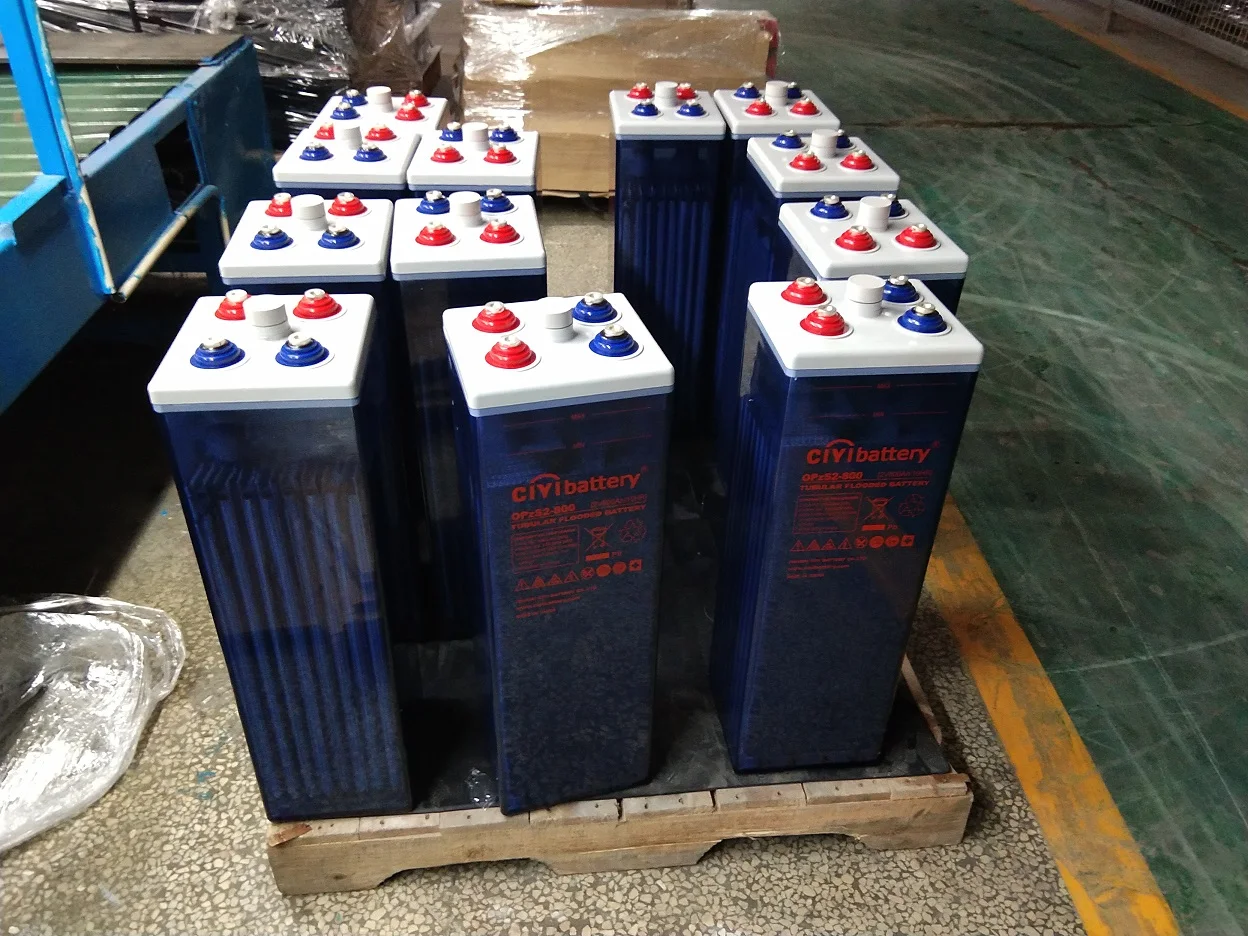

28 Years Super Quality Flooded Lead Acid Battery 2V 800AH OPZS Battery



1) extreme good performance on deep discharge

2) Long life more than 20 years

3) easy maintainance

4)Tubular plate

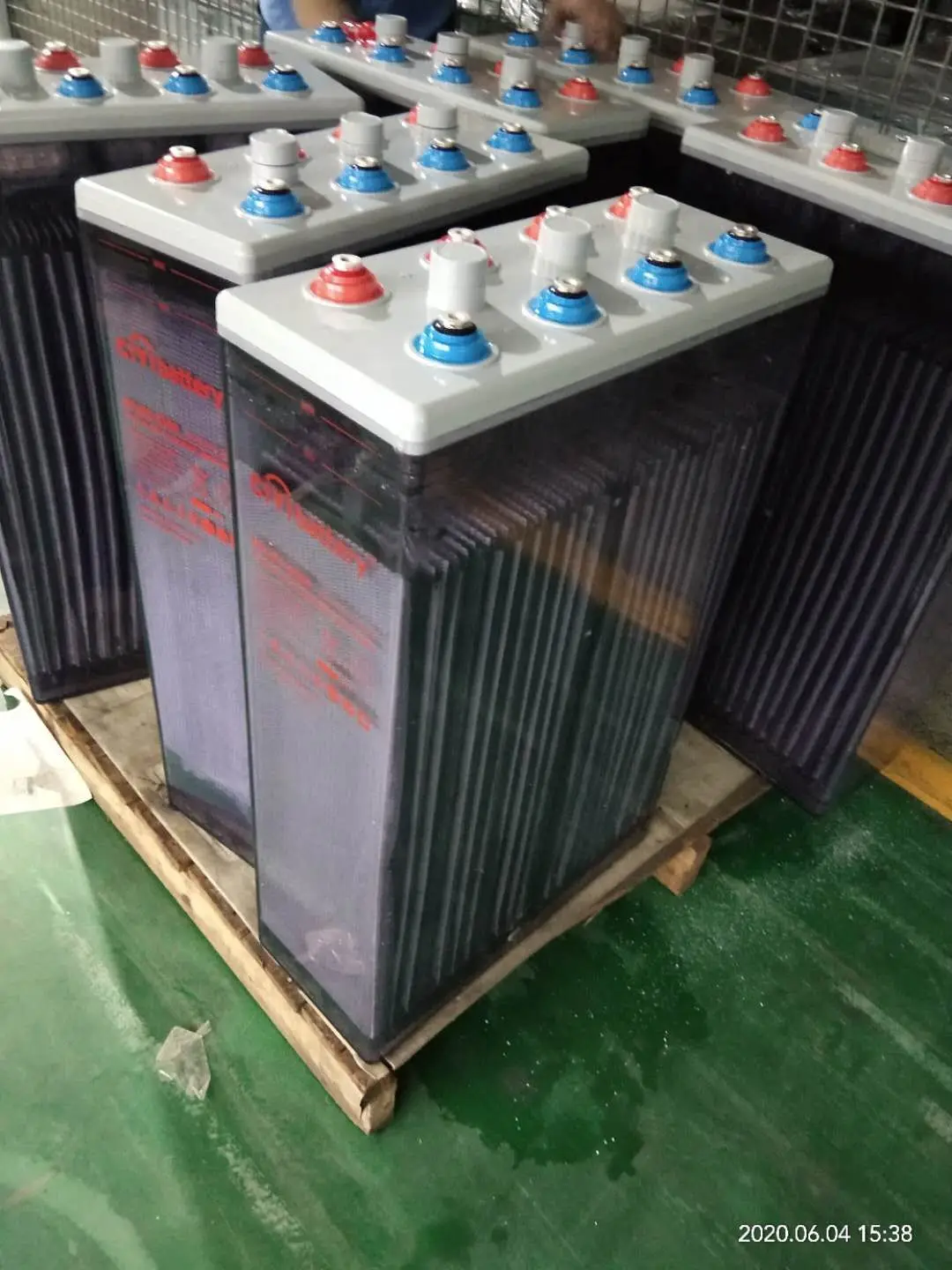

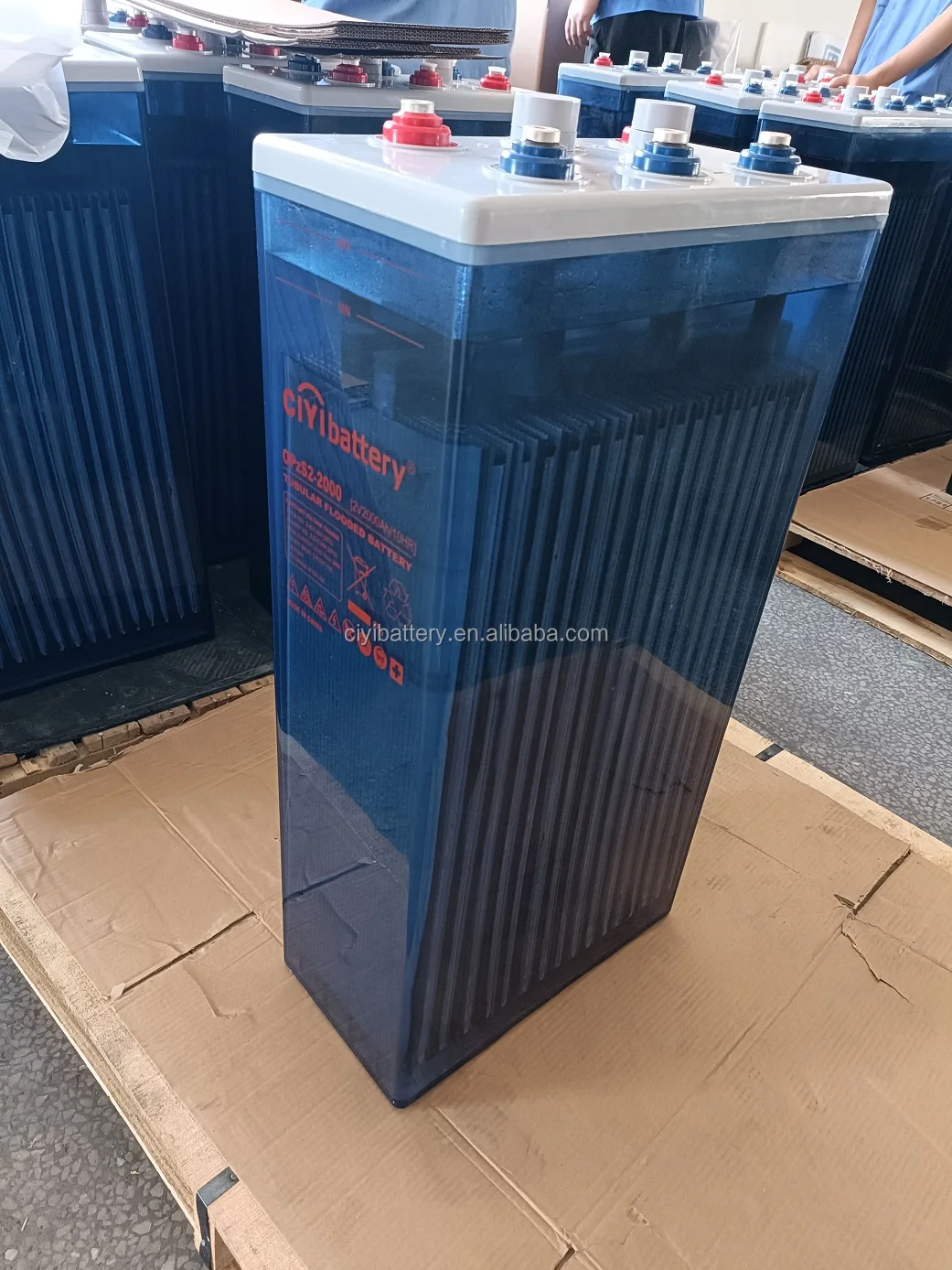

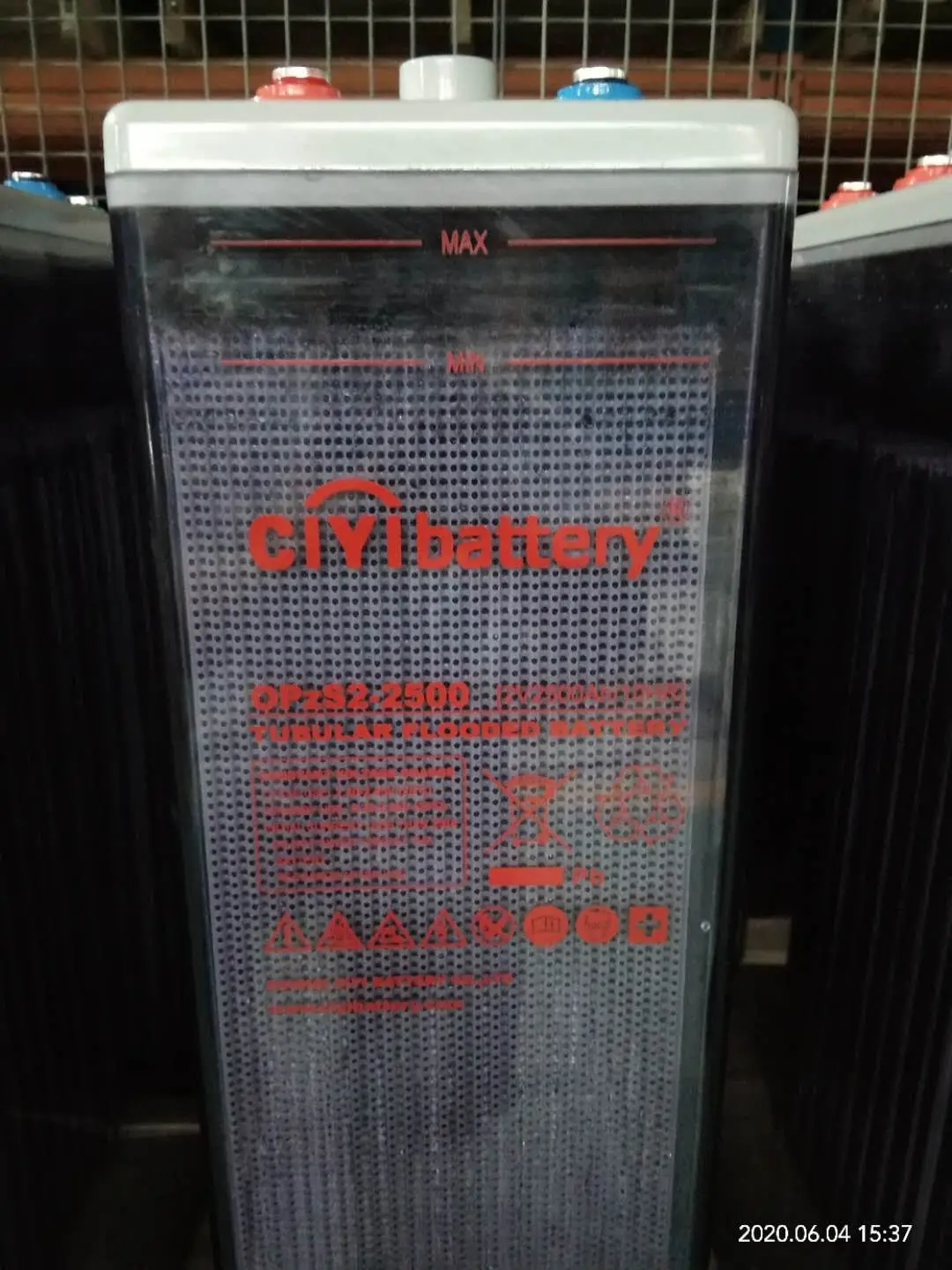

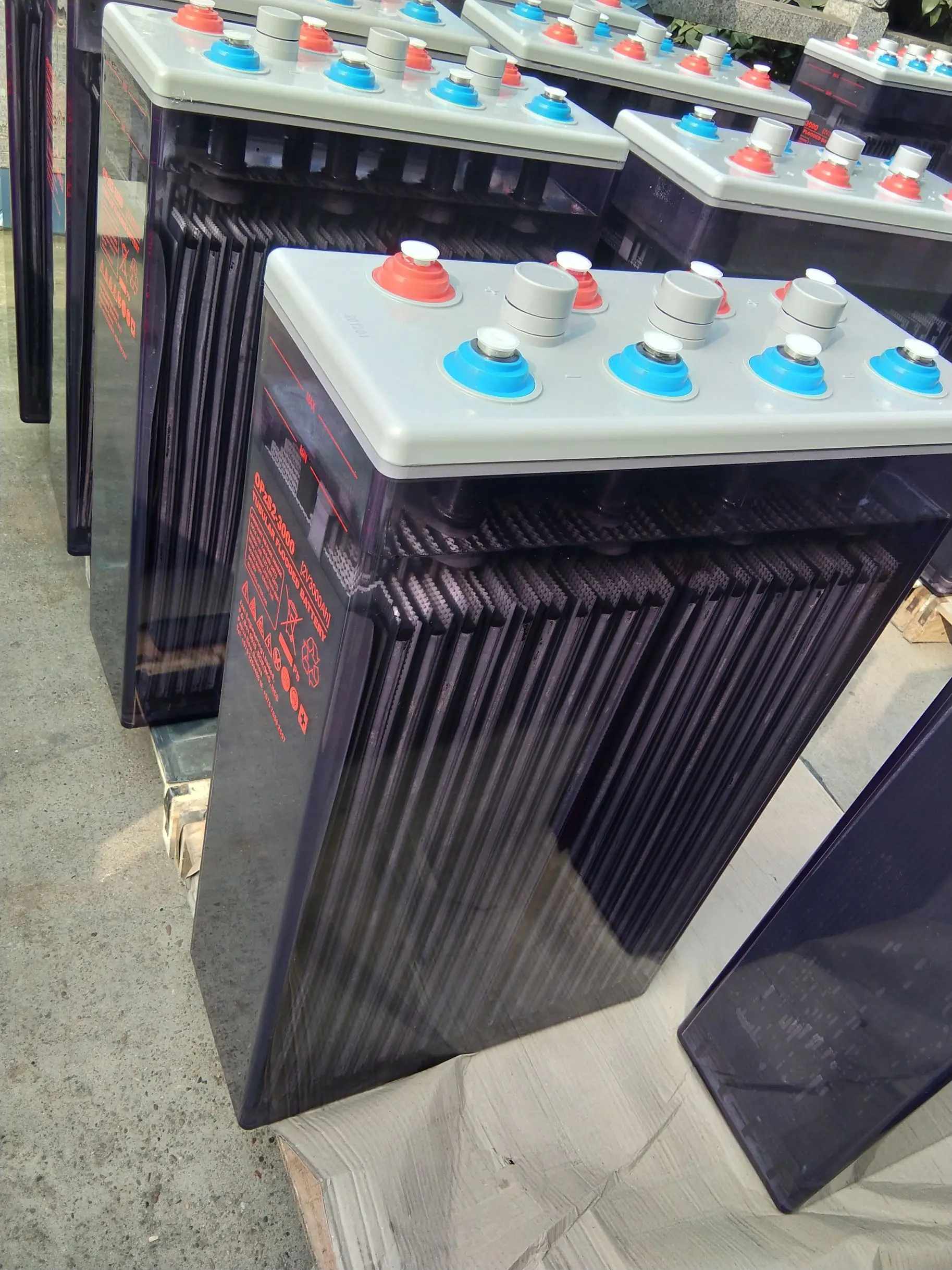

OPzS battery series

Voltage covers: 2V
Capacity: 100Ah-3000Ah.
Designed floating service life: 20 years @ 20 °C/68 °F

Description:



The OPZS series stationary battery are newly products which were developed at the end of 2005. The performance meet the standard DIN40736 and IEC60896-21.



Characteristics

--- Positive plate:

It is a tubular plate which can prevent the active material from falling off. The grid of positive plate is Pb-Sb Multi-Alloy

--- Separator:

With the combined application of porous rubber and porous PVC, the separator has high porosity and good corrosion-resistance

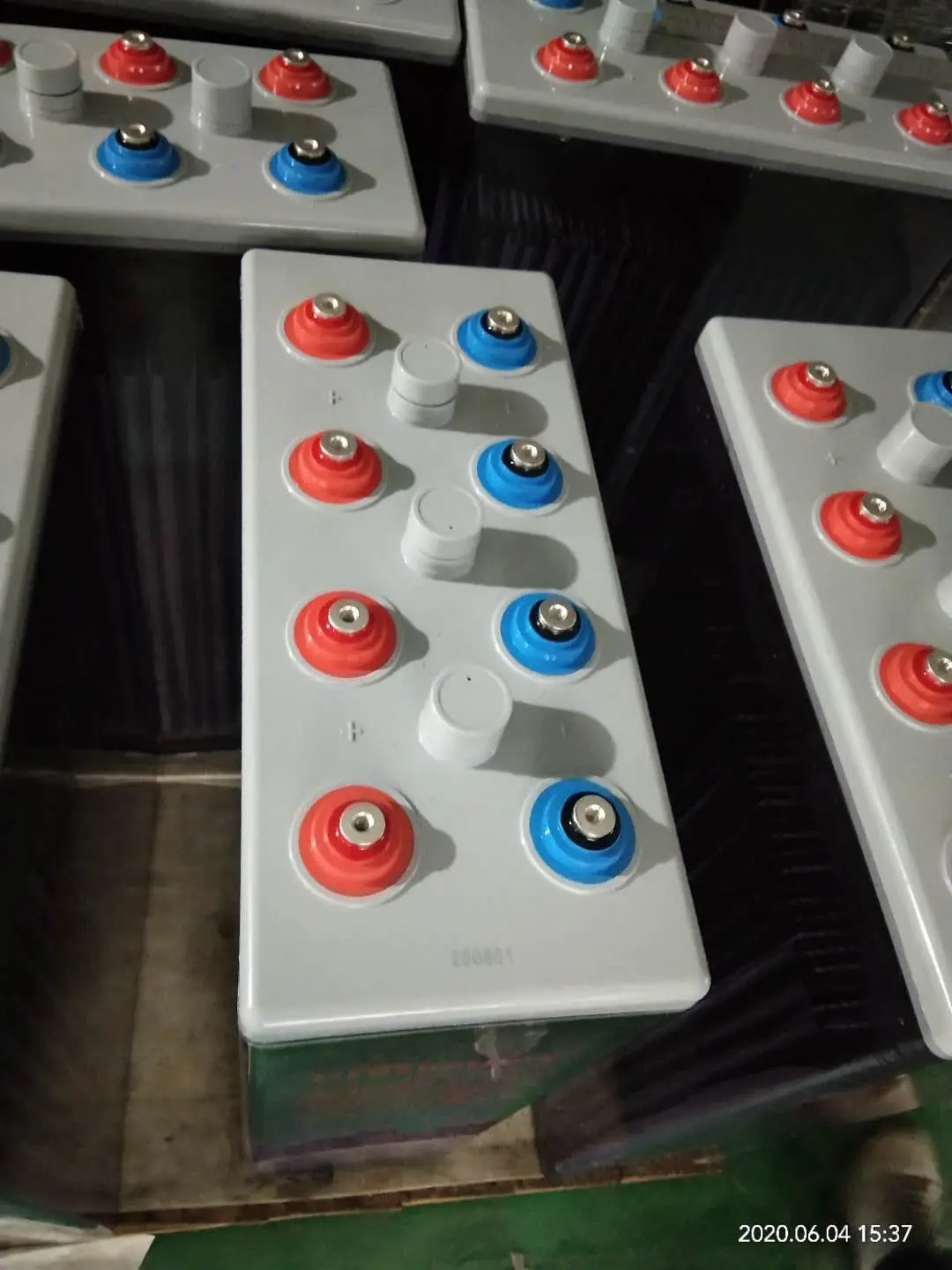

--- Acid-Proof bolt: It is of a special shape of funnel having the function of filtering acid smog and retarding flame. It can measure the density and temperature of electrolyte.

---The design life of the battery is more than 20 years.

--- Ensuring sufficient electrolyte for battery discharge

CONSTRUCTION

• Positive plate Tubular plate with die cast Pb-Ca alloy grid


• Negative plate – Balanced Pb-Ca grid for improved recombination efficiency


• Separator – Leaf shape rubber separator


• Electrolyte – Dilute high purity sulphuric acid of 1.240 specific gravity


• Battery container – SAN


• Battery cover – ABS


• Pillar seal – 100% factory tested, proven two layers epoxy resin seal


• Relief valve – Complete with integrated flame arrestor

Applications

• Telecom


• Electric Utilities


• Control Equipments


• Security Systems


• Medical Equipments


• UPS systems


• Railroad Utilities

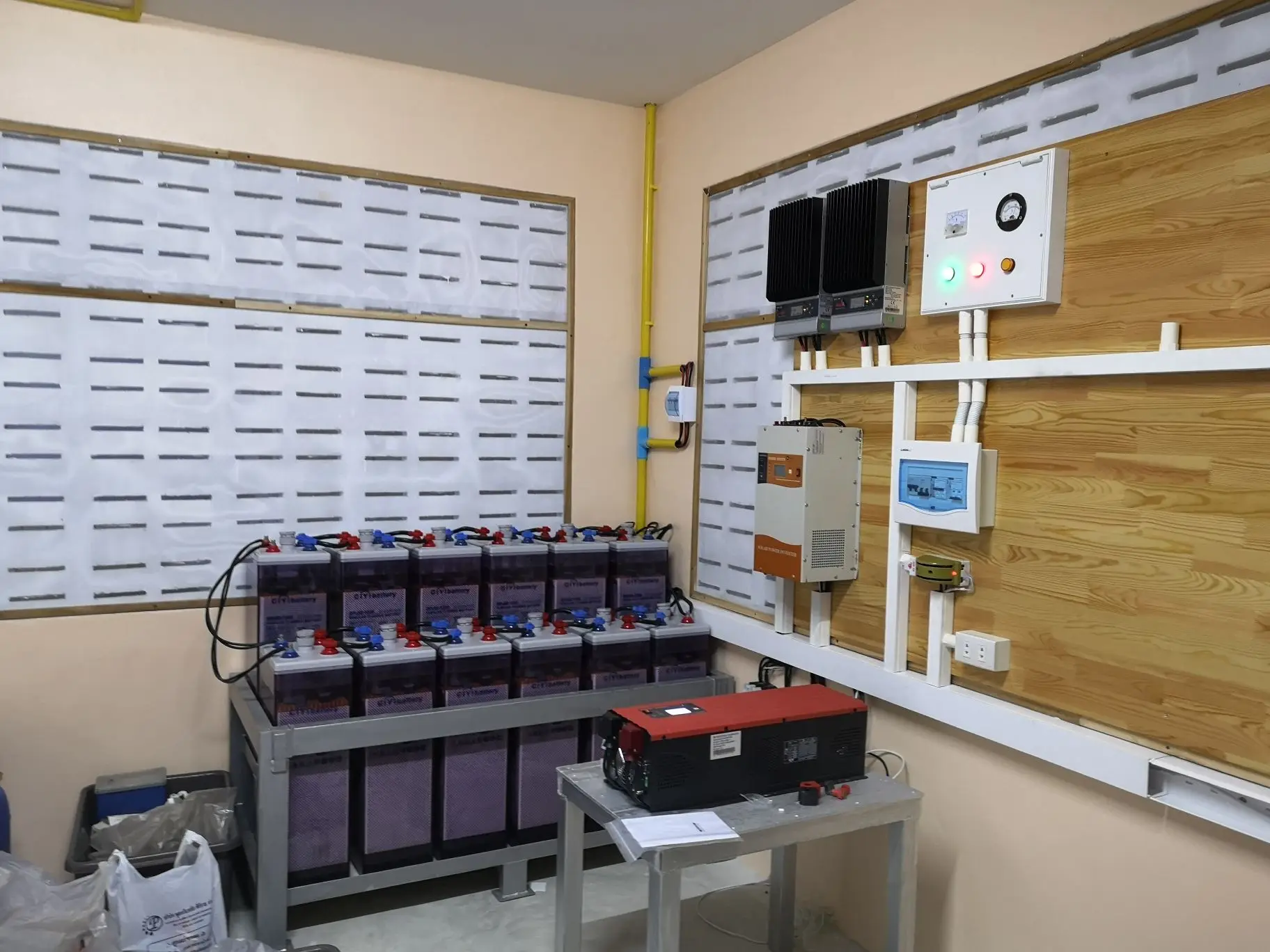

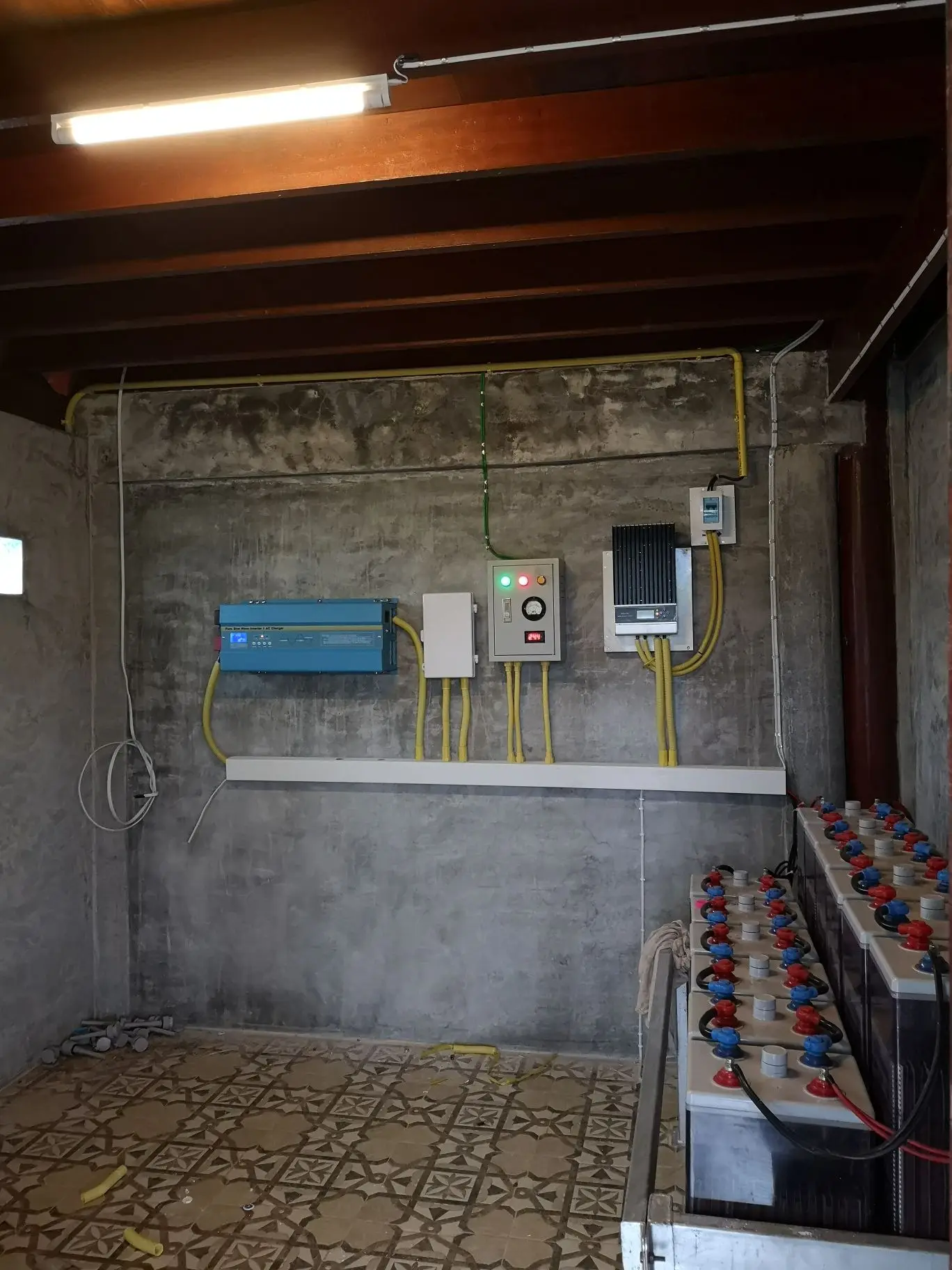

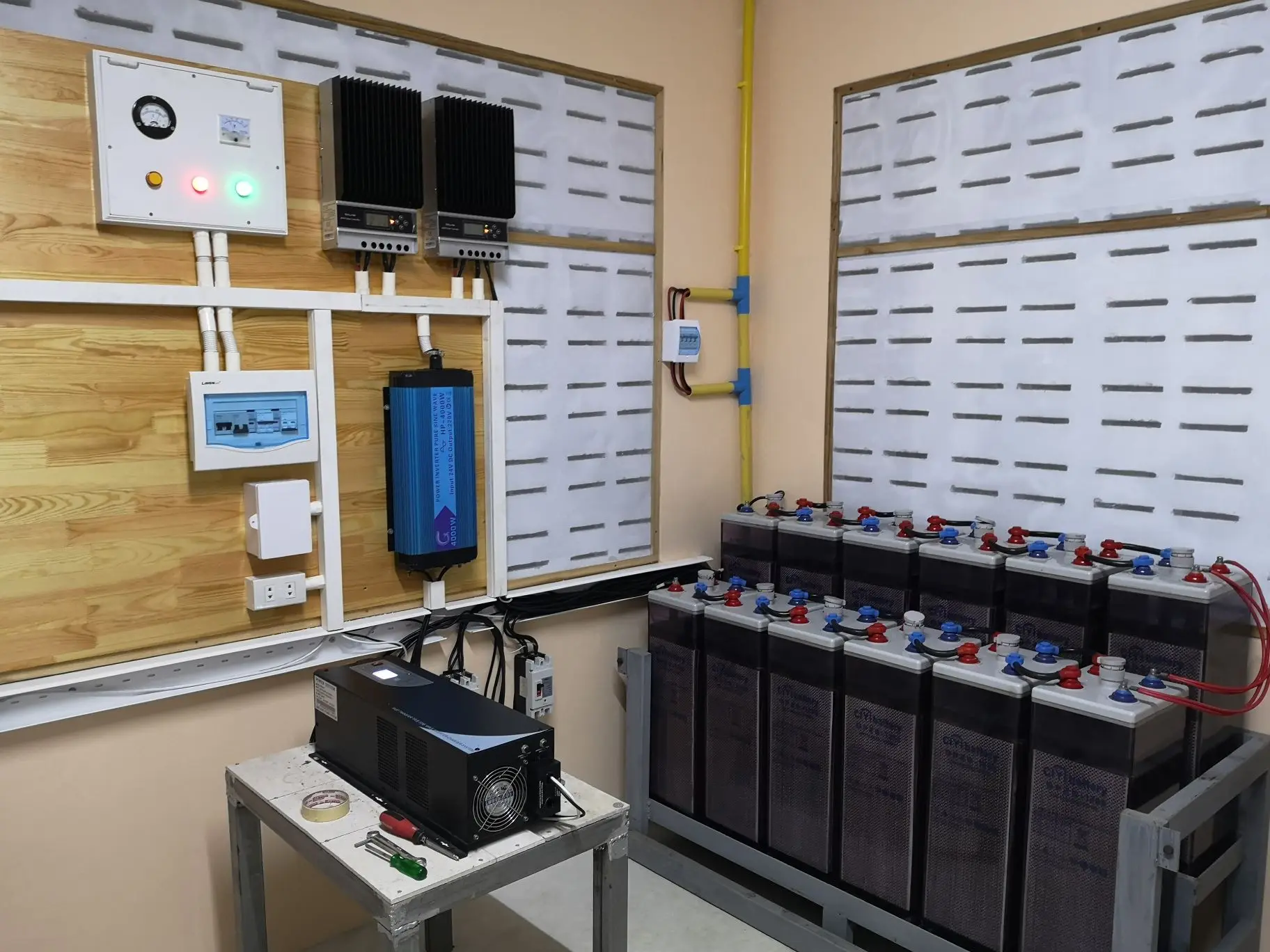

• Photovoltaic Systems


• Renewable Energy Systems


•


•


•
