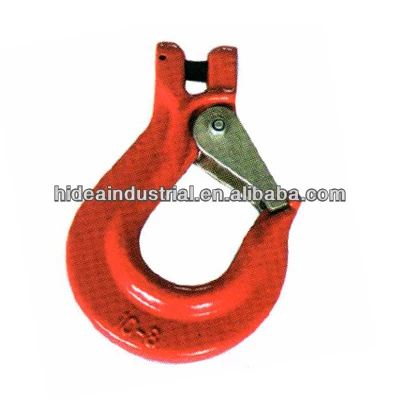

G80 Clevis Sling Hook With Cast Latch

Product Overview

Description

G80 Clevis Sling Hook With Cast Latch

Material: alloy steel

Surface treatment: powder coated

Heat treatment: tempered and quenched

MBL: 4 times  WLL

Size:6-13mm

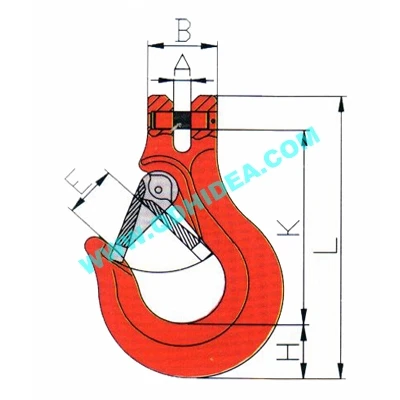

20RH410 G80 CLEVIS SLING HOOK WITH CAST LATCH
Item No./Size(mm)	Weight/KG	WLL/T	MBL/T	A	E	B	H	K	E
20RH410-6/7	0.58	1.6	6.4	8	24	36	28	100	144
20RH410-07	0.72	1.6	6.4	8.5	28	37.5	32	105	153
20RH410-08	0.91	2	8	10	30	42	32.5	117	168
20RH410-10	1.42	3.2	12.8	12	32	50	41	128	191.5
20RH410-13	3.3	6	24	15	40	60	49	177	254.5





100



Qingdao Hidea Industrial Co. was established in early 1990s, located in Qingdao - a northern coastal city in China with convenient traffic facilities & communication means. In the year of 2007, Qingdao Hidea Industrial & Trade Co., Ltd. was established with incorporation of different manufacturing bases and gained more powerful supply & service capabilities.We manufacture and supply rigging hardware ,wire rope, chain, lifting products.our products are of high quality and competitive price. for detailed informations, please visit our website : www.hidea-intl.com

G80 Clevis Sling Hook With Cast Latch

Material: alloy steel

Surface treatment: powder coated

Heat treatment: tempered and quenched

MBL: 4 times  WLL

Size:6-13mm
