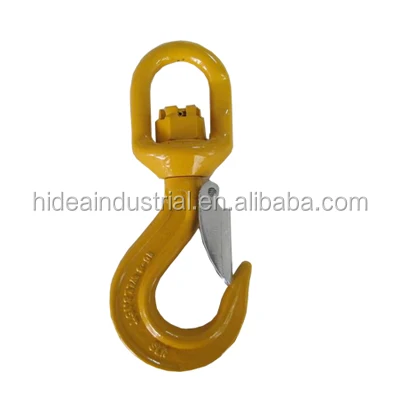

G80 Germanic Type Swivel Hook With Latch
- Category: >>>
- Supplier: Qingdao Hidea Industrial & Trade Co. Ltd.
Share on (1747355523):
Product Overview
Description
G80 Germanic Type Swivel Hook With Latch
Material: alloy steel
Surface treatment: powder coated
Heat treatment: tempered and quenched
MBL: 4 times WLL
Size:7-16mm
20RH862 G80 GERMANIC TYPE SWIVEL HOOK WITH LATCH | |||||||||

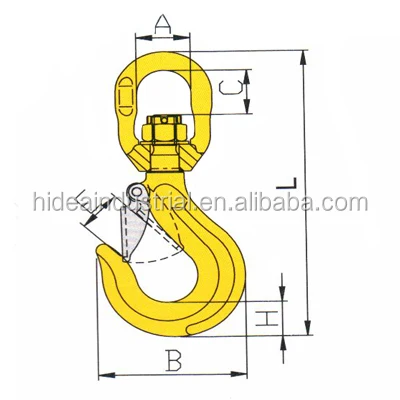

Item No./Size(mm) | Weight/KG | WLL/T | MBL/T | A | B | E | H | C | L |
20RH862-7/8 | 0.85 | 2 | 8 | 36 | 88.5 | 27 | 23.5 | 26 | 190 |
20RH862-10 | 1.54 | 3.15 | 12.6 | 42 | 104.5 | 32 | 29.5 | 34 | 233 |
20RH862-13 | 3.04 | 5.3 | 21.2 | 49 | 135 | 40 | 38 | 41 | 291.5 |
20RH862-16 | 5.36 | 8 | 32 | 61 | 161 | 45 | 45.4 | 53 | 352 |
Qingdao Hidea Industrial Co. was established in early 1990s, located in Qingdao - a northern coastal city in China with convenient traffic facilities & communication means. In the year of 2007, Qingdao Hidea Industrial & Trade Co., Ltd. was established with incorporation of different manufacturing bases and gained more powerful supply & service capabilities.We manufacture and supply rigging hardware ,wire rope, chain, lifting products.our products are of high quality and competitive price. for detailed informations, please visit our website : www.hidea-intl.com
G80 Germanic Type Swivel Hook With Latch
Material: alloy steel
Surface treatment: powder coated
Heat treatment: tempered and quenched
MBL: 4 times WLL
Size:7-16mm
