Large Opening Eye Hook With Flat

Product Overview

Description

Large Opening Eye Hook With Flat

Material: alloy steel

Surface treatment: powder coated

Heat treatment: tempered and quenched

MBL: 4 times  WLL

Size:2-12.8T



20RH611 LARGE OPENING EYE HOOK WITH FLAT

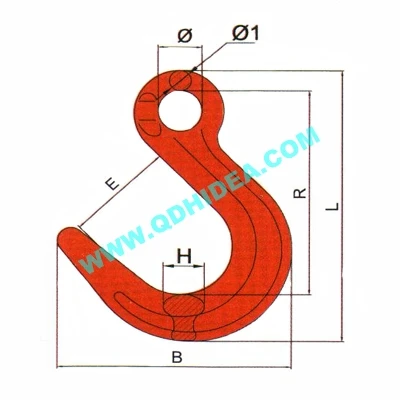

Item No./Size	Weight/KG	WLL/T	MBL/T	Φ	L	B	R	E	Φ1	H
20RH611-2T	0.72	2	8	24	158.5	130	120.5	62	12	19
20RH611-3.2T	1.25	3.2	12.5	31.5	199	152.5	153.2	73	15	25
20RH611-5.3T	2.32	5.3	21.2	44	241.5	186	184	90	19	33
20RH611-8T	3.45	8	32	49	279	218	216	105	22	37
20RH611-12.8T	6.42	12.5	50	60	330	252	247	114	26	46



                     100

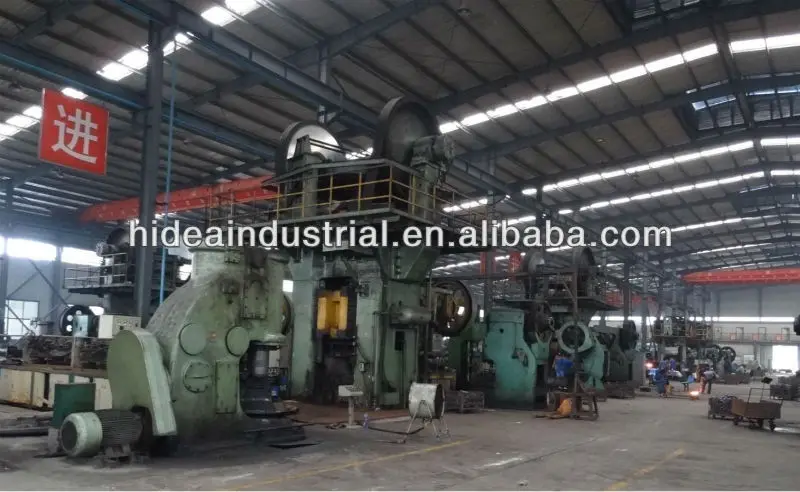

Qingdao Hidea Industrial Co. was established in early 1990s, located in Qingdao - a northern coastal city in China with convenient traffic facilities & communication means. In the year of 2007, Qingdao Hidea Industrial & Trade Co., Ltd. was established with incorporation of different manufacturing bases and gained more powerful supply & service capabilities.We manufacture and supply rigging hardware ,wire rope, chain, lifting products.our products are of high quality and competitive price. for detailed informations, please visit our website : www.hidea-intl.com

Large Opening Eye Hook With Flat

Material: alloy steel

Surface treatment: powder coated

Heat treatment: tempered and quenched

MBL: 4 times  WLL

Size:2-12.8T
