pvc windows and doors profile machine/upvc window and door machine/ pvc window machine
- Category: >>>
- Supplier: Qingdao Tongsan Plastic Machinery Co. Ltd.
Share on (1749179512):
Product Overview
Description
Product Description
PVC / WPC profile making machine for window and door profile,ceiling,wall panel,skirting....

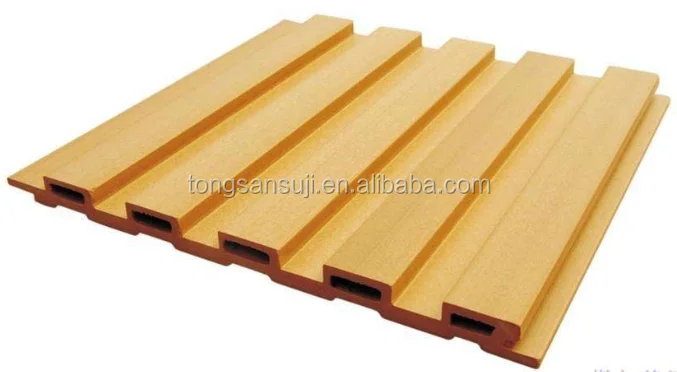

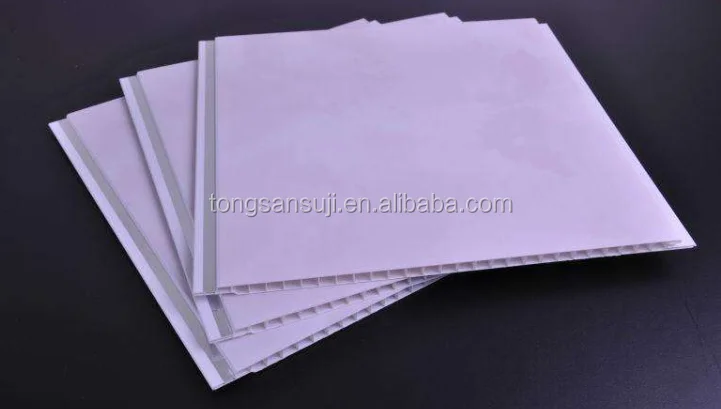

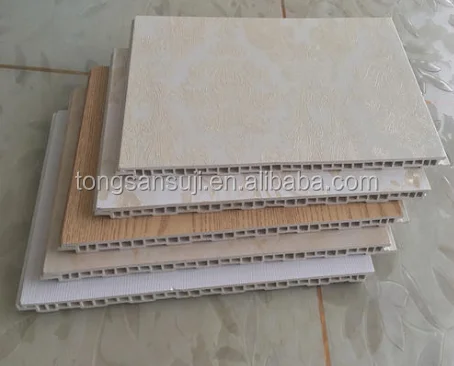

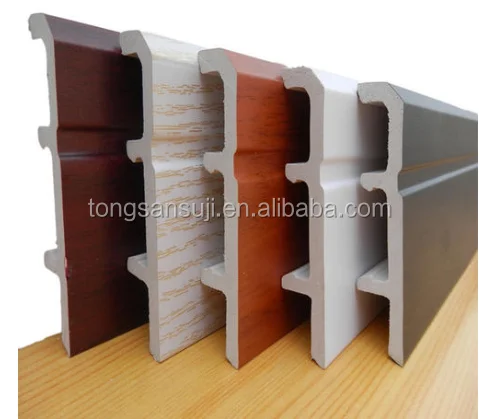

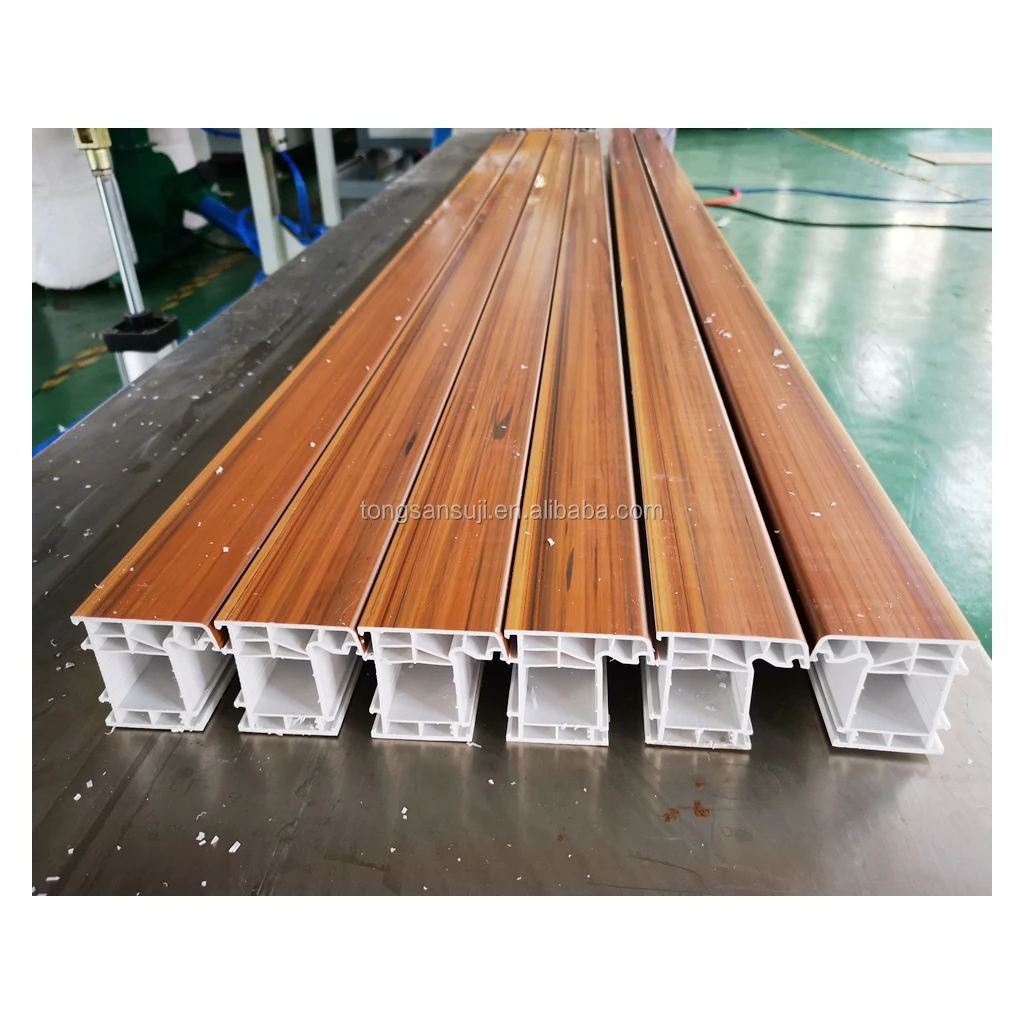

PVC / WPC profile extrusion line mainly use PVC or UPVC or PVC+wood powder to extruder profile such as building partition, cabinet door panels, window sill, skirting board, door edgeline, door jamb, window shutters, photo frame, mirror frame, furniture edge banding, door frame, door pocket, window pocket, column profile, stair handrail, floor board, decoration cladding panel, furniture, WPC pipes, etc.
Detailed Images

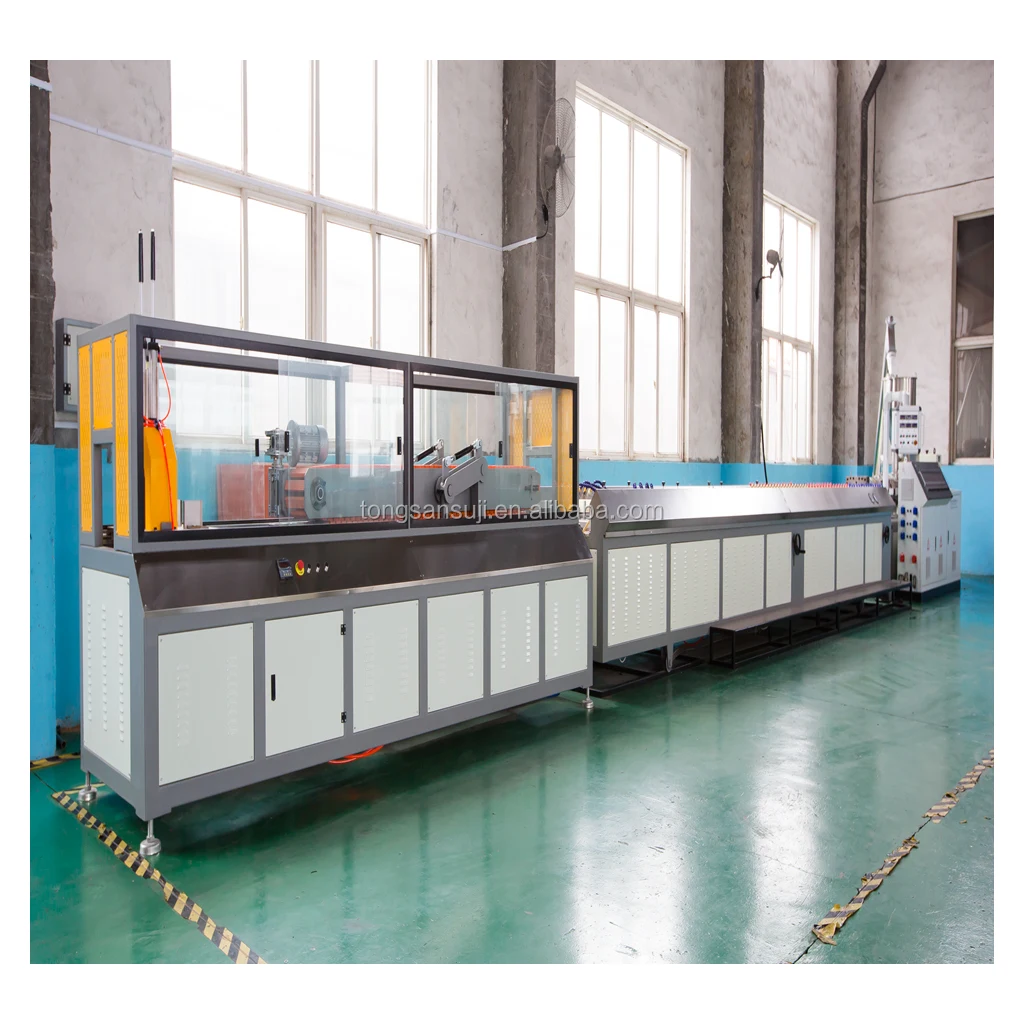

Item | Machine name | Quantity |
1 | Auto feeder | 1 set |
2 | SJSZ65/132 extruder | 1 set |
3 | die head and mold | 1 set |
4 | calibrating machine | 1 set |
5 | hual off machine | 1 set |
6 | cutting machine | 1 set |
7 | product stacker | 1 set |
8 | electric control cabinet | 1 set |
Extruder for PVC window profiles making machine
Conical double screw extruder specially designed for making PVC window profiles door frame.
Model: SJMS65/132 model
Main power: 37KW
Capacity: 150-240 kg/h
Max. product width: 300-600mm

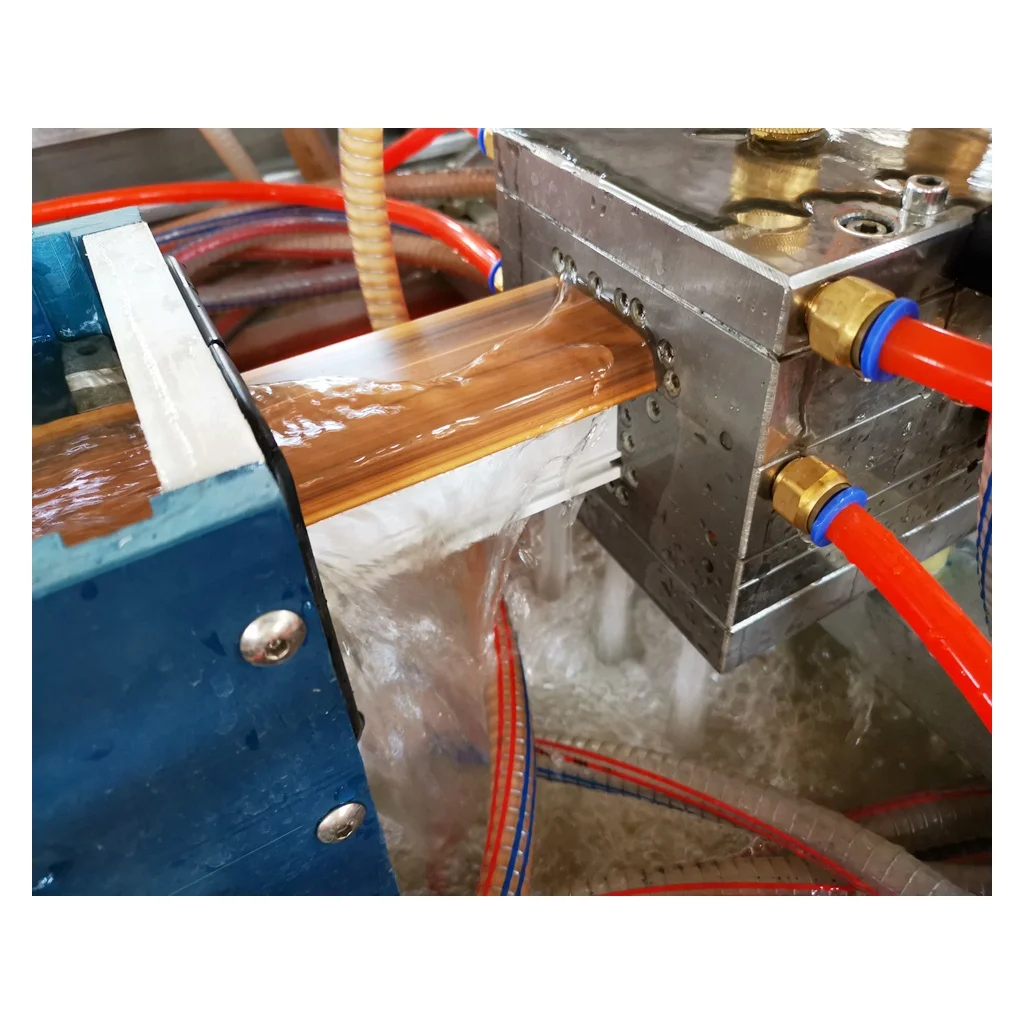

Die head and mold for the PVC window profiles making machine
the mould material is 3Cr17
calibrator length to be 300mm*3 piece or 300*4 piece or design according to product
and the water cooling tank will be 2000mm*2 pcs or 3000mm*2 pcs or design according to product

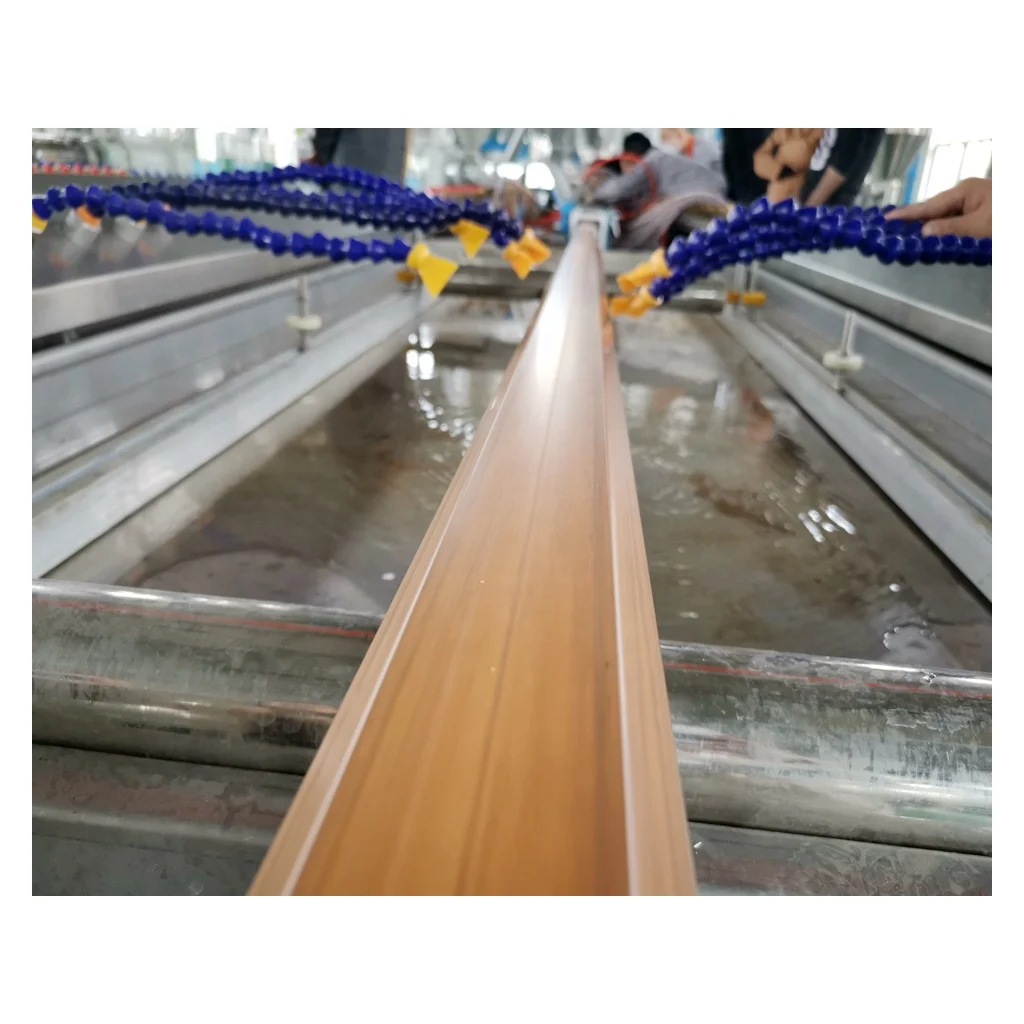

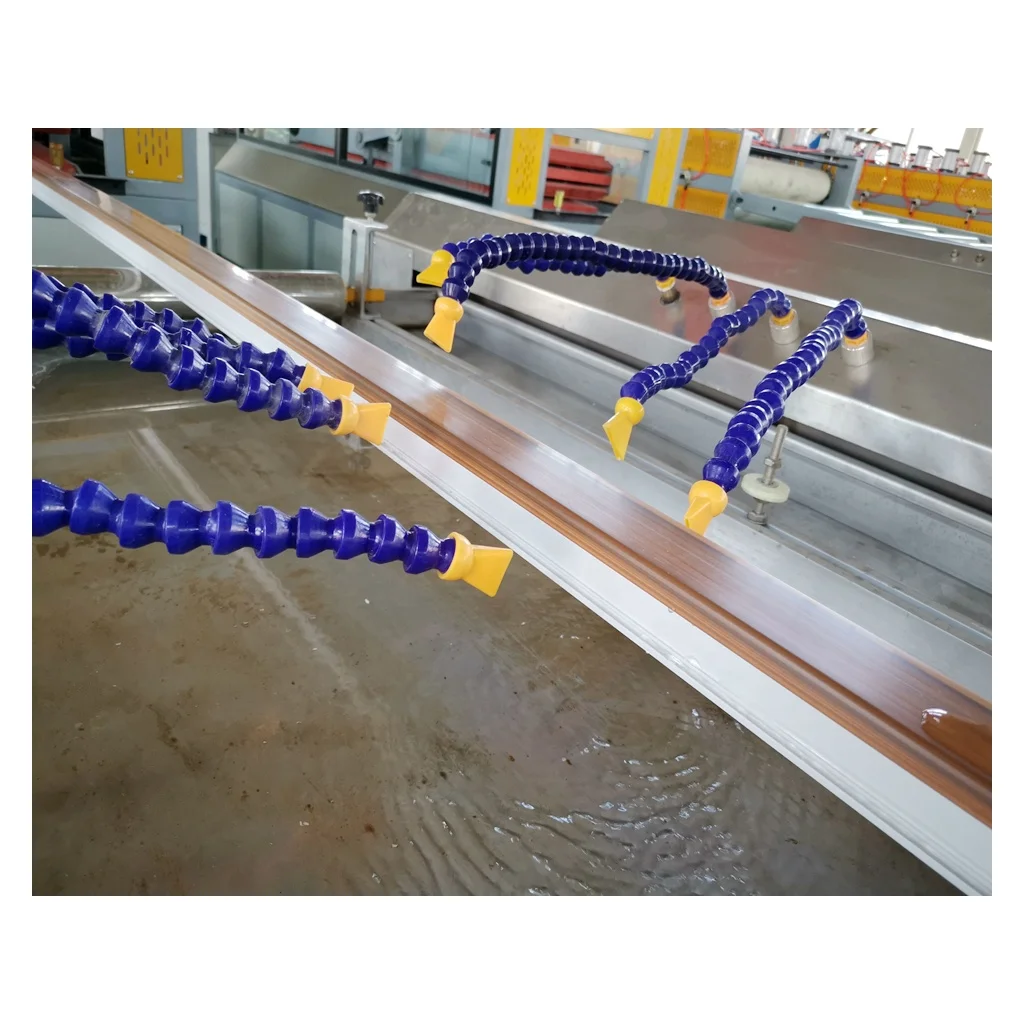

calibrating machine PVC window profiles making machine
Length of table: 6meter or 8meter customized
width of table: 1100mm, valiable inner width is 600mm
material of table: stainless steel
cooling method: water cooling and vacuum cooling.
vacuum pump: 7.5kw*1 sets,+5.5kw*2 sets
water pump: 2.2kw*1 set
haul off machine for PVC window profiles making machine
Haul off type: double caterpillar
length of haul off: 2.4 meter
control of haul off: frequency control
motor : 1.5 kw
gearbox: double gearbox

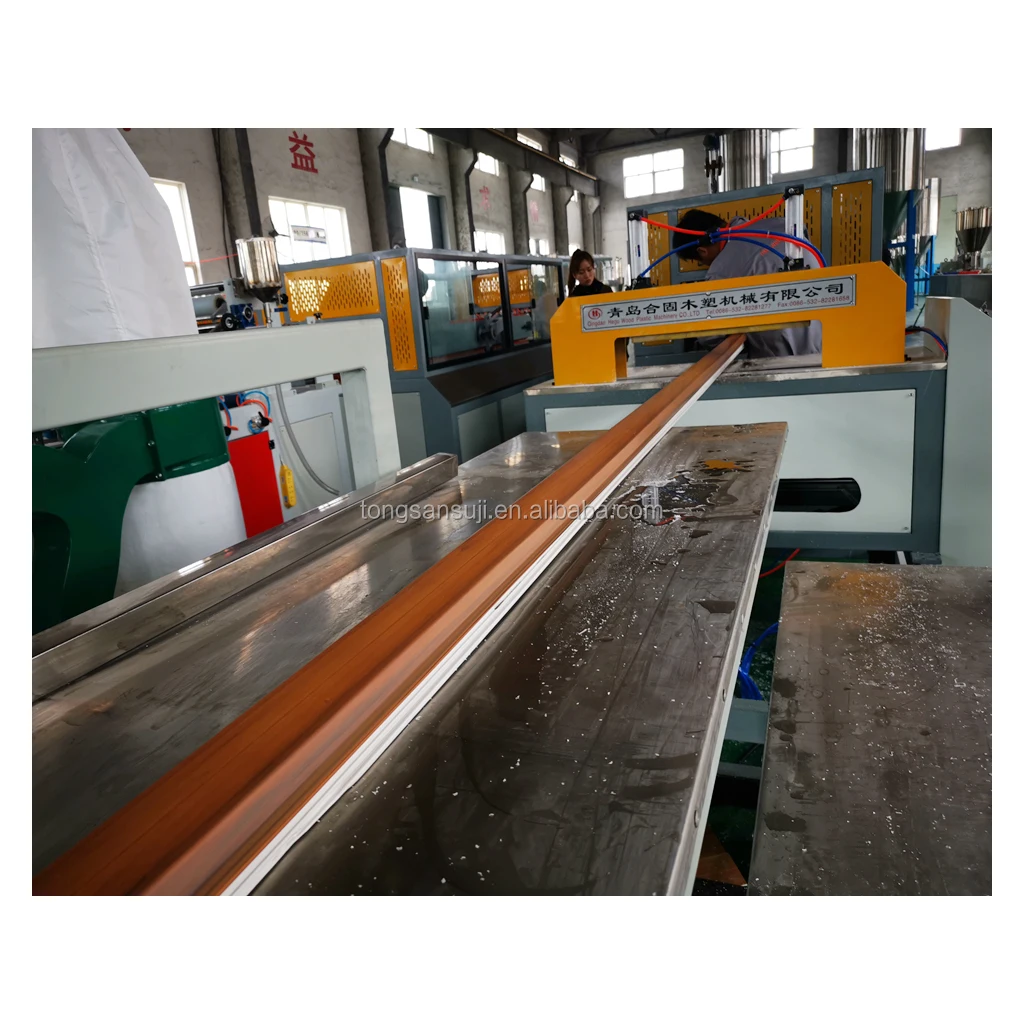

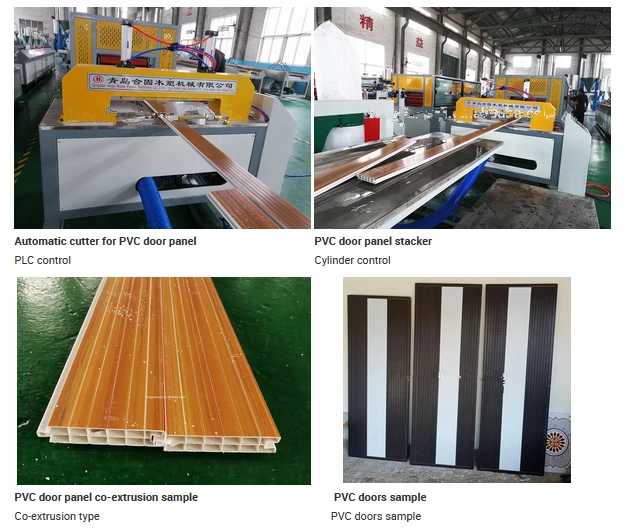

Cutting machine for PVC window profiles making machine
cutting method: automatic cutting
cutting control: PID control
Length: fix length cutting
Electric control cabinet
ABB inverter
Siemens contractor
Omron temperature
Siemens PLC is optional
