The Double Stage Waste Plastic strand pelletizer pp recycle

Product Overview

Description

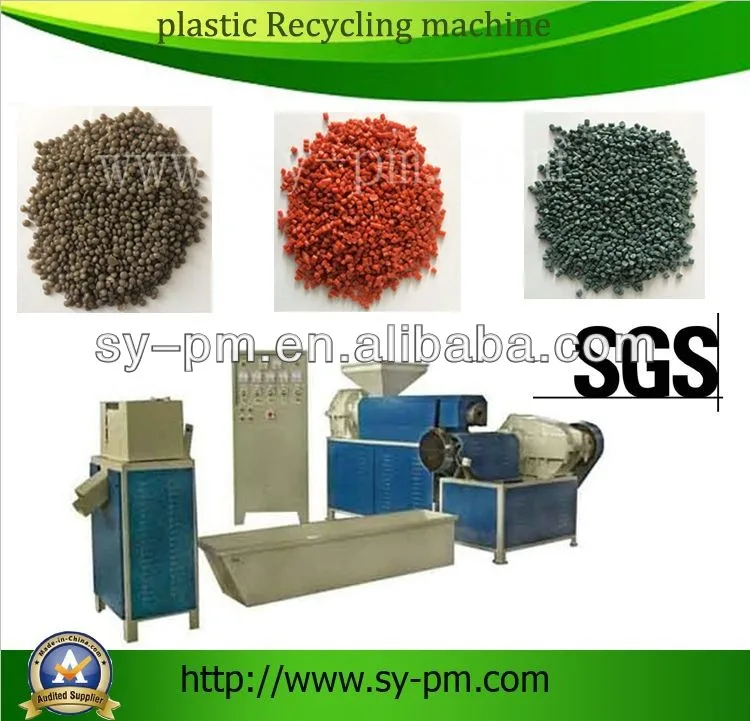

The Double-Stage Waste Plastic strand pelletizer pp recycle

	//www.youtube.com/watch?v=gyiJpFdbbDw&feature=youtu.be
	sanyuanfactory
	0086-13626771167



Product Description:

Application:

 The Double-Stage Waste Plastic strand pelletizer pp recycle is used for recycling of the used and waste plastic materials such as PP, PE .

Technical Description:

Output: 70-90kg/h

1.Applicable raw material: HDPE/LDPE, PP

2.Power supply: 380v, 50Hz 3 Phase

3.Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA

   with optimum hardness and strong corrosion resistance after

   precision finishing and nitrogen treatment

4.Gear box: Hard Surface Gear

5.Automatic temperature controlling system

6.Including water-cooling device made of stainless steel

7.Including granule cutter

8.Force Feeding Unit is optional

Main Extrusion Unit

1.Main extruder

2.Main motor :18.5kw

3.Screw Diameter: Φ 110mm

4.Screw ratio: L/D 28:1

Auxiliary extruder

1. Auxiliary motor: 11kw

2.Screw Diameter: Φ97mm

3.Screw ratio: L/D 28:1

4.Heating

Water Tank

1.4 meters length

2.Stainless steel

Granule Cutter



Main Technical Parameters:

Model	SJY-100
Production	70-90kg/hour
Main Extruder Screw Size	97mm
Second Extruder Screw Size	95mm
Hydraulic Screen Changer	Yes
Force Feeder	Yes
Main Motor Size	22kw
Second Motor Size	11kw
Main Extruder LD	20:1
Second Extruder LD	11:1
Main Motor Inverter	22kw
Second Motor Inverter	11kw
Cutter Motor	2.2kw
Force Feeder Motor	1.5kw
Main Extruder Gear Box Hard Teeth	180Model
Second Extruder Gear Box Hard Teeth	173Model
Ceramic Heating Ring	6
Die Head Heating Sheet	15pcs
Die Head Hole Numbers For Second Extruder	15
Air Blower Blow Water Off	1.5kw
Cutter Knife Width	230mm
Cutter Knife Numbers	9pcs
Main Extruder Dimension	2500*700*2200
Second Extruder Dimension	1800*1200*1600
Water Cool Box Dimension	2500*330*330
Electric Cabinet Dimension	750*450*1600
Grain Cutter Dimension	800*800*1100

Free Spare Parts:

No.	Spare parts name	Quantity
1	Temperature meter	1set
2	Electric Sensor	2 pc
3	Heating ring	3 pc
4	Tool box	1set
5	English manual	1pc

More Pictures:

High production with 19 extruding line

Mother and baby extruding recycling machine

Main extruding device with three extruding line

Ceramic heating ring for main extruder + water cooling box

Electric box with good quality electric parts

Gain cutter with rotating blade+Fixing blade

Packaging & Shipping:

Sanyuan Factory will pack the machine with two times film package.

 If customer needs wooden case, it needs additional charge.

 Shipping sea freight cost paid by buyer.

 Sanyuan Factory should help buyer to choose a good shipper agent, to

 insure the machine arrive in buyer country safely.
