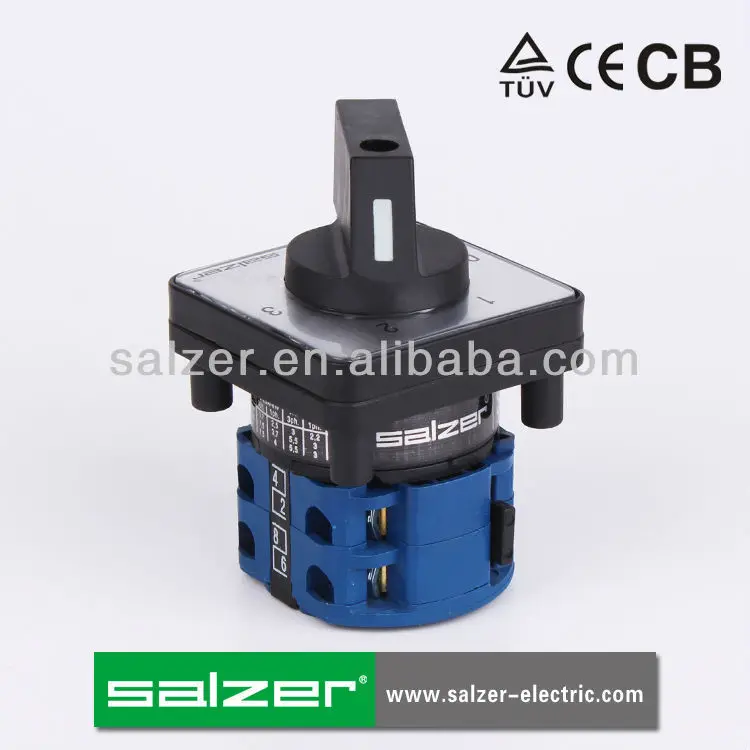

Salzer Multi step Cam Switch SA16 16Amp 0 1 2 3 Change over Switches rotary cam switch selector (TUV,CE and CB)
- Category: >>>
- Supplier: Yueqing Leyi Electric Co. Ltd.
Share on (1751379253):
Product Overview
Description
post

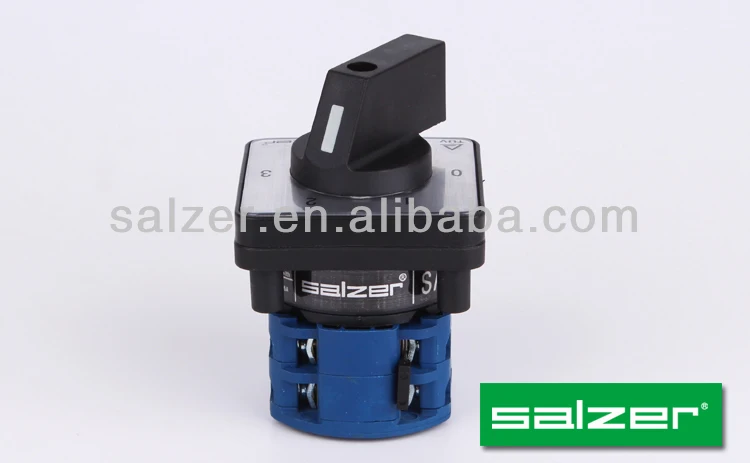

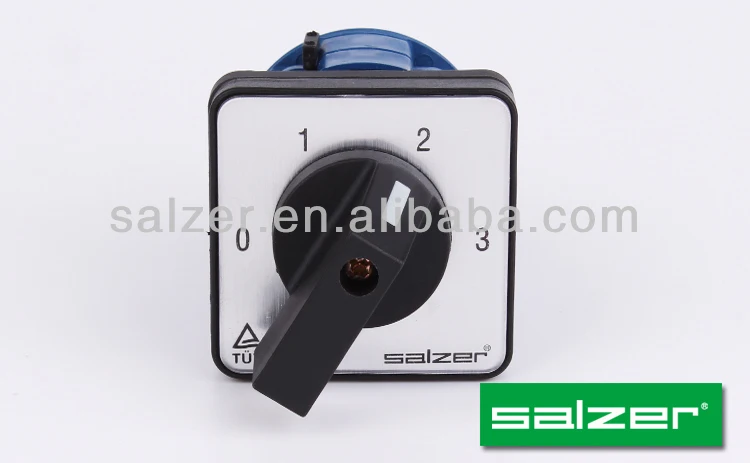

Salzer Multi-step Cam Switch SA16 16Amp 0-1-2-3 Change over Switches rotary cam switch selector (TUV,CE and CB)
SA Cam Switch
SA series cam switches offer a solution for cam switch applications. Different contact designs, contact materials and terminals allow for their use as control switches, instrumentation switches and motor control switches, as well as in electronic circuitry and in aggressive environments according to IEC 60947-3.
General Information
| Switch Type | SA16 |
| Current | 16A |
| Max. Voltage | 690VAC |
| Plate Size | 48X48mm, 64x64mm |
| Faceplate | 0-1-2-3 |
| Degree of Rotation | 30°, 45°, 60° |
| Ingress Protection | IP20 with finger protection |
Technical parameters
| Description | SA10 | SA16 | SA25 | SA32 | SA63 | SA125 | SA160 | SA315 | |||||||||||||
| Rated insulation voltage Ui | V | 440 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | ||||||||||||
| Rated thermal current lth | A | 10 | 16 | 25 | 32 | 63 | 125 | 160 | 315 | ||||||||||||
| Rated working voltage Ue | V | 120 | 240 | 440 | 120 | 240 | 440 | 120 | 240 | 440 | 120 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Rared working current le | |||||||||||||||||||||
AC-21A AC-22A | A | 10 | 10 | 16 | 16 | 25 | 25 | 32 | 32 | 63 | 63 | 100 | 100 | 150 | 150 | 315 | 315 | ||||
AC-23A | A | 7.5 | 7.5 | 13 | 13 | 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 | 265 | 265 | ||||
| AC-2 | A | 7.5 | 7.5 | 13 | 13 | 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 | 265 | 265 | ||||
AC-3 | A | 5.5 | 5.5 | 11 | 11 | 15 | 15 | 22 | 22 | 36 | 36 | 75 | 75 | 95 | 95 | 110 | 110 | ||||
| AC-4 | A | 1.75 | 1.75 | 3.5 | 3.5 | 6.5 | 6.5 | 11 | 11 | 15 | 15 | 30 | 30 | 55 | 55 | 95 | 95 | ||||
| AC-15 | A | 2.5 | 1.5 | 5 | 4 | 8 | 5 | 14 | 6 | ||||||||||||
DC-13 | A | 0.25 | 1.5 | 25 | 11 | ||||||||||||||||
Rated control power | |||||||||||||||||||||
AC-23A | kW | 1.8 | 3 | 3.7/2.5 | 7.5/3.7 | 5.5/3 | 11/5.5 | 7.5/4 | 15/7.5 | 15/10 | 30/18.5 | 30/15 | 45/22 | 37/22 | 75/37 | 75/37 | 132/55 | ||||
AC-2 | kW | 2.5 | 3.7 | 4 | 7.5 | 5.5 | 11 | 7.5 | 15 | 18.5 | 30 | 30 | 45 | 37 | 35 | 55 | 95 | ||||
AC-3 | kW | 1.5 | 2.2 | 3/2.2 | 5.5/3 | 4/3 | 7.5/3.7 | 5.5/4 | 11/5.5 | 11/6 | 18.5/11 | 15/7.5 | 30/13 | 22/11 | 37/18.5 | 37/22 | 55/30 | ||||
AC-4 | kW | 0.37 | 0.55 | 0.55/0.75 | 1.5/1.5 | 1.5 | 3/2.2 | 2.7/1.5 | 5.5/3 | 5.5/2.4 | 7.5/4 | 6/3 | 12/5.5 | 10/4 | 15/7.5 | 15/7.5 | 25/11 | ||||
main product
our company
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
Packaging & Shipping
FAQ
Please don't hesitate to contact us if any special specifications are needed.
