column type drilling machine price Z5050

Product Overview

Description

column type  drilling  machine price Z5050

1.New-designed,pleasing appearance,compact construction,wide speed chande range,easy to operate.

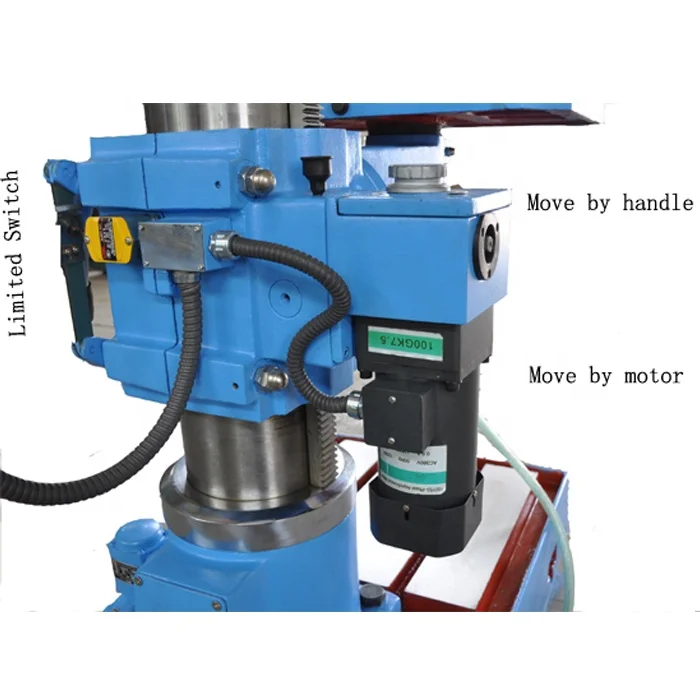

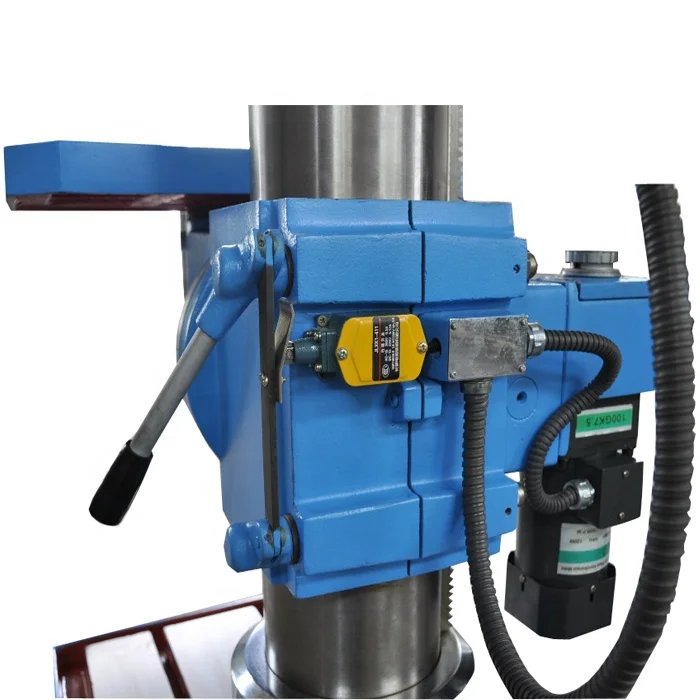

2.Easy operation with its unique workable, and both motor-drive(Z5035) and manual-operated lifting sevice.
3.The working table can be rotated 180° and can be tited ±45° also,it is reliable and easy job can be done.
4.Equipped with coolant system and tapping mechanism.
5.Equipped with shortcut and overload protection,its electricasystem with powerful spindlemotor,it designed according to IEC standard.
6.Characteristic protection device is safe and reliable.
7.Ideal choice for single pice,small batch and mass production for drilling,counter boring,reaming,tapping,spot facing,etc.

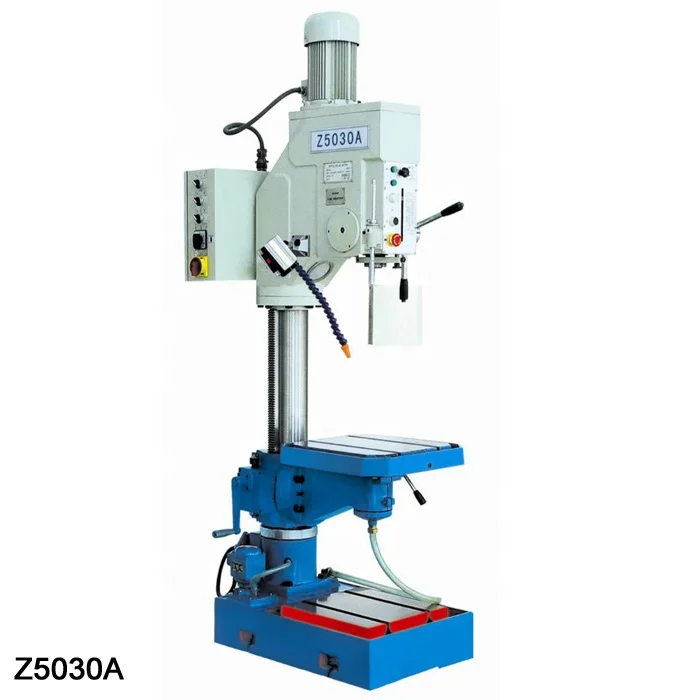

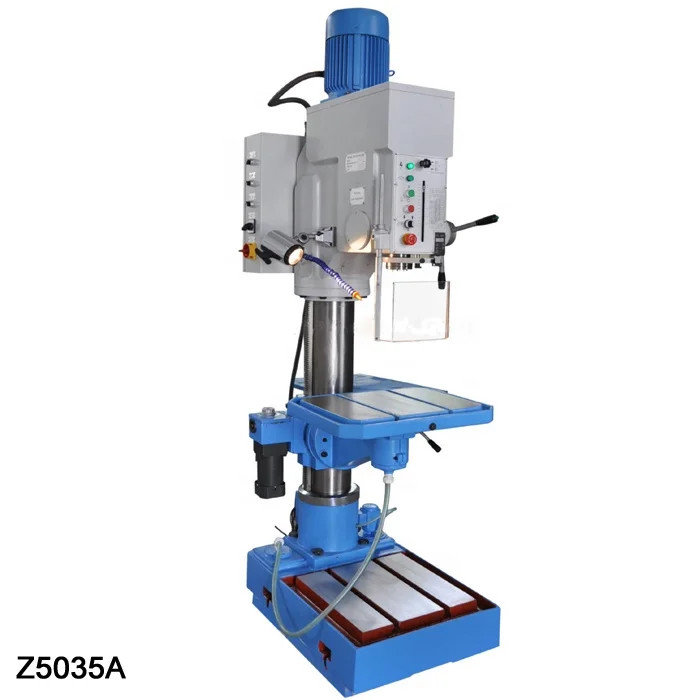

Item	Unit	Z5035	Z5030
Max. Drilling capacity	mm	35	30
Max. Tapping capacity	mm	M24	M20
Diameter of column	mm	140	120
Spindle travel	mm	160	135
Distance spindle axis to column generating line	mm	330	320
Max. Distance spindle nose to table	mm	590	550
Max. Distance spindle nose to base	mm	1180	1100
Spindle taper		MT4	MT3
Spindle speeds range	r/min	75~2500	65~2600
Spindle feeds series		12	12
Spindle feeds	mm/r	0.1 0.2 0.3	0.1 0.2 0.3
Dimension of workable surface	mm	500*440	500*440
Table travel	mm	550	490
Dimension of base table	mm	400*390	400*390
Overall height	mm	2300	2050
Main motor	kw	1.5/2.2	1/1.5
Coolant motor	w	40	40
G.W/N.W	kg	670/600	500/440
Packing dimension	cm	108*62*230	108*62*215



Standard Accessories:	Optional Accessories:
Drill chuck	Multi-spindles
Arbor	Angle vice
Taper sleeve	Safety guard
Drift
Eyelet bolts
Wrench
