Высокоточный IP67 Магнитный шкаловый кодировщик Sino с Dro для токарных/фрезерных/шлифовальных машин

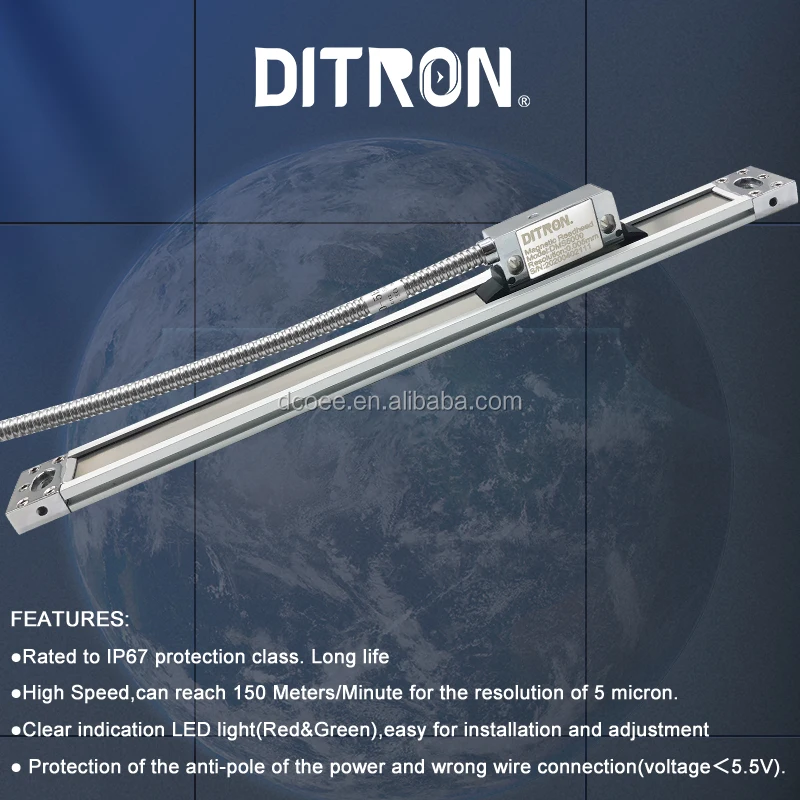

Magnetic Scale Basic specification:

• Rated to lP67 protection class.


• Automatic gain control technics,reduced the requirement for installation.The gap between the reader and tape can be 3mm.


• Protection of the anti-pole of the power and wrong wire connection(voltage < 5.5V).


• High Speed,can reach 150 Meters/Minute for the resolution of 5 micron.

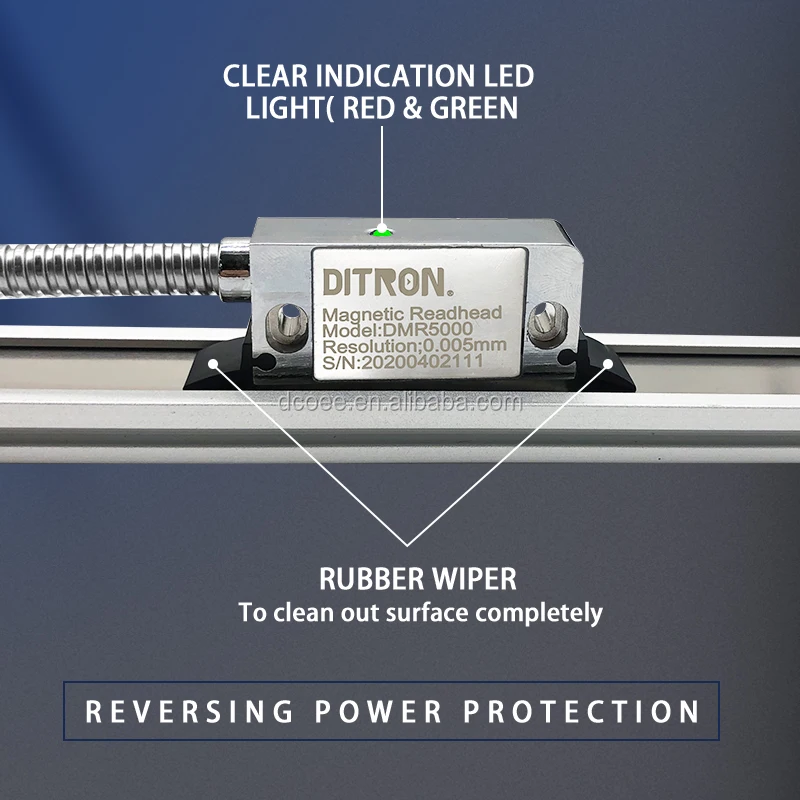

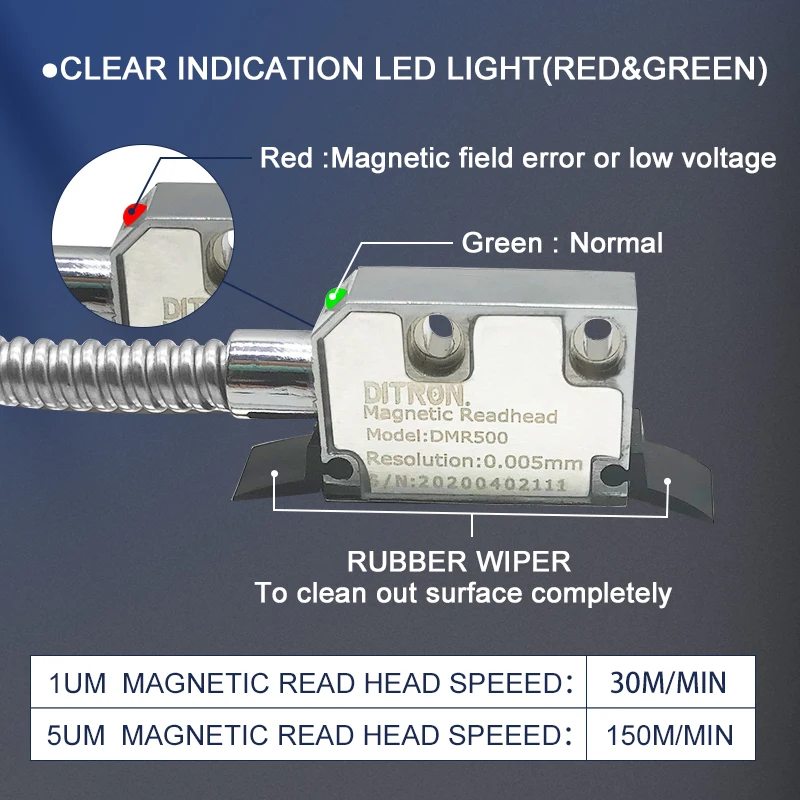

• Clear indication LED light(Red&Green),easy for installation and adjustment.

Comparison of various parameters of DC10, DC10F, DC20:

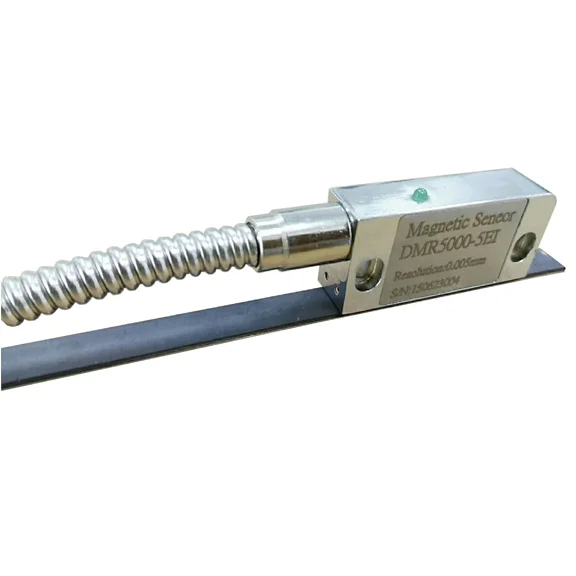

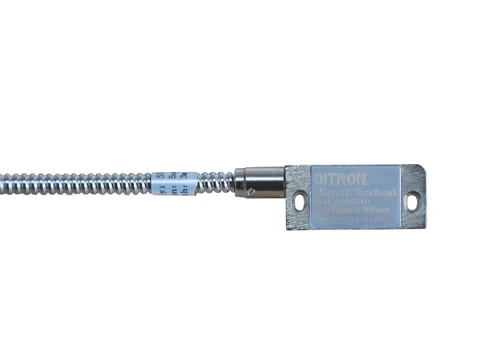

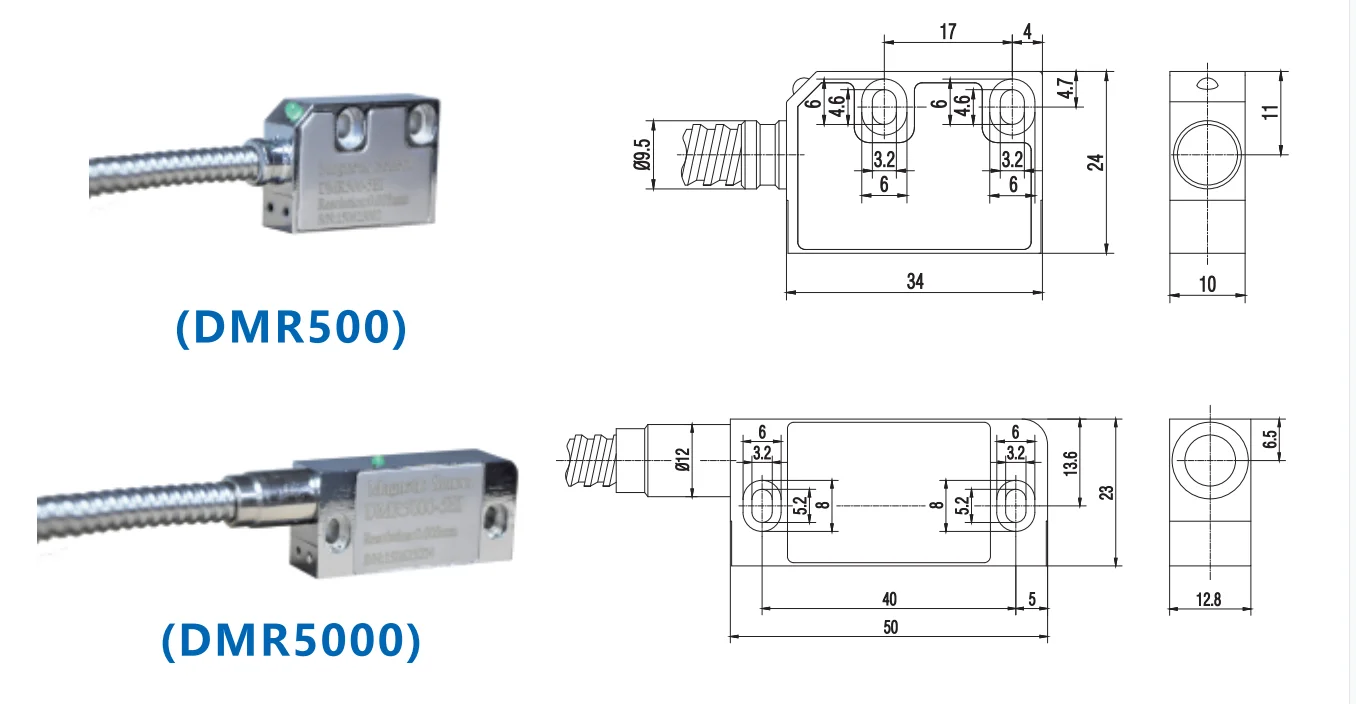

Magnetic Read Head:

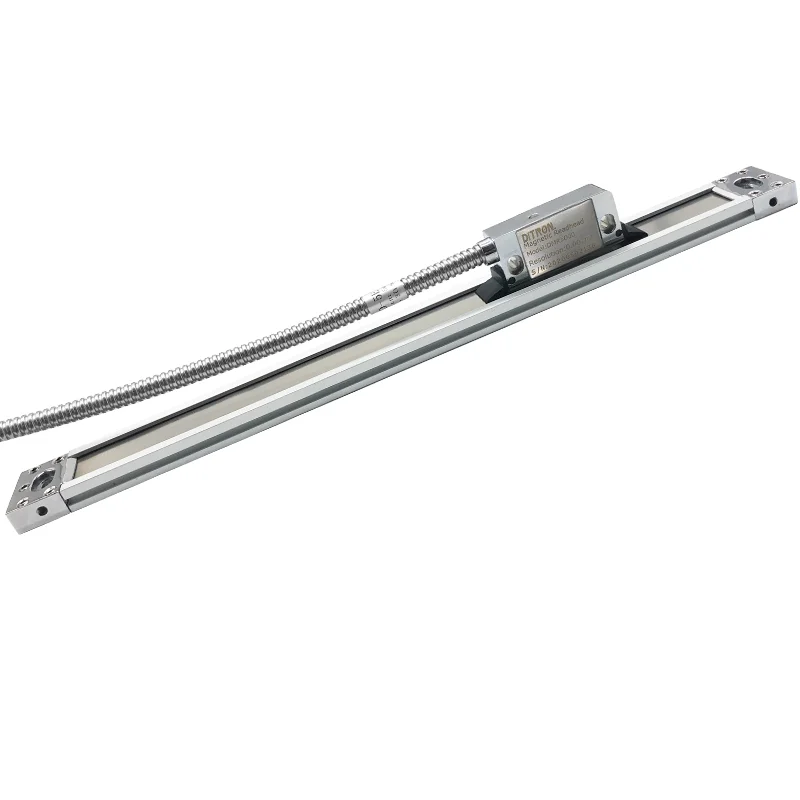

DM Magnetic Scale:

• 1) Can't be polluted by the coolant water,coolant liquid or metal dust,so it has the strong capacity of anti-pollution

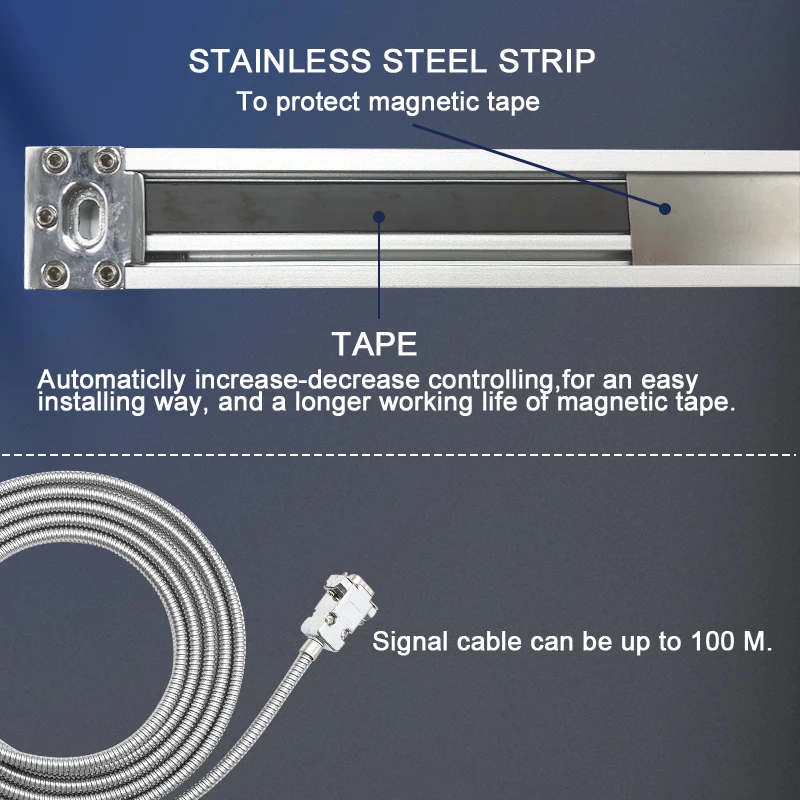

• 2) As the metal shell,so iy can not be damaged easily.Even when doing the machine cleaning,the strong compressed air was sprayed on the magnetic scale,it also can't be damaged.


• 3) As the non-connecting of magnetic read head and magnetic steal,so the scale is seldom damaged by the friction,then the life of the product can be longer.

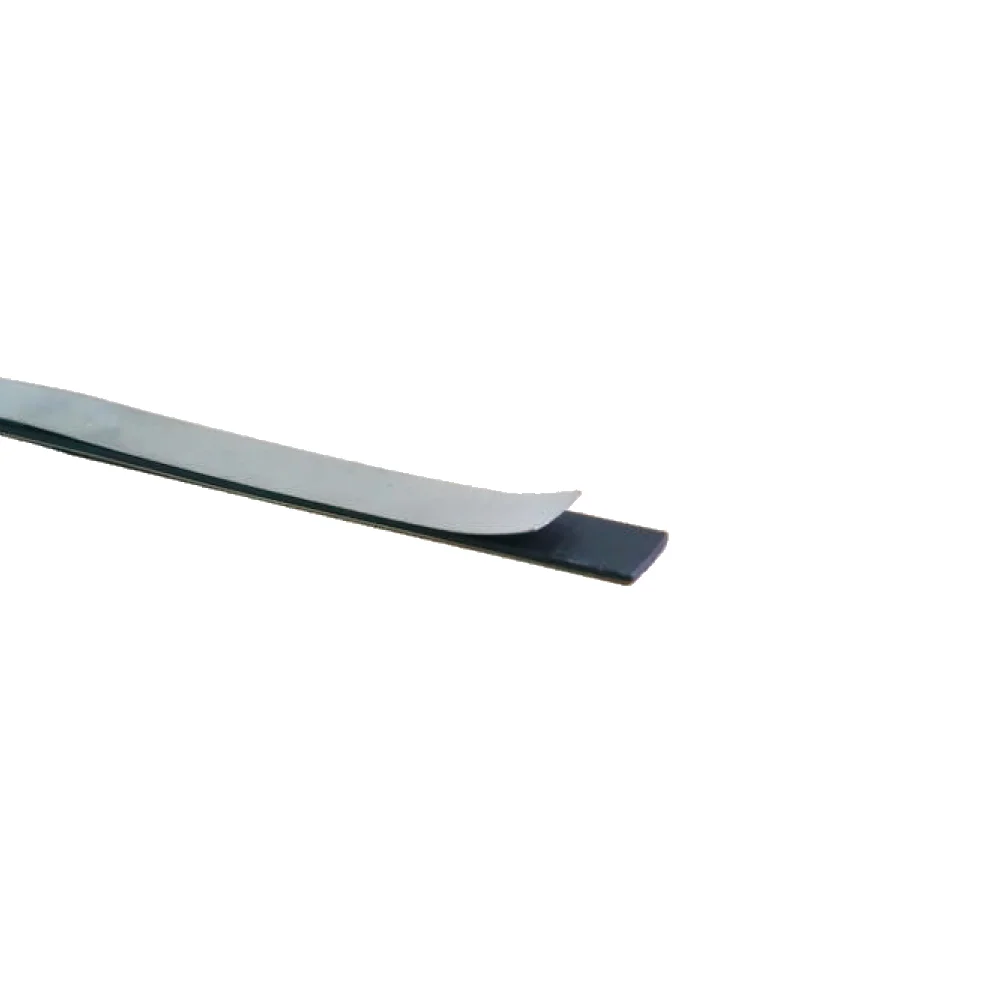

• 4) Simply designed structure,and easy for installation,it uses the high sealing design,and it has the 1.5mm self-adhesive magnetic steal,which the travel length can be 32M


• 5) The magnetic scale can output grid digital or analog signals,it can output a series of resolution with:1um,2um,5um,10um,20um,which can be selected by customers.When the resolution is 1um,the highest traveling speed can be 4m/s


• 6) The DM series magnetic scale can be used in a very harsh environment,such as:stone cutting or processing machinery,metal working machinery,knitting machinery,packaging machinery,rubber production machinery,automation machinery,plasma cutting machinery,laser cutting machinery,water jet cutting machinery,semiconductor production machinery,and more.

FAQ: If you have any question,please contact me at any time.

1. MOQ?
Our minimum order quantity is 1 piece, of course, the more you buy, the better the price will be.

2. What's certificate do you have for your products?

We have CE and RoHS certificate.

3. Do you accept OEM/ODM/OBM?

Yes,it is avaliable.

4. What can you buy from us?

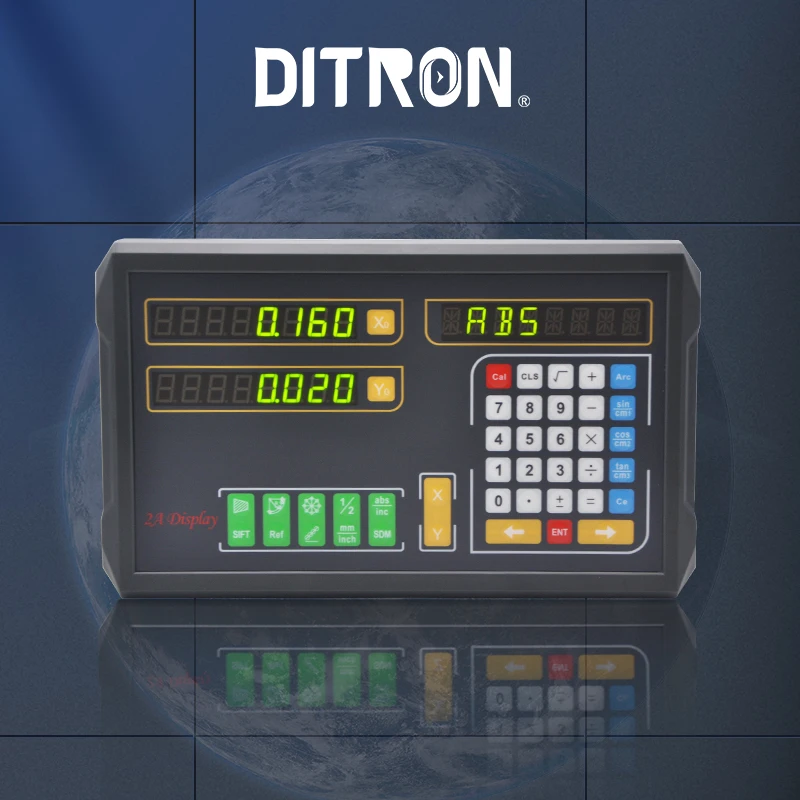

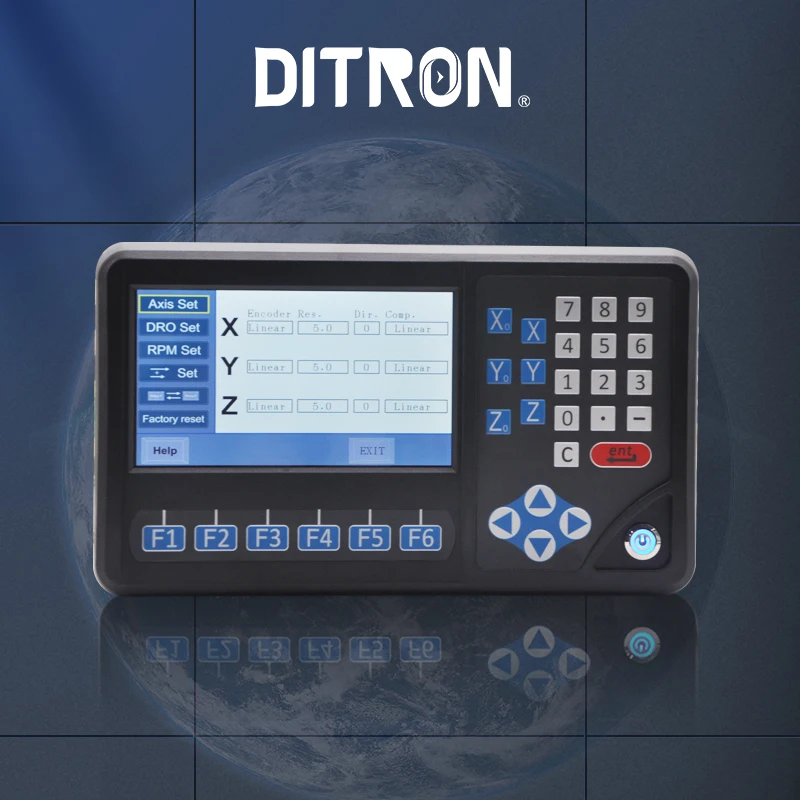

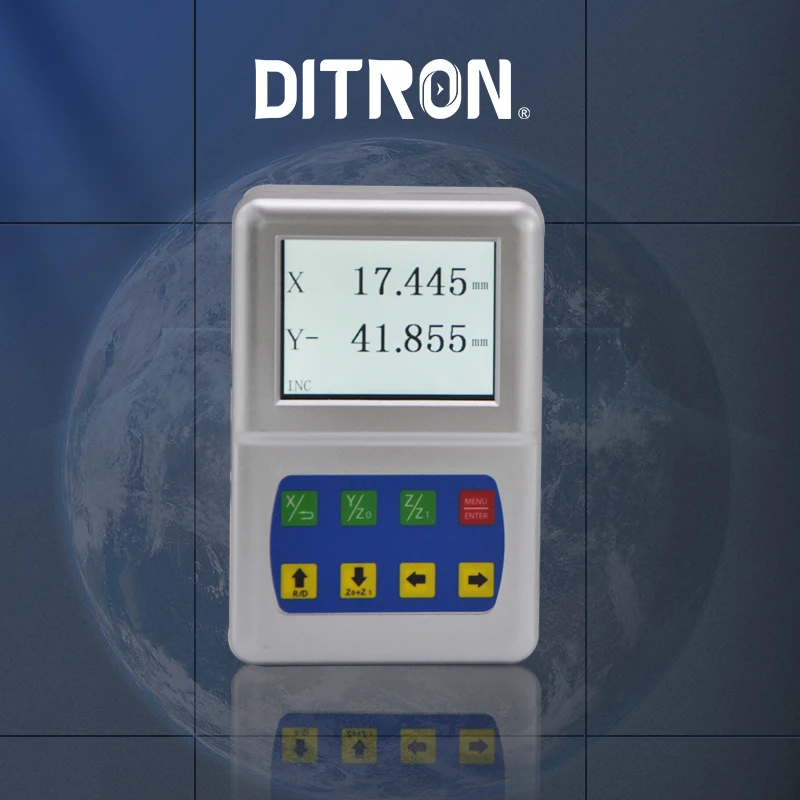

Digital Readout,Linear Scale, Magnetic Scale.

5. Do you have inspection procedures for your products ?

100% self-inspection before packing.

6. How to place the order?

Please contact with our sales to get the detail datasheet and confirm the part number of the product you need, then you can place the order.

7. How to contact us?
You can send us messages in Alibaba.
