GZD1200*4900 Vibrating Feeder Price For Mineral Ore

Share on (1751592461):


Price:

Quantity:


Product Overview

Description


GZD1200*4900 Vibrating Feeder Price For Mineral Ore



Product Description







Vibrating Feeder Processing capacity: 20-800t/h
Feeding size: 125-250mm
Feed opening: 150×250-300×1300mm
Motor power: 5.5-55kw
Total weight: 0.8-15.6t


rock feeder





The Application and Features of Vibrating Feeder:
The vibrating feeder produced by our company is a linear vibratory feeder with the features of stable vibration, reliable working and long service life. It can continuously and evenly feed the crushing equipment and classify the materials, so that it is widely used in the crushing and screening combination plant in ore beneficiation, building material, silicate and chemical industry.





Vibrating feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials.

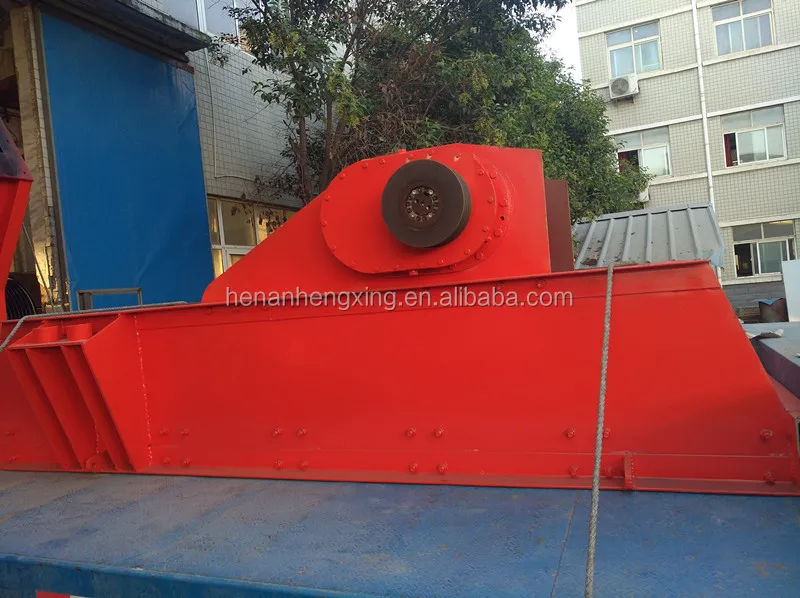

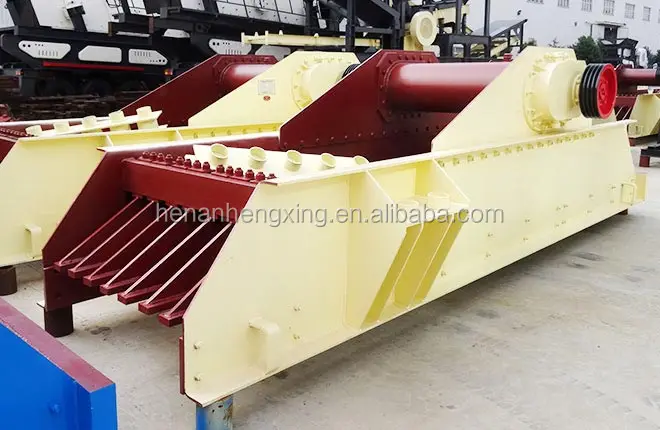

vibrating feeder.jpg
The vibrating feeder  is  Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine selection, building materials, chemicals, etc.

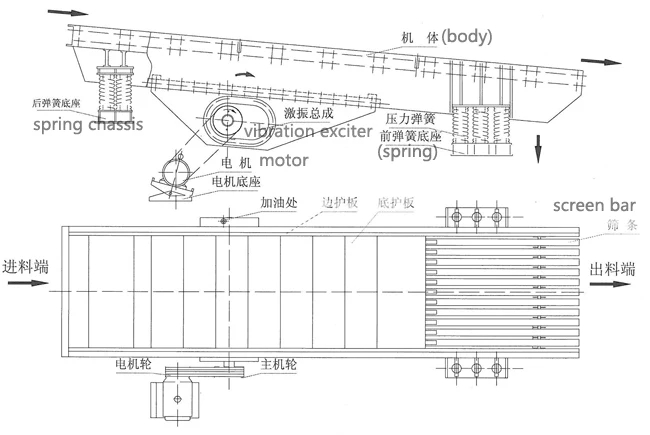

The vibrating feeder is composed of a machine body, a spring, a spring base, a vibrator, a vibrating motor and a vibrating bar. Large Capacity Stone Feeding Machine, Mine Vibratig Feeder





vibrating feeder strucutre

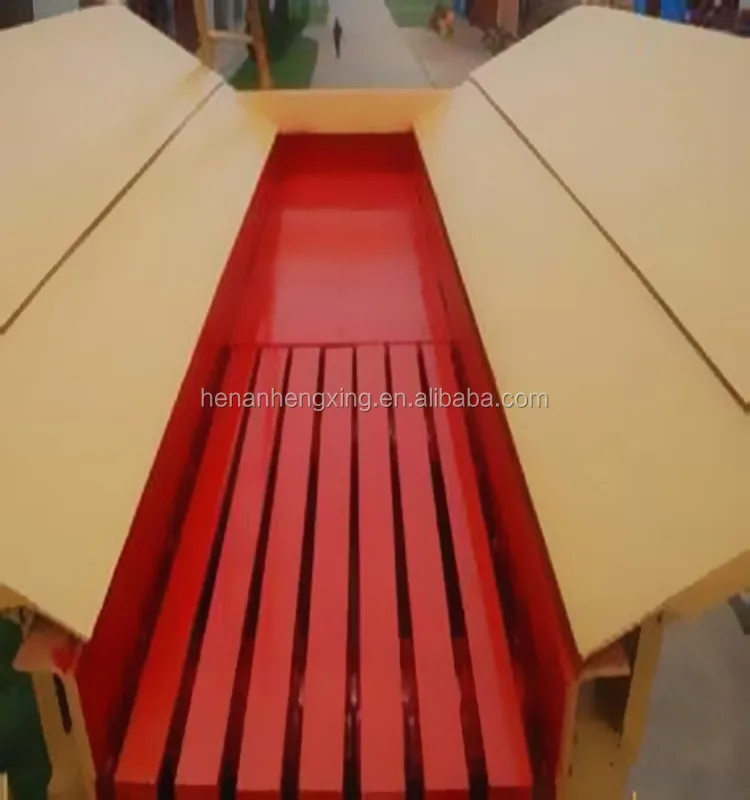

stone vibrating feeder





Vibrating feeder working principle:


The vibrating feeder  electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude. The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying.  the vibrating feeder is widely used for mining plant,stone crushing plant,sand making plant,etc

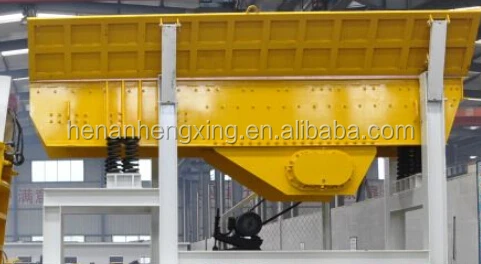

vibratory feeder.jpg


Characteristics of Vibrating Feeder:

Smooth vibration,

Reliable operation,

Long service life,

Low noise,

Low power consumption,

Easy to adjust,

Simple structure,

Easy to install,

Light weight,

Small volume,

Simple maintenance.

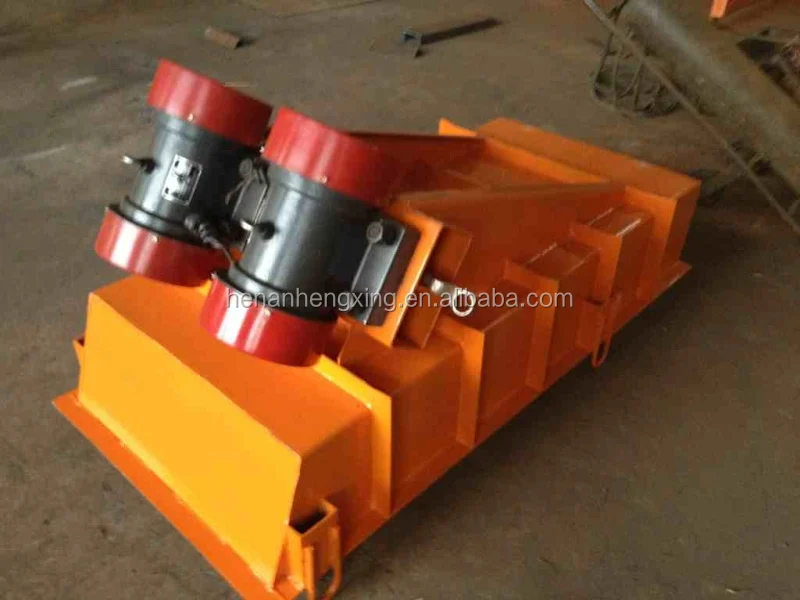

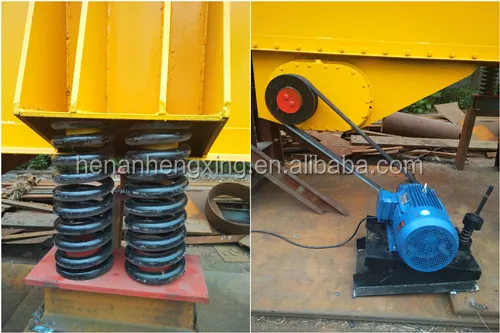

Strong vibration motor :


vibration feeder vibrator


Vibrating feeder main models and technical parameters:


















































































































































Model



Max.
Feeding
Size
(mm)



Processing
 capacity
(t/h)



Motor
power
(kw)



Obliquity
of material
 trough
(°)



Total
 weight
(kg)



Trough
size
(mm)



Dimensions
(L×W×H)
(mm)



GZD-650×2300



300



80



1.1×2



10



2798



650×2300



2300×1360×780



GZD-750×2500



350



100



1.1×2



10



3260



750×2500



2500×1460×780



GZD-850×3000



400



120



3×2



10



3607



850×3000



3110×1800×1600



GZD-1000×3600



500



150



5.5×2



10



3895



1000×3600



3850×1950×1630



GZD-1100×4200



580



240



5.5×2



10



4170



1100×4200



4400×2050×1660



GZD-1300×4900



650



450



7.5×2



10



5200



1300×4900



5200×2350×1750



GZD-1500×5600



1050



450-800



11×2



10



7500



1500×5600



5700×2000×1750



ZSW-380×95



500



100-160



11



0



4823



3800×960



3920×1640×1320



ZSW-490×110



630



150-320



15



0



6647



4900×1100



4980×1830×1320



ZSW-490×130



750



400-600



22



0



8760



4900×1300



4980×2580×2083



ZSW-600×130



750



400-600



22



0



9250



6000×1300



6082×2580×2083



ZSW-600×150



800



500-700



30



0



10190



6000×1500



6086×2662×1912



ZSW-600×180



800



700-1000



37



0



13750



6000×1800



6310×3262×2230



 vibrating feeder.jpg


Large Capacity Stone Feeding Machine, Mine Vibratig Feeder


mining vibrating feeder


vibrating feeder working site for cobble stone:


vibration feeder






Packaging & Shipping





  Packaging Detail:



  • Packing Requirement: StandarContainers

  • Inner Packing: Product wrapped by PP-Bubble

  • Outer Packing: Load container, Spare Parts in wooden case

  • Storage Requirement: waterproof, put in the flat ground


Transportation:



  • These machines are processed to be rustproof and moisture proof before delivery.

  • Large mainframes are in nude, while small spare parts and motors are in wooden boxes.

  • All items are in bulk or containers, details will be negotiated by both parts afterwards.

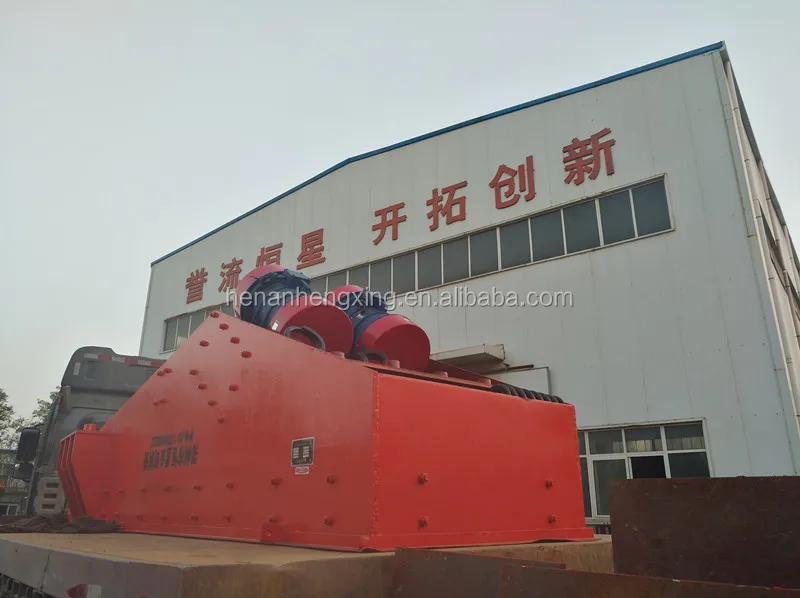

vibrating feeder (4)

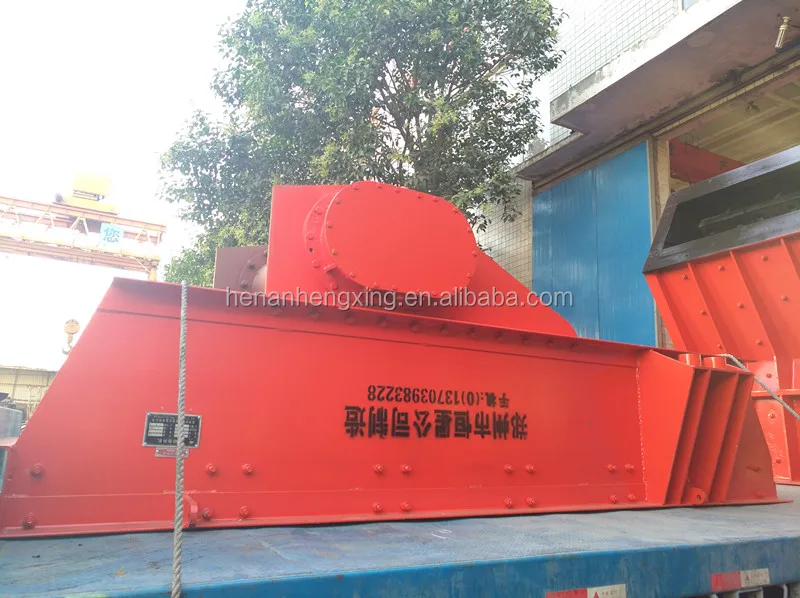

vibrating feedervibrating feeder 2



Our Services





Pre-sales Service:


We can provide customers with single machine or complete processing plant by our wide product range. Based on the customers' request and budget, our experts make out efficient and reliable solutions. We arrange the production strictly following customers' order. What’s more, every customer has the chances to visit the factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.





After-sales Service


Our experienced technicians is available on the phone and on the internet,customer can get instance guidance. Dispatch engineers to help customer installation and train local worker to operate and maintain the equipment. Well train and prfessional engineers are at your service home and abroad.








Company Information





Zhengzhou Hengxing Heavy Equipment Co.,Ltd is a joint stock corporation integrating with research, manufacture and sale which targeted at the large and medium sized series of heavy equipments. Our main products are stone crushing machines, sand making machine ,ball mill machine ,mineral  ore dressing machines,rotary dryer,rotary kiln, AAC block making machine,coal briquetting machine,which were widely used in mineral processing and construction industry.


Our company is located at the National High-Tech Development Zone in Zhengzhou city, Henan province. Since the establishment of our company, a passel of scientific elites has been gathered with our modernized management system and accurate product positioning. Our company has set up the computer information-based management with production, CAD and CAPP on production research and processing design. Besides, our company has been equipped with powerful machines and equipments for machining, forging, rivet welding, carburization heat processing. With the long term cooperative relationship to the research institutes at home and abroad, we have introduced advanced technology, processing and detecting equipment for the development of the new products and promotion of our workmanship.


hengixng factory 2018hengxing factory 2018




international cooperation



FAQ





Q: How about the quality of your products?


A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.


Q: How about the price?


A: We are manufactory, and we can give you lower price than those trade companies.


Q: Do you provide after-sale service?


A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.


Q: Do you provide equipment operation training?


A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
