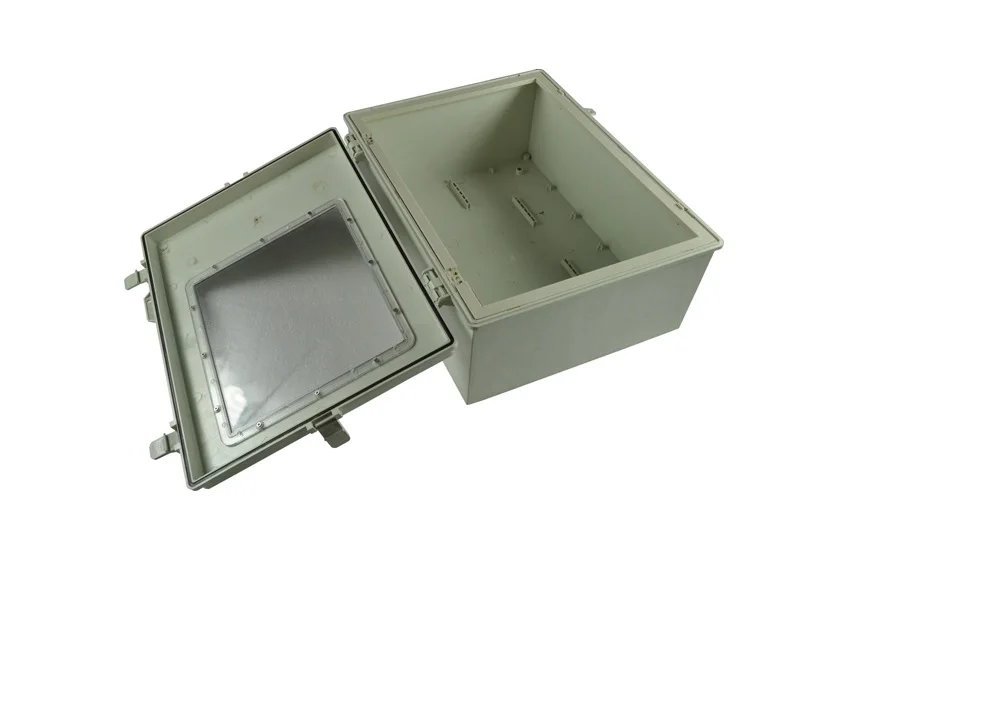

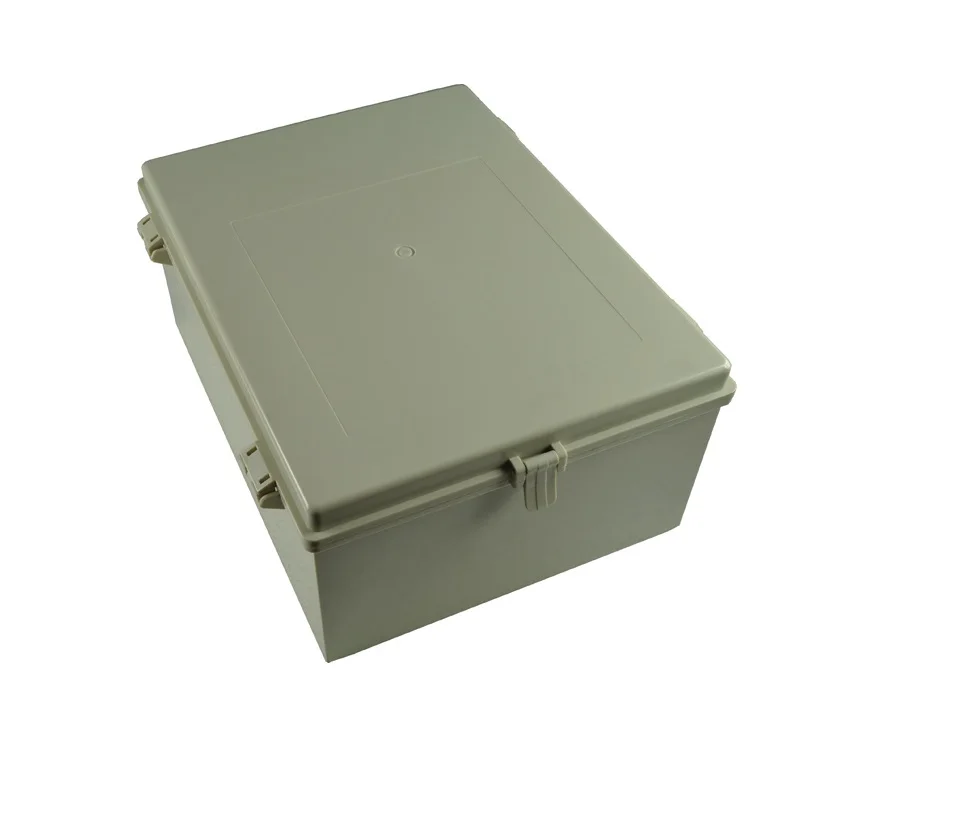

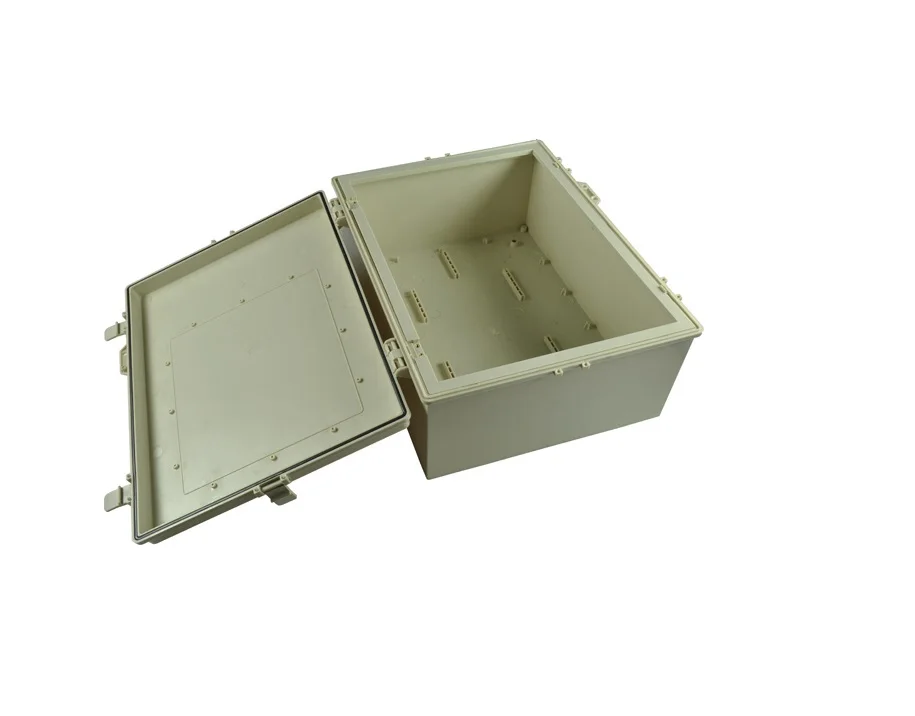

IP65 ABS plastic waterproof enclosures with window or no window

Product Overview

Description





Photo	Parameter
	Brand	Sanhe
	Type	plastic waterproof enclosures
	Code	11-72/11-72A
	IP	65
	Material	ABS
	Size	460x350x200 mm



NO.	Part name	Qty	Material
1	Cover	1	ABS
2	Bottom	1	ABS
3	Transparent Panel	1	PC
4	Button	2	ABS
5	Sealing	2	Silicone Foam
6	Inner Support	1	ABS
7	Fixed Foot	4	ABS
8	Pin	2	Stainless steel
9	M3*5 Screw	8	Iron
10	M5*8 Screw	4	Iron

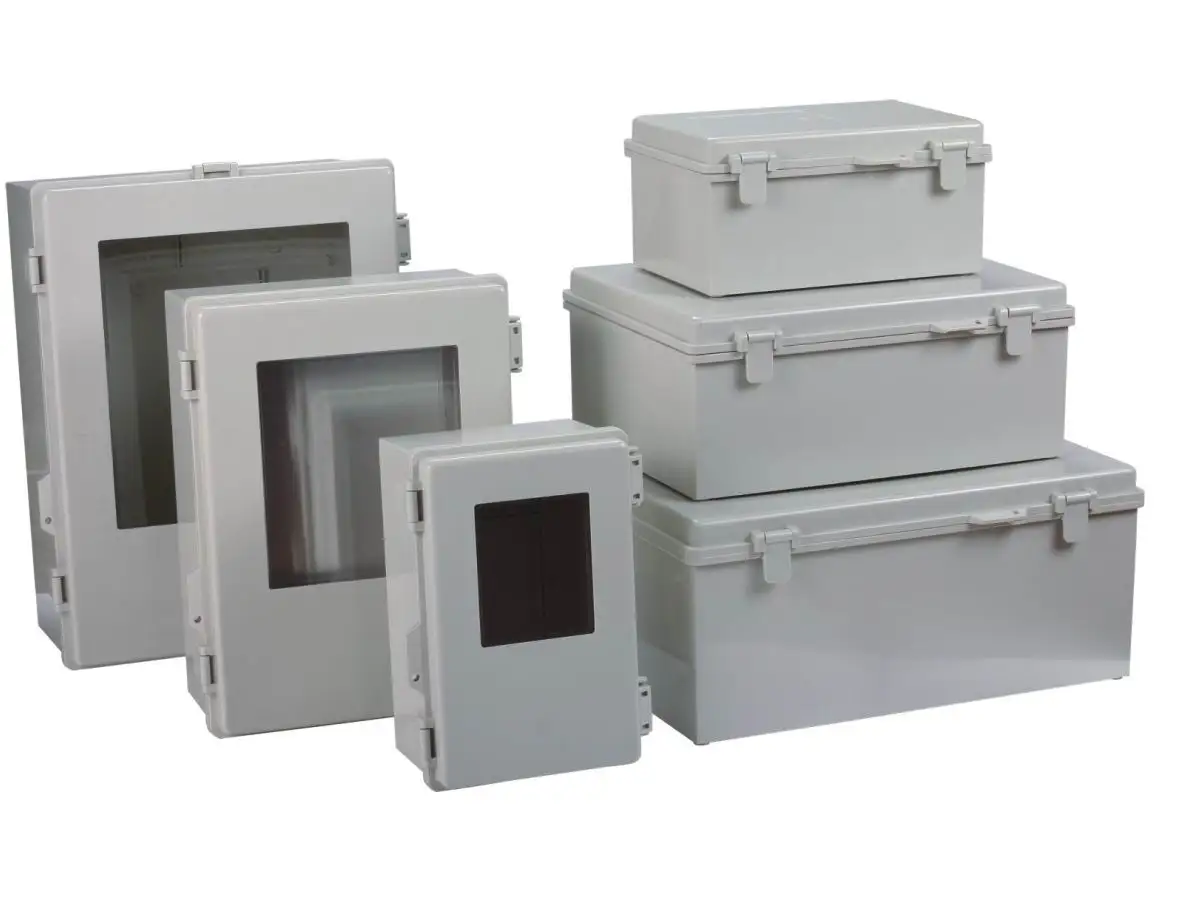

MODEL		SIZE						Material
With window	No window	L	W	H	H1	L1	W1
11-70	11-70A	290	190	140	30	100	120	ABS/PC
11-71	11-71A	390	290	160	30	180	200	ABS/PC

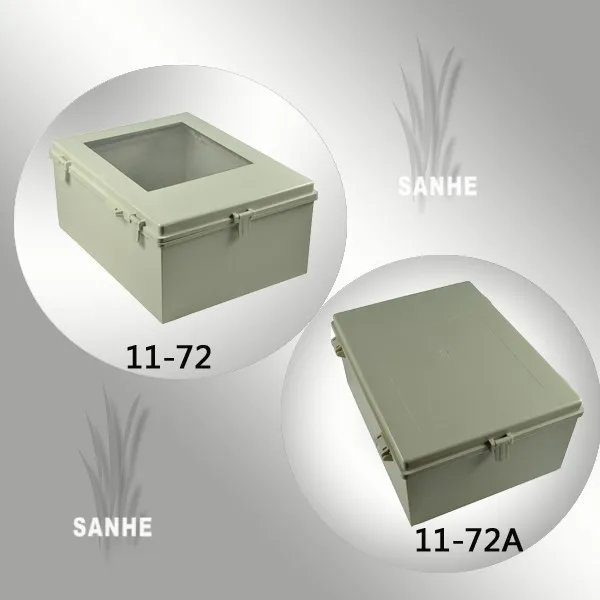

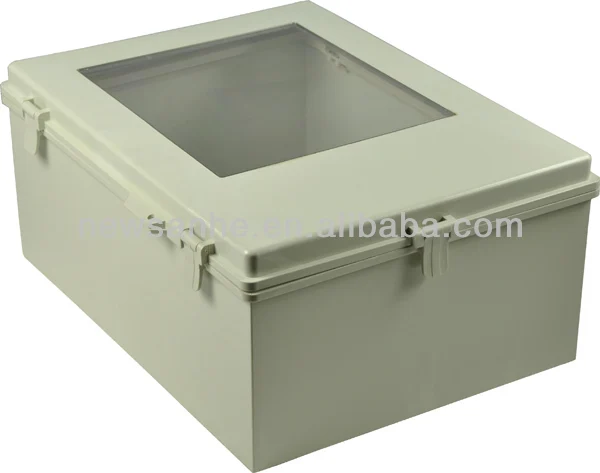

11-72	11-72A	460	350	200	30	240	270	ABS/PC







 1.Material and color can be customized.



2. Holes and  pillars  inside can be added or modified as per your request. And supporting our cable gland.



3. For modification, there will be surcharge.



4. Drawings from website is just for reference .



5. Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.

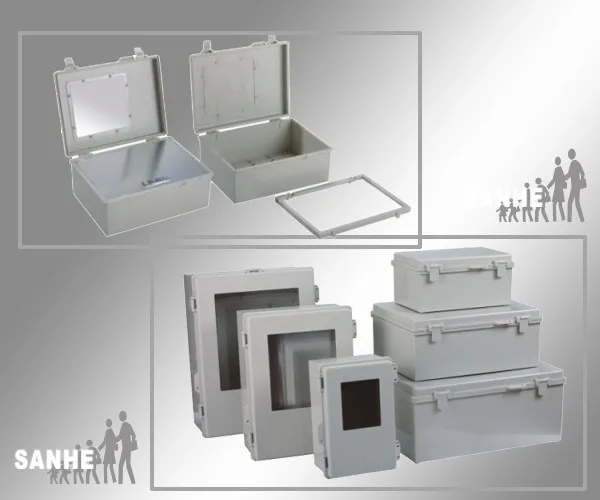

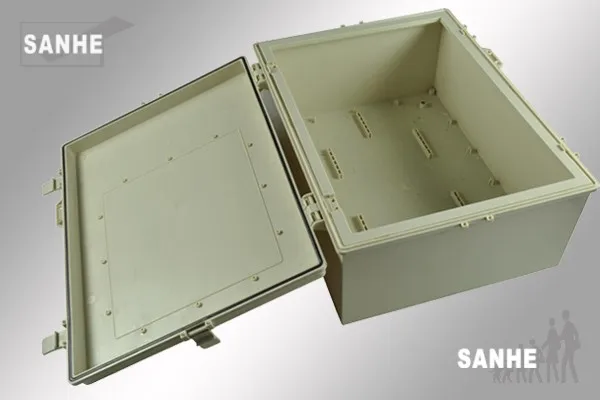

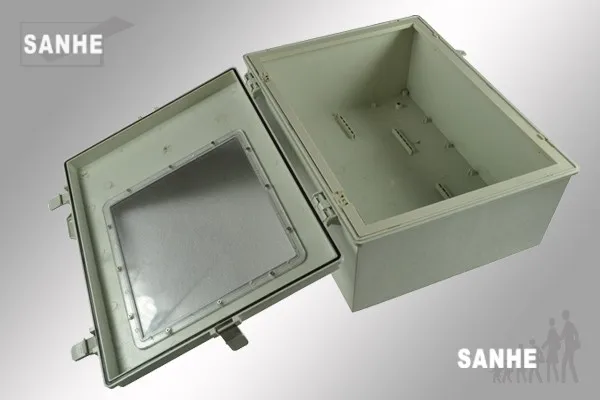

6. For such waterproof case, we can produce 2 types, one with non-transparent case and another one with transparent lid case.



7. More details you also can visit our company web: www.china-mould.com.













In order to keep supplying high quality products,We imported a serial of advanced production equipments.Such as wire cut machines,EDMs from Mitsubishi Japan;CNCs,grinders from Peak Taiwan;Meanwhile,we have numerical controlling punches,bending machines as well as more

than 80 plastic injection machines .The advanced  equipments guarantee the high precision

molds and the high level of the products.

What's more ,we also imported the Gasket Foaming Plant from Germany which can

reach IP 67.









 Packaging Details:                 Plastic bag for each unit; then a batch packed into export carton
 Delivery time:                          15-20 days after payment
