2014 High bay lighting remote control lighting lifter and manual lifter

Product Overview

Description

Material

1-High pressure die casting aluminum housing; car baking paint process

2-Gear and gear shaft adopt the special material of  low carbon alloy steel

3-Steel Wire is no rotating rope and material adopts what is specially used for airplane

4-Stainless steel fastener; silicon rubber sealing ring with anti-aging performance

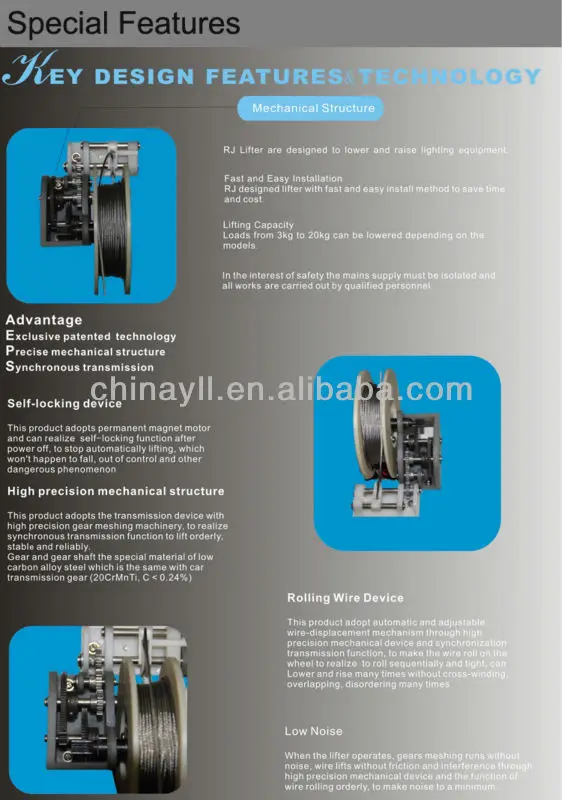

Structure Characteristics

1-Adopt permanent magnet motor and can realize automatically self-locking function

2- Adopt the transmission device with high precision gear meshing machinery

3- Adopt automatic and adjustable wire-displacement mechanism

Performance Features

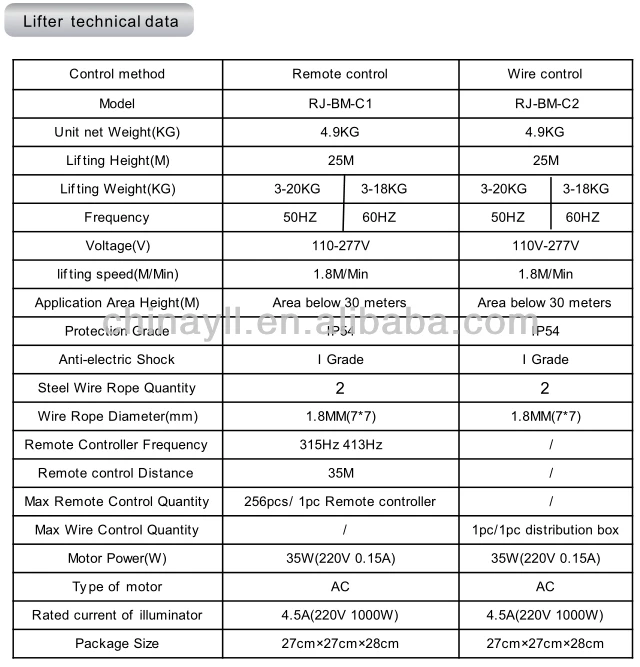

1-Lifting capacity: lifting weight: 3-20kg; lifting height: 25M

2-Two control ways (remote control and wire control) can be selected

3-Lighting circuit and lifter circuit are independent each other

4 -When the light lifts to the top to accurately connect with the lifter, it has no electric spark and no burning.

5 -Control system equipped with weightlessness protection device

6-Low noise

7- Lifting height can be customized according to customers' requirements

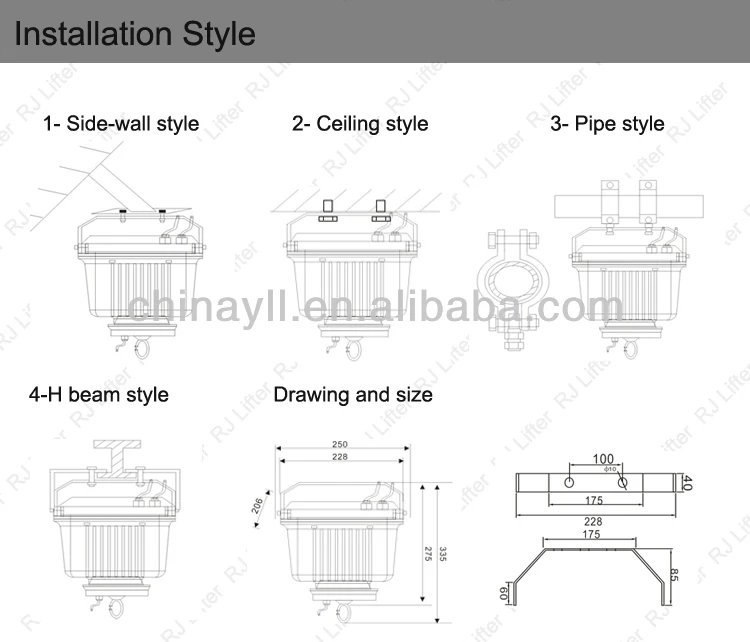

Installation

Many installation modes can be chosen according to the actual construction situation, which are safe, reliable, simple, and convenient.

Applications

It is more applicable for various industry places, such as factory, workshop, warehouse, stadium, and so on. Especially be suitable for where it is difficult for construction, or maintenance is not convenient, or job is dangerous situations.



Product Description







Packaging & Shipping

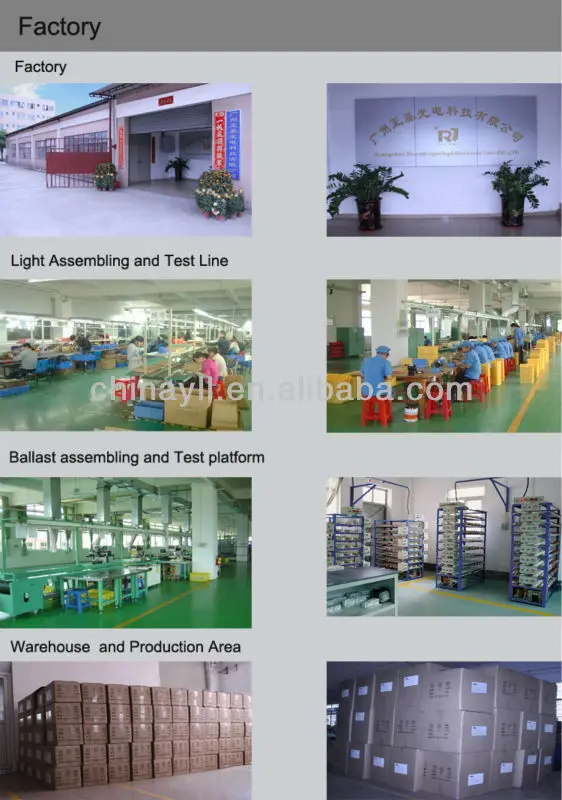

Company Information
