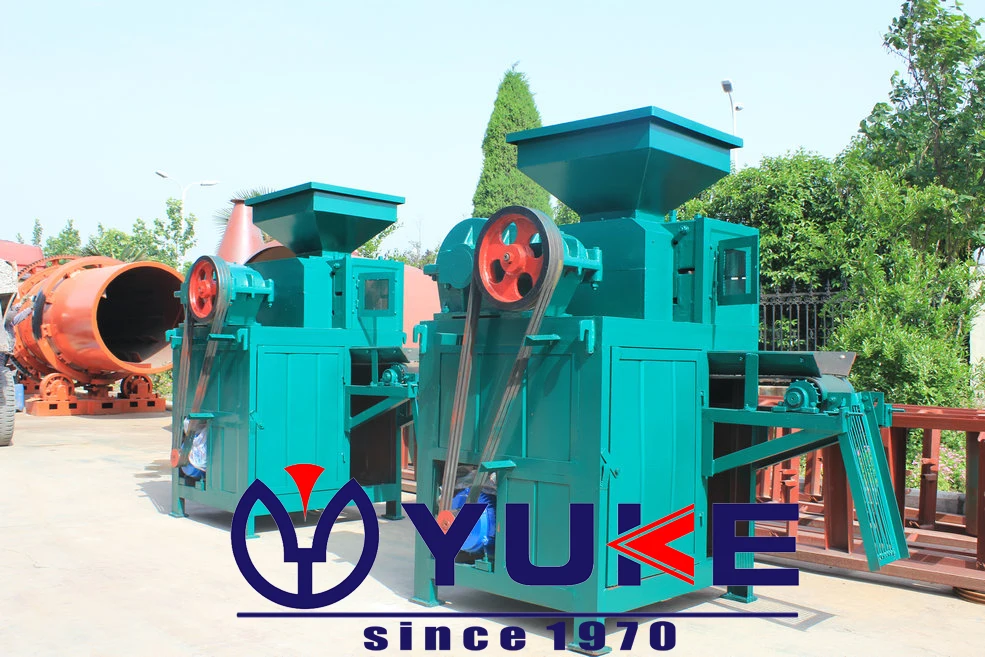

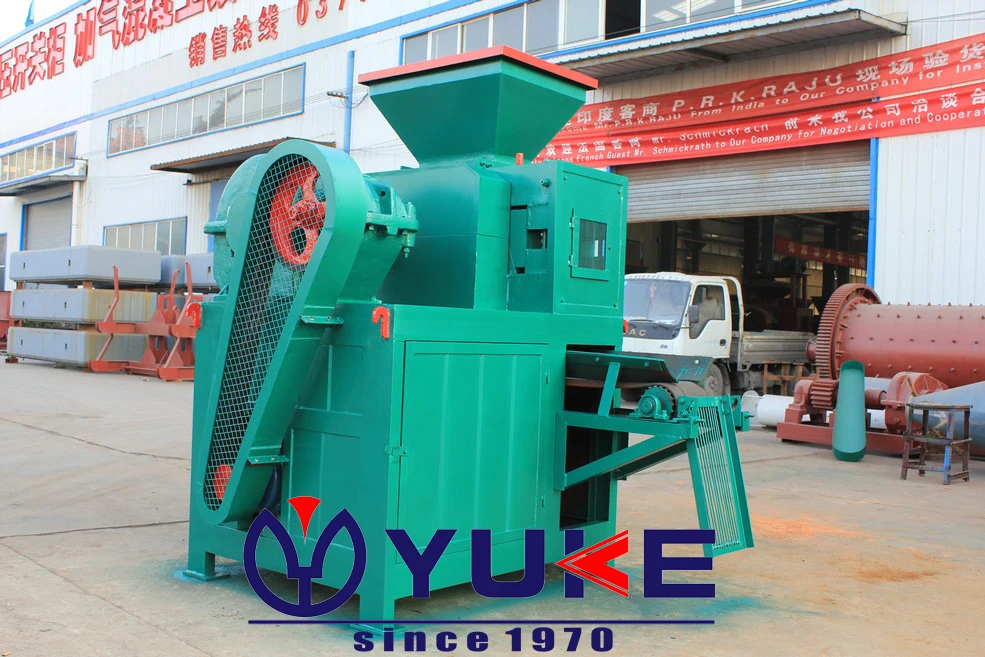

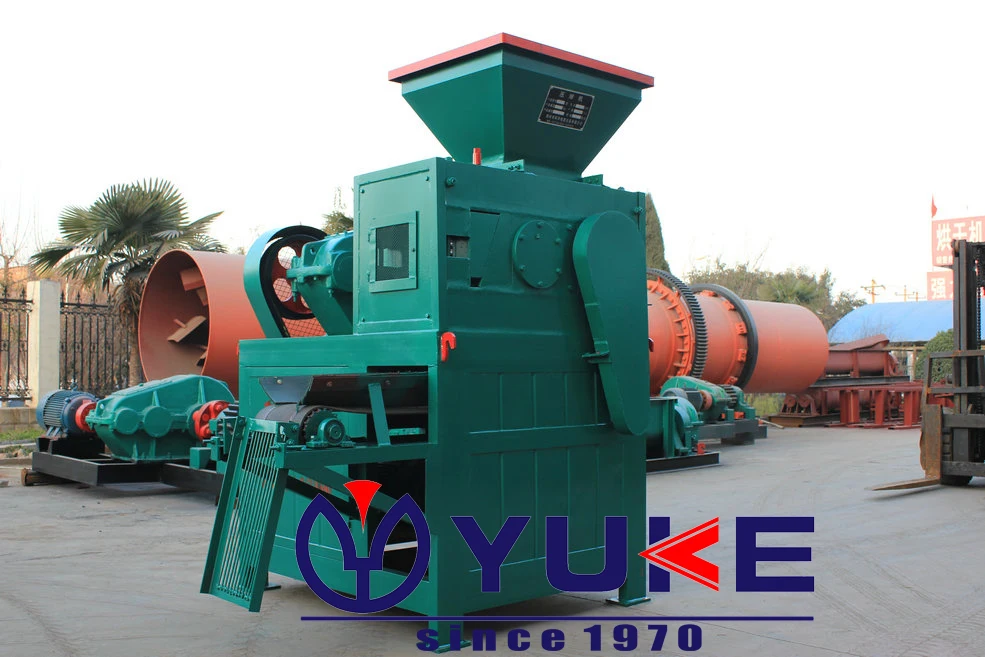

coal dust briquette making machine

Product Overview

Description

Packaging Details:	nude packing/wooden case
Delivery Detail:	20-45days

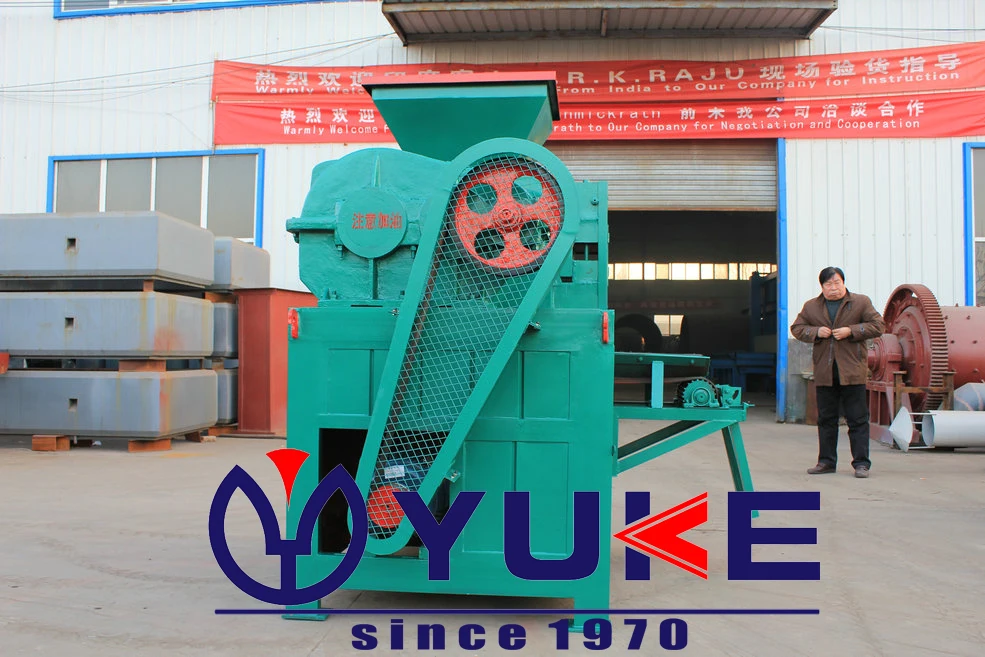

coal dust briquette making machine

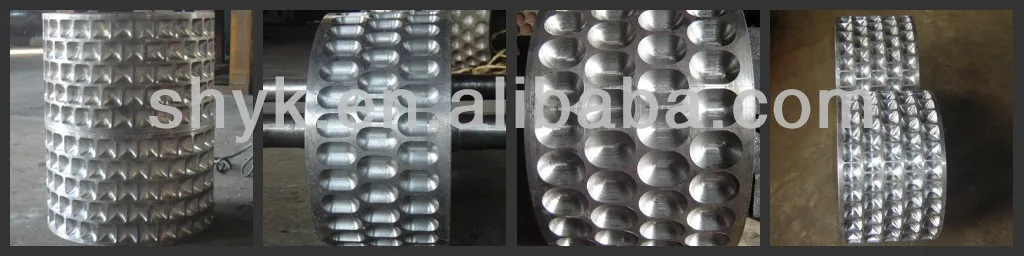

1.wearing parts show :



 2.Application materials:

A: Coal/coke/charcoal powder.

B: Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.

C. Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc

.

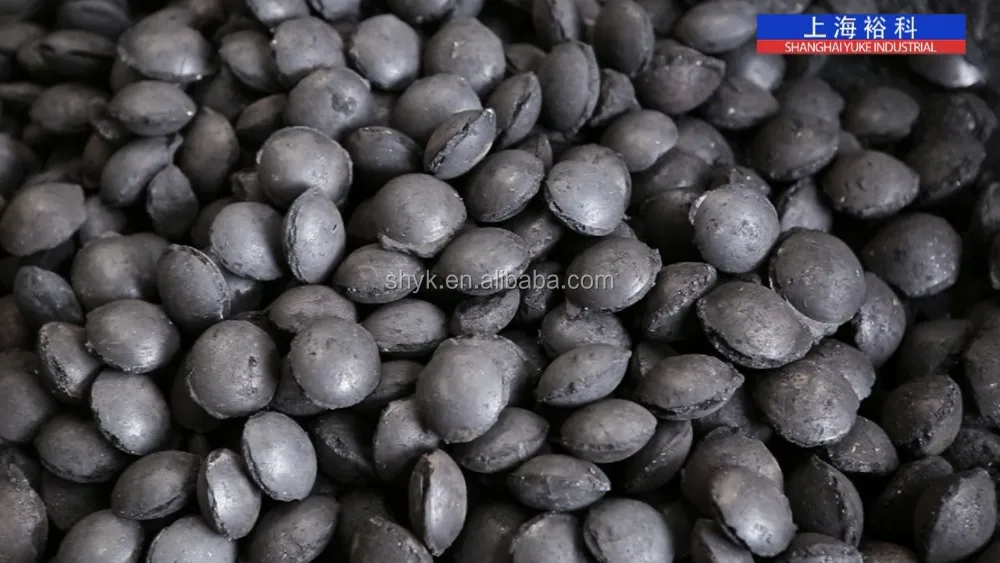

3.The shape of the final briquettes: round ball shape ,oval shape ,pillow shape ,egg shape ,oblateness ,square shape .etc.

Note: the briquettes shape and size are defined by users

4. Main technical characteristics:

A: The briquette press machine was designed according to the medium and small-scale scope of the enterprise in China by our company.

B: Strong stability, and resist wear-resisting, high production quality, good performance, easy to use, economize investment, get quick returns.

C: It is first-selected ideal model of investor's in small and medium enterprise.

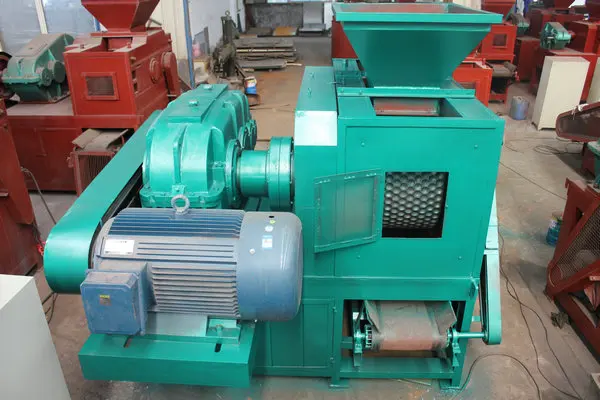

5.Working Principle:

This series of Briquette Ball Press will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

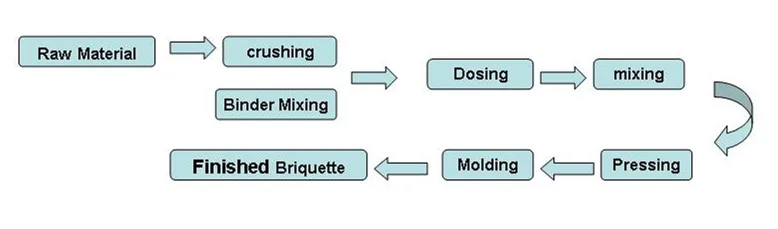

6.Producing Process:



7. Main technical parameters:



Model	Roll diameter(mm)	Capacity(t/h)	Power(kw)
YKBM290	290	1-3	5.5
YKBM360	360	4-6	11/15
YKBM430	430	6-8	18.5
YKBM500	500	8-12	18.5/37/55
YKBM500-3	500	5-8	37
YKBM500-4	500	8-12	55
YKBM650	650	10-15	37/45
YKBM750	750	15-20	75/90/110
YKBM850	850	20-25	90/110
YKBM1000	1000	25-30	90/110/132



We are Shanghai YUKE Industrial Equipment Co.,Ltd ,a manufacturer specialized in produce mining machinery, metallurgical equipment etc.in China. Our main products are coal crusher, coal mixer, rotary dryer, briquetting machine, vertical dryer for briquettes and so on. All of them are ISO9001:2008 confirmed. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit our factory and cooperate with us!

Our customers:

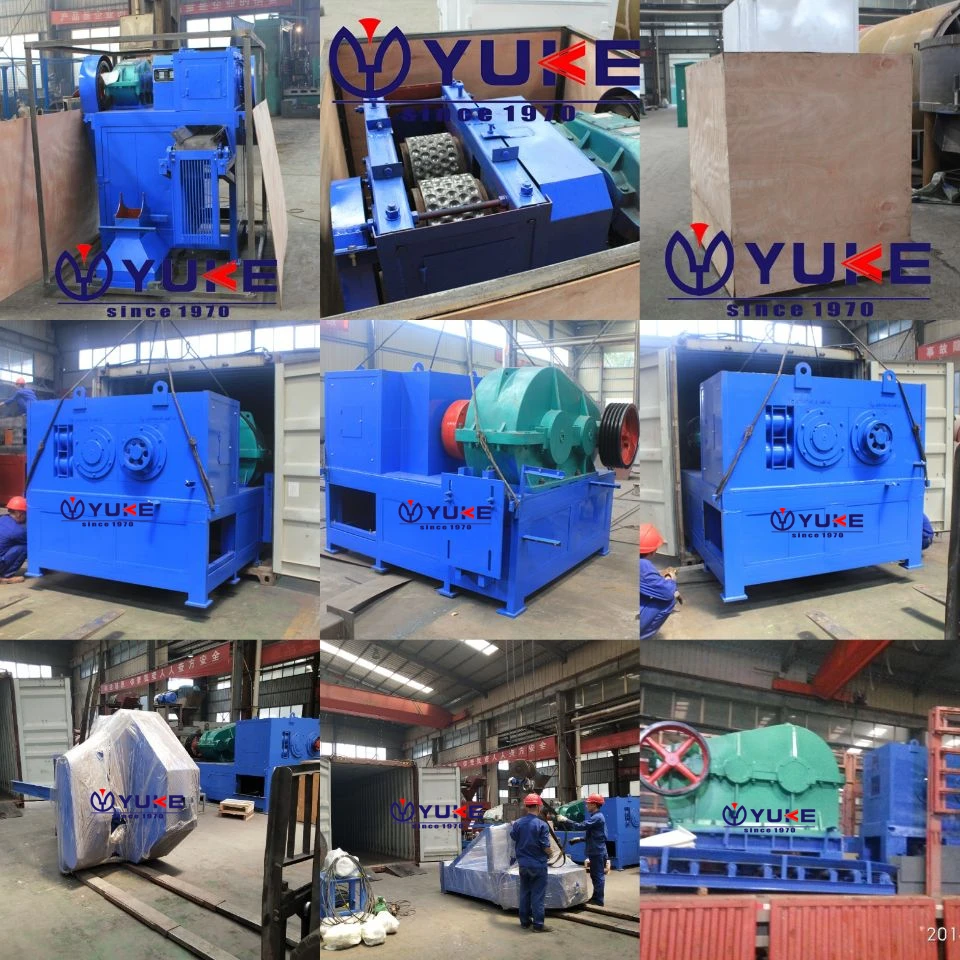

Equipment Delivery:

 Certificate









------------------------------------------------------------------------------------------------------------------------------------------------------------------

Service Advantage



Customized  Design : The briquette size ,shape and the briquetting producing line is customized.



Oversea Instrall:We could dispatch the professional engineer  go abroad to instrall the equipment and test the machine.



Sample  Briquette Making For Free : We could press the Sample Briquette for your reference if you send he raw material to us.



Wearing Parts Supply: We could supply the rollers and other Wearing parts to you all the year round,the price is favourable.



24-Hours After-Sale Service: If you have any question  when producing, could call the hot-line of our company ,we could help you to solve the problems.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------

1.If you are interested in our briquetting machine, please contact us without delay, our engineers can design the most reasonable proposal for you based on your demand
