25T Automatic Hot Chamber Zinc Die Casting Machine Casting Mould Zipper Slider/Button Zipper Slider Casting Machine
- Category: Die Casting Machine >>>
- Supplier: Guangzhou QLQ Enterprise Co. Ltd.
Share on (1755700362):
Product Overview
Description
MODEL:QLQ-HDCM

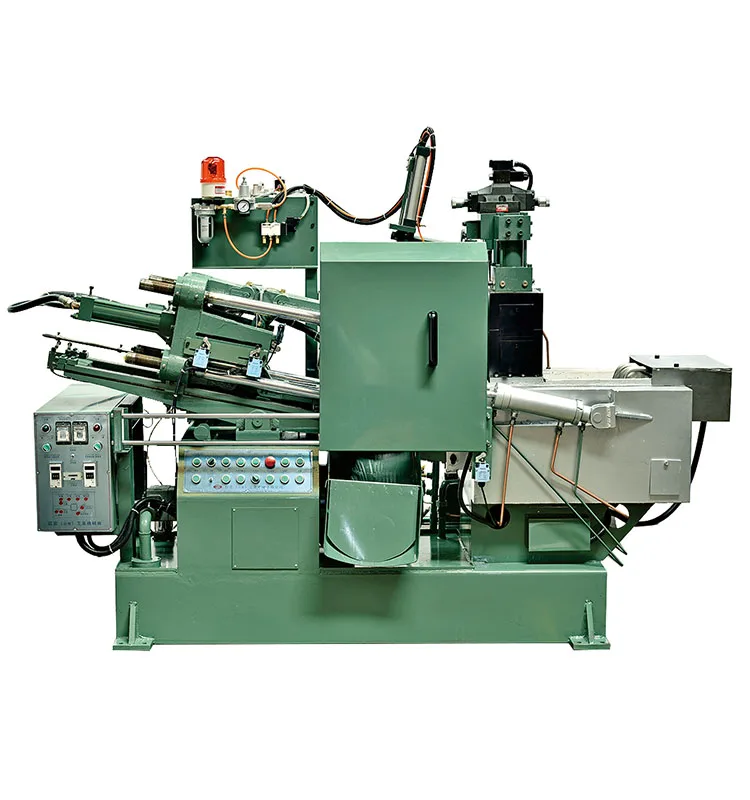

25T Automatic Hot Chamber Die casting Machine
We also supply 15T,25T,30T Hot Chamber Die Casting Machine.
1.With computer controlled system, this die casting machine can store many mould number and also has the fuction of memeory.
2. Adopting computer control for automatic mould adjustment, the machine is easy to operate, which can achieve precision die casting position.
3. The die casting machine is suitable for die casting of non-ferrous metal such as aluminum, zinc and copper.
4. Energy saving with competitive price, which helps you save the cost.
5.Stable performance with stable system, 24 hours continuous running is possible.
6.Satisfied after-sales service.
7.CE certificate
Product Description

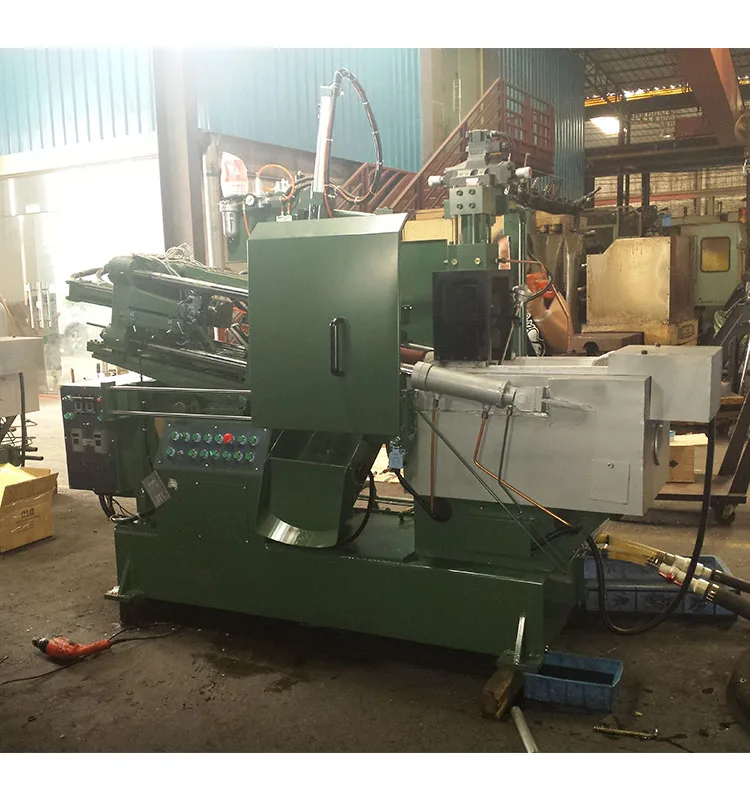

Product photos
Product Details
Main technical data
| project | Unit | 25T |
| The locking pressure | KN | 25Ton |
| The current capacity of the oil pump | L | RV2R2-47 |
| The capacity of oil tank | L | 250Rise |
| The nominal pressure | Kg/cm2 | 80 |
| The energy accumulator | L-number | 16L |
| Energy accumulator | kw | 7.5(10HP) |
| The template size(axis x) | mm | 380*370 |
| The size of the inner pillar(mold installed size) | mm | 230*230 |
| The mould-opening stroke | mm | 180 |
| The thickness of the mould(min-max) | mm | 130-230 |
| The tiebar diameter | mm | Φ45 |
| The center distance of front mold screw | mm | 120 |
| The injecting force | KN | 32 |
| The injecting stroke | mm | 80 |
| The injecting rod diameter | mm | Φ38 |
| The ejection stroke | mm | 40 |
| The die-casting quantity(reality) | g | 60-200 |
| The injection location | mm | 0 |
| The capacity of the melting pot(zinc) | kg | 120 |

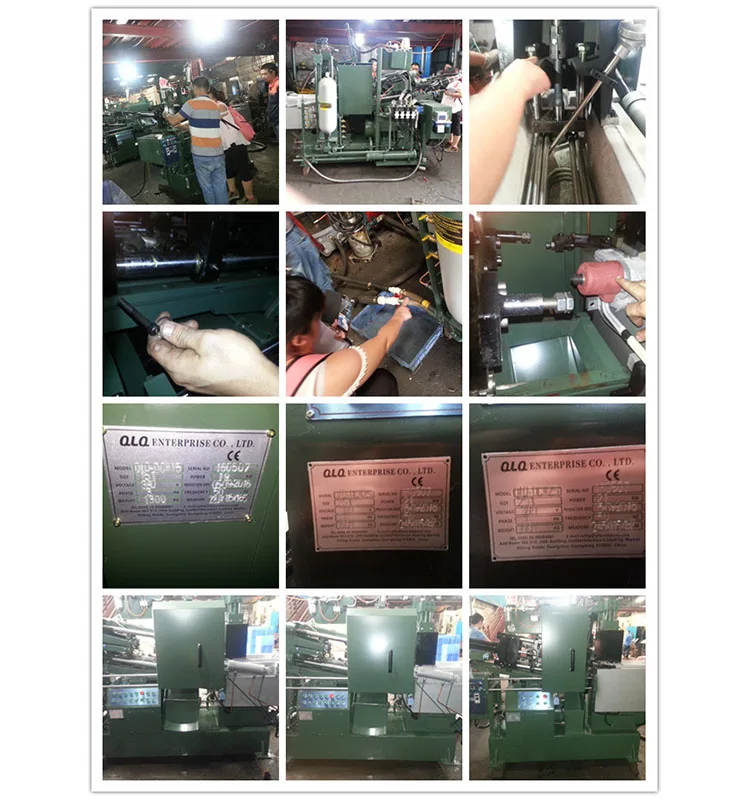

Our sales inspect the products to be delivered to assure their good quality and take videos of explaining their operation processes in English for our customers.
Our Services
FAQ
Q:What is the most popular die casting machine to produce zinc slider body?
A:OLQ-HDCM automatic hot chamber die casting machine is your best choice. There are 15 tons, 25 tons and 30 tons for your selection..
Q:Is QLQ die casting machine easy for maintenance and what are the easy wearing parts?

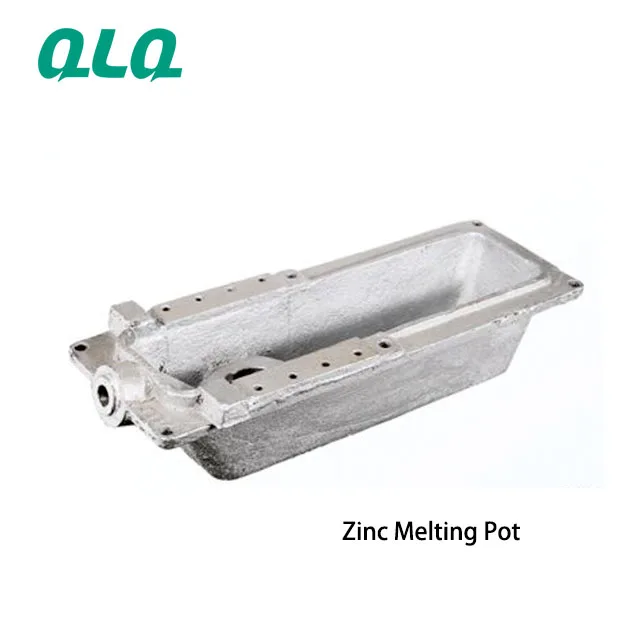

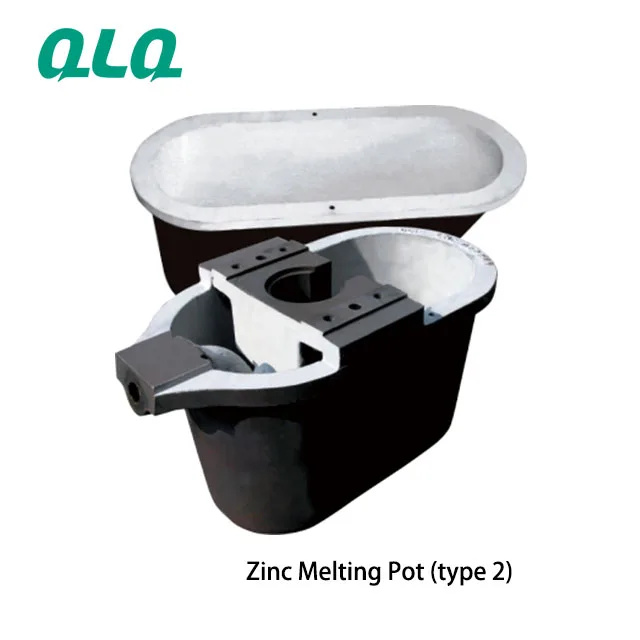

A:Our hot chamber die casting machine is easy for maintenance. The easy-wearing parts are zinc melting pot, shooting pole, electric heating pipe, heating sheath, material cup/entrance, nozzle, steel ring/piston ring.
Q:For 25T casting machine & 20T casting machine, which model do you suggest us to buy?
A: QLQ suggests you to buy 25T casting machine for following two reasons:
A. 25T machine's pressure is much stronger than 20T, and then the production can be made more plump, density is higher. If the density is higher, then the painting or plating result will be more shinning more beautiful and will not cause the "separate layer" problem. What is the separate layer? If production's density is low, when you paint or plating the production, sometimes the paint layer or plating layer will separate from the zinc.
Q:What is the using life of QLQ moulds?ade from your side before?
A:Normally, the mould can be made 1,000,000 times if your company can protect the mould carefully. For example, clear the mould frequently when your technician use the mould and put some "release agent” in the mould. If your company doesn’t have the slider order, you should clean the mould and put some antirust oil in the mould to protect it. Normally, after 1000000 times, maybe the mould frame or mould heart has been worn, the mould can be continue used about 1,000,000 times again after you repair it.

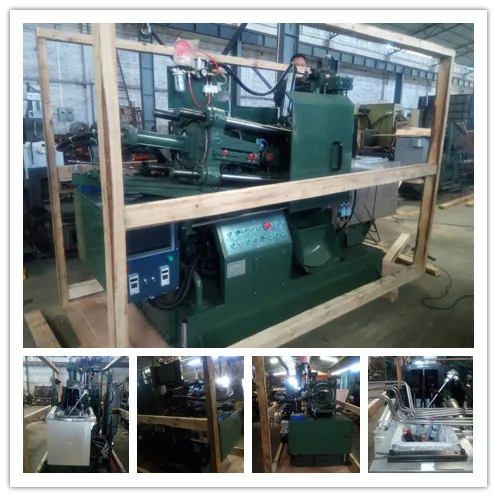

3-PACKING&SHIPMENT
