Large Softgel Encapsulation Machine For Pharmaceutical and Nutritional Food Industry

Product Overview

Description

Softgel Making Machinery Description

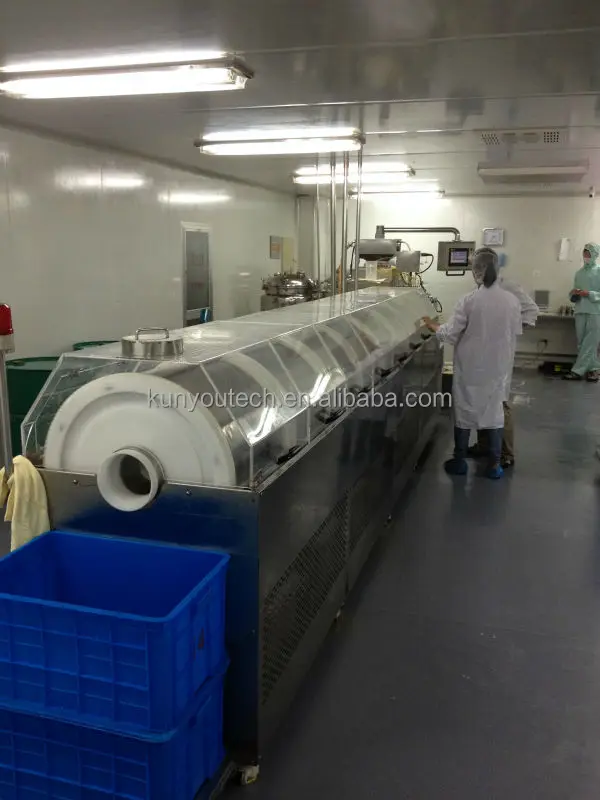

S610 large softgel making machine sale roll type soft capsule’s key parts of the machine select Germany precision bearings. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the die roller automatically and synchronously, it’s very convenient to adjust the spraying time. S610 large softgel making machine sale adopts a new cam mechanism, which relieved the reversing board manual synchronization process. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is charactered by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 large softgel making machine more in line with the requirements of GMP. S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

Specifically speaking, it has the following characteristics:

Dosage deviation:<+1.5%
Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
Major bearing made in Germany.
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
Automatic medicine supply. The system can even alarm when the fill material tank is empty.
High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.

Specification

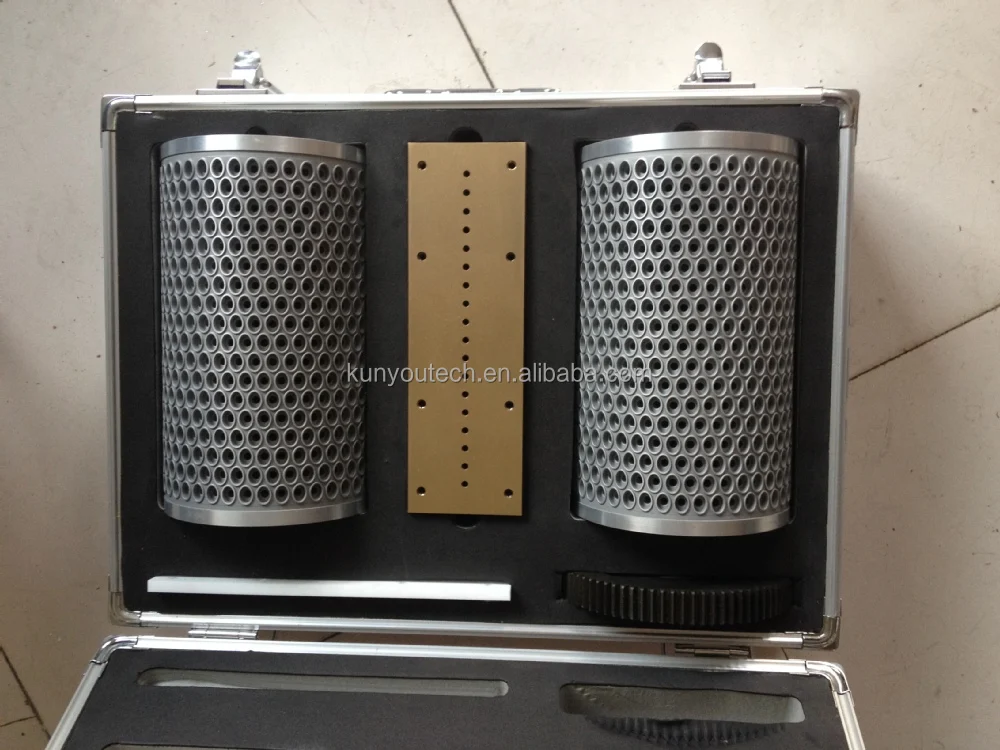

We can not only provide the softgel manufacture line and paintball manufacture line, but also the softgel die roller and paintball die roller, and plastic drying trays and stainless trolley. We are looking forward to your inquiry.
