hot runner manifold temperature controller

Product Overview

Description

hot runner manifold temperature controller



IBS DXC-TC Hot runner temperature controller product features:





PRODUCTS ADVANTAGES

1. 3 Technical patent: A. Shorted heater protection. B. Malposition wiring between heater and thermocouple. C. Electronic protection against neutral malfunction. 2. Auto-tuning +phase angle fired output, delivers smooth and exact power. 3. Softstart function for smooth start ups. 4. Mold doctor( troubleshoot your mold) 5. All standard size design, fitted into 1-12zone and upon cabinet. 6. Low temperature inside cabinet., even in bad working condition.

 IBS DXC-TC-12P hot runner temperature controller specification:

Performance Specifications
Control Mode	Auto & Manual
Transmit temp:	-40°F to 158°F(-40°C to 70°C)
Temperature Range	50°C-537°C
Control Accuracy	1±0.3% of span
Temperature Stability	±0.5%
Compensated Manual Control	yes
Thermocouple type	J/K optional
Advance diagnostics Indicators	yes
Temperature unit	°C or °F
Temp control range	45°C to 550°C
Repeat test precision:	±0.1%
Calibration Accuracy	0.1% of span
T/C cold junction copensation	Dynamic tracking
Point Load	15A,3500W/220V or 1650W/110V
Relative humidity	10%-95%
Cycle Time	200ms
Temperature Reset	Yes
Ramp Start TM(RS)	yes
RS Duration	10mins
RS Override temperature	1% of span
Operational Mode Priority	OFF MODE
Electrical Power Specifications
Input Voltage	AC185V-245V
Frequency	50/60HZ
DC Power Supplies	NO
Module Power Usage	NO





Pakage & shippment
Payment: 30% deposit by T/T,the balanced T/T before shippment  Delivery:: 5 working days after confirm the deposit. Shippment: EXPRESS,SEA,AIR  Package: International standard wooden case

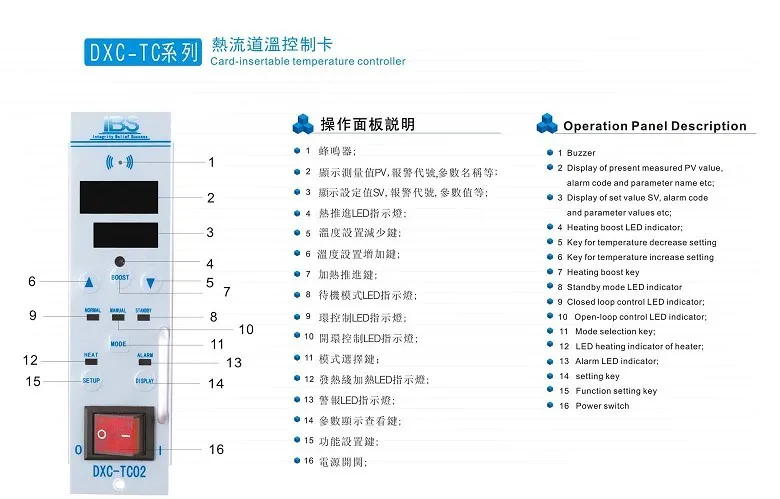

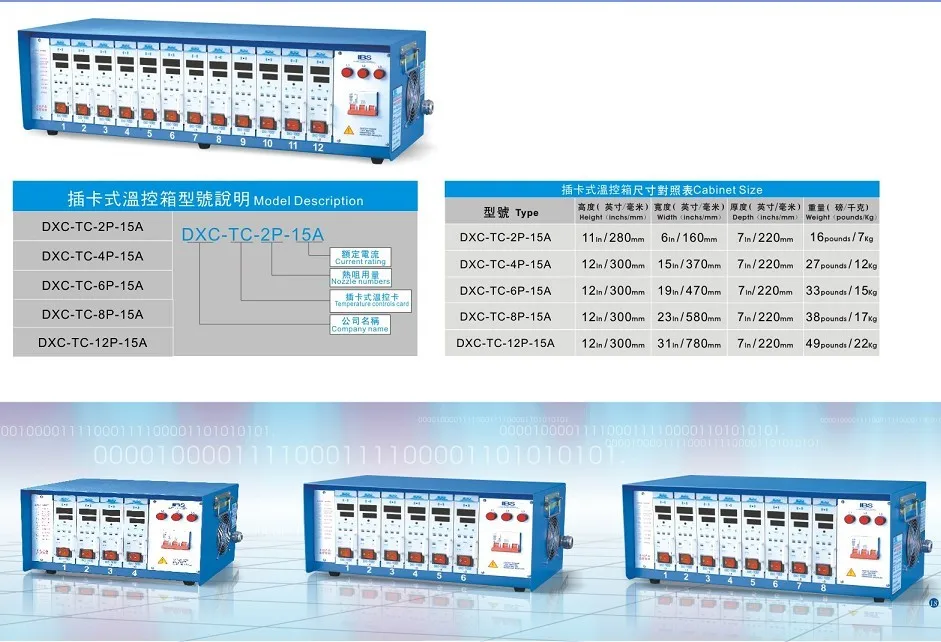

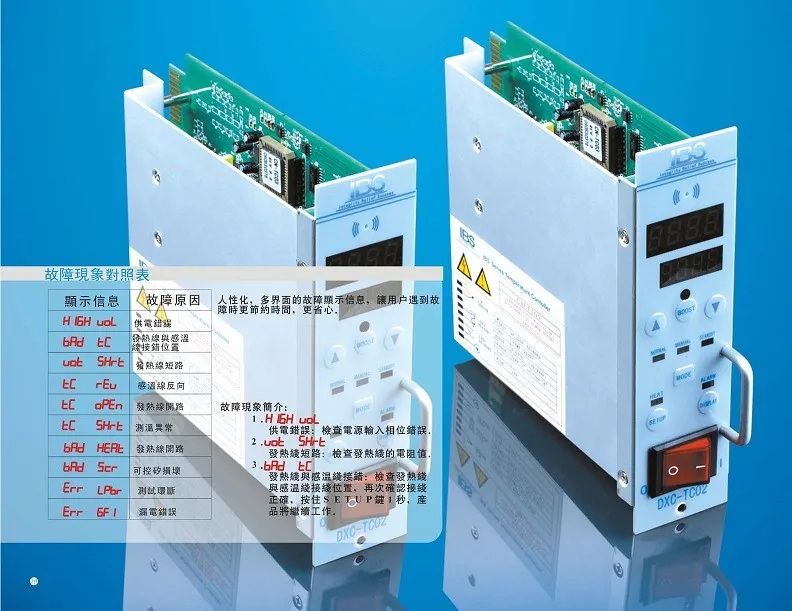

DXC-TC-12P controller pictures and accessories:

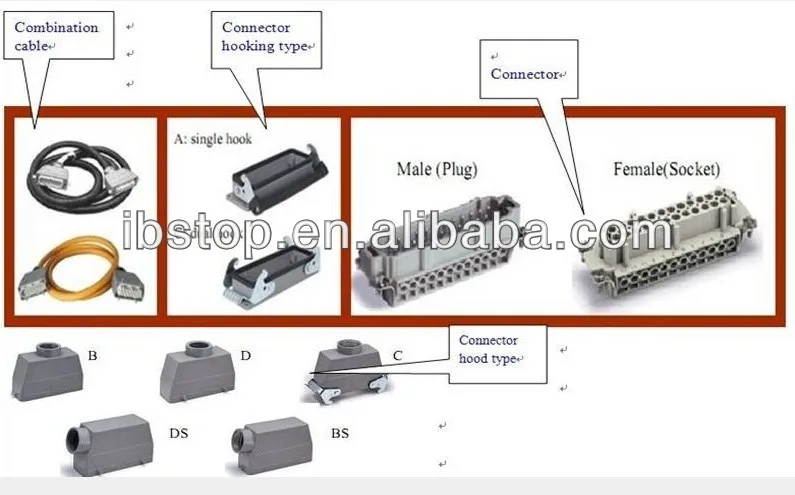

 DXC-TC-12P hot runner temperature controller Heavy duty connector and cable:

PACKAGES:

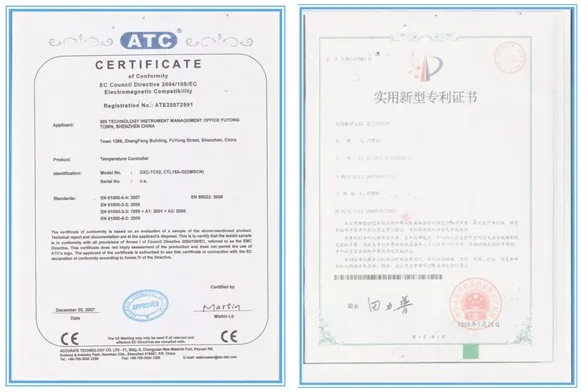

IBS Controller certificate CE and technical patent:

Our company:

We stand behind you with our state-of-the-art-hot runner temperature control system that are performance driven, customized, designed to save you money made in china

Chinaplas Fair





9. Our service



1: 24 online service, email will get back in 24 hours.



2: After sale service available.



3:Have professional R&D group, all your technical requirement will be customized.







Welcome to contact us, we’re sure any of your inquiry will get prompt reply.
