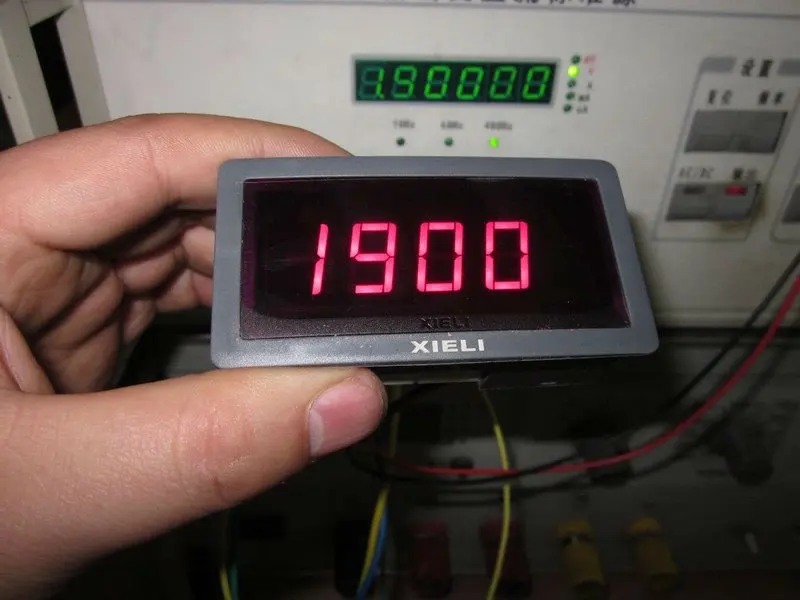

Digital 5a ammeter amp ampere meter XIELI

Product Overview

Description

ampere meter



Introducton:XL5135(AC220V) 3½ AC Power Supply Measuring AC Digital current meter

Model	Digit display		Full measurement	Resolution	Accuracy	Input impedance	Max.input value	Power Supply
XL5135A-1(AC2/AC)	3½		AC199.9µA	100nA	±1 % +3digit	1KΩ	AC15mA	AC220V
XL5135A-2(AC2/AC)	3½		AC1.999mA	1µA	±1 % +3digit	100Ω	AC50mA	AC220V
XL5135A-3(AC2/AC)	3½		AC19.99mA	10µA	±1 % +3digit	10Ω	AC150mA	AC220V
XL5135A-4(AC2/AC)	3½		AC199.9mA	100µA	±1 % +3digit	1Ω	AC500mA	AC220V
XL5135A-5(AC2/AC)	3½		AC1.999A	1mA	±1 % +3digit	0.1Ω	AC3A	AC220V
XL5135A-6(AC2/AC)		3½	AC5.00A	10mA	±1 % +3digit	0.01Ω	AC6A	AC220V
