15 inch industrial open frame lcd touch monitor with saw touch for kiosk, ATM

Product Overview

Description



Industrial Monitor



DESCRIPTION

ITD industrial monitor LCD displays are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design. ITD industrial display monitors provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. ITD industrial IP65/ NEMA 4 touch display monitors are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. ITD full-range selection is provided in screen sizes from 5” to 82”.



BENEFITS

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. All steel construction designed for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Windows, Linux OS, Android, Mac OS, etc

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, HDM1,AV, S-Video, BNC etc multiple inputs/outputs optional

12. Wide operating temperature from -20 to 80 degrees optional and suppports 7/24 running



SPECIFICATION

15 inch industrial lcd touch monitor with saw touch for kiosk, ATM

Panel	Cell Type/Glass Surface	TFT
	Aspect Ratio/Size	15” 4:3
	Active Area/Pixel Pitch	304.128(H)*228.096(V)/0.264
	Native Resolution/Colors	1024 x 768 /16.7M
	Brightness/Contrast	250nits/500:1
	Response Time	10ms
	Viewing Angle(Typical)	80/80/75/75
	Light Source	CCFL with 50k hours’ lifetime
Input signals	VGA, DVI,HDM1
Convenient Features	Backlight adjustment, Plug&Play, OSD Multi-Languages
Power	External AC-to-12VDC power adapter with universal/Auto-Sensing
Power Consumption	Operation/Power Saving		Below 20W
Key Control	Power on/off with LED, Menu, Select, Adjustment(Right/Left)
Touch Panel	5 wires resistive touch screen
Touch Interface	USB or RS232
Order Information	15”chassis monitor with IR touch/ITD15CMT201
	15”chassis monitor with SAW touch/ITD15CMT301
	15”chassis monitor with PCT touch/ITD15CMT501

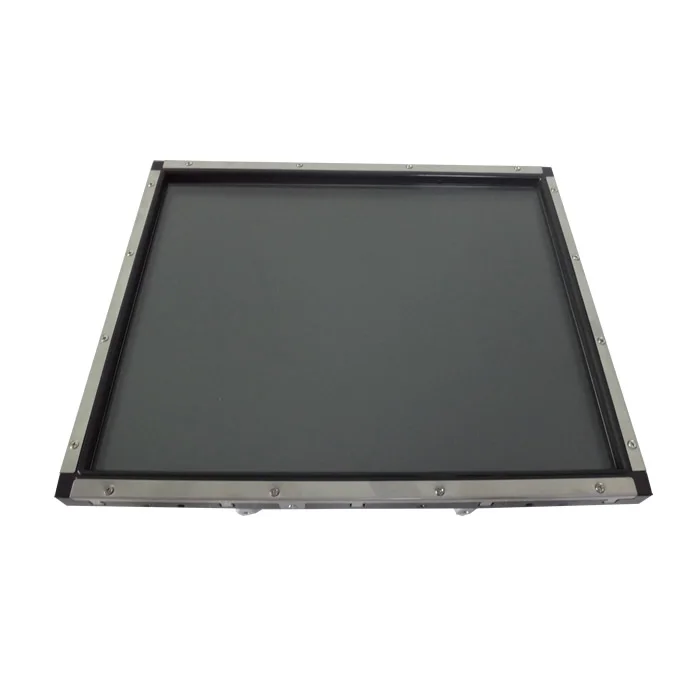

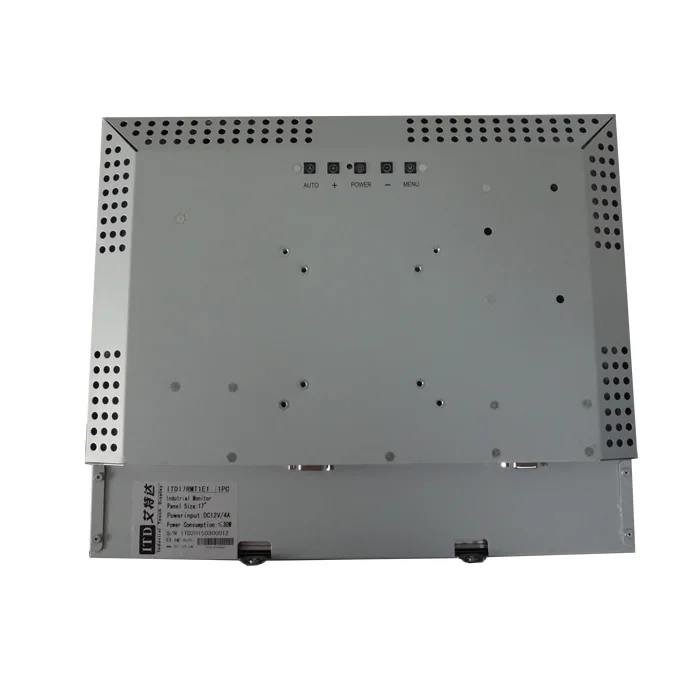

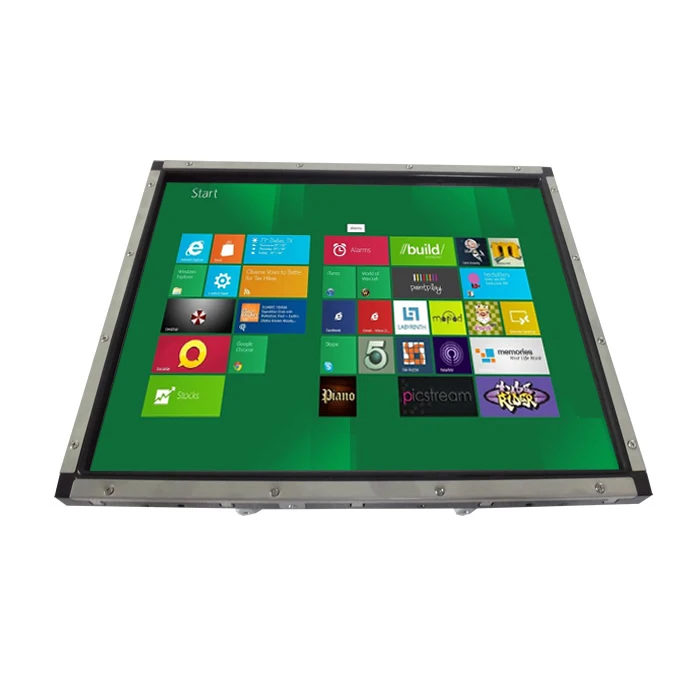

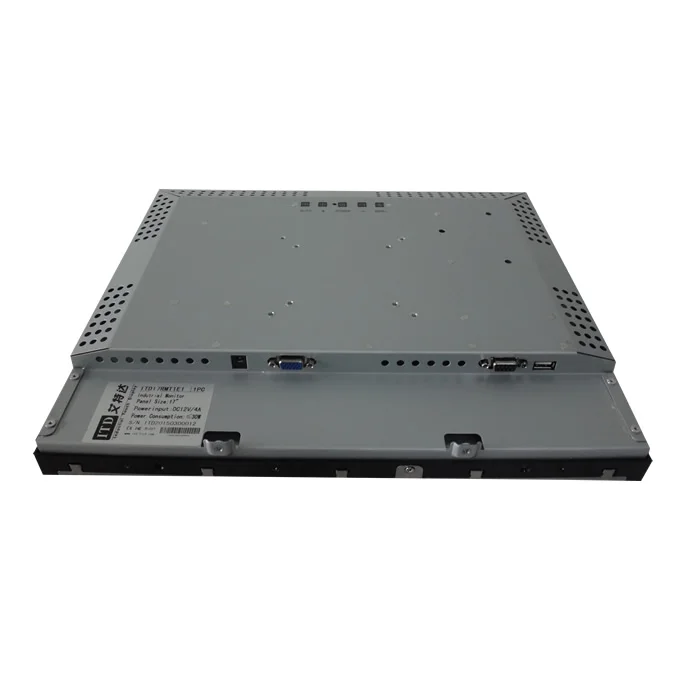

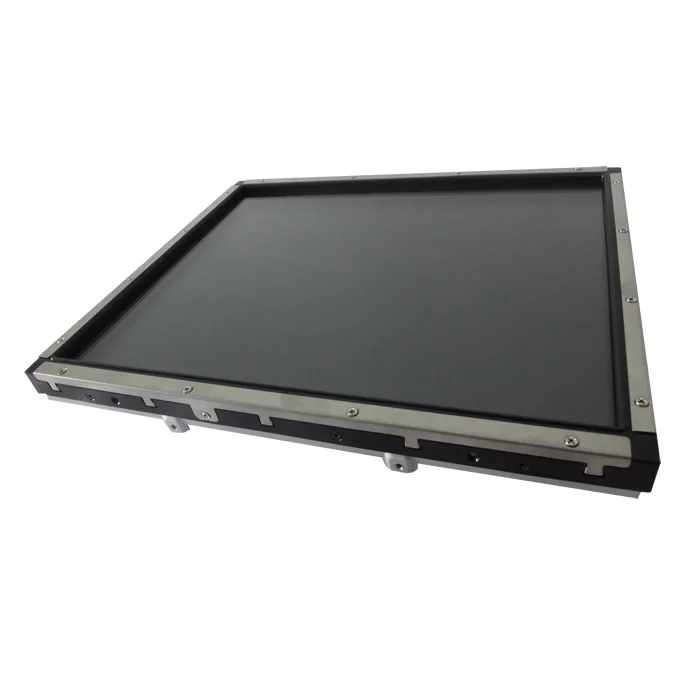

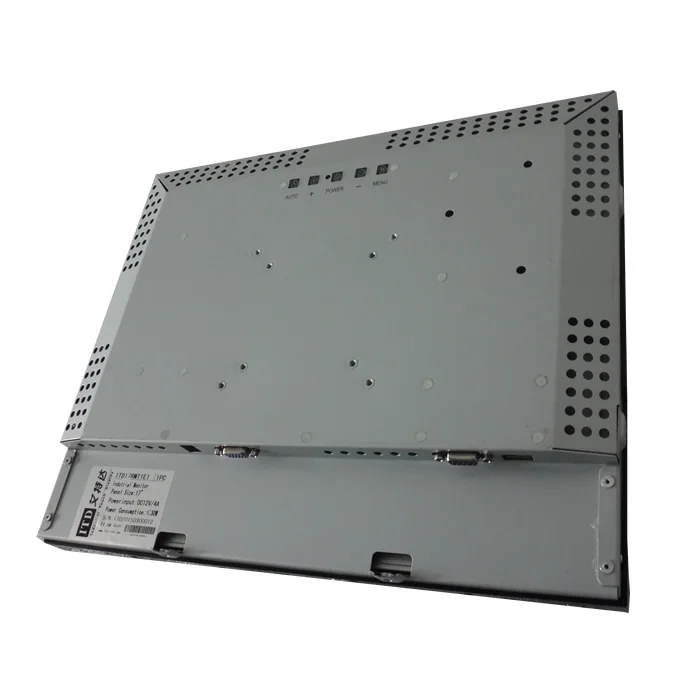

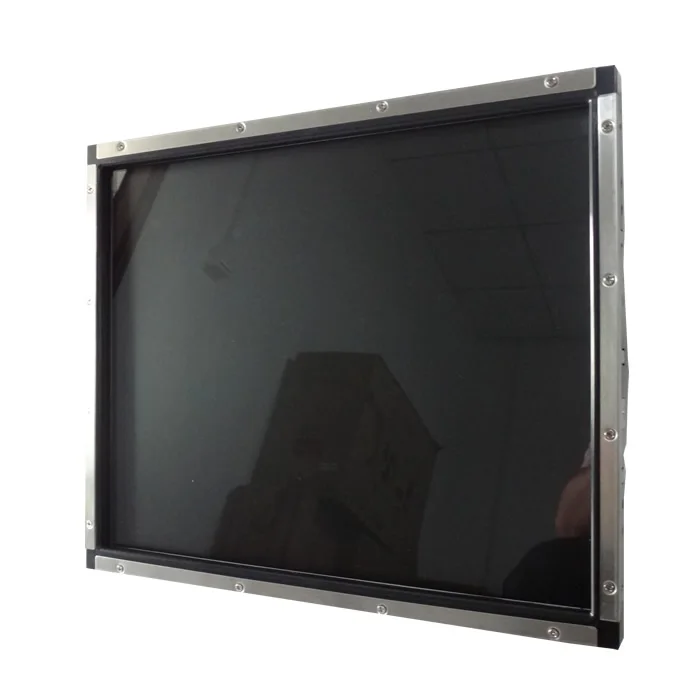

 PRODUCTS IMAGES

15 inch industrial lcd touch monitor with saw touch for kiosk, ATM
