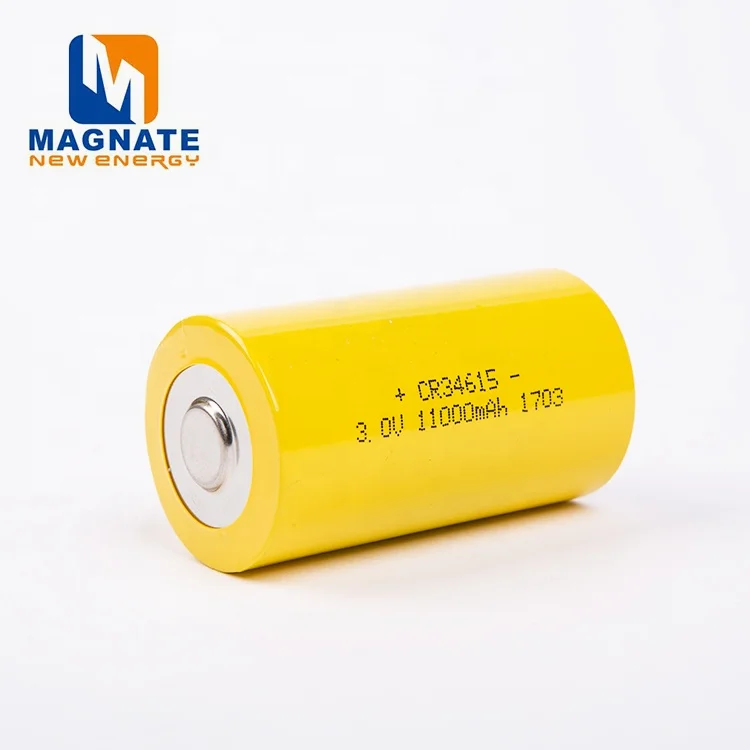

MAGNATE Battery CR34615 cylindrical battery d size 3.0V

Product Overview

Description







 MAGNATE Battery D Size Lithium Manganese Dioxide Battery 3.0V –High Power type

Model: CR34615

International Type: D Size

Description: Lithium Manganese Dioxide Battery (Li/MnO2)

Nominal Voltage : 3.0V

Capacity : 11000mAh

Max. Continuous Current: 2000mA

Max. Pulse Current: 3000mA

Operating Temperature: -40 ~ +85°C

Dimension (D x H): 34.0x61.5mm

Weight: 125g



Available Terminations

-P:           Axial Leads

-T, -PT2:   Radio Pins

-PT, -/TP:  Polarized Tabs

MOLEX & JST connectors…

Custom terminations avaliable upon request







Key Features :

-Stainless steel container

- Hermetic glass-to-metal sealing

- Extreme long operation

- Very low self discharge rate

- Wide range operation temperature

- High Energy Density

- High single cell voltage

- Long storage life

- Restricted for CE, UN38.3 and ROHS

- Be easy to integrate into the device to use



More batteries and lithium battery packs as follows:

CR1/3N, AAA, 1/2AA, 2/3AA, AA, CR2, 1/2A, 2/3A, 4/5A, A, C, D, CC, DD, 1/6D, 1/10D, CR-P2, 2CR5, CR9V and so on.

CR11108, CR10450, CR14250, CR14335, CR14505, CR15270, CR17250, CR123A, CR17450, CR17505, CR18505, CR18650, CR20505, CR20590, CR25187, CR26500, CR261020, CR34615, CR341245, CR1/6D, CR1/10D, CR425, CR435, CR-P2, 2CR5, CR9V, more batteries and battery packs please visit www.magnate-battery.com .
