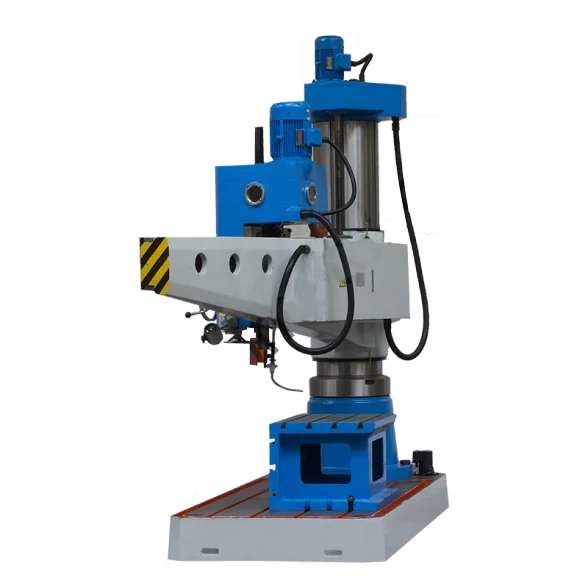

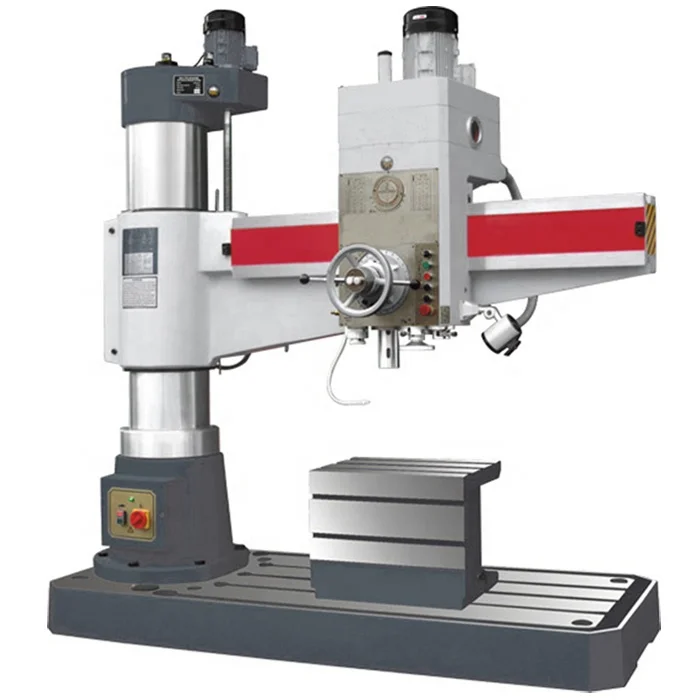

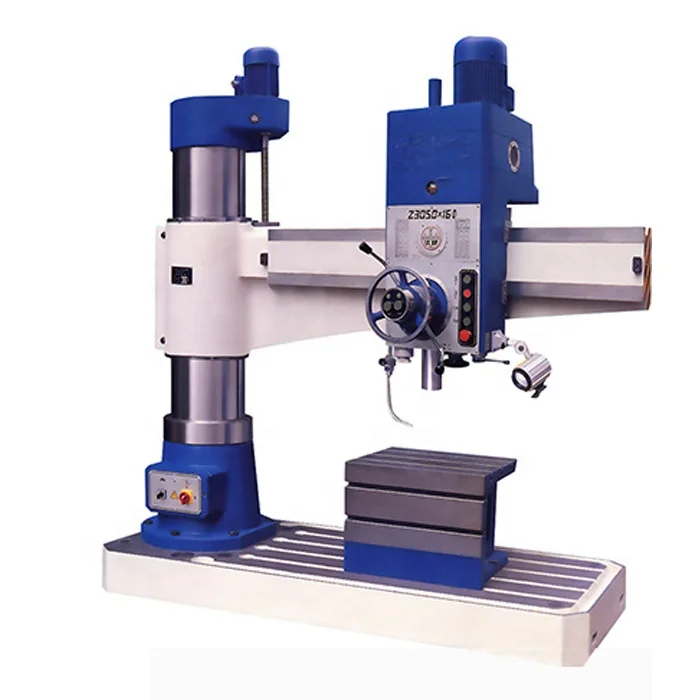

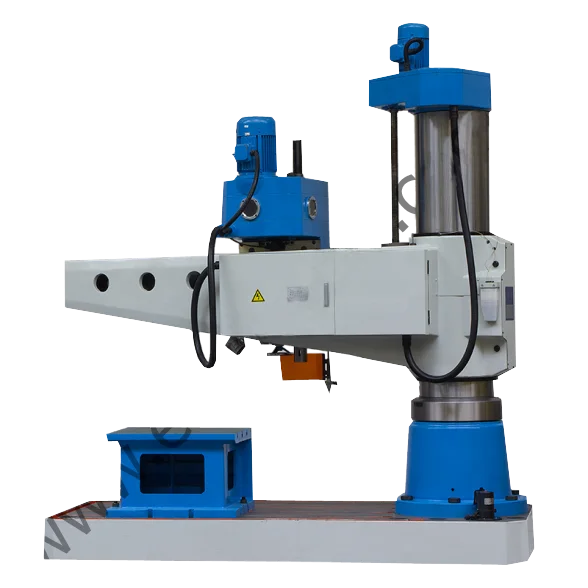

table radial drilling machine price Z3050X16/1

Product Overview

Description

table radial drilling machine price  Z3050X16/1



Characters:



1.With wide range of speed and feed,with manual,power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
2.With safe and reliable feed safety machine, all parts easy operation and change.
3.All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achiered by hydrandic power, cmle is sensitna owet nelile.
4.Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
5.Interating technology for casting parts is excellent, adopting casting equipment,ensuring high quality of materia for basic parts.
6.Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, wnsuring high strength and durablity.
7.Main gears are machined by gear grinding, the machine ensuring high precision and low noise.



Model	Z3040×16/1	Z3050×16/1	ZQ3050X20/1
Max. Drilling capacity (mm)	40	50	50
Distance spindle axis to column generating line (mm)	350-1600	350-1600	350~2000
Diameter of column (mm)	350	350	350
Spindle taper	MT4	MT5	MT5
Spindle travel (mm)	315	315	315
Spindle speeds range (r/min)	25-2000	25-2000	25~2000
Spindle speeds series	16	16	16
Range of Spindle feeds (r/min)	0.04-3.2	0.04-3.2	0.04~3.2
Spindle feeds	16	16	16
Max. Distance spindle nose to working surface of base (mm)	350-1250	320-1220	320~1220
Dimension of worktable (mm)	630x500x500	630×500×500	630X500X500
Dimension of base (mm)	2400x1000x200	2400×1000×200	2400X1000X200
Overall Size (mm)	2500x1060x2650	2500×1060×2650	2900X1060X2650
Power of Main motor (KW)	3	4	4
G.W/N.W (kg)	3900/3500	3900/3500	3950/3550
Packing dimension (cm)	260x112x260	260x112x260	300X112X260



Standard accessories:	Optional accessories
Box shape worktable	Quick instead chuck
Taper sleeve	Tapping chuck
Tool releasing wrench	Grease gun
Drift
Eyelet bolts
