horizontal high efficient double shaft paddle mixer with low price
- Category: >>>
- Supplier: Xinxiang Derry Energy Equipment Co. Ltd.
Share on (1758082025):
Product Overview
Description
Product Description

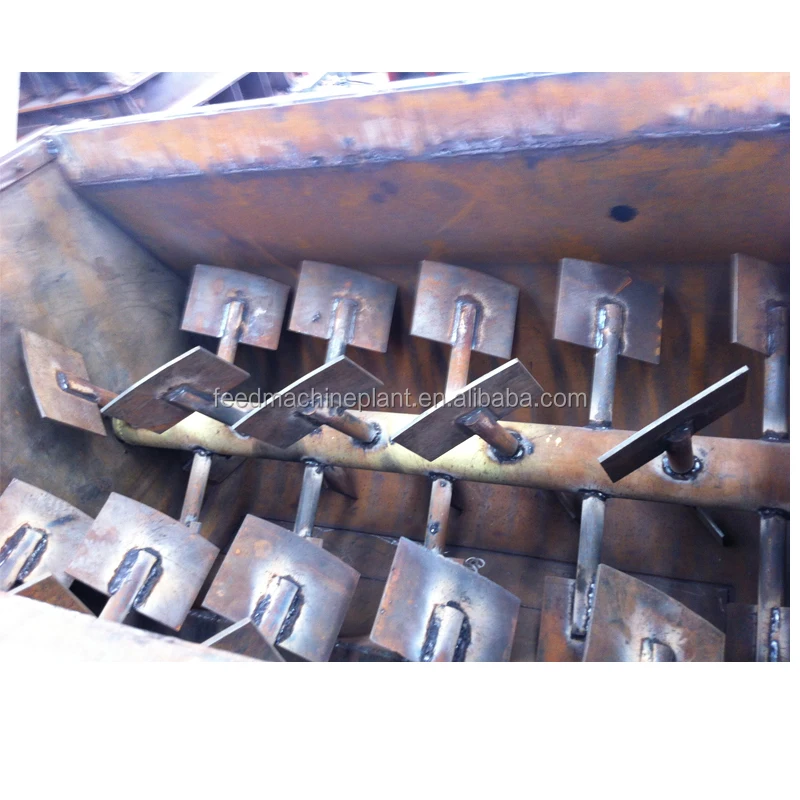

Features of paddle blade mixer
| 1. Short mixing time and low coefficient of variation; |
| 2. Special discharging structure, swift discharging and low residue; |
| 3. Specially designed sealing system in discharging gate, no leakage; |
| 4. Multi-channel liquid adding system to meet muiti liquid adding demand of customer; |
|
5. It is widely used for mixing of powder, granular, flake, block, irregular and sticky materials in the industries of feed, cereal, food, chemicals, medicines, pesticides, etc. |
Technical paramter of paddle blade mixer
|
Model |
Power (kw) |
Capacity (kg/batch) |
Mixed coefficient |
Mixing time (minutes) |
Size (mm ) |
Weight (kg) |
|
SSHJ0.5 |
5.5 |
250 |
CV ≤3% |
3 |
1700*1600*1300 |
1958 |
|
SSHJ1 |
11 |
500 |
CV ≤3% |
3 |
2200*1900*1550 |
2200 |
|
SSHJ2 |
18.5 |
1000 |
CV ≤3% |
3 |
2600*2100*1900 |
4000 |
|
SSHJ4 |
30 |
2000 |
CV ≤3% |
3 |
2750*2292*2350 |
5000 |
|
SSHJ7 |
45 |
3000 |
CV ≤3% |
3 |
3400*2400*2300 |
60000 |
|
SSHJ9 |
55 |
5000 |
CV ≤3% |
3 |
3450*3180*2400 |
7200 |
