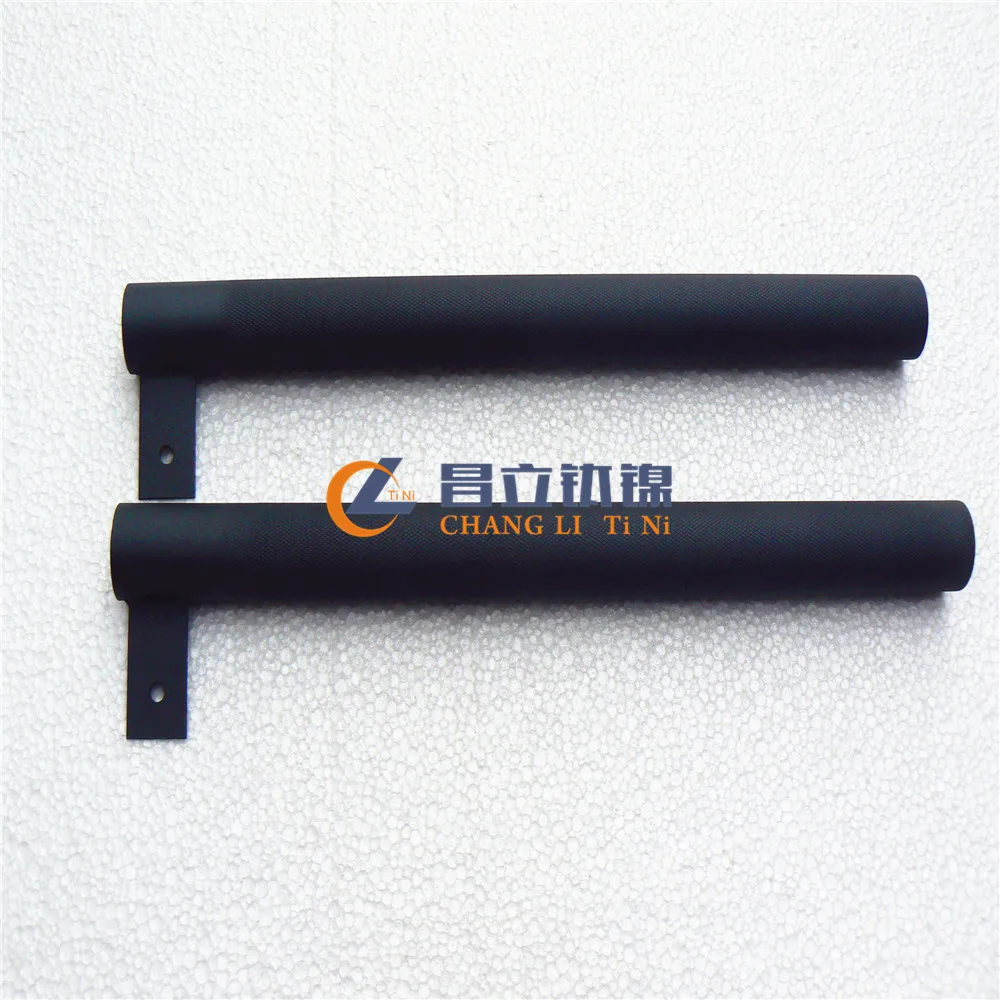

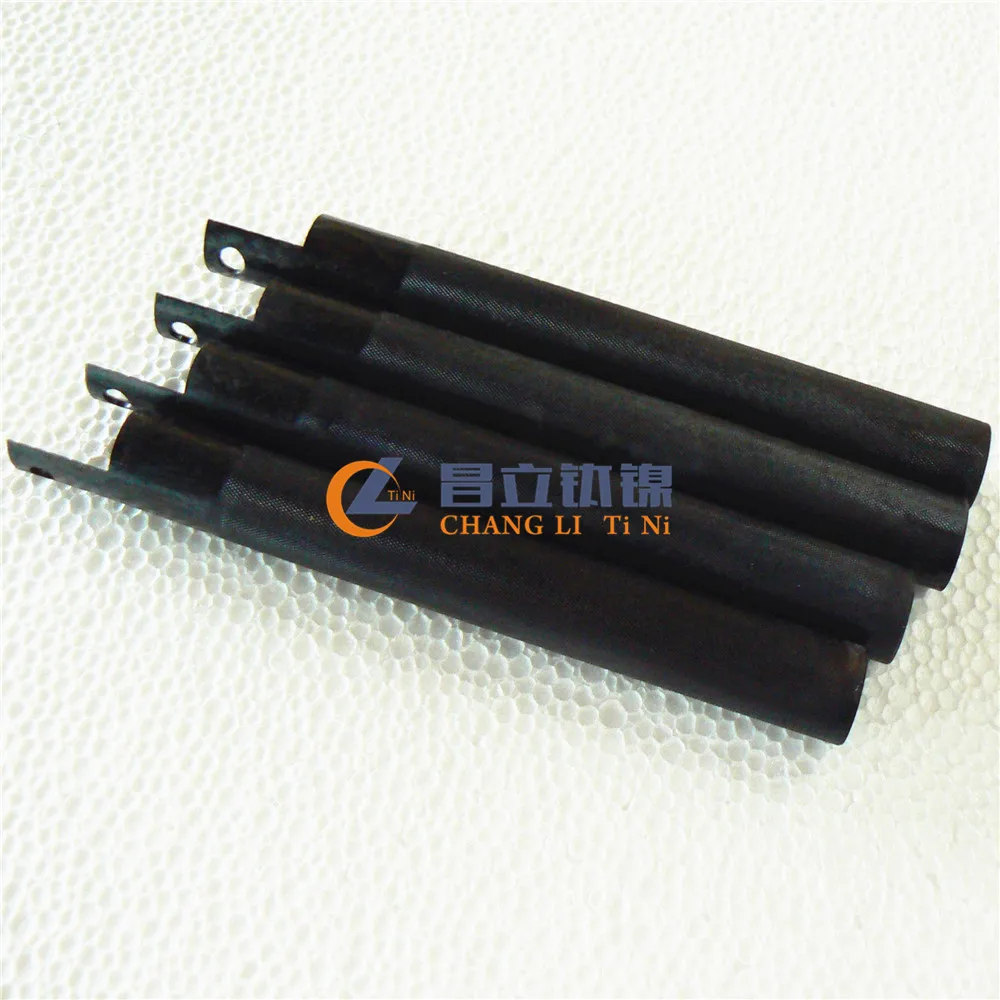

ru ir titanium tube anode for chlorine generator

Product Introduction

1. Substrate Metal Chemical Composition:

   Substrate Metal Mechanical Properties:

2. MMO Coating: Mixed Ruthenium-Iridium Oxide

    Coating Contents and Life Span:

3. Working Parameters for Ru-Ir Coating:

4. Work principle:

Sea water or Brine electrolysis. Sodium hypochlorite solution generated during the electrode is a strong oxidant which has strong bactericidal and bleaching effect, has been used as a fungicide most widely;

Hypochlorous acid decomposed further and form the nascent oxygen [O], the nascent oxygen take advantage of its strong oxidizing to destroy proteion of the bacteria and viruses on protein, then kill lethal pathogenic microorganisms.

Again, hypochlorous acid can generate the chlorine ion which can significantly change the osmotic pressure of the bacteria and viruses, which lead to the death of cells.

Secondly, hypochlorous acid is small molecules and without charge, it not only can act on the cell walls, virus coat, but also penetrate into the bacteria (virus) invivo, and bacteria (viruses) body proteins, nucleic acids and enzymes and organic polymer oxidation reaction, to kill pathogenic microorganisms.

Practice has proved that most of the available chlorine in the sodium hypochlorite solution generated by the electrolysis which exists in hypochlorite (ClO-) state(i.e. available chlorine is ion state) and no chlorine loss compare to chemical method, therefore hypochlorous acid is the excelletent, puritity, environmental and ideal fungicide.

The brine electrolysis is an electrochemical reaction process which is a simple chemical reaction, the raw material is salt + water only and no other additional ingredients, and the sodium hypochlorite be produced is pure. However there are many technical indicators affecting the economy, so when we design the electrode for sodium hypochlorite generator, we need to combine many factors, such as compact structure, operation indicators of economic operation, maintenance convenient, long life and others.

Chemical reaction process:
NaCL+H2O=NaCLO+H2↑

NaClO + H2O = HClO + NaOH

HClO → HCl + [O]

HCl + NaOH =NaCL+H2O

Titanium anode varies in shape and design like mesh, plate, tube, bar and so on, we are able to provide you the most suitable and economical proposal according to the operational conditions and working capacity of the sodium hypochlorite generator.

Products Details

Qualificates

FAQ

We need below information to quote for you:

1. What are the main electrolyte solution, percentage and final purpose?
2. Operating current density A/M2?
3. Electrode plate's size and q'ty or your designed drawing?
4. Reversal electrolysis or not?

5. Target working life?

6. Quantity

If you have any interests, please don't hesitate to inquiry.

We welcome the sample orders.
