Защита с использованием анодного стержня с титановым приводом

Product Overview

Description

Protection Using Titanium Powered Anode Rod



Our company is a high-tech enterprise which specializes          If you don't find Titanium  product



in producting Titanium Anode,Titanium Materials & Tia         you want, please call or caontact us.



-nium products.



1.The details of  Titanium Powered Anode Rod

Titanium Powered Anode Rod for Cathodic Protection
Substrate	Shape of Substrate	plate, mesh, wire, rod
	Substrate Material	Titanium GR1, according to the ASTM B265
	Sizes	as clients’ demand
Coating Details	1) Ir-Ta oxide as coating 2)Contents of the noble material 8 g/m2-25 g/m2
Application Environment	1)Density of Current < 2000 A/m2 2)Temperature < 60°C 3)PH value 1-12
Product Features	1)Long working life 2)Lower electricity consumption 3)Strong corrosion resistance
Production time	20-30days.Cause the longer production time,pls place order in advance.
Pictures

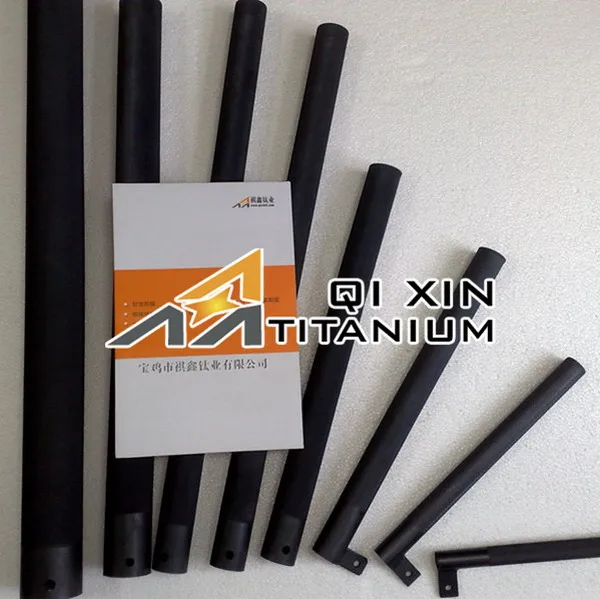

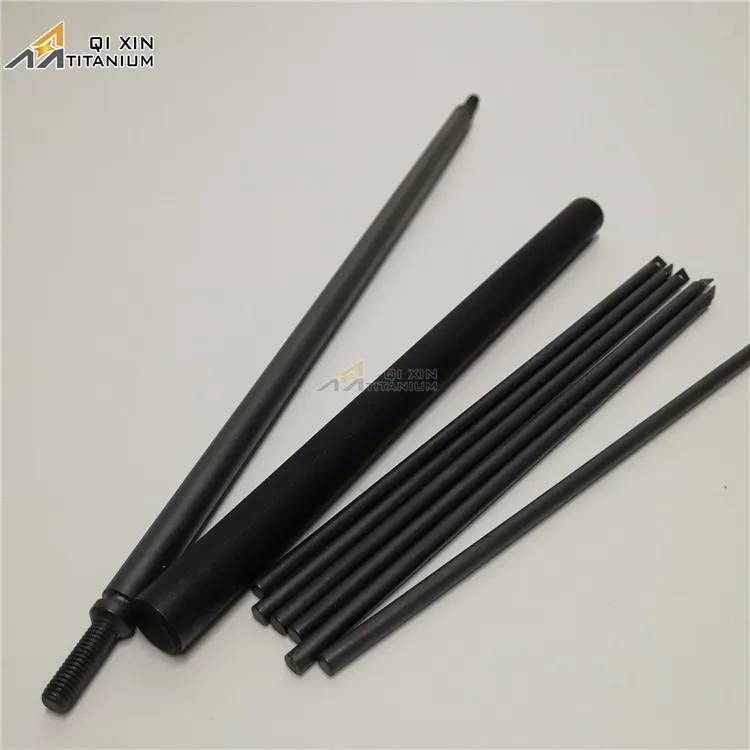

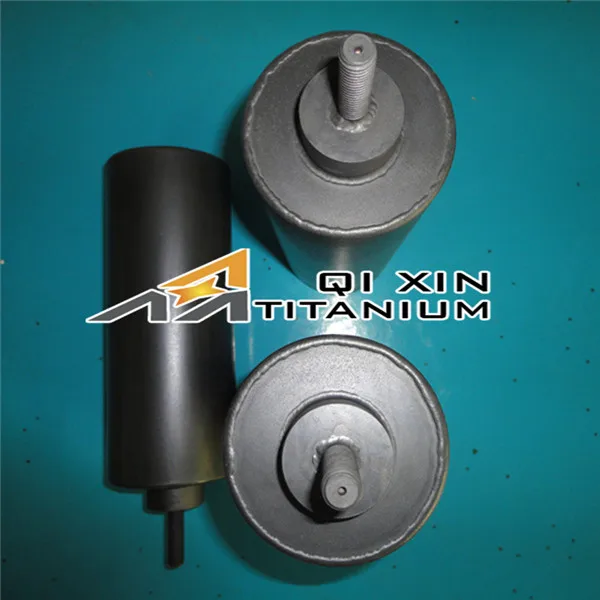

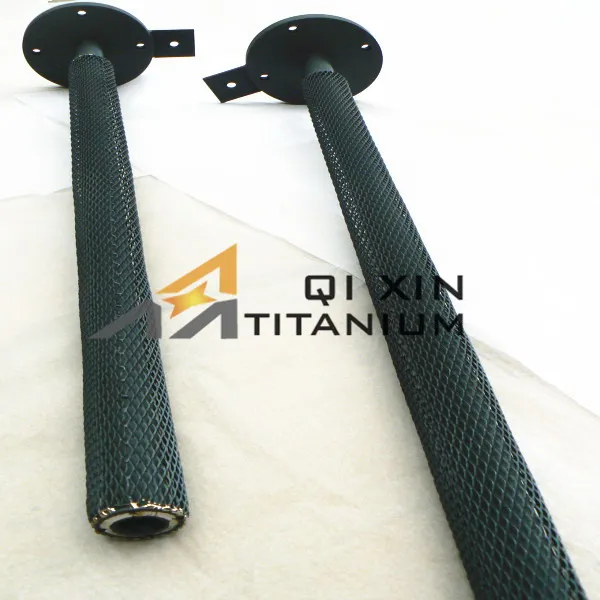

2.Product show

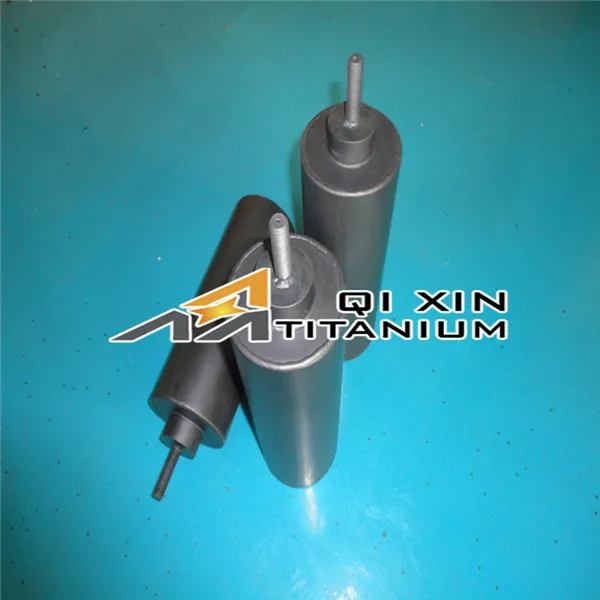

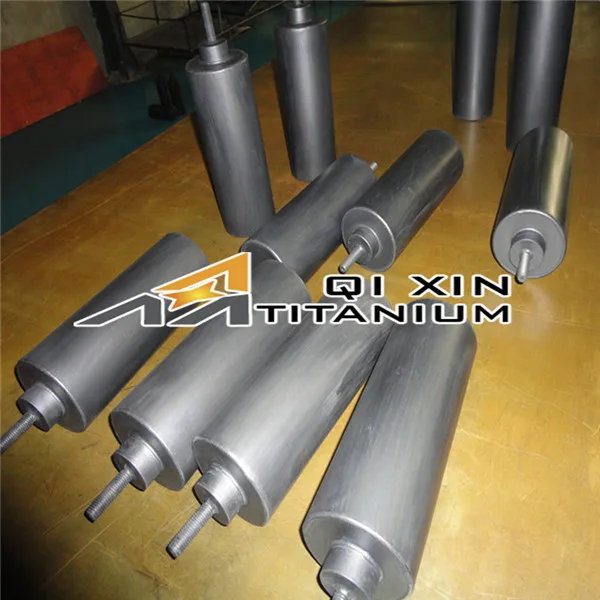

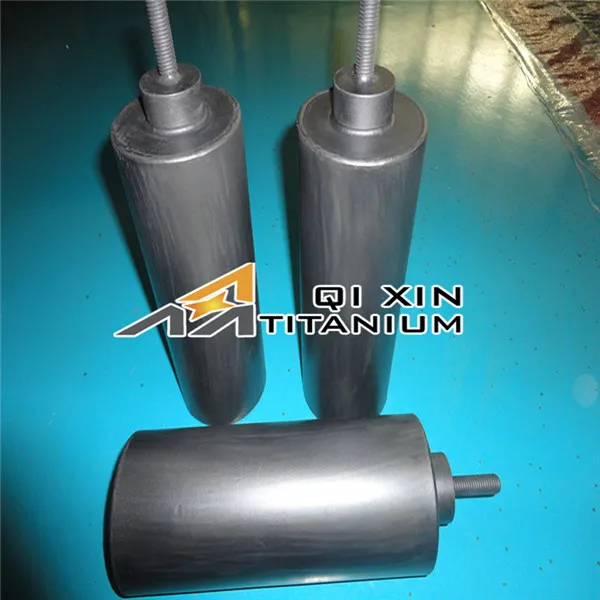

3.Rod Titanium anode for Cathodic Anode

Diameter (mm)	Length (mm)	Output Current (mA/m)	Surface Area/PC (m2)	Working life (year)
3.2	1000	1000	0.01	20
6.4	1000	2000	0.02	20
12.7	1000	4000	0.04	20
19	1000	6000	0.06	20
25	1000	7800	0.08	20

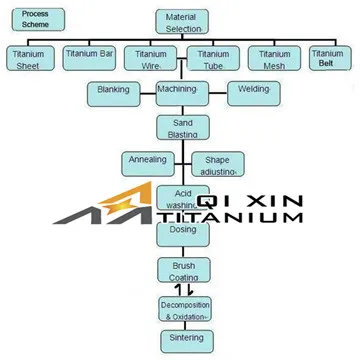

4.The process of Titanium Anode Rod for Cathodic Anode

(1)We are focussed on checks and verifications in all stages that are necessary to produce anodes with an optimum quality.

(2)In the following steps, all parts of the production process are looked at to make sure the specifications are will be met.

(3)Determination and the performance of research & Development and all our supporting and administrative activities are within our Quality System.





5.Packaging and shipment

6.Quallity assurance and after-service

 1)We promise that each ofthe product is the high quality,acceleated the life test

 2)With the hgh technology and equipment .each process must carry on the strict examination upon our thchnical personel.

 3)We have our own factory sales and after-sales department.we usually dedicated to provide customers with high quality and resasnable price product,Most importantly,we can give you the efficient service.

 4).During the cooperation ,if yu have any problem,you can contact us at any time ,we will do our utmost to help you.





7.To all buyers

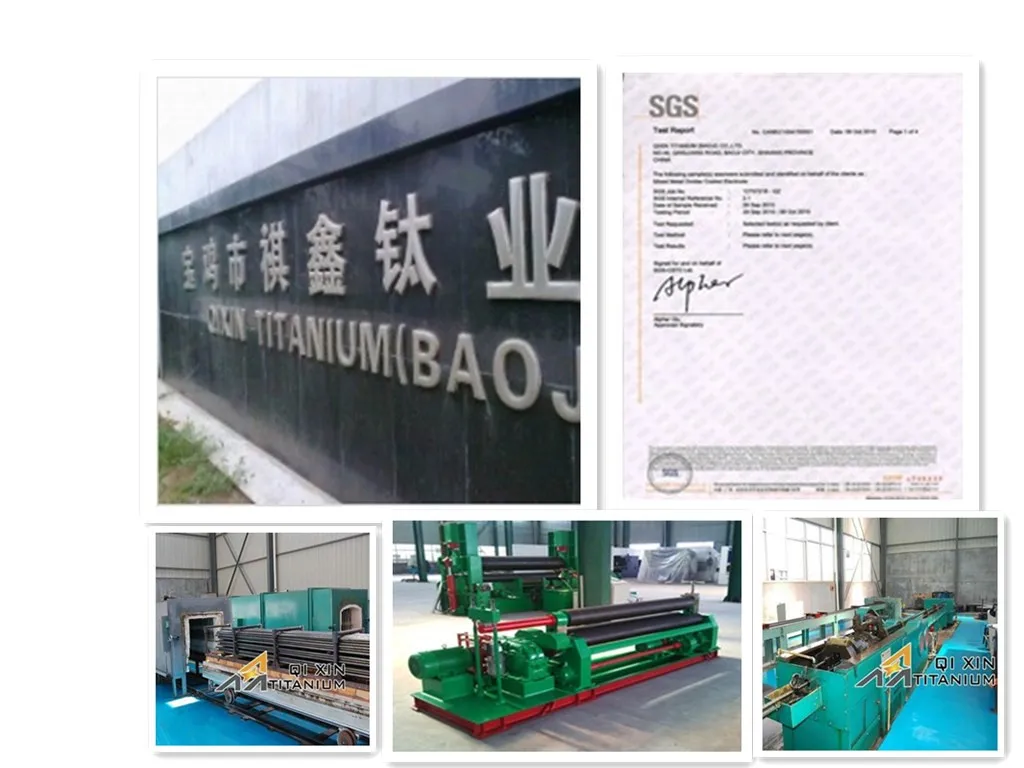

Baoji Qixin Titanium Co,. Ltd is located in "The Chinese Titanium Valley" who has specialized  in Titanium Anode and  Titanium Material for 10 yeas old.

Our company is a high-tech enterprise which specializes in producing Titanium Anode,

Titanium Materials & Titanium Products.
