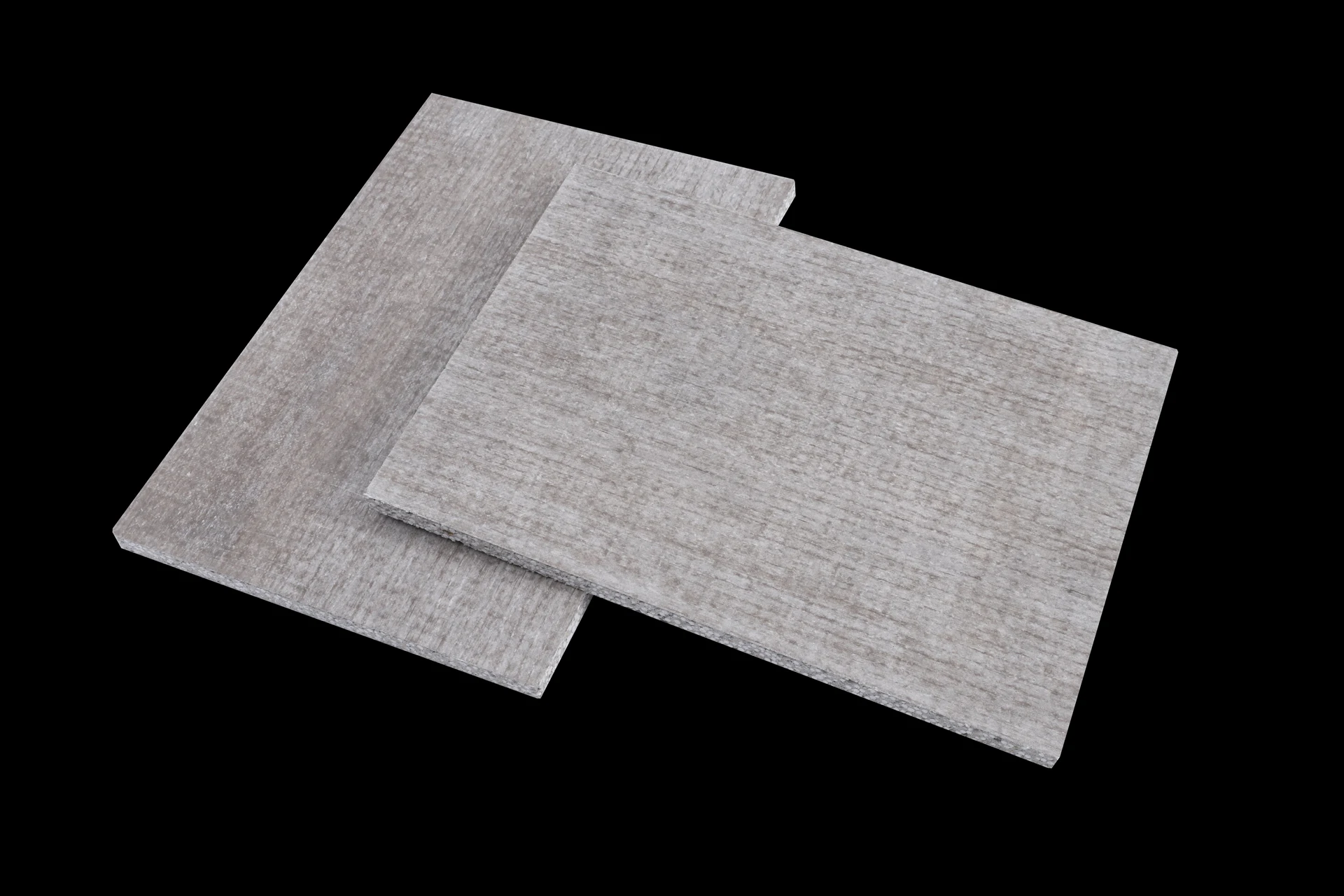

ASTM standard class A1 fireproof waterproof fiber cement board

Product Overview

Description

WELCOME TO VISIT US!





Upgraded superior performance Class A1 fireproof waterproof plasterboard



General Introduction

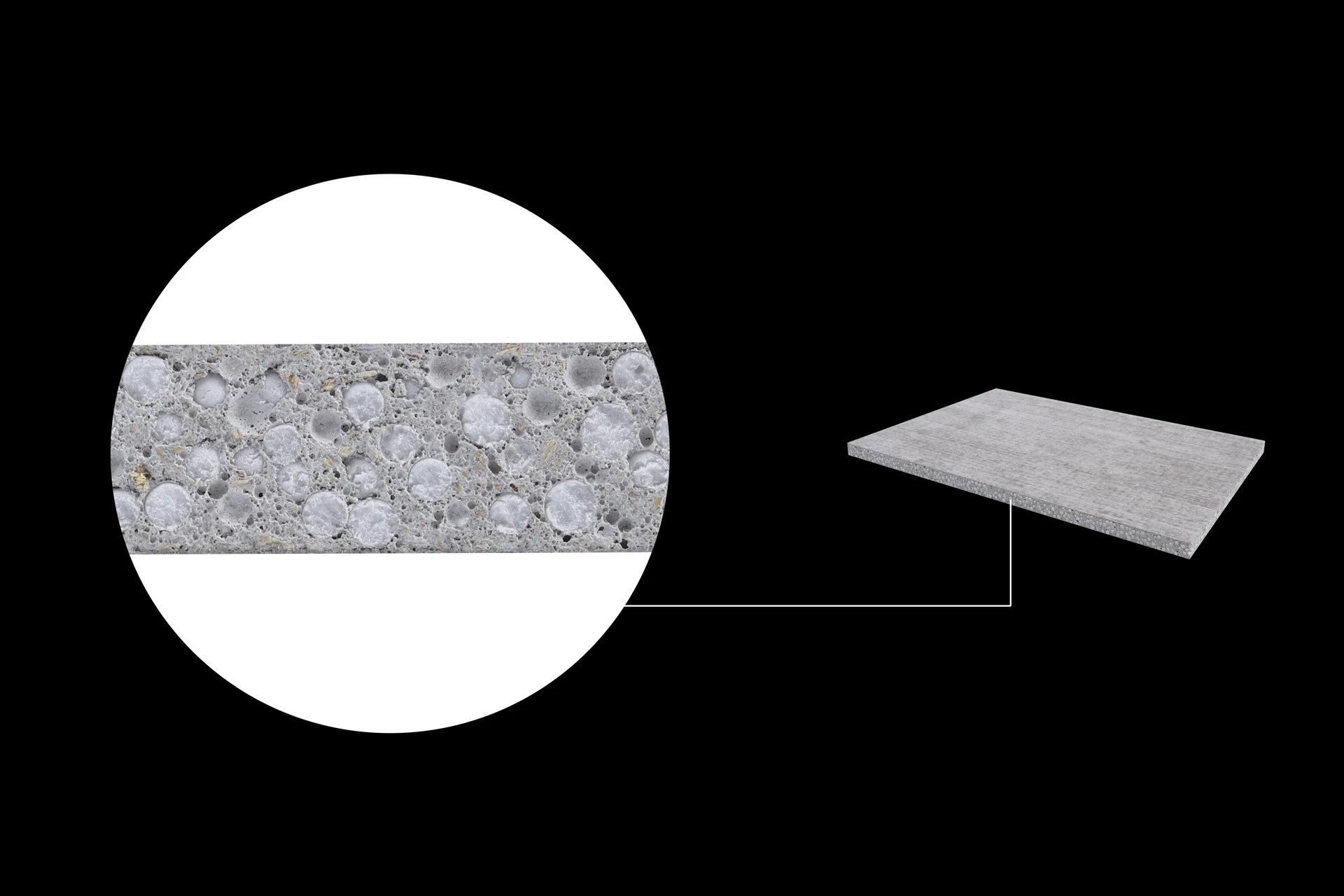

Terasun upgraded superior performance class A1 fireproof waterproof plasterboard  as TSM---Terasun Silicate Magnesium board. Using foam particles, cement, plant fiber, glass fiber cloth, non-woven fabrics, etc as raw material, Terasun upgraded plasterboard is made through gelling, pressing and other special techniques and is a new type material renonwn for stability in performance.



Terasun upgraded plasterboard---TSM, is characteristic of fireproof, waterproof, high intensity, thermal and sound insulation, long endurance in use, low shrinkage and convenient for construction.



Terasun upgraded plasterboard---TSM, is your best choice for buiding, construction and decoration.



Technical Data



Commodity	Terasun Silicate Magnesium Board---TSM
Raw Material	Foam particles, cement, plant fiber, glass fiber cloth, non-woven fabrics, etc
Density	≤ 0.95  g/cm³
Size	1220*2440mm or 1200*2400mm Customerization is available
Thickness	6~20mm
Moisture Content	≤ 12%
Fireproof	Class A1 incombustible
Fire Resistance	120 Mins
Moisture Movement	≤0.12%
Bending Strength	≥8.5 Mpa
Maximum Service Temperature	1200  °C
Water Permeability	No water vapor after 24 hours' test
Refractoriness	2H
Coefficient of Thermal Conductivity	≤0.2 W/MK
Color	Grey
Features / Merits	Waterproof; fireproof; termite proof; light-wight; flexional; easily to be shaped, perforated, bended; long service life; environmental friendly, etc
Applications	Interior&exterior wall; partition wall board; ceiling; subflooring; desktop board; sandwich panel; kitchen and bath wall board; decoration, etc



Features



With Great Fireproof

    The non combustible plasterboard is rated class A and would lead to no noxious fumes.

With Excellent Waterproof

    The waterproof plasterboard can maintain stability in performance and not expand in places of high humidity.

With High Intensity

    The plasterboard is solid that even board in 6mm are more solid than paperbacked plasterboard in 9.5mm. The wall made from magnesium composite board is very solid and substantial, not easily damaged by shocks.

Thermal Insulation and Sound Insulation

    Terasun plasterboard has great thermal insulation and heat preservation. The partition wall with 100mm thickness is better in terms of heat preservation than normal brick wall. In the meantime, it has very good sound insulation.

Long Endurance in Use

    The upgraded plasterboard has a stable performance, acid and alkali resistance. In addition, it has no getting damp and there's no afraid of insects, which will ensure a super long endurance.

Low Shrinkage

    The upgraded plasterboard is made through advanced techniques like pressing by advanced components. The dry state shrinkage ration and expansion rate are well controlled and it's the best boards among all inorganic boards with respect to the performance.

Convenient for Construction

    It has good mechanical properties and able to be saw, shave, nailed without being warped or cracks.

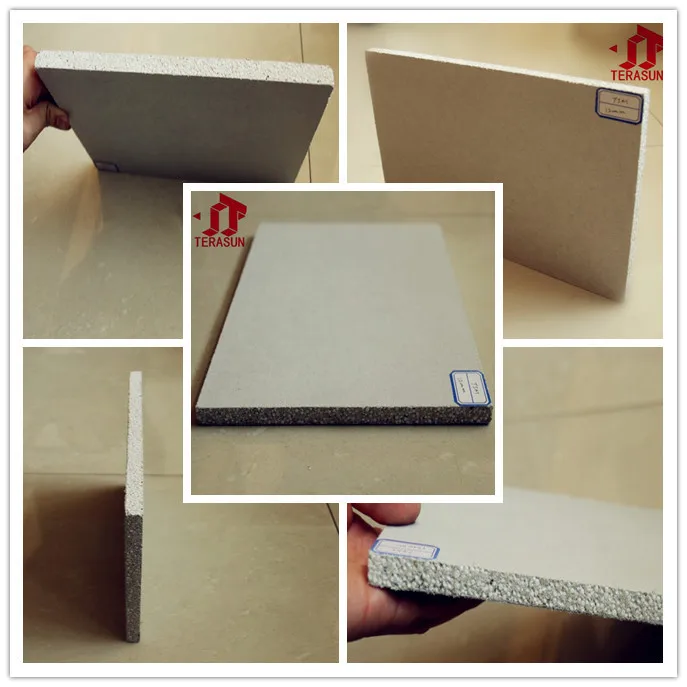

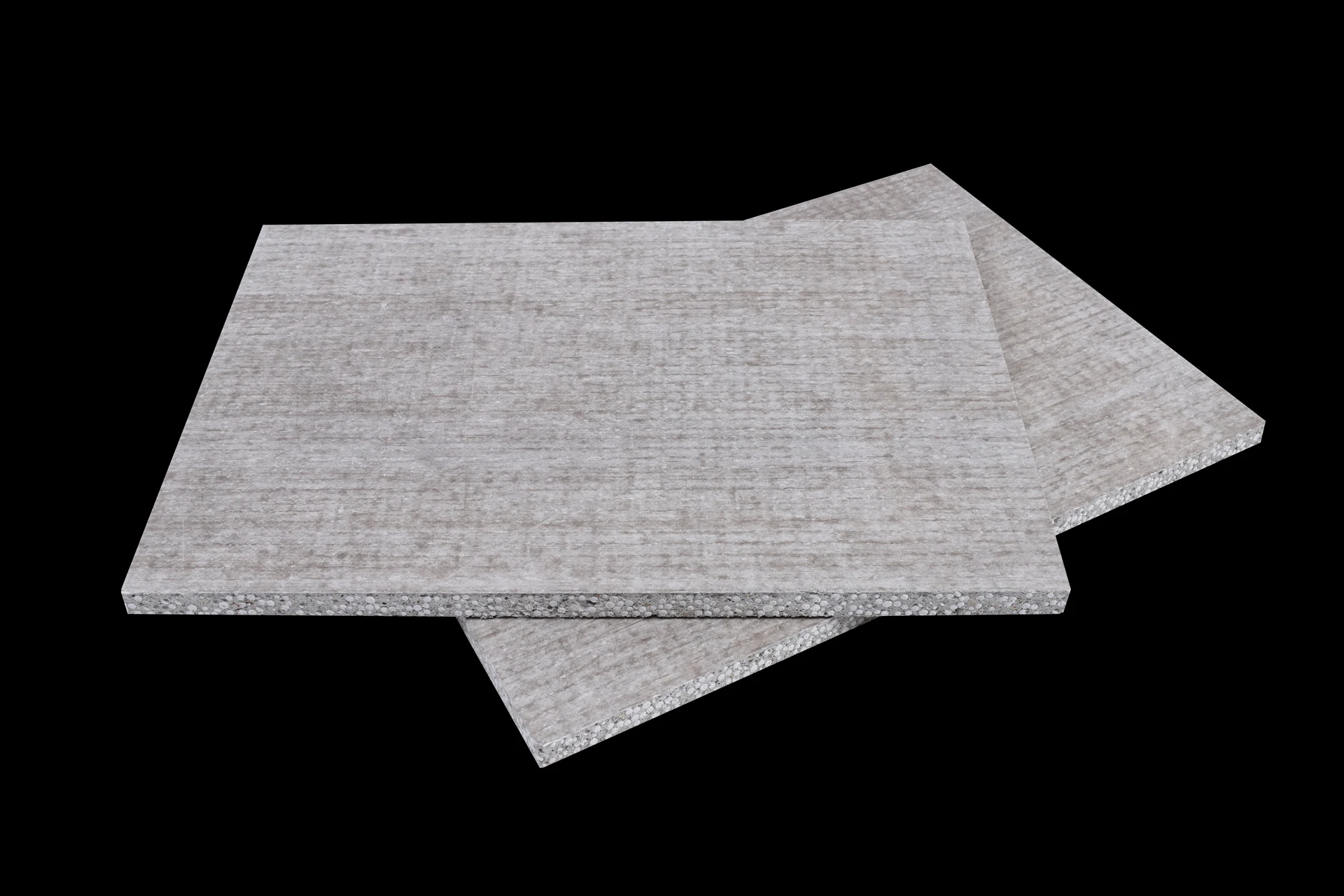

Detailed Images





Superior Advantages



Comparing with regular plasterboard, Terasun upgraded plasterboard---TSM have many superior advantages. That's also the reason why we call it upgraded plasterboard.



Attributes	Terasun Silicate Magnesium Board	Plasterboard
Fire Resistant & Non-Combustible	Excellent	X
Water & Moisture Resistant	Excellent	X
Mold & Mildew Free	Excellent	X
Insect Resistant	Excellent	X
Nail	Excellent	Good
Cut/Saw – No special tools	Excellent	Good
Wallpaper over	Excellent	Bad
Tile Backer	Excellent	X
Insulation Sound & Heat	Excellent	X
Environmentally ‘Green’ & Non-Toxic	Yes	X
Strong & Durable	Excellent	X
Light Weight	Yes	Yes
Recyclable	Yes	X

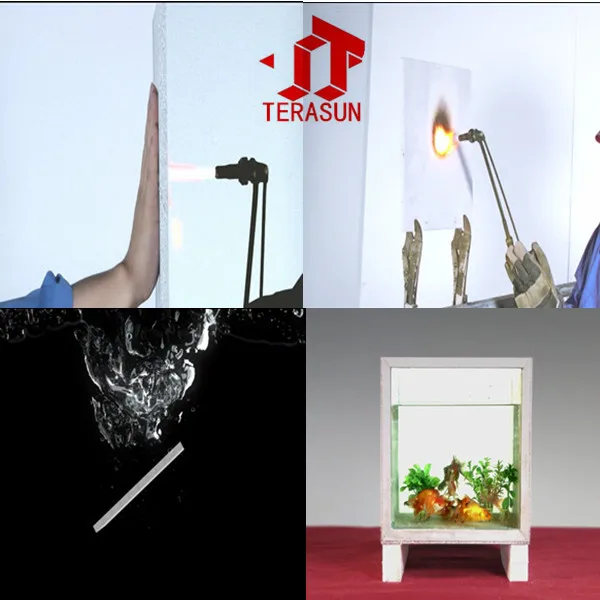

1.Fireproof

Terasun upgraded plasterboard is with great waterproof and fireproof. It has passed SGS approval Class A1 incombustible test under EN 13501-1 standards. Being immersed in water for days, it can still regain its original performance after drying naturally.



Pls kindly note, the fish tank in below picture is made of TSM board.

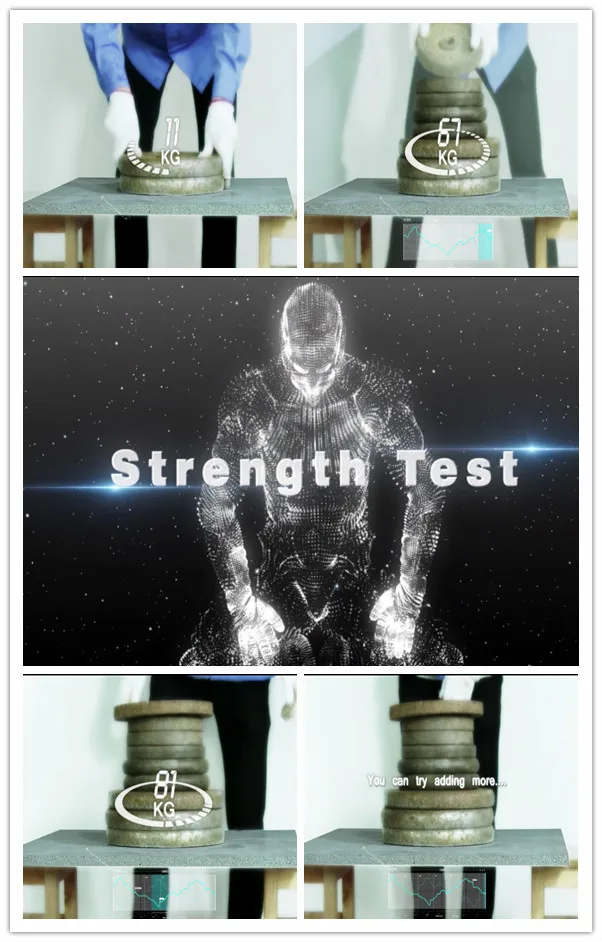

3. Bening Strength

The strength of the plasterboard depends on the strength of the outer layer. Once the out layer drops or broken, the board will be easily to be broken or even to be crushed. For TSM, its strength is much more stable and higher. Usually, TSM 6mm can replace of Gypsum Board 9mm, TSM 9mm can replace of 12mm. For partiton wall, you usually need 2pcs in pair plasterboard, which in total counts 4pcs. But using TSM, only 2pcs is enough.

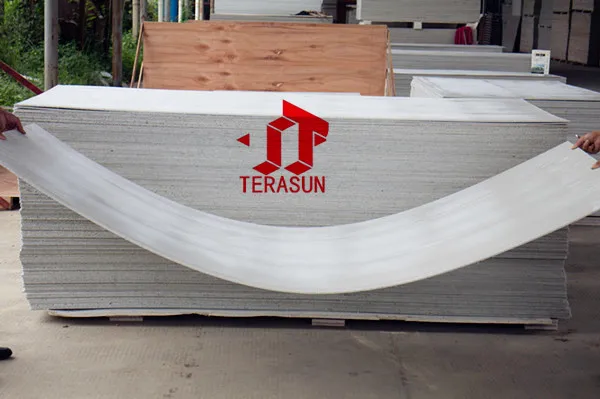

4.Great flexibility.

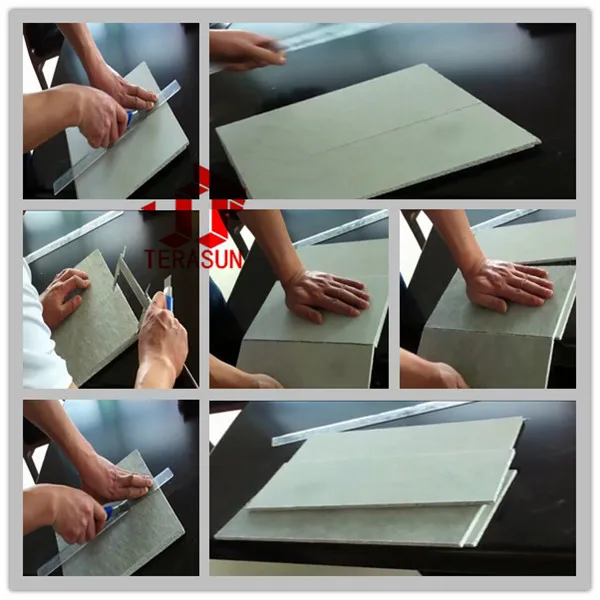

5.Easy Porcessing

TSM can be cut with a knife. It is quite easy and fast for work. There is no dust or poisonous susbstance while cutting, much more healthy, no harm to human at wall. This may shorten the project completion time.





Packaging & Shipping



Size (mm)	Thickness (mm)	Qty / 20' GP   (pcs)
1220*2440	6	1040
1220*2440	8	780
1220*2440	9	692
1220*2440	10	624
1220*2440	12	520
1220*2440	16	388
1220*2440	18	344
1220*2440	20	312
Customed Specification is available.



Packing & Loading

Usually packed with strong wooden pallet, also packed according to cusyomers' request is also available.



Delivery & transportation

1.For large quantity or big order, transportation by sea is highly recommended.

2.For small orders or medium quantity, all transportation are available.



Usages & Handling



Tool
Use the regular tools for working with woods, no special tools or skills are needed.

Cutting
Use finer saw or electric saw to make sure the cut surface is smooth.

Drills
Both high and low-speed machines are fine (put a scratch material underneath the place to be drilled so that the drilled surface is smooth too)

Sanding
Regular sandpaper is good enough to ensure a smooth surface.

Moving
Avoid damaging the edges of the board made rail during transportation.

Nails
Directly put the galvanized nails into the board but the location should be more than 8mm far away from the edges.

Bolts
The locations of bolts should also be more than 8mm away from the edges. If necessary, workers can drill holes before putting in the bolts.

Paint
Both oil and water-based paints are appropriate. To increase the resistance to moisture, use rubber or Epoxy paints.

Wallpaper
All kinds of wallpaper or plastic wall cloth are good but the size and the location of the wallpaper needs to be accurate.

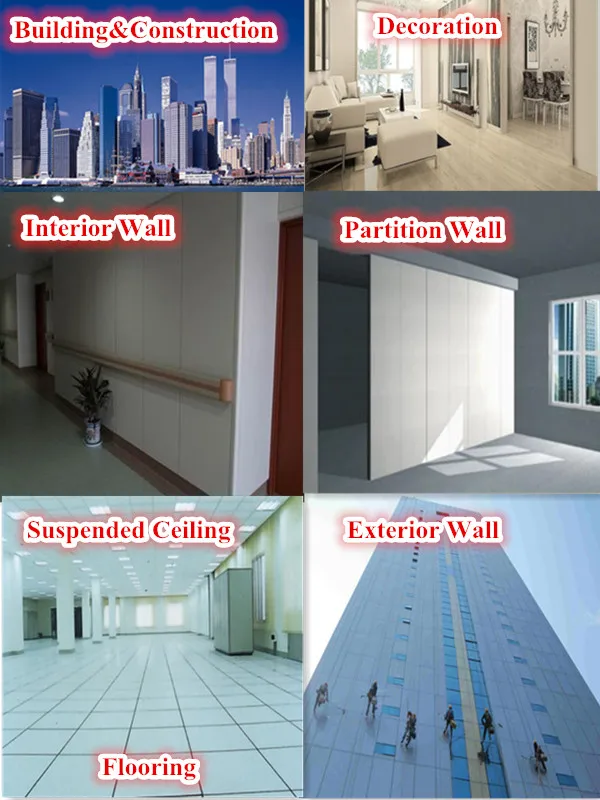

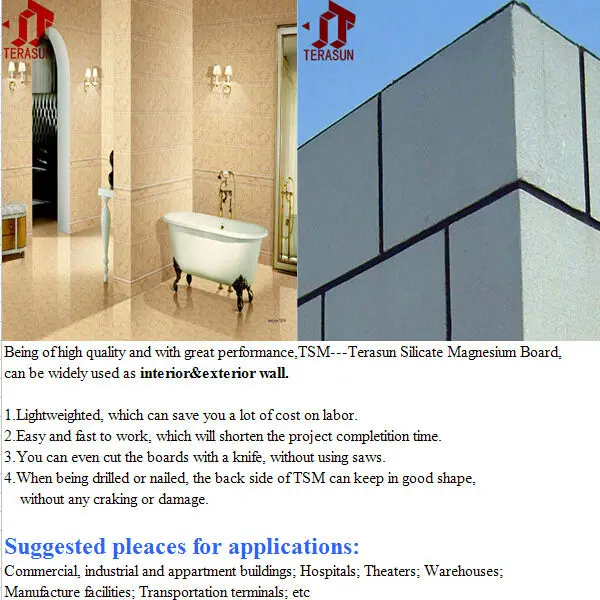

Main Applications

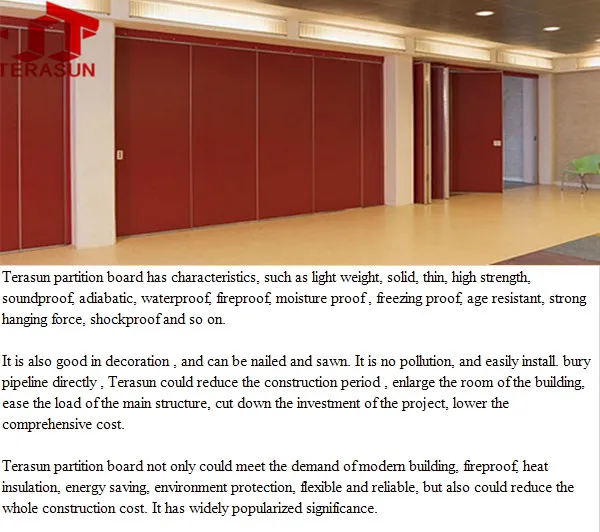

Terasun upgraded plasterboard, is of high quality and with great performance, is widely used as suspended ceiling, partition board, interior&exterior wall board, flooring underlayment etc. in many construction spots.



Main Usages	Application Spots
Suspended Ceiling Partition Board Interior & Exterior Wall Flooring Underlayment Decoration Sandwich Panel Skin Kitchen & Bathroom Wall ......	Residential Houses Office Buildings Commercial Centers Manufacture Facilities Hotels / Halls Transportation Centers Factories / Plants ......







Storage



1.Terasun boards should be stored flat, raised from the ground on a pallet, in dry conditions indoors and be under cover.

2.Boards should not be leant upright for long periods of time.

3.Any moisture allowed to infiltrate between the sheet will cause surface staining (though it won't greatly influence the boards' performance).

4.They should be protected from the weather and other trades on site all the time.

5.Boards should alway be lifted by 2 people and not dragged across each other to prevent unnecessary sratching or damage.

6.Boards should be carried on edge and extra precaution should be taken to protect the visible front and corners.
