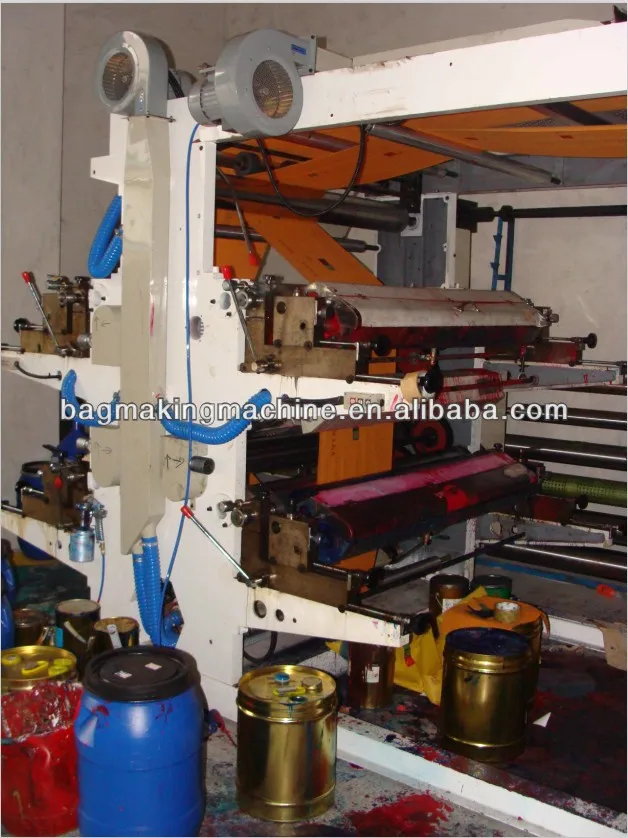

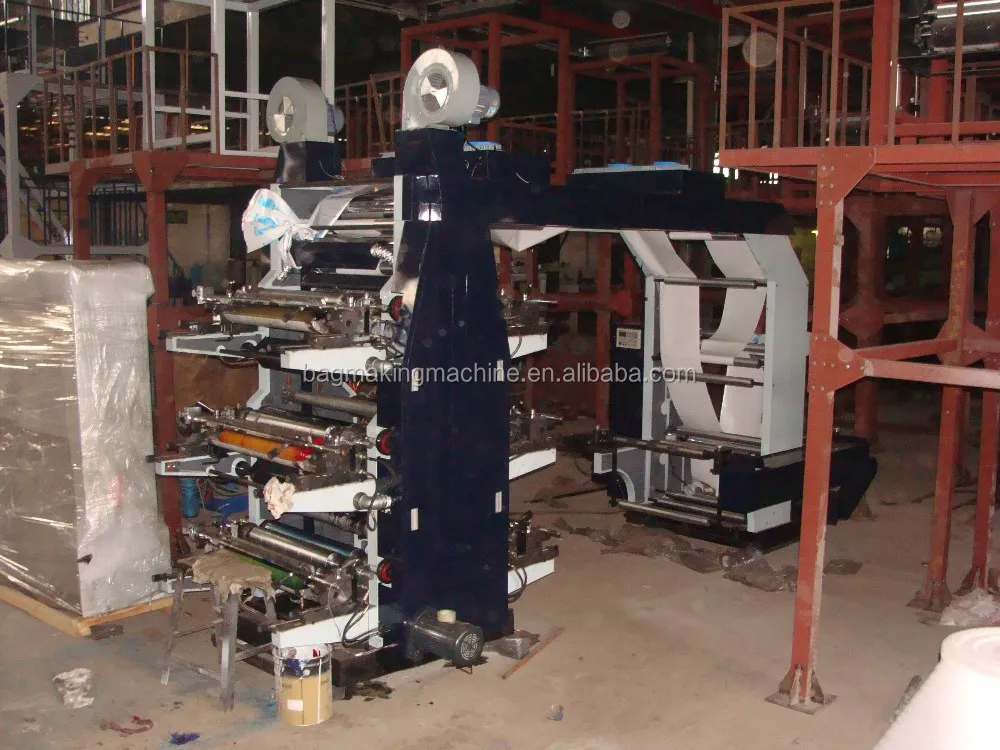

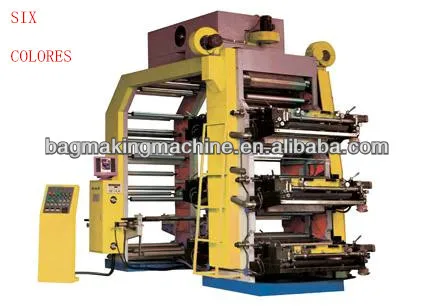

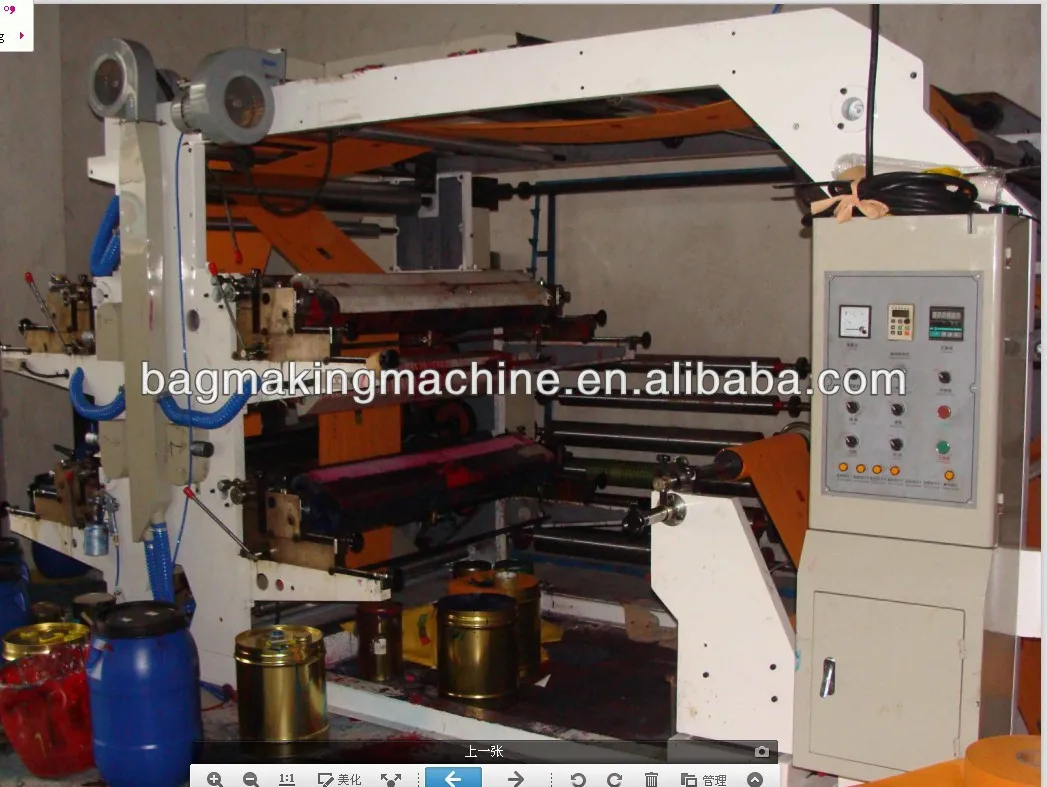

6 colores High speed non woven fabric flexo printing press

Product Overview

Description



High speed non woven frabic printing machine



Suitable materials



Kraft paper: 40 ~ 350g/m², single-sided coated paper: 30 ~ 350g/m², copy paper: 15 ~ 350g/m², Rough paper for firecrackers: 40 ~ 350g/m², paper money and incense: 25 ~ 350g/m2, silicone paper : 50 ~ 350g/m², dust-free paper: 25 ~ 350g/m², release paper: 40 ~ 350g/m², composite paper, 30 ~ 350g/m2, Nonwoven :15-120 grams, woven :15-500 g, PVC: 10 ~ 120μm, OPP: 10 ~ 100μm, BOPP: 10 ~ 100μm, PE: 15 ~ 150μm, NY: 10 ~ 120μm, PET: 10 ~ 100μm, CPP: 10 ~ 100μm







Feature

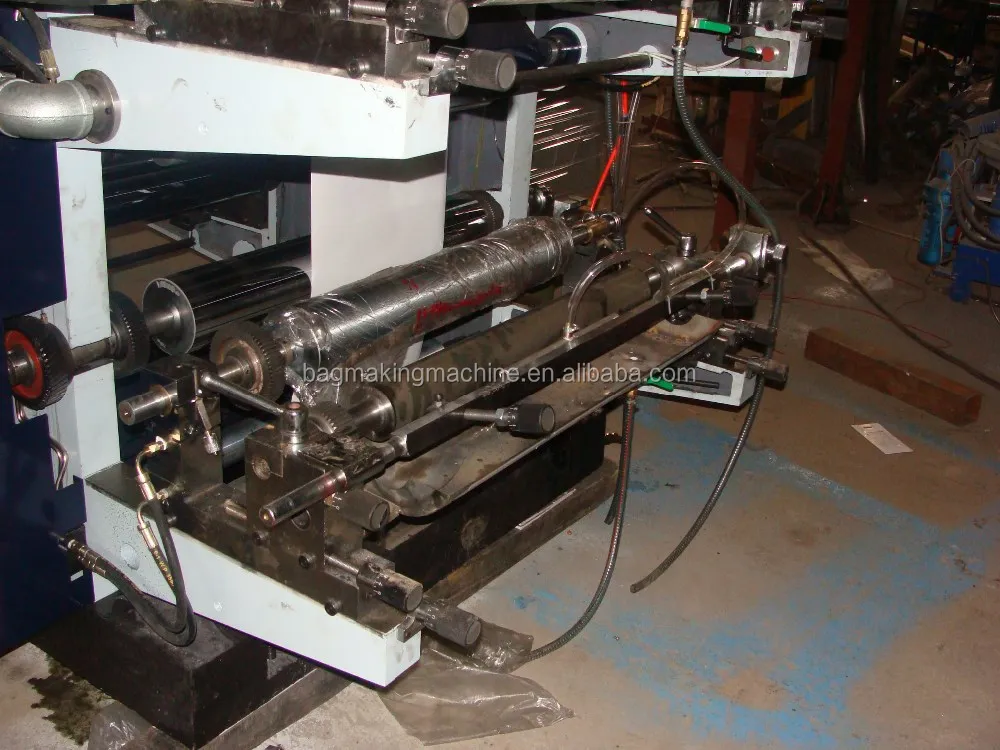

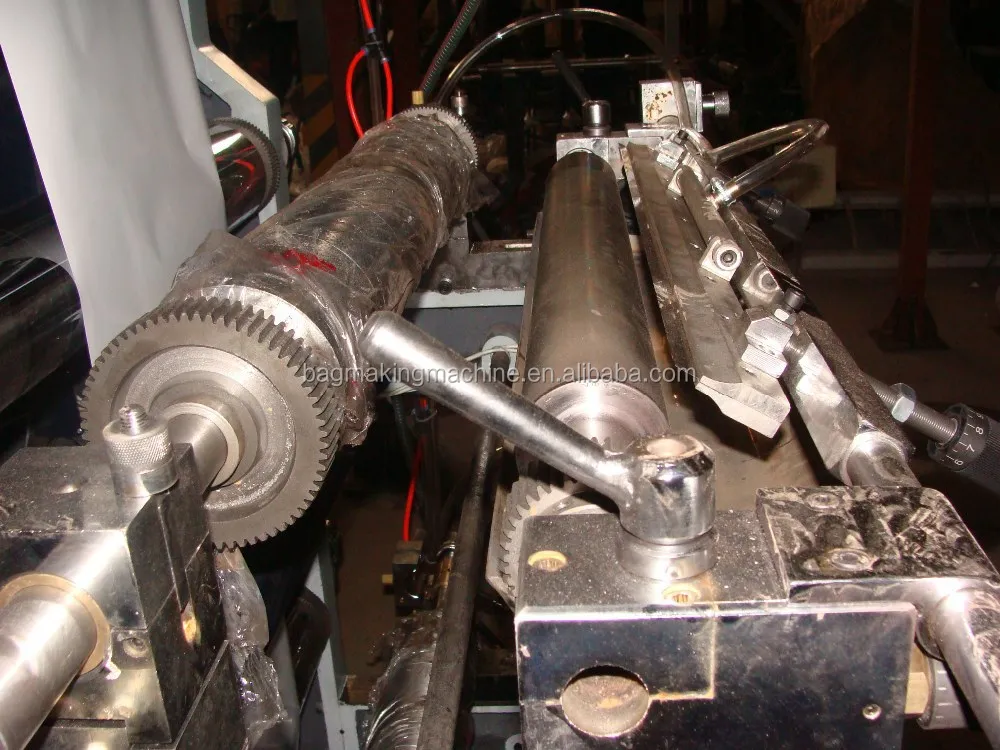

1. Ceramic anilox ink roller, lines 100PLI ~ 1000PLI, high speed dot definition rate and color registration.



2. Automatic ink circulation system



3. Speed control by frequency converter running in less fluctuations;

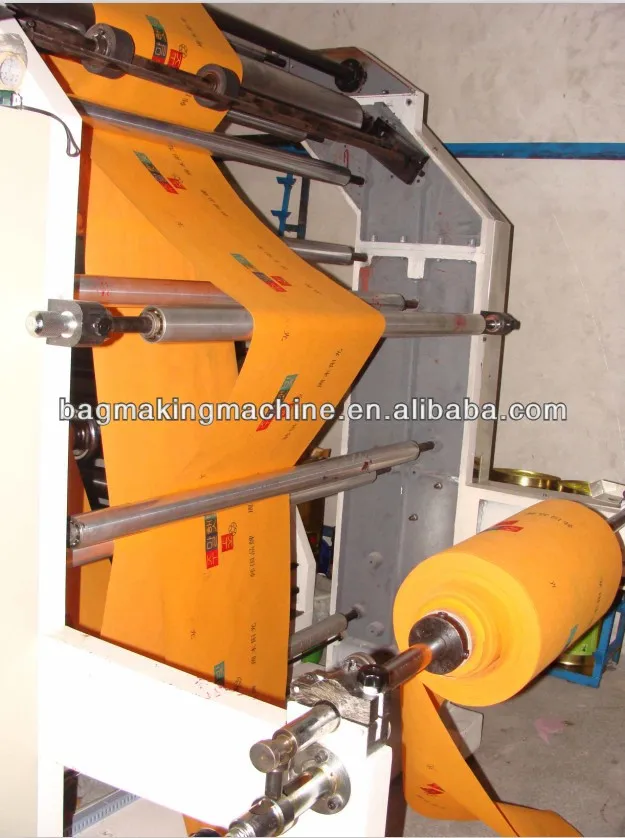

4. Web guiding system supported by the photoelectric sensors



5. Magnetic tension controller for unwinding and rewinding motions

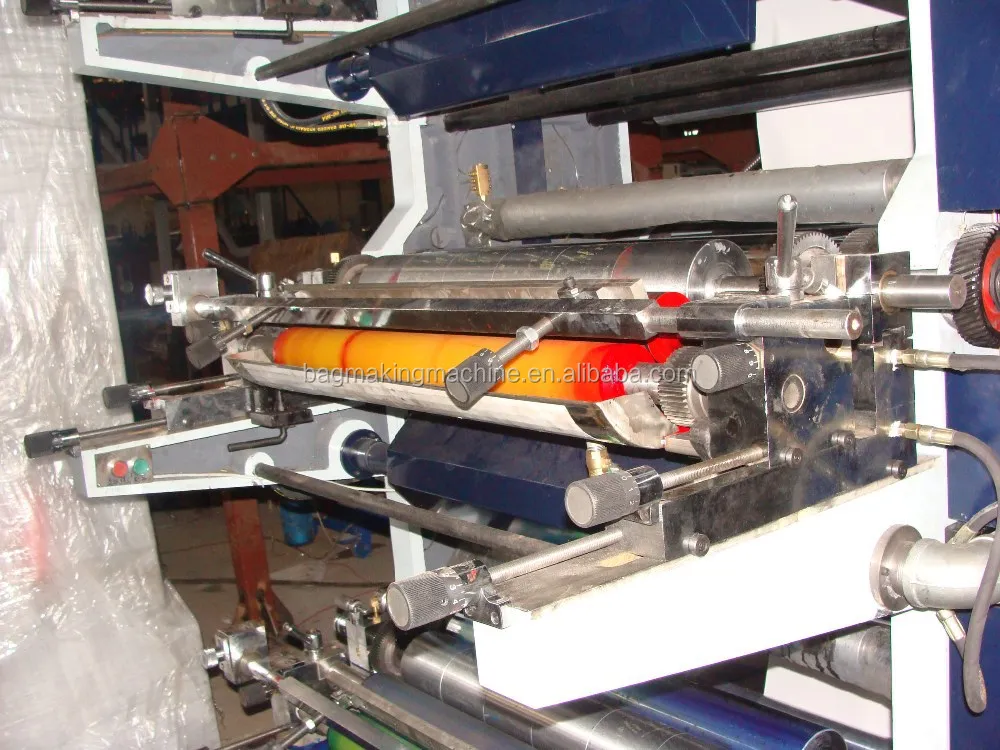

6. Unique doctor blade and automatic ink pump unit



7. Smooth roller: adopt special steel processing, and after special treatment, with10um plating hard chromium protective layer thick, beat within 0.02mm;



8. Led guiding roller backed with small semi-sealed bearings which features static and dynamic balance treatment and hard oxidation treatment

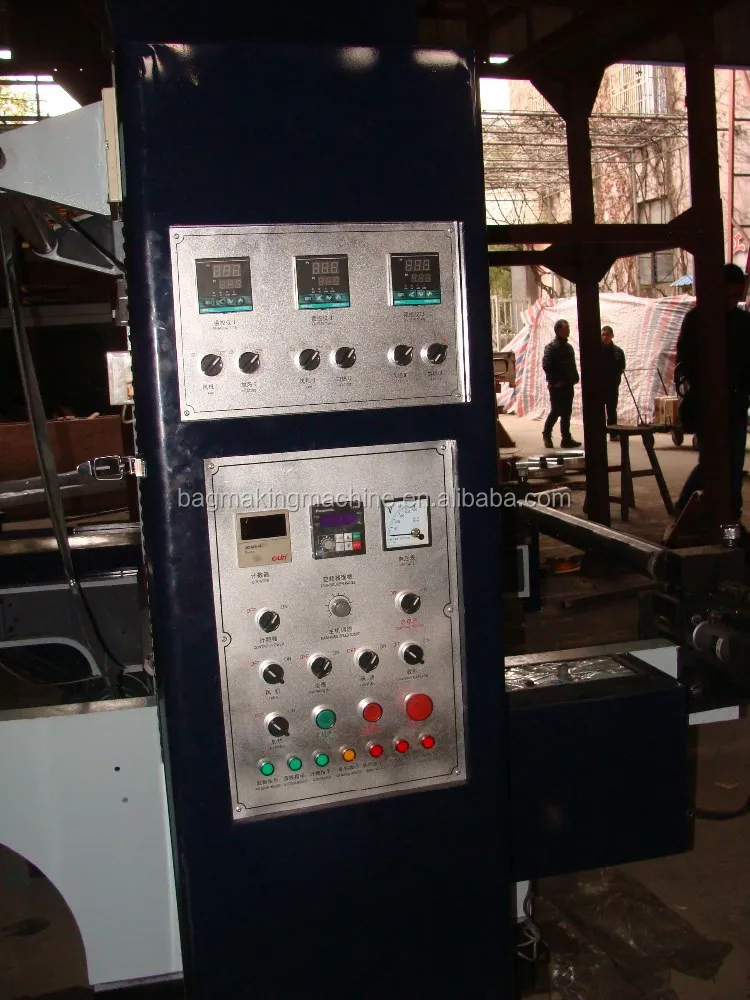

9. Central heating temperature control system



10. Thick exterior structure in 75mm with longer bridge for high stability.







Parameters:



Colors	6 colors(6+0, 5+1, 4+2, 3+3)
Web width	600-2000mm
Print width	560-1960mm
Machine speed	1.General type doctor blade: 100m/min;2.Enclosed doctor blade:150m/min.
Print speed	1.General type doctor blade: 80m/min;2.Enclosed doctor blade:130m/min.
Print length	200-1100mm
Anilox roller	Ceramic roller:100-1000LPI/cm, ink hold depth:3.5-10.5bcm
Registration	±0.15-0.2mm( by hand)
Unwinding diameter	1000 mm
Rewinding diameter	1000 mm
Tension range	3~30kg
Tension precision	±0.2Kg
Wind roller	air shaft
Air resource	0.6Mp
Graining roller	φ131.3m
Doctor blade	1. General type; 2. Enclosed type
Ink	1. Water ink; 2. Water base ink;
Ink transport	Automatic ink recycling system
Drying way	Electrical heating
Large fan	1.5KW: 2pcs
Small fan	0.3KW:  6 pcs
Main motor power	3.7KW
Total power	26KW-40KW
Error correct system	Photocell corrector system
General bearing	NSK, Japan
Unilateral bearing	ASNU, Germany
Optional devices	Computerized graphic detection system. The bright and beautiful image detection syste
