AF 120mm,EVA Hotmelt Glue Stick Production Line

Share on (1759218887):


Price:

Quantity:


Product Overview

Description

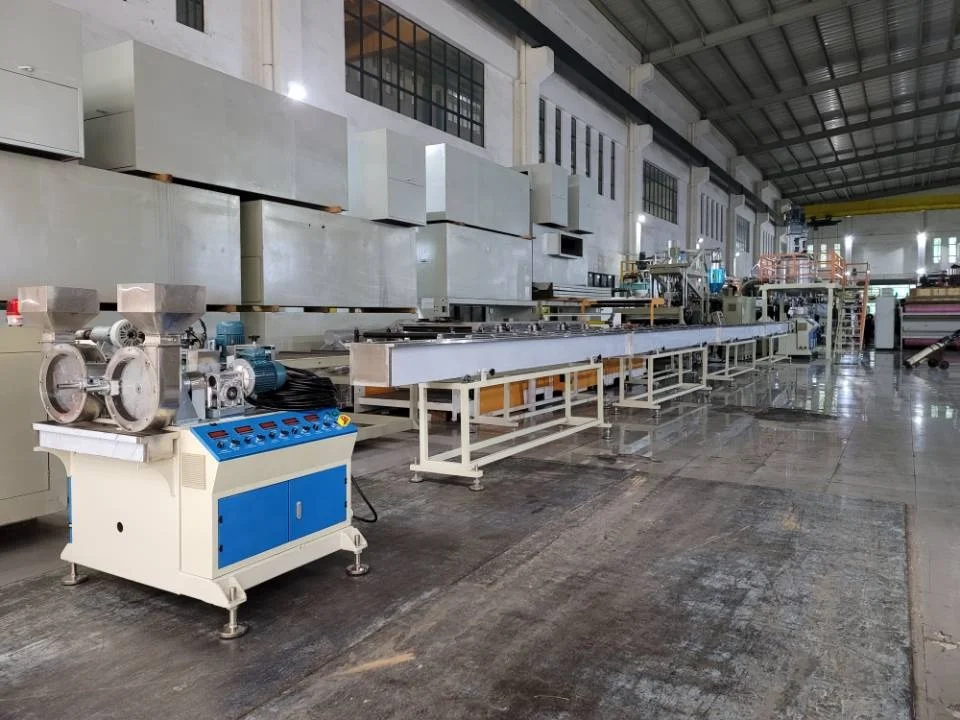

EVA Hotmelt Glue Stick Extrusion Production Line

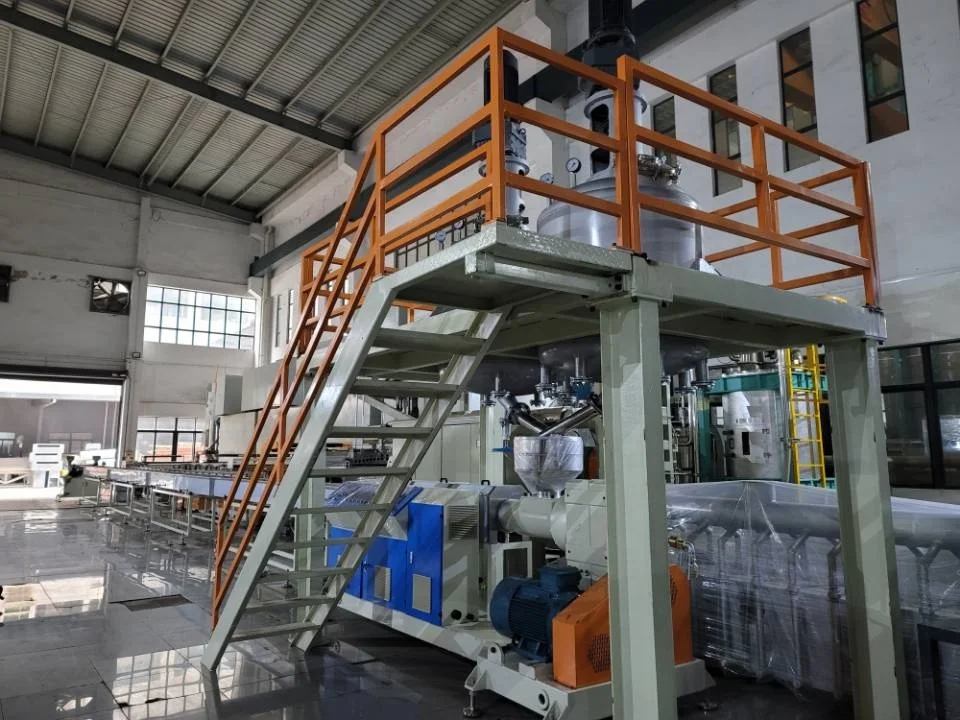

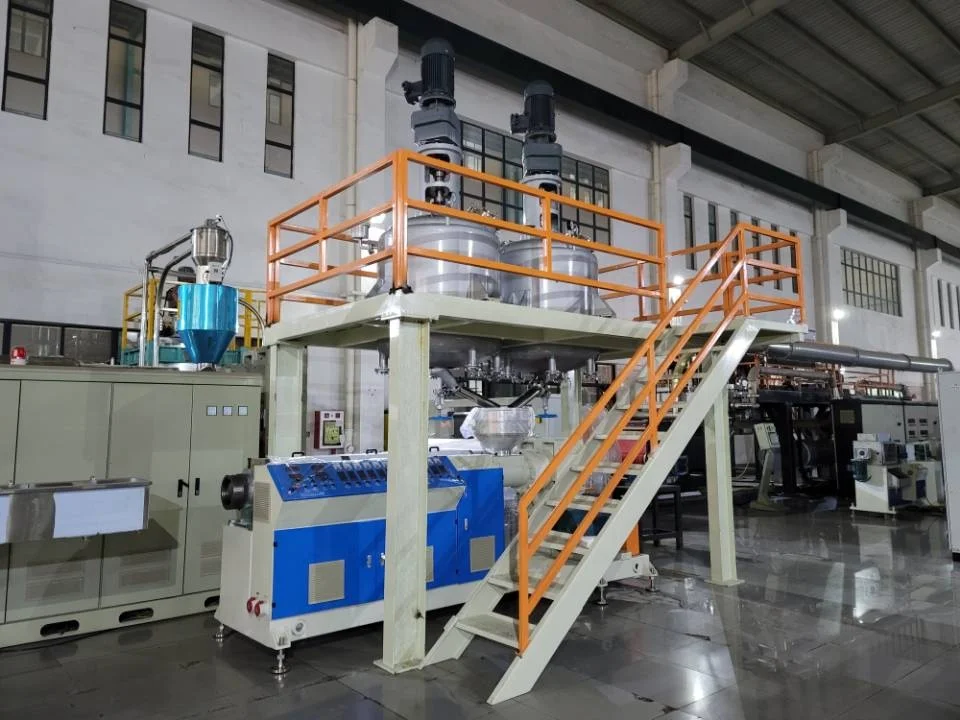

Glue stick extrusion line configuration:
1. Hot mixing vessel: one set (500L)

2. Vessel frame: one set
Material: steel

3. EVA glue stick extruder: one set
Screw:
Screw structure: special
The screw and the barrels are all made of high quality nitride steel-38CrMoAIA, and are nitration austerely according to NATIONAL
STANDARD,Nitration depth: screw: 0.3-0.7mm, barrel: 0.4-0.6mm,fragility is 2 grades.
Reducer: one
Extrusion mould with two flow channels: one (diameter: 7,11mm)

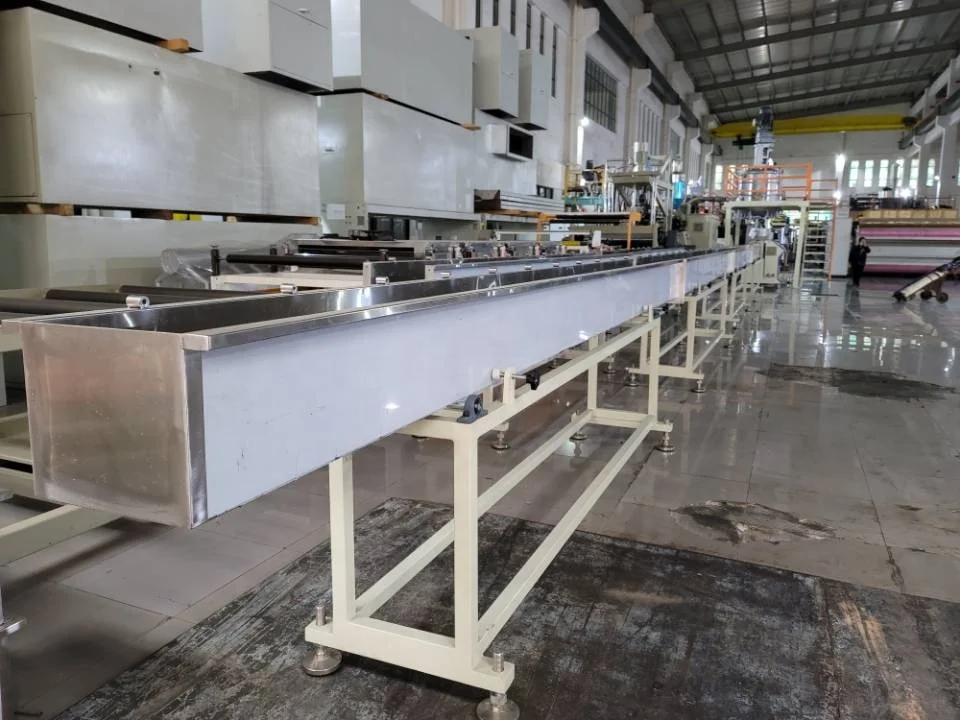

4. Cooling water tank: one set
Material: stainless steel

5. Two wheels haul-off unit: one set
Control power: 0.75kw
Control style: frequency conversion
Haul-off and automatic cutting machine: one set
Control power: 0.75kw
Control style: frequency conversion
Cutting motor: 0.75kw
Control style: frequency conversion


Product Description






Specification


item
value
Application
Bar, stick
Plastic Processed
EVA
Condition
New
Screw Design
Single-screw
Screw Material
38CrMoALA
Screw diameter (mm)
120
Screw L/D Ratio
22:1
Screw Speed (rpm)
90rpm
Showroom Location
None
Place of Origin
China
Guangdong
Brand Name
ANFU(YAOAN)
Voltage
380V
Dimension(L*W*H)
25m*5m*6m
Power (kW)
160
Weight
8000KG
Warranty
1 Year
Key Selling Points
Automatic
Applicable Industries
Manufacturing Plant
Marketing Type
Ordinary Product
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
Motor, Pump, Pressure vessel, Engine, Gearbox, Screw
Motor brand
Siemens
capacity
40-180kg/hr
screw diameter
65,80,120mm
qualtiy
good
ISOI9001
yes
ISO14001
yes
OEM
yes
operation
easy
after sale service
1 year free
lifetime
longtime

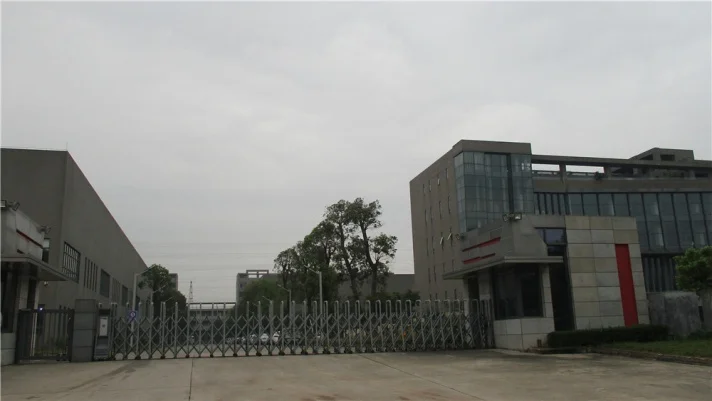

Company Profile








DONGGUAN CITY YAOAN(ANFU) PLASTIC MACHINE CO.,LTD was estabished in 1980,it is located in Dongguan city which famous for manufacturing. It is manufactuing corporation which specialized in the design,manufacturiong,marketing,and service for plastic extrusion line.We have got much glory honors from government,such as "FAMOUS BRAND IN GUANGDONG","PRIVATE TECHNOLOGICAL ENTERPRISES","FAITHFULENTERPRISE." We have obtained "ISO9001 International Quality Certification","ISO 14001 Environment Certification"management system gradually as well as "CE Certification.Scientific & technical payoffs and technical target have been in leading position,also have got many proprietary technologe. YAOAN have got a great support from the government and people in the industry for developing.

since 1990,in order to improve the processing technologh,we have set up individual department for designing and manufacturing of sheet,cast film,non-woven fabrics,pipe,profile as well as recycling extrusion line.We can provide customer with professional mechanical design and complete processing technologh based on special requirements.After 20 years continuous efforts and experience accumulation,YAOAN has become one of leading manufacturers in this field.The equipments are widely used in construction,packaging,medical decoration as well as furniture.

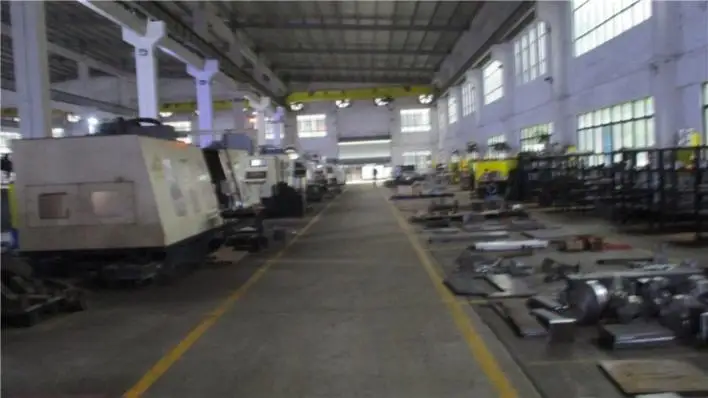

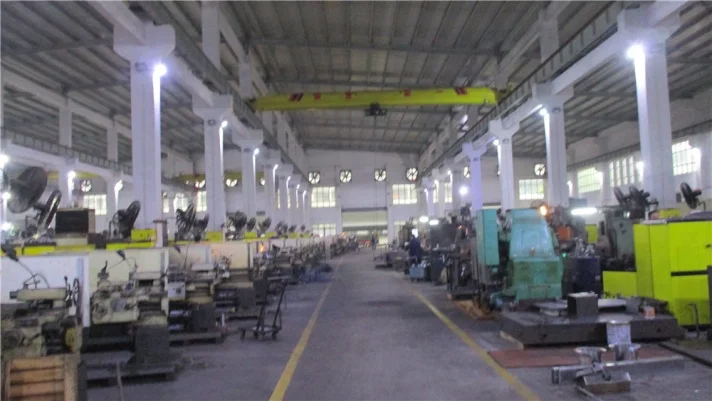

We have 30000 square meters plant,and more than ten sets of CNC and steel laser cutting machine,strong process capability and advanced processing machinery,we assure that can deliver the good machine to customer timely.

We always insist on business policy of "Quality Is Base,Continuous Innovation is Life, And Customer's Satisfaction Is Ultimate Target".Marking great efforts to promote the quality of machine and servictory in person.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2006,sell to Domestic Market(50.00%),Southeast Asia(25.00%),South America(7.00%),Africa(7.00%),Eastern Europe(5.00%),North America(3.00%),Mid East(2.00%),Eastern Asia(00.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extruder

4. why should you buy from us not from other suppliers?
basing on our professional engineers, skilled workers and various precise engineering machines, we can satisfy the special machine requirements from clients. We have over 20 years in plastic extrusion manufacturing. We can supply good machine and good serv

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Russian
