CS20 portable mobile Censtar fuel dispenser pump

Product Overview

Description

CS20 portable mobile Censtar fuel dispenser pump

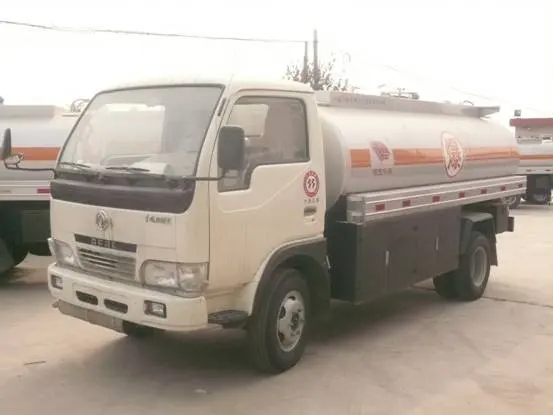

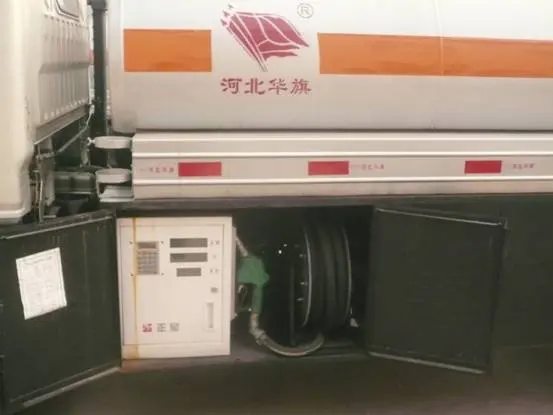

Compact,convenient operation,realize mobile fueling service,installed on tank-truck and driven by power from pump of tank-truck



	model	nozzle	product	Display
Dispenser	CS20D1110F	1	1	1

CS20D1110F-A/ CS20D1110F-B/ CS20D1110F-C/ CS20D1110F-D/ CS20D1110F-E

The above suffix (A to E) means different fuel inlet position.

Package size: 540*480*650mm



Technical Parameters

Accuracy: ±0.25%

Flow rate range: 5 to 50 liter per minute

Noise: ≤72dB(A)

Display: Sales 0.00 to 9999999

Volume: 0.00 to 99999.99

Unit price : 0.00 to 99999

Decimal point position can be chosen

Electrical totalizer: Volume 0 to 42949672.95L

                                    Money 0 to 42949672.95V

Power supply: DC10V to DC30V

Working environmental temperature: -25^oC to +55 ^oC

Relative humidity: 30% to 90%
