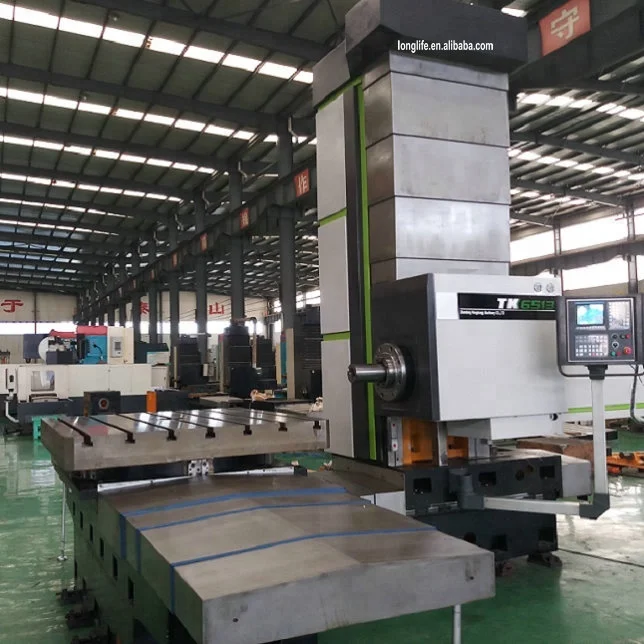

TK6513 planer type cnc horizontal boring milling machine
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (1759612745):
Product Overview
Description
TK6513 cnc horizontal boring milling Machine
Main Features
Such cnc horizontal boring and milling machine has following features:
1. horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
3. CE Standard and CE Certificate;
Main Technical Data
Specifications of TK6513 cnc horizontal boring machine | Unit | Parameter |
Rotary worktable size | mm | 2000×2000 |
Max.load capacity | kg | 10000 |
T-slot (Numbers * Width * Distance) (b / t slots) | mm | 18×100×5 |
Table load Max | kg | 10000 |
Spindle-box travel(Y-axis) | mm | 2000 |
Spindle travel(Z-axis) | mm | 700 |
Square ram travel(U-axis) | mm | 900 |
Rotary worktable travel(V-axis) |
| 360° |
Dia.of spindle | mm | 130 |
Spindle taper |
| BT50 |
Spindle speed rage | r/min | 20~1200 |
Spindle motor power | kW | 11~22 |
Linear guideway |
| HIWIN |
Bearing |
| NSK |
Positioning accuracy |
| ±0.01/300 |
Weight of machine | kg | 11000 |
CNC system |
| Fagor 8055 |
Free Std Accessories
S/N | Name | Quantity |
1 | Radial tool post | 1 |
2 | Jaw | 1 |
3 | Socket wrench (S=46) | 1 |
4 | Socket wrench (S=75) | 2 |
5 | Small adjusting shaft of spindle bearing nut | 1 |
