Male Female Panel Mount 30 32 34 36 pin Waterproof Connector China Factory
Male Female Panel Mount 30 32 34 36 pin Waterproof Connector China Factory

Male Female Panel Mount 30 32 34 36 pin Waterproof Connector China Factory

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description




LLT Waterprooof Connector



Best Prices + High Quality + Fast Delivery + Quick Response Service!



Welcome Your Inquiry !

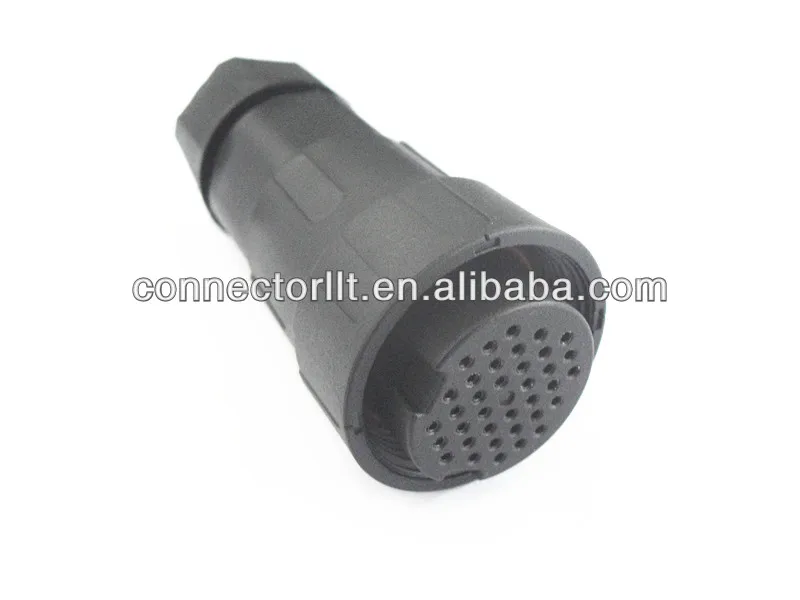

LLT M29 Series: 36 pins



M29 36 Pins Male Female Panel Mount Waterproof Connector Parameters
1Model No.LLT-M29BM36
2MaterialConnector BodyNylon(PA66)+GF UL94V-0 1/16''
3ContactBrass with Gold Plated
4Sealing Silica Gel
5PropertyCurrent Rating36x5A
6Voltage Rating300V
7Contact Resistance<5mΩ
8Insulation Resistance1000MΩ at DC500V
9Breakdown Voltage0.8KV/1minute
10Temperature Rating-45°C~+105°C
11Durability(Plug/Unplug)3000 times
12Waterproof RatingIP68
13Cable Max. Diameter17mm
14Pins Quantity2,3,4,5,6,7,12,18,24,30, 32, 34,36

M29 Dimension.JPG

M29 02.jpgM29 08.jpgM29 04.jpgM29 10.jpg3609.jpgM29 01.jpg
