Large transmission ratio of harmonic drive reducer

Strain Wave Gearing (also known as "harmonic drive" because Harmonic Drive gears are strain wave gears produced by the Harmonic Drive companies) is a special type of mechanical gear system that can improve certain characteristics compared to traditional gearing systems (such as Helical Gears or Planetary Gears). It was invented in 1957 by C.W. Musser. The advantages include: no backlash, compactness and light weight, high gear ratios, reconfigurable ratios within a standard housing, good resolution and excellent repeatability (linear representation) when repositioning inertial loads,high torque capability, and coaxial input and output shafts.High gear reduction ratios are possible in a small volume (a ratio from 30:1 up to 320:1 is possible in the same space in which planetary gears typically only produce a 10:1 ratio).
Disadvantages include a tendency for 'wind-up' (a torsional spring rate) and potential degradation over time from mechanical shocks and environment.
They are typically used in industrial motion control, machine tool, printing machine, robotics and aerospace, for gear reduction but may also be used to increase rotational speed, or for differential gearing.

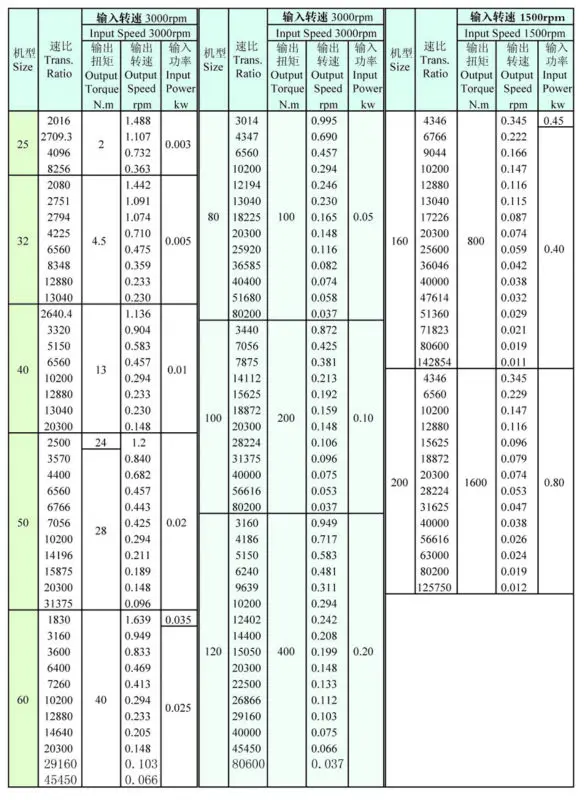

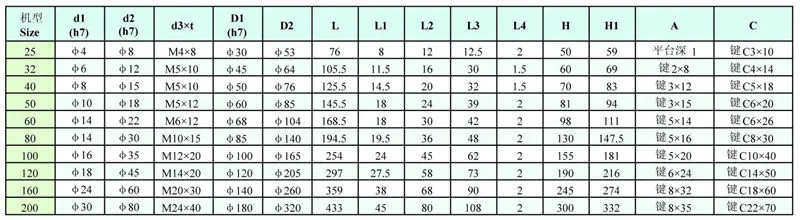

SIZE(unit:mm)

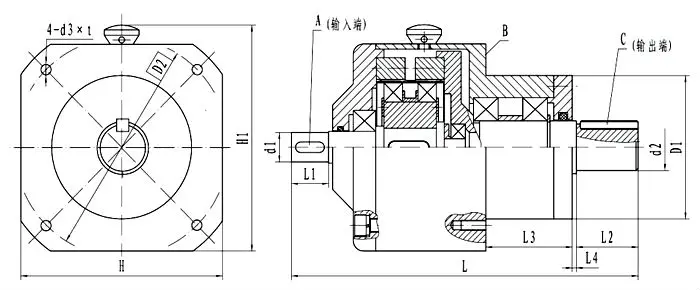

XB2 Gritting within the complex wave harmonic drive reducer figure shape

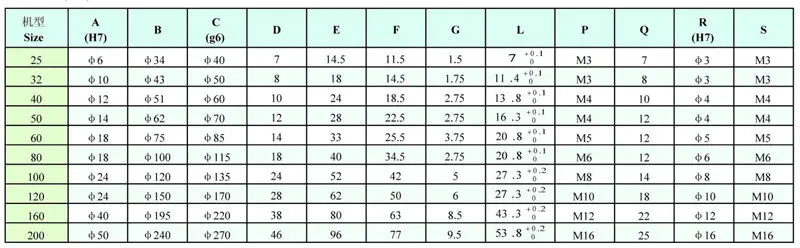

SIZE(unit:mm)

Note: 1.A bar: 25 model as A platform, the rest of the key according to choose  GB/T1096-1979,

                  2. B side for installation datum, D1 benchmark for installation hole; Reducer when installation, pay attention to keep the air holes up (see instructions)
