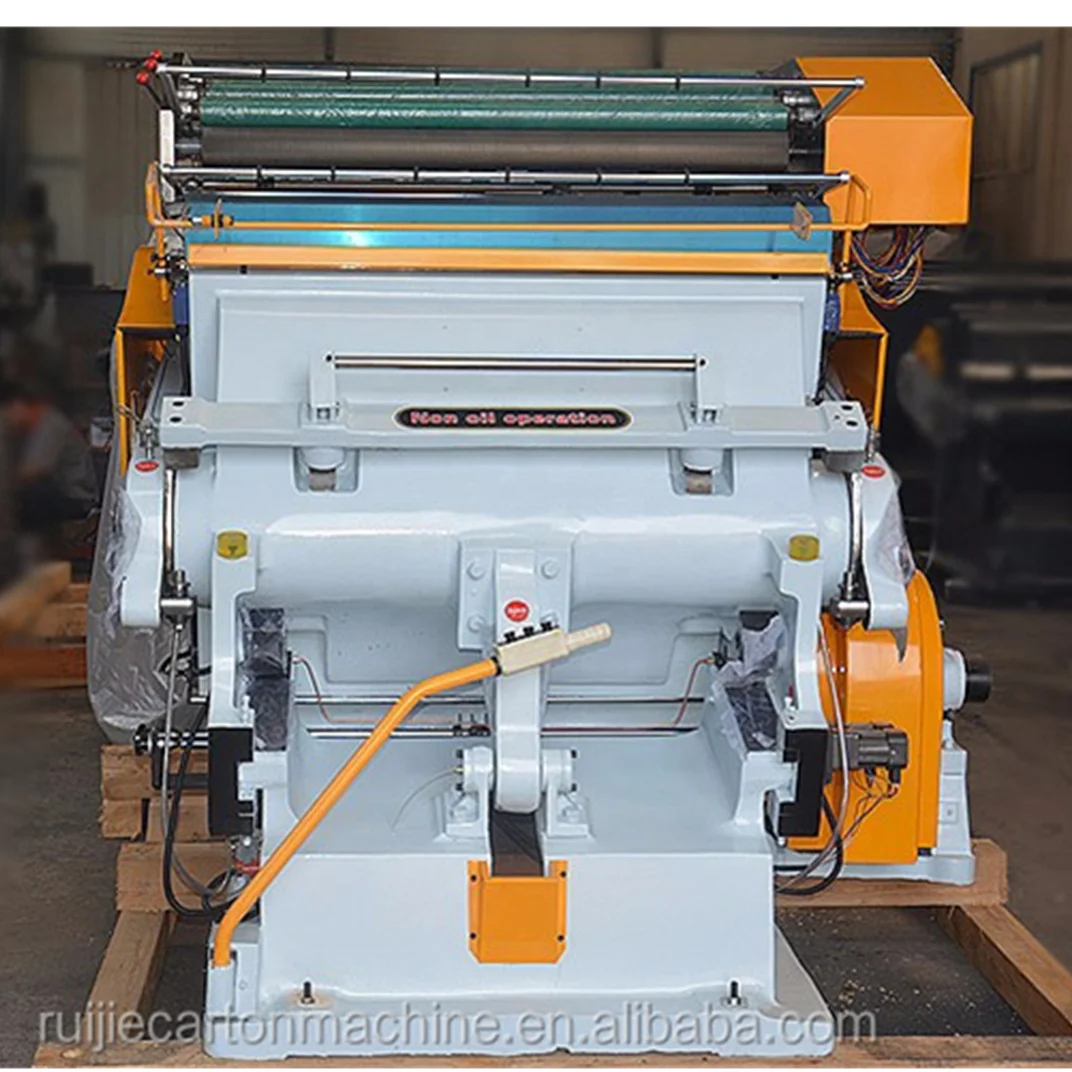

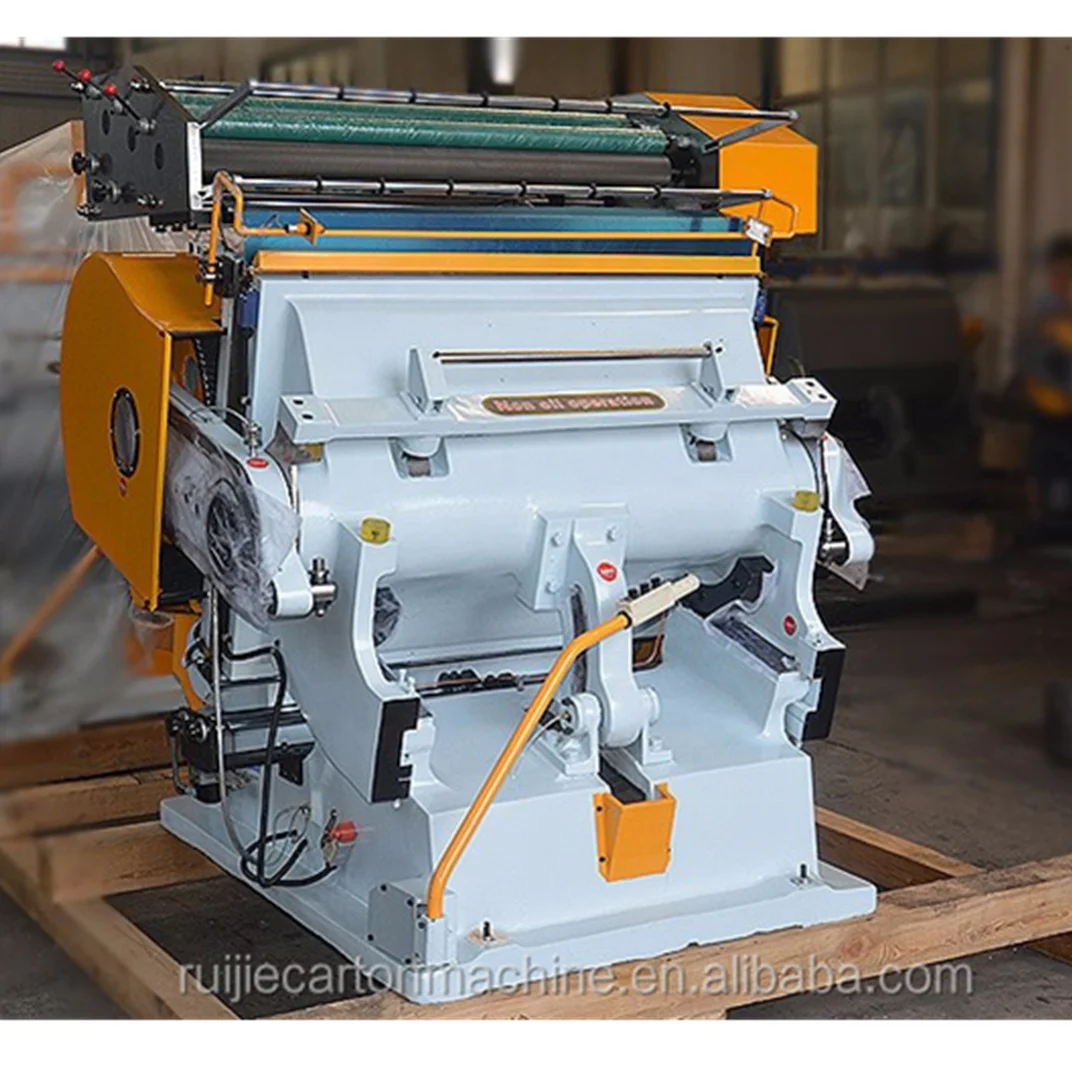

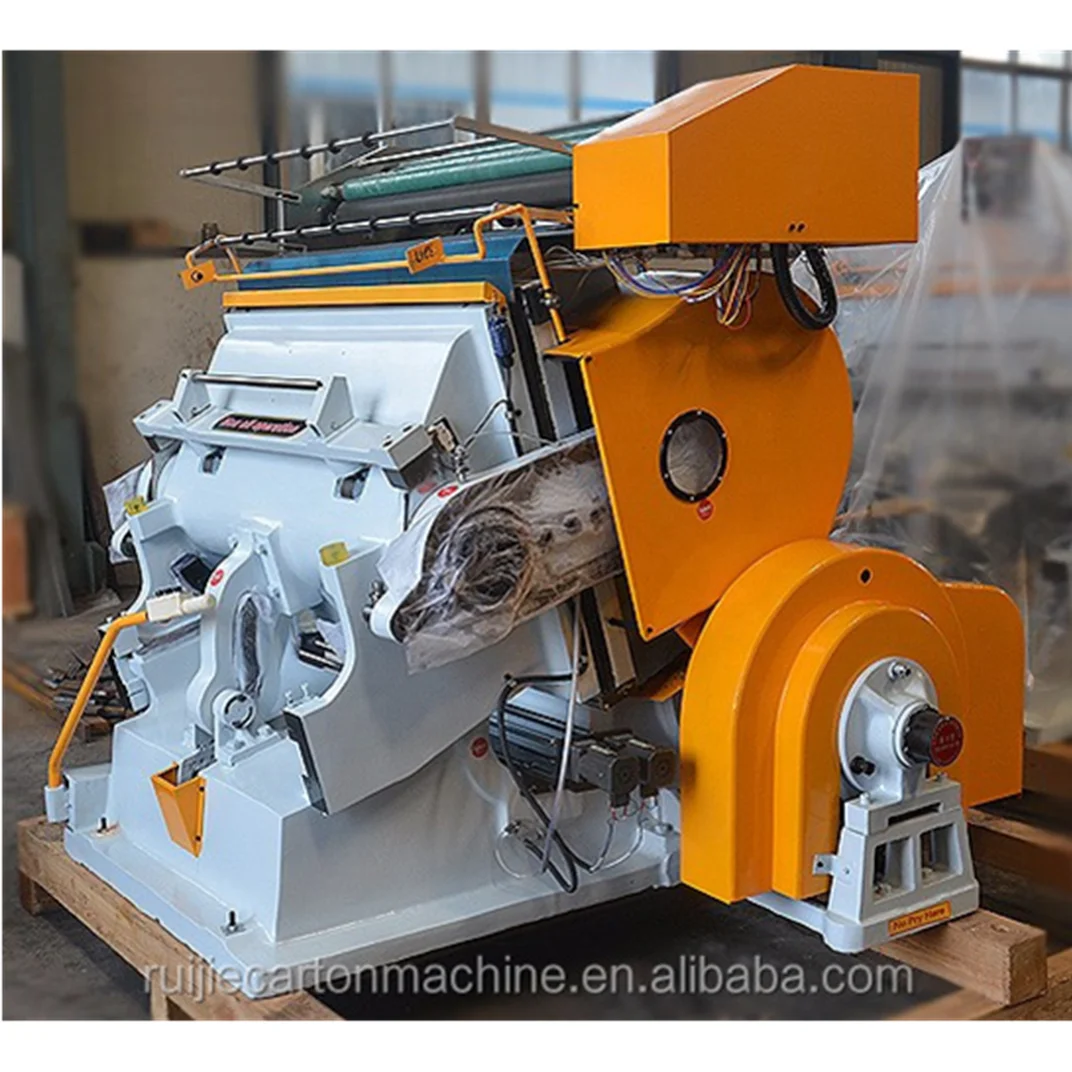

High speed accurate creasing and cutting machine with hot stamping

Product Overview

Description



Welcome to visit the website of Cangzhou Ruijie Packing Machine Co.,Ltd and many thanks for your interest to our TYMB-1100 Hot Foil Stamping Die Cutting Machines!



The machine consists of motor seat, pressing frame, electromagnetic clutch transmission, electrical control

components. Motor is located in the back right side of the machine, through the Vbelt reduction drive. Drag the flywheel running. Electromagnetic clutch flywheel and shaft coupling. Pull through the electromagnetic clutch, disengaging operation or braking operation of the control shaft. After the operation of the drive shaft, through a reduction gear speed reduction system, the crank shaft at both ends ofthe wheel rotational speed, so affecting the connecting rod drives the reciprocating rocking motionswing frame completely Creasing task. Paper features a threestep jump, Story or aluminum foil

can be reversed, computer-controlled heat evenly.



2.Technical Parameters:



No.	Item	Parameters
1	Effective hot foil stamping size	1100x800mm
2	Cutting type	I. Continues cutting II. Continues open delay cutting
3	Continues cutting speed	20±2pcs/min
4	Delay cutting time	0-8seconds
5	Panel space adjust	12mm
6	Max cutting sheet length	<32m
7	Paper feeding type	Manual feeding
8	Motor power/Total Power	5.5kw
9	Machine weight	4000kg
10	Overall size	1900*1800*1700mm(L*W*H)





2. To slove the problem with pictures/videos

3. Engineers are available to abroad.





We are the most professional manufactory for carton machines in North of China. Our company have perfect technology and to develop design according to our customer’s requirement. Our machinery with perfect quality

guarantee system .Our engineers have rich experience of installation and to service for our customers all over

the world. Our machines have been exported to more than twenty different countries such as Mexico,Russia,

Germany...



We will sincerely cooperate with all the customers and do our best to meet all the customers with our high machine quality and best service.







1. Are you a factory or trading company?

Ruijie Machinery is a factory and manufacturer in this field about 10 years since 2004.



2. What is the terms of payment you accept?

We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery, but we can also accepet the L/C.



3. Where is your factory located ? How can I visit there?

Our factory located in Dongguang County,Hebei Province,China., near to the capital city Beijing and port Tianjin(Xingang). You can fly to Bejing airport directly and we will pick you up there.



4. How does your factory do regarding quality control?

Quality is priority.We always regard great importane to quality controlling from the very small thing(even a small screw we will choose the best quality) from the begining.



5. Why we choose Ruijie Machinery?

Exporting to over 40 countries, we have gained a lot of experience that enable us to meet more and more customers.
