Product Overview

Description

china manufacturer rubber tiles vulcanizing machine



we can design different types vulcanizer according to your need,including standard and non-standard rubber vulcanizer .If you need any detail informations please contact us.





1.Application

It is mainly in use of vulcanizing various kinds of rubber pattern products.



1) The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame. We put asbestos board between plate and top crossing, table, for its good heat insulation. Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing property. The piston material is chilled cast iron, hydraulic cylinder material is ductile cast iron, weldment between top and bottom crossing.





2)  Put holder and oil cylinder at the side of plate, push-off and reseting moulds are finished by oil cylinder moving when using. There is not ejecting holder in manual ejecting mould structure ,but still convenient when using.

3)  Hydraulic system is consist of unipump, operating valve and control system.

4)  Electric system is consist of oil pump motor and vulcanizing timing. When working pressure reach        22.1 mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting vulcanizing time.  When reach the setting time, it will warn automatically,  push TA button can remove warning.



 2.parameters of rubber vulcanizer



Parameters/ Version	XLB350*350*2	XLB300*300*2	XLB400*400*2
Mould closing force	0.25	0.20	0.5
Plate spacing	125	125	125
Plate work layer	2	2	2
Platen unit area pressure	2.04	2.04	3.13
Plunger stroke	250	250	250
Heating way	Electricity/ steam	Electricity/ steam	Electricity/ steam
Main motor power	2.2	1.5	2.2
Size (l*w*h) (mm)	1450*400*1350	1350*300*1300	1600*400*1400
Weight (kg)	800	700	1200
Structure form	Strain rod	Strain rod	Strain rod



factory direct sales, good quality and favorable price :100%manufacture

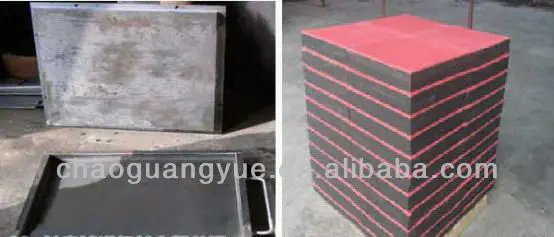

the samples

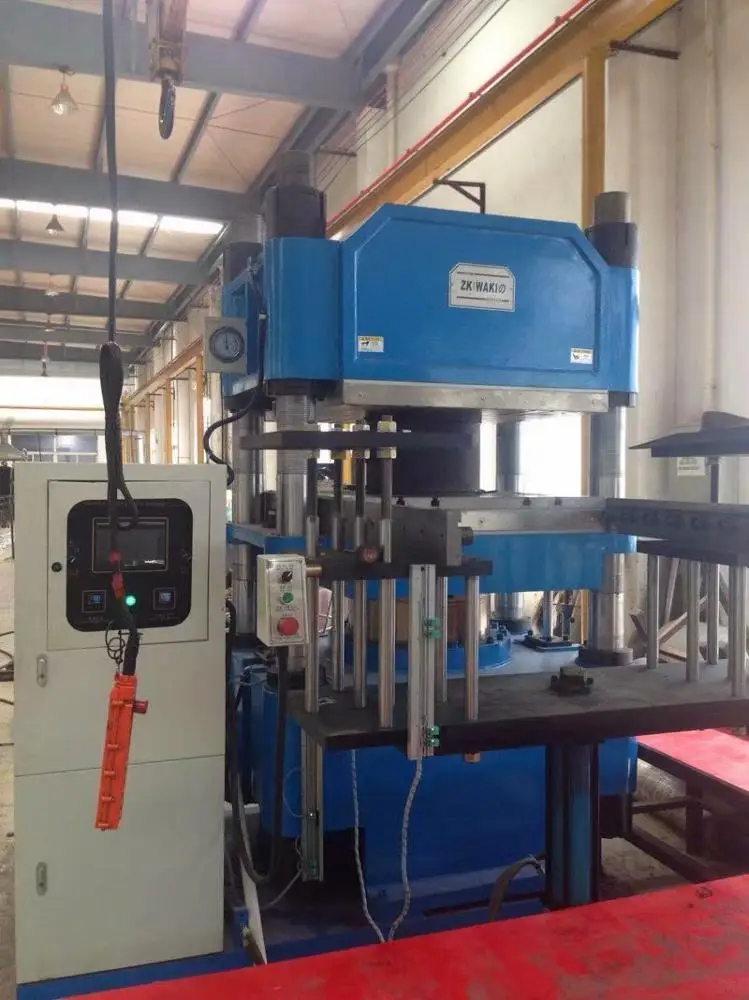

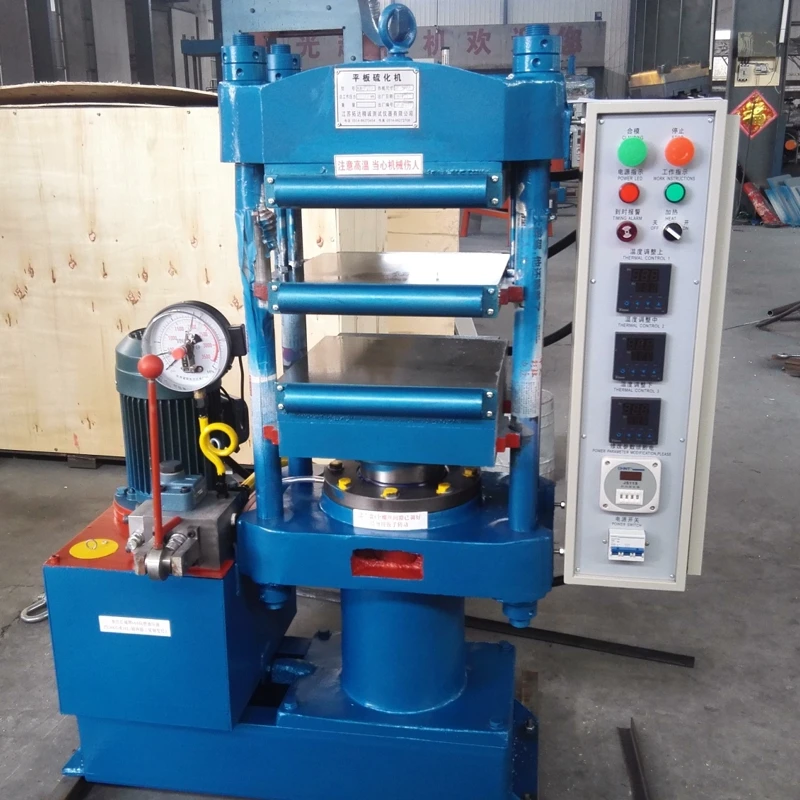

the column type rubber vulcanizer

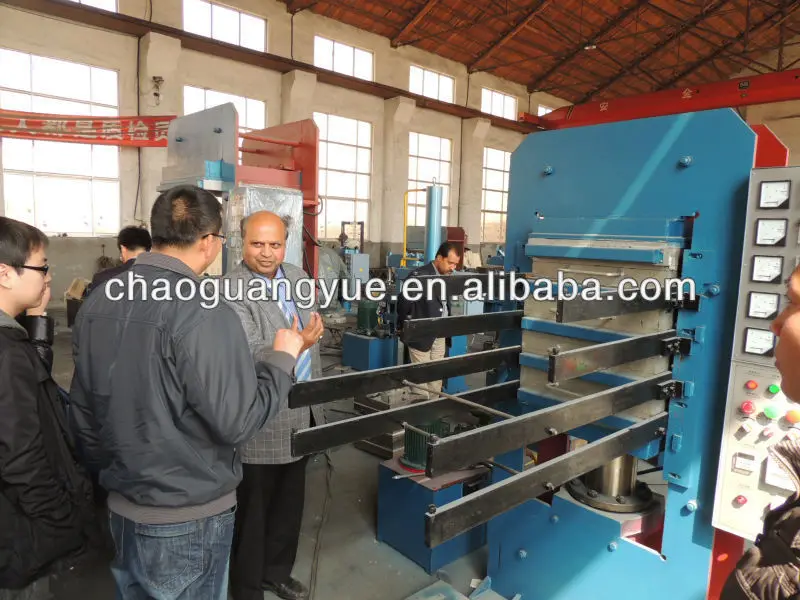

the tile rubber vulcanizer

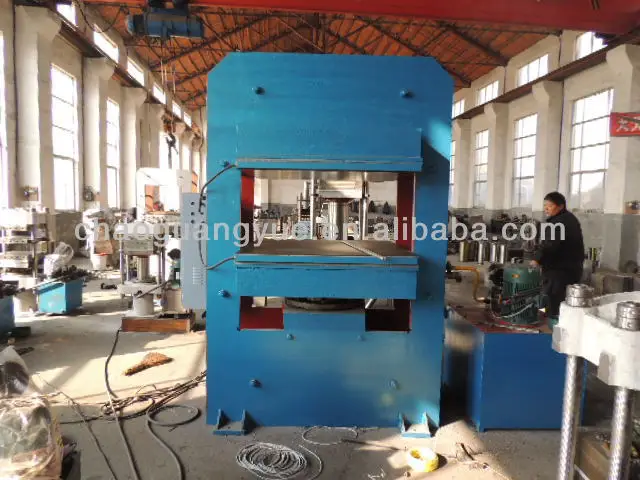

frame type rubber vulcanizer

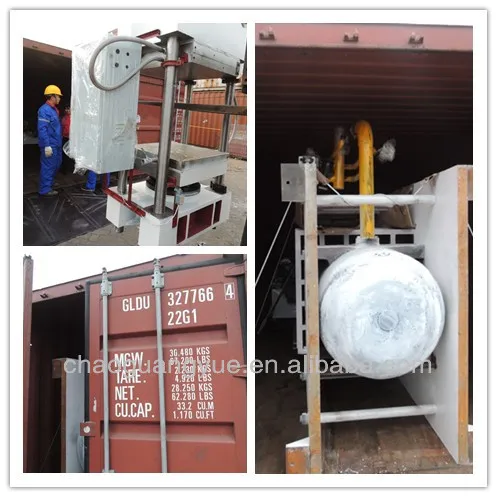

shipping and delivery

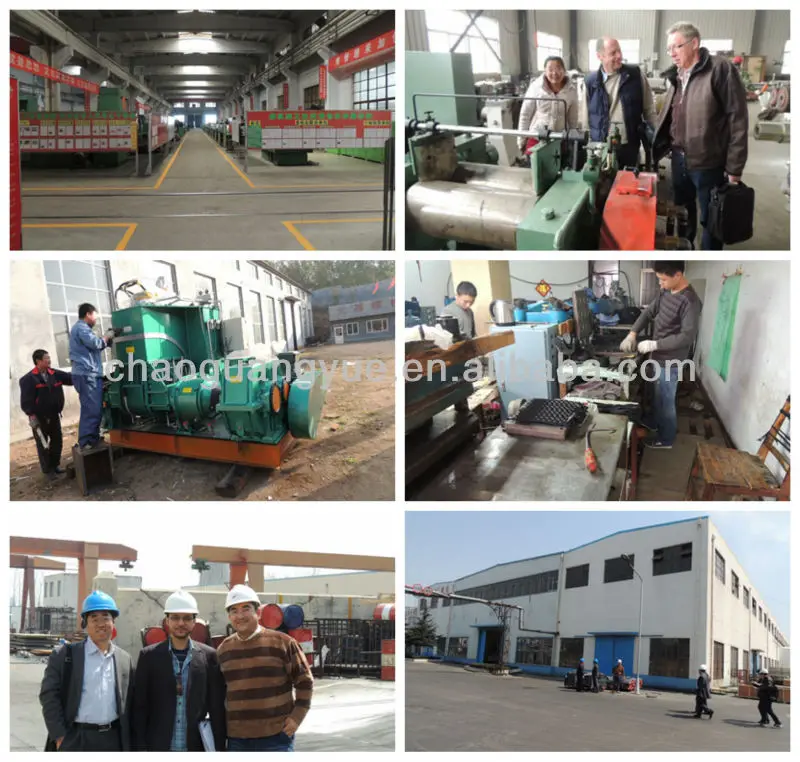

 Welcome to our factory!



Qingdao Chaoguangyue Industry Co., Ltd. Is affiliated with Qingdao Guangyue Group . It is one of the important backbone enterprises in rubber machinery industry in China and is one member of Shandong machinery union company. The company owns powerful technical strength, advanced technic, the best design and strict quality guarantee system, which owns a high reputation in China rubber machinery industry. The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber machinery, textile machinery,shot blast cleaning machine, foundry machinery, woodworking machinery, wheel barrow and tire etc. The products have been sold to more than 20 provinces and cities in China and have been exported to more than 30 countries and areas.

our certificate
