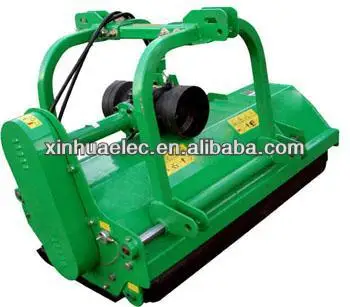

EF SERIES DIFFERENT MODELS rear mounted flail mower for tractor
- Category: >>>
- Supplier: Changzhou Xinhua Electronics Co. Ltd. [Jiangsu China]Changzhou
Share on (1762856047):
Product Overview
Description
EFseries Flail Mower:
MODEL | EF85 | EF95 | EF105 | EF115 |
DIMENSIONS(L*W*H) | 950x687x722mm | 1050x687x722mm | 1150x687x722mm | 1250x687x722mm |
STRUCTURE WEIGHT | 100KG | 11KG | 13KG | 14KG |
CUTTING WIDTH | 829mm | 929mm | 1029mm | 1129mm |
WORKING EFFICIENCY | 2500-6500M2/h | 2500-7500M2/h | 3000-8000M2/h | 3300-9000M2/h |
PTO TURNNING SPEED | 540r/min | 540r/min | 540r/min | 540r/min |
PTO SPLINE | 6x8x800mm | 6x8 x800 mm | 6x8 x800 mm | 6x8 x800 mm |
POWER REQUIRED | 14-18hp | 16-20hp | 20-30hp | 20-30hp |
| ||||
MODEL | EF125 | EF135 | EF145 | EF155 |
DIMENSIONS(L*W*H) | 1350x687x722mm | 1450x687x722mm | 1550x687x722mm | 1650x687x722mm |
STRUCTURE WEIGHT | 160KG | 175KG | 190KG | 210KG |
CUTTING WIDTH | 1229mm | 1329mm | 1429mm | 1529mm |
WORKING EFFICIENCY | 3700-9800M2/h | 4000-10600M2/h | 4300-11400M2/h | 4600-12240M2/h |
PTO TURNNING SPEED | 540r/min | 540r/min | 540r/min | 540r/min |
PTO SPLINE | 6x8x800 mm | 6x8x800 mm | 6x8x800 mm | 6x8x800 mm |
POWER REQUIRED | 25-35hp | 25-35hp | 25-35hp | 30-40hp |
| ||||
MODEL | EF165 | EF175 |
|
|
DIMENSIONS(L*W*H) | 1750x687x722mm | 1850x687x722mm |
|
|
STRUCTURE WEIGHT | 235KG | 255KG |
|
|
CUTTING WIDTH | 1629mm | 1729mm |
|
|
WORKING EFFICIENCY | 4900-13000M2/h | 5200-13800M2/h |
|
|
PTO TURNNING SPEED | 540r/min | 540r/min |
|
|
PTO SPLINE | 6x8x800mm | 6x8x800mm |
|
|
POWER REQUIRED | 30-40hp | 30-40hp |
| |
