in4007 diode

Product Overview

Description

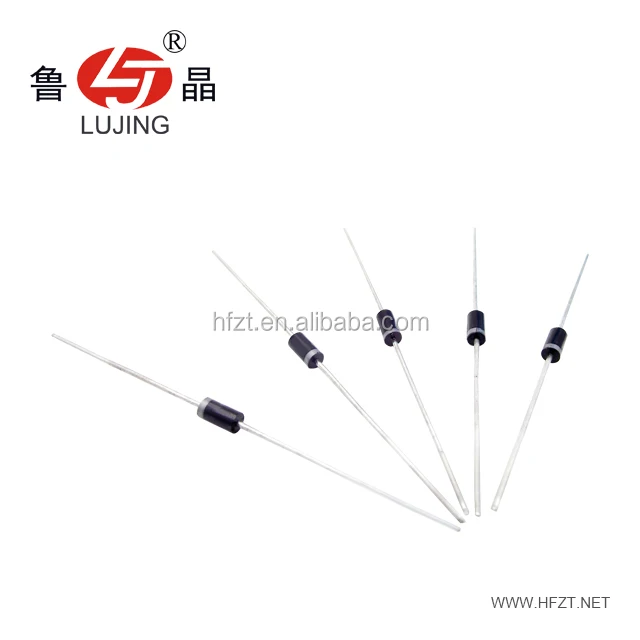

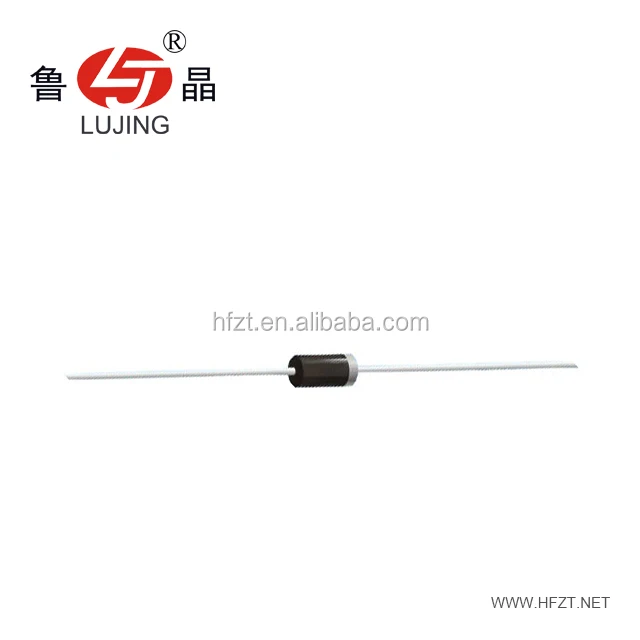

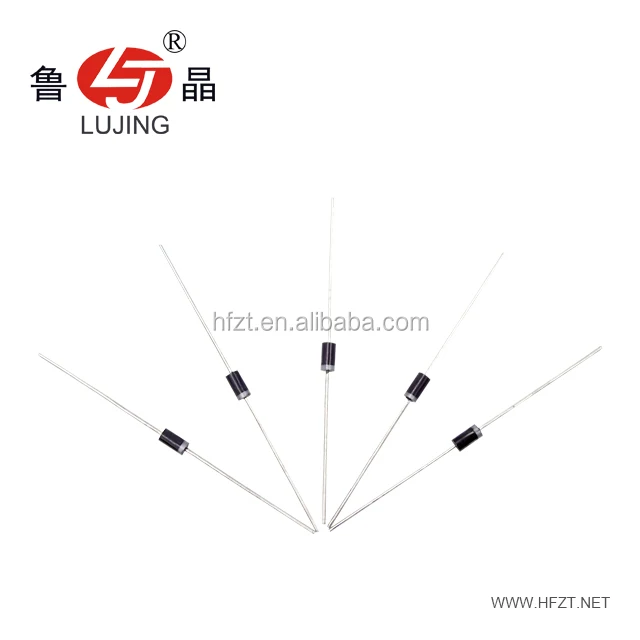

 in4007 diode

  We set all the products price between USD0.002 to USD0.025/Piece for convenience, if you want to get the best price, pls contact us directly. Thank you!

Products apply to energy-saving lamps, chargers, switching power supplies, household appliances, electric equipment .

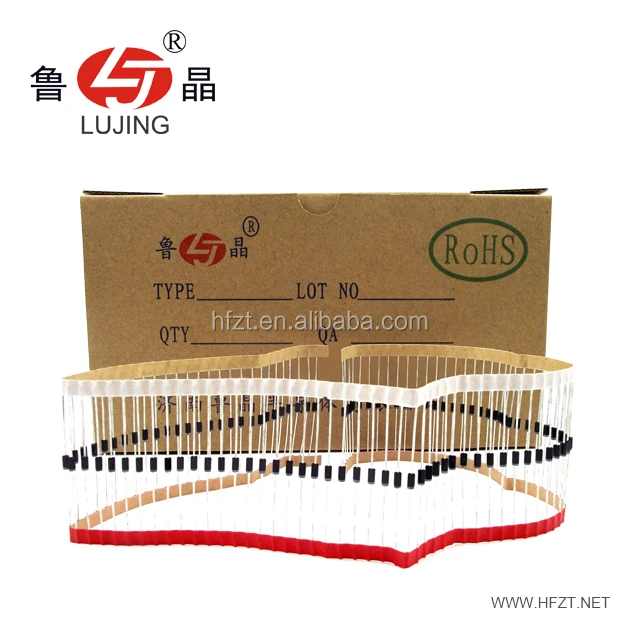

Products are divided into bulk and braid.
Bulk: a case of 50000, braid: a case of 50000.
Packing: normal packing is carton packing.
Delivery time: one week.
Wire specifications: 0.6 * 58    \\    0.7 * 58.





MECHANICAL DATA

•Case: Transfer molded plastic

•Epoxy: UL94V-0 rate flame retardant.

•Polarity: Color band denotes cathode end.

•Lead: Plated axial lead, solderable per MIL-STD-202E

Method 208C

•Mounting position: Any

•Weight:0.012 ounce, 0.33grames



MAXIMUM RATINGES AND ELECTRICAL CHARACTER

•Ratings at 25°C ambient temperature unless otherwise specified

•Single phase, half wave, 60HZ, resistive or inductive load.

•For capacitive load derate current by 20%



		SYMBOLS	1N4001	1N4002	1N4003	1N4004	1N4005	1N4006	1N4007	UNIT
Maximum Repetitive Peak Reverse Voltage		VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS Voltage		VRMS	35	70	140	280	420	560	700	Volts
Maximum DC Blocking Voltage		VDC	50	100	200	400	600	800	1000	Volts
Maximum Average Forward Rectified Current, 0.375″(9.5mm) lead length at TA=75°C		I(AV)	1.0							Amps
Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load(JEDEC method)		IFSM	30							Amps
Maximum Instantaneous Forward Voltage at 1.0A		VF	1.1							Volts
Maximum DC Reverse Current at rated DC blocking voltage	TA=25°C	IR	5.0							uA
	TA=100°C		50							uA
Maximum Full Load Reverse Current, full cycle average 0.375″(9.5mm) lead length at TL=75°C		IR(AV)	30							uA
Typical Junction Capacitance(Note 1)		CJ	15							pF
Typical Thermal Resistance(Note 2)		RJA	50							°C/W
Operating and Storage Temperature Range		TJ	(-65 to +175)							°C
Storage Temperature Range		TSTG	(-65 to +175)							°C



NOTES:

1. Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.
2. Thermal Resistance from Junction to Ambient at 0.375″(9.5mm) lead length, P.C. board mounted with 0.2″×0.2″(5.0×5.0mm) copper pads.

   Packaging & Shipping



   Shipment:

   1.- We can ship the products all the world.

   2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.

   3.- The item will be sent out with 3days after receiving the payment.

   4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.

   5.- You can track the situation of your product on website after they are shipped out.





   Our Services





    Warranty:

   1.- One year guarantee.

   2.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).

   3.- We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.

   4.- One we get the returned items, we will send the replaced ones back as soon as possible.

   5.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.
