Waste Tyre Recycling Plants Heavy Duty Tyre Shredding System (FCC 10000 4 P)

Product Overview

Description

FCC10000-4-P 20-120mesh Scrap Tire Recycling Plant

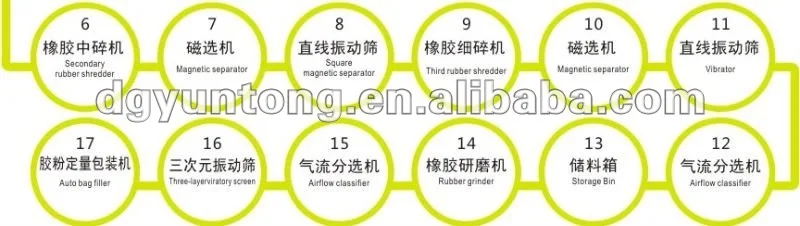

A typical DC series Scrap Tire Recycling Plant includes the following major components:

-          Debeading Machines: Either a Combo of Cut and Pull or a Roller Ripping machine to extract the tire bead wires. This eases the crushing and shredding processes saving expensive cutters service life.

-          Primary Crusher:Breaks down the entire tire into 50 x 50 mm chips;

-          Secondary Crusher: Further breaks down the chips into 25mm x 25mm chips.

-          Granule Shredder: Reduces chips into 12mm granules.

-          Magnetic Separator: Separates and discharges steel wires from the granules.

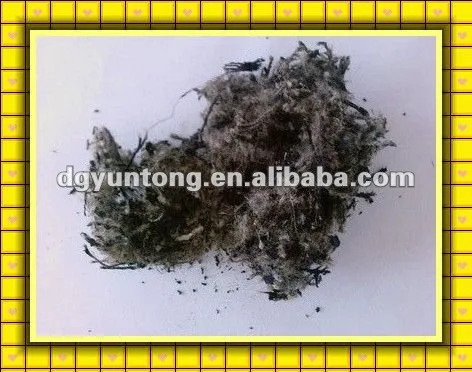

-          Linear Vibratory Screener: Classifies fiber fluff from rubber granules.

-          Fine Shredder: Further reduces the granules into 6mm or below sizes.

-          Secondary and Third Magnetic Separations: These are belt mounted magnetic steel separators to further clean the rubber crumb from steel wires.

-          Secondary Linear Vibratory Screener: Further cleans textile fluff from the smaller size rubber crumb.

-          Cyclone Dust Collection System: Collects dust and fluff from granulating and shredding processes, preventing them from flying around into the open air.

-          Conveyors: Belt or Screw Conveyers are used to feed or discharge the throughput of rubber shreds or granules. Screw Conveyers carry crumb in a sealed pipe hence no unwanted emission or spilling.

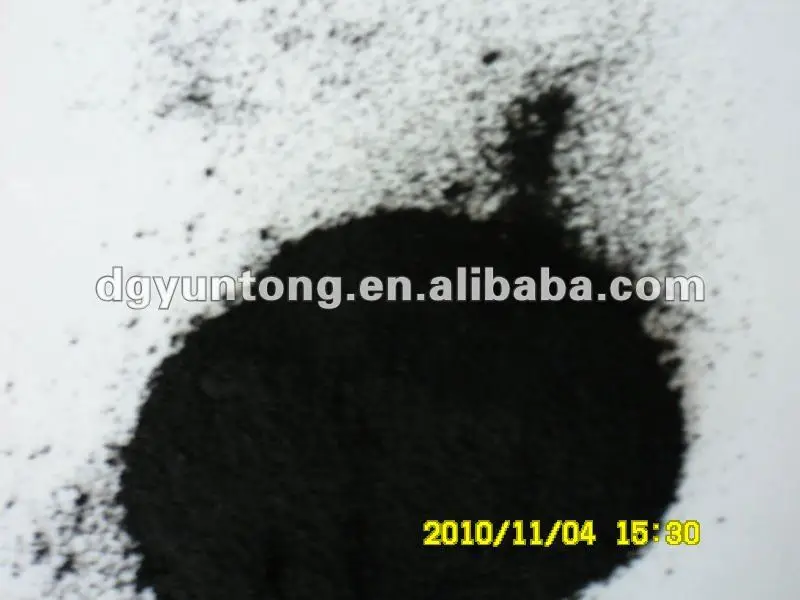

-          Fine Powder Grinders: these are a group of grinders for rubber crumb to achieve powder size of 30 or even 120 mesh.

-          Air Sifters: Or airflow classifiers that separate and clean crumb from dust and textile fluff.

-          Vibratory Tumbler Screening Machine: Classifies crumb into different sizes or grades.

-          Flue Purifier: Removes smoke or dust from the discharged airflow.

Our Tire Recycling Solutions have been sold to 23 City of Russia,8 City of Iran,2 City of Turkmenistan,Uzbekistan,India,Indonesia,and China mainland.

About Yuntong:

YUNTONG has since 2000 been designing and manufacturing solutions for the tyre recycling business and is constantly in research, development and innovation. As an industry leader, YUNTONG has even jointly established each of all the three China's National Standards for Ambient Temperature Scrap Tyre Recycling Industry. YUNTONG does nothing else but only focuses on Scrap Tyre Recycling Technology.

Coupled with the extensive experience of management and engineering teams, YUNTONG provides cost effective turnkey tyre recycling plant, custom designed to deliver optimum production for a variety of applications. Each plant by YUNTONG is tailored to the needs of the business location, market, and customer.

YUNTONG has a fully operational sample plant in its ISO 9000 approved manufacturing base in Dongguan Guangdong, 1.5 hours away from Hongkong. A multi-culture and bi-lingual management team serves its customers worldwide.

YUNTONG has manufactured and installed tyre recycling systems in countries all over the world. With its CE certified machines, YUNTONG is the only recycling equipment manufacture that offers a true turn-key recycling solution with complete process from the initial design of the system to the final installation, commissioning of the plant and customer staff training.

YUNTONG's mission is to provide its customers with a competitive advantage. This is accomplished by using proven components and highly sophisticated testing procedures to ensure all heat treated cutters and tools to endure times longer service life than most competitors'. Customers are provided with a unique value with significant cost savings.
