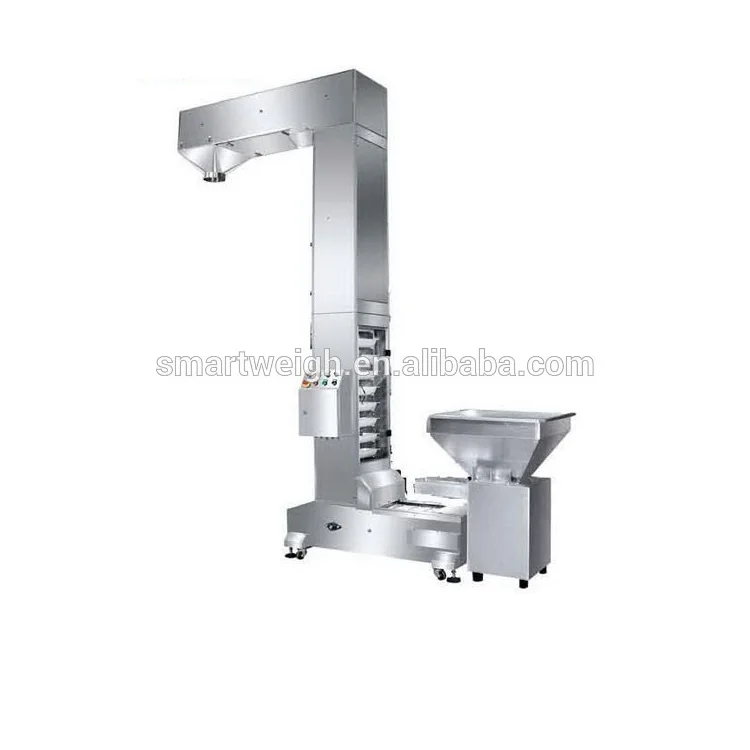

Stainless Steel Food Grade Rice Mill Z Type Bucket Elevator

Product Overview

Description













The conveyor is applicable for vertical lifting of granule material such as corn, food plastic and chemical industry, etc. Z design fo saving space, and capacity up to 5 ton/hour.



Working Principle:

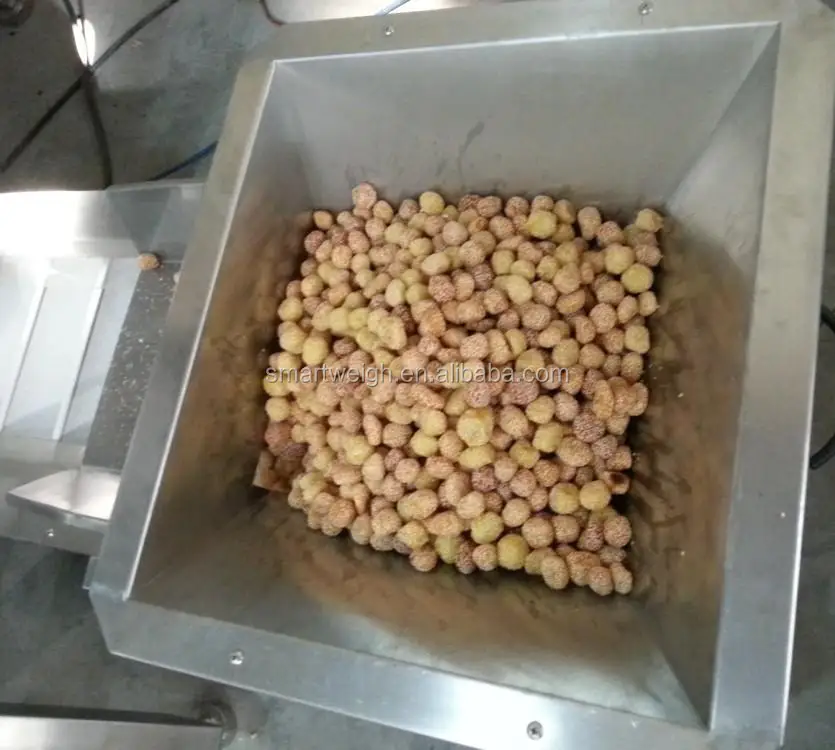

1). Manual feeding the bulk products into vibrator feeder hopper;
2). Bulk products will be feeded into Z bucket conveyor evenly by vibration;
3). Z bucket coveyor will lifting products onto the top of weighing machine for feeding



1). Feeding speed can be adjusted by inverter;

2). Be made of stainless steel 304 construction or carbon painted steel

3). Complete automatic or manual carry can be selected;
4). Include vibrator feeder to feeding products orderly into buckets, which to avoid blockage;
5). Auto vibration control system, to ensure bulk products will be feeded evenly into Z bucket conveyor, and protect vibrator not keep strong vibration whie lower volume products inside the vibrator feeder (Optional Function);

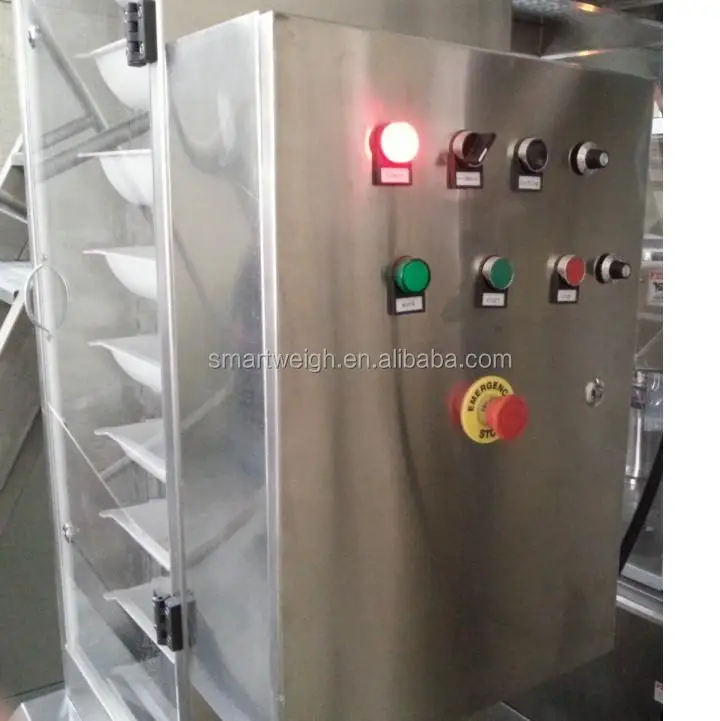

6). Electric box offer
A: Automatic or manual emergency stop, vibration bottom, speed bottom, running indicator, power indicator, leakage switch, etc.
B: The input voltage is 24V or below while running.
C: DELIXI inverter.



Model	SW-B1
Convey Height	1800-4500 mm
Bucket volume	1.8L or 4L
Carrying Speed	40-75 buckets/min

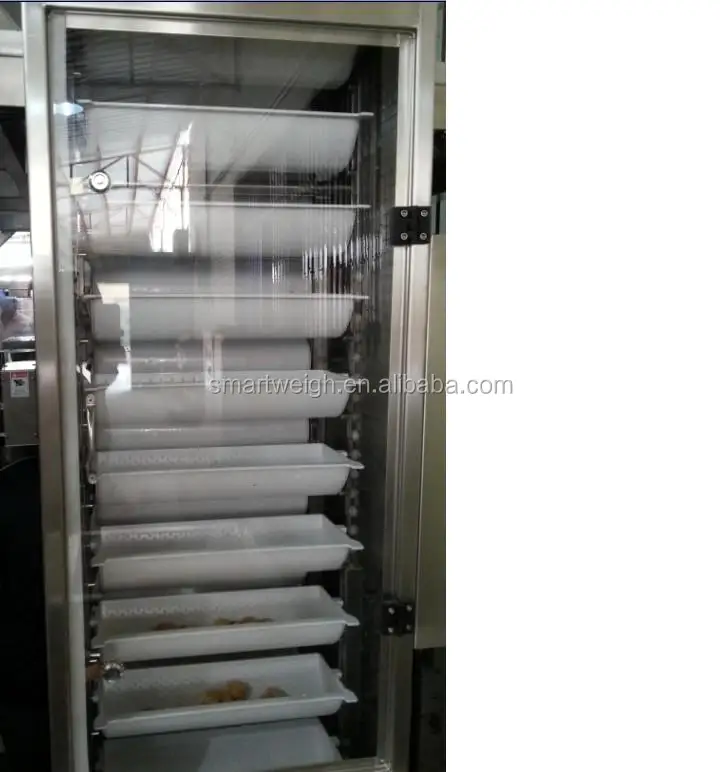

Bucket material	White PP (dimple surface)
Vibrator Hopper Size	550L*550W
Frequency	0.75 KW
Power supply	220V/50HZ or 60HZ Single Phase
Packing Dimension	2214L*900W*970H mm
Gross Weight	600 kg
