48V rj45 surge protector

Product Overview

Description

SY3156 rj45 electric surge protector poe

1.Specifications

Type	SY3156
Connection	Ethernet RJ45 Cat6 with POE
Data rate	10/100/1000Mb/s
Line voltage	5V POE48V
Max continuous operating voltage	6V, 60V DC power
Max surge discharge current	5KA (8 to 20 μ s)
Protected pins	All pins
Mounting	Grounding terminal & Grounding clip
Shell material	ABS
Dimensions	26*26*95mm
Package inch	40*26*105mm
Weight	70g



2.Dimensions



3. Main feature:

--ABS material profile shell, attractive and durable, good shielding effect;

--RJ 45 convenient to use, reliable connection;

--Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.

4.Package

Surge protector x 1

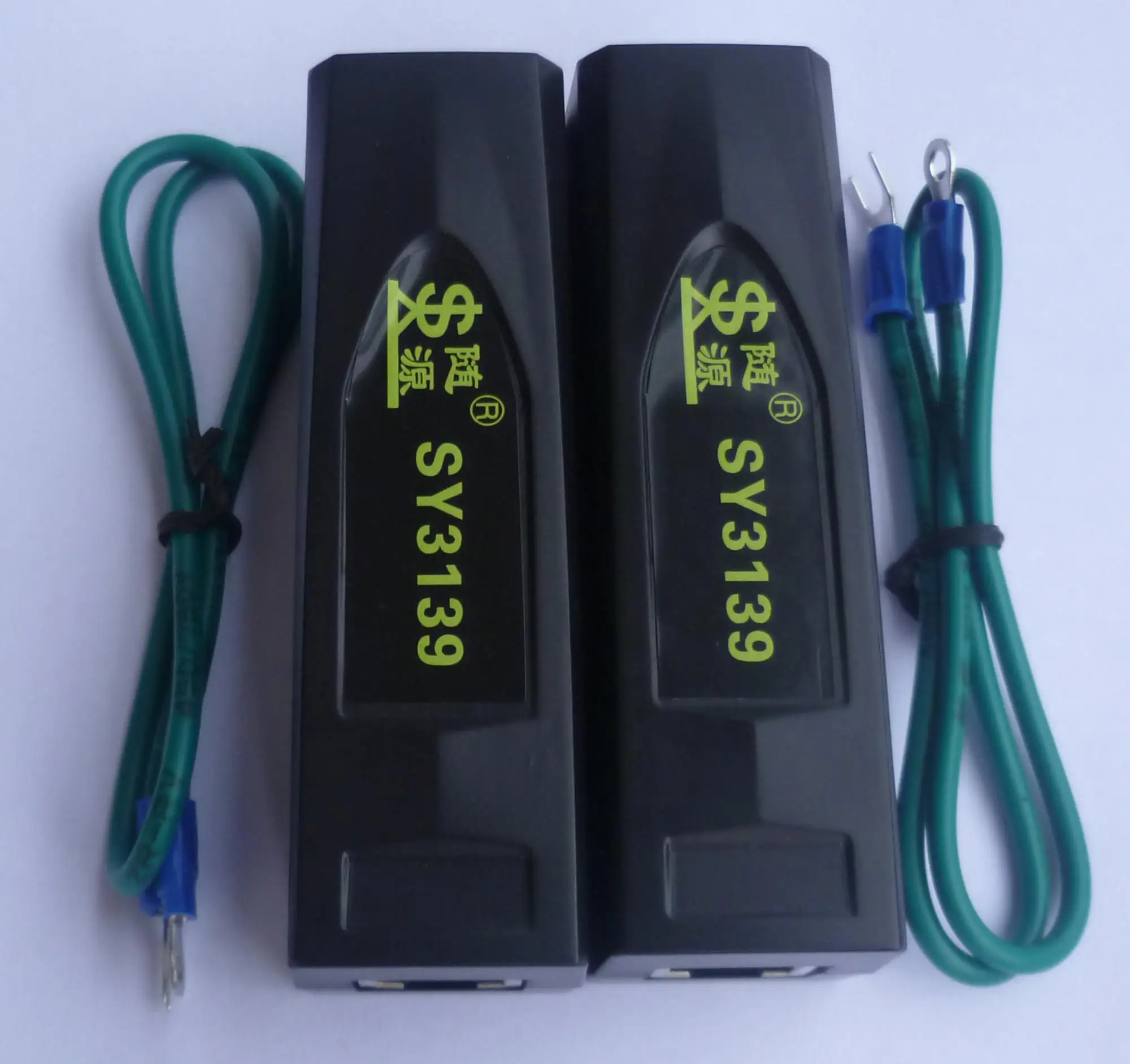

Grounding terminal/ Grounding clip x 1

Manuals/ Instructions x 1

5.Certificates

 CE certificate

 Compliant to ROHS

 Lead-free
