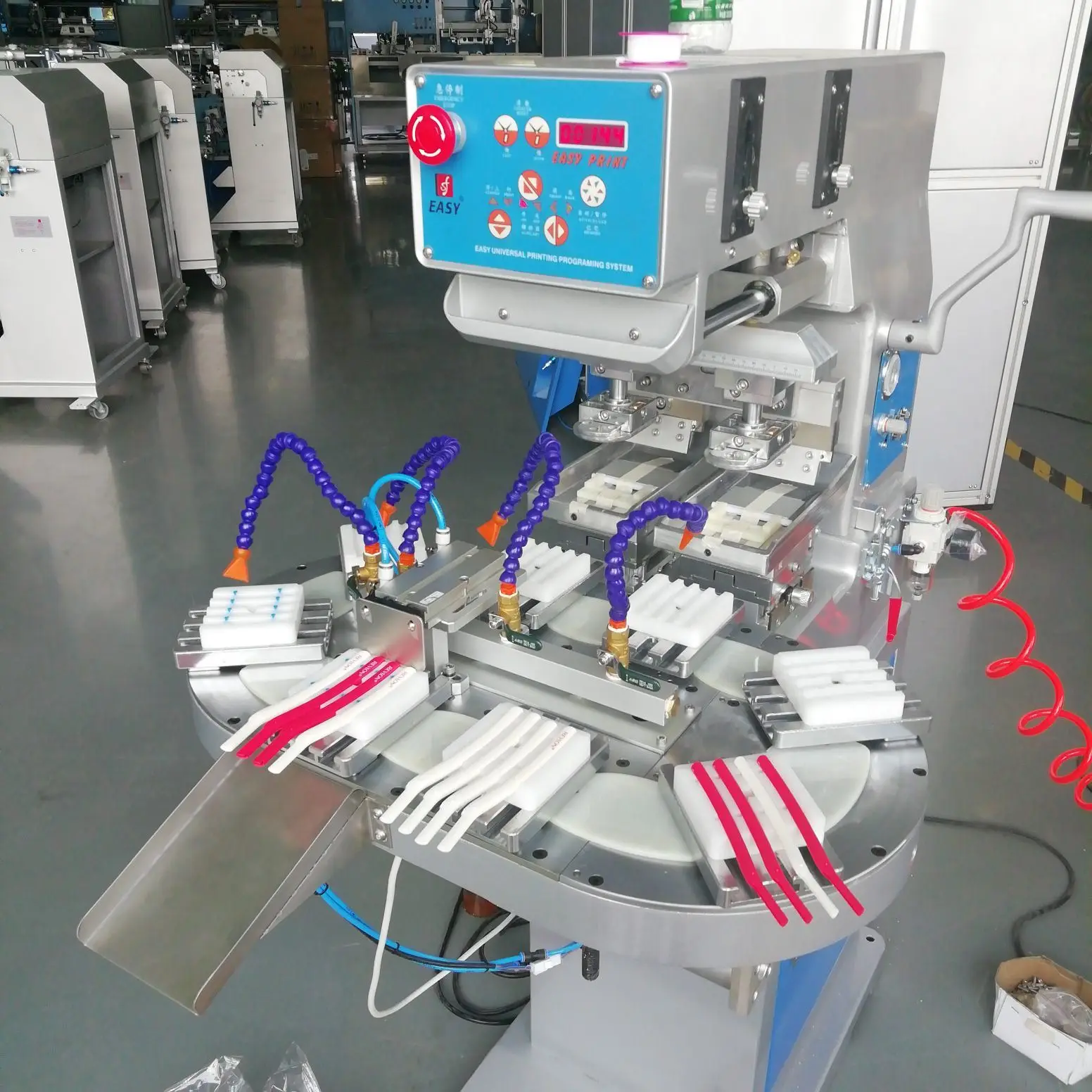

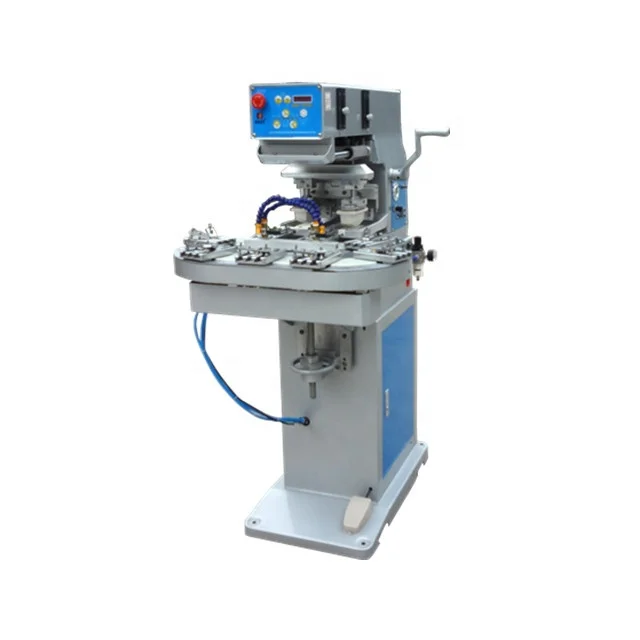

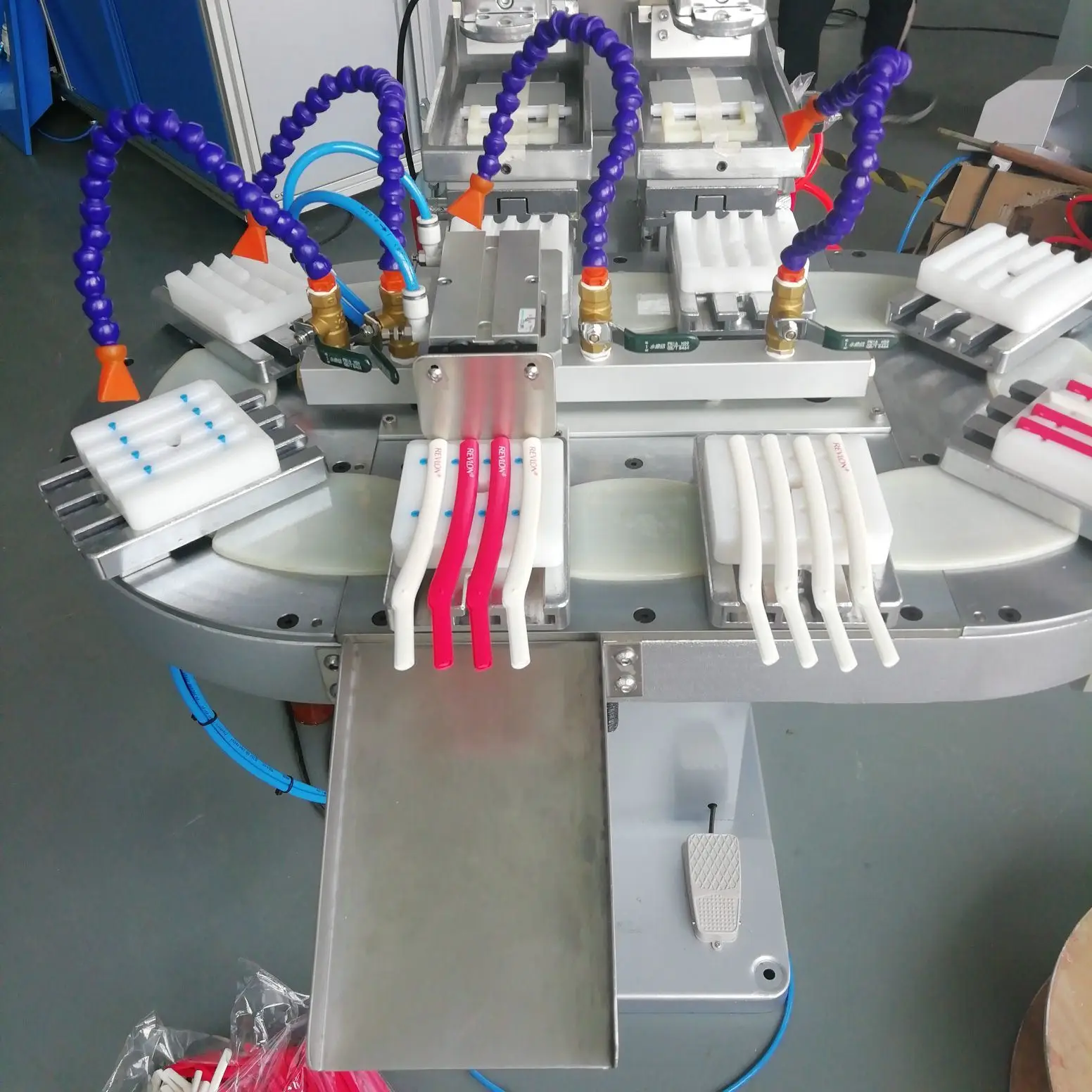

Two color pad printing machine with conveyor
- Category: >>>
- Supplier: Shen Fa Eng. Co. Ltd. (Guangzhou)
Share on (1765318538):
Product Overview
Description
Product Description
Our company manufacture the SF-M4/C Four-Color Pad Printing Machine, which is fit for printing the bigger work-pieces and it can overprint automatically. It can finish the printing process just one times, so it is efficient but need sixteen fixtures and the precise place is very necessary.
For example: electric products, cups,, stationery, presents and so on.
This Pad Printer is fited pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package
products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.
For example: electric products, cups,, stationery, presents and so on.
This Pad Printer is fited pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package
products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.
Features
1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size work-piece.
9. Speed of every single pneumatic organ is adjustable.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size work-piece.
9. Speed of every single pneumatic organ is adjustable.
Product Paramenters
Model | SF-M4/C |
Operation | Pneumatic |
Cliche size | 100*200mm |
Max printing size | 80*150mm |
Max printing speed | 20times/min |
Printing color | 1-4colors |
Fixture station | 16stations |
Air pressure | 0.6-0.8mpa |
Machine size | 1220x10801x1500mm |
Power support | 220V 50HZ 60W |
Details Images

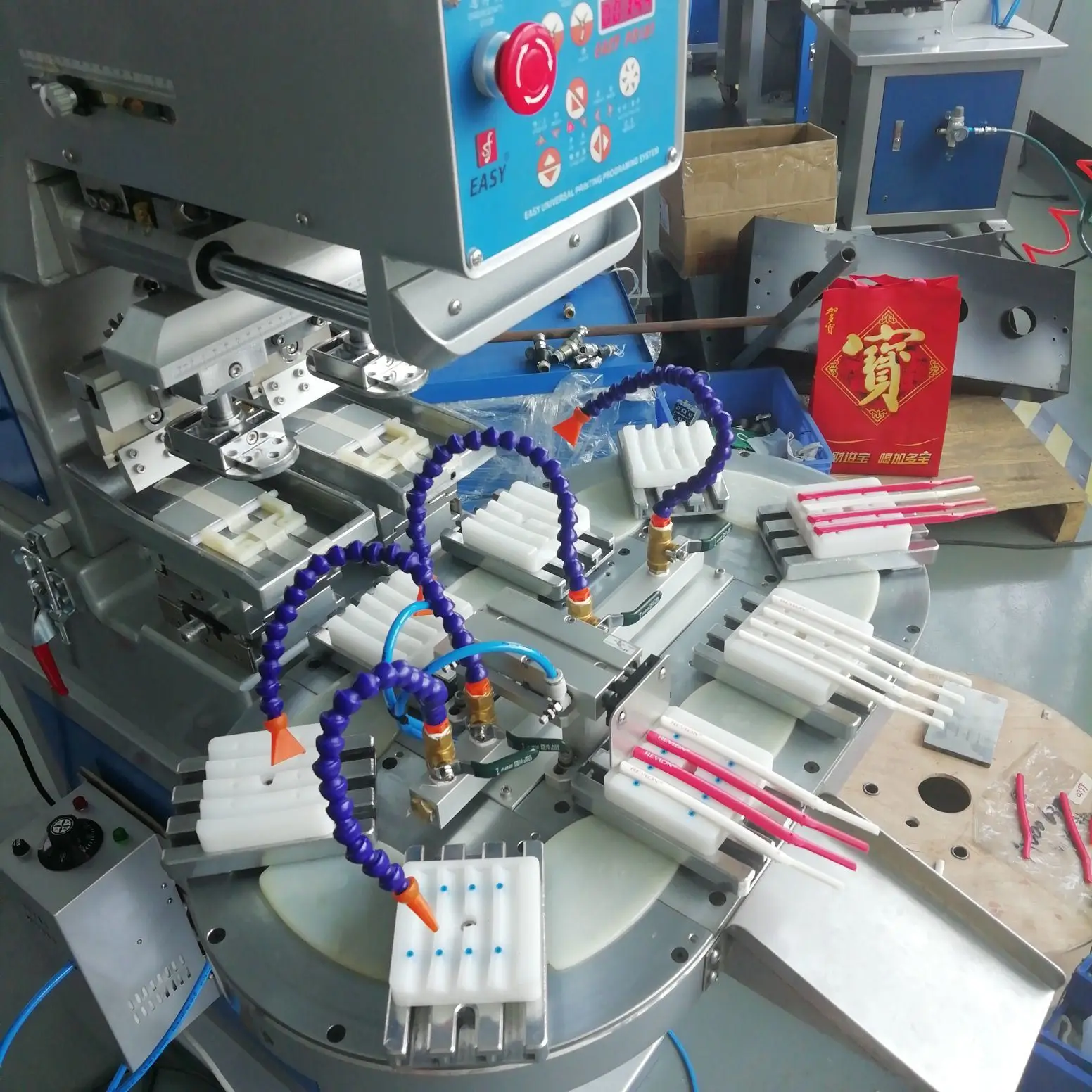

Pad printing head
Flaming treatment device for PP material
Pad printing unit
Automatic unloading device

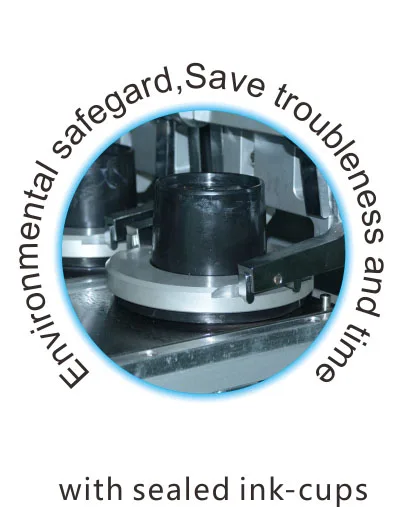

Seal Ink-cup material
Accordingly to customers requirement, all ink-tray type pad printing machine can upgrade to seal ink-cup type pad printing machine.
Also we can provide the printing consumable accordingly.
Recommend Products
Rubber pad
Printing plate
Pad printing ink
Packing & Delivery
To ensure the safety of machine during transportation, Machines with professional, environmentally friendly, convenient and efficient packagin.

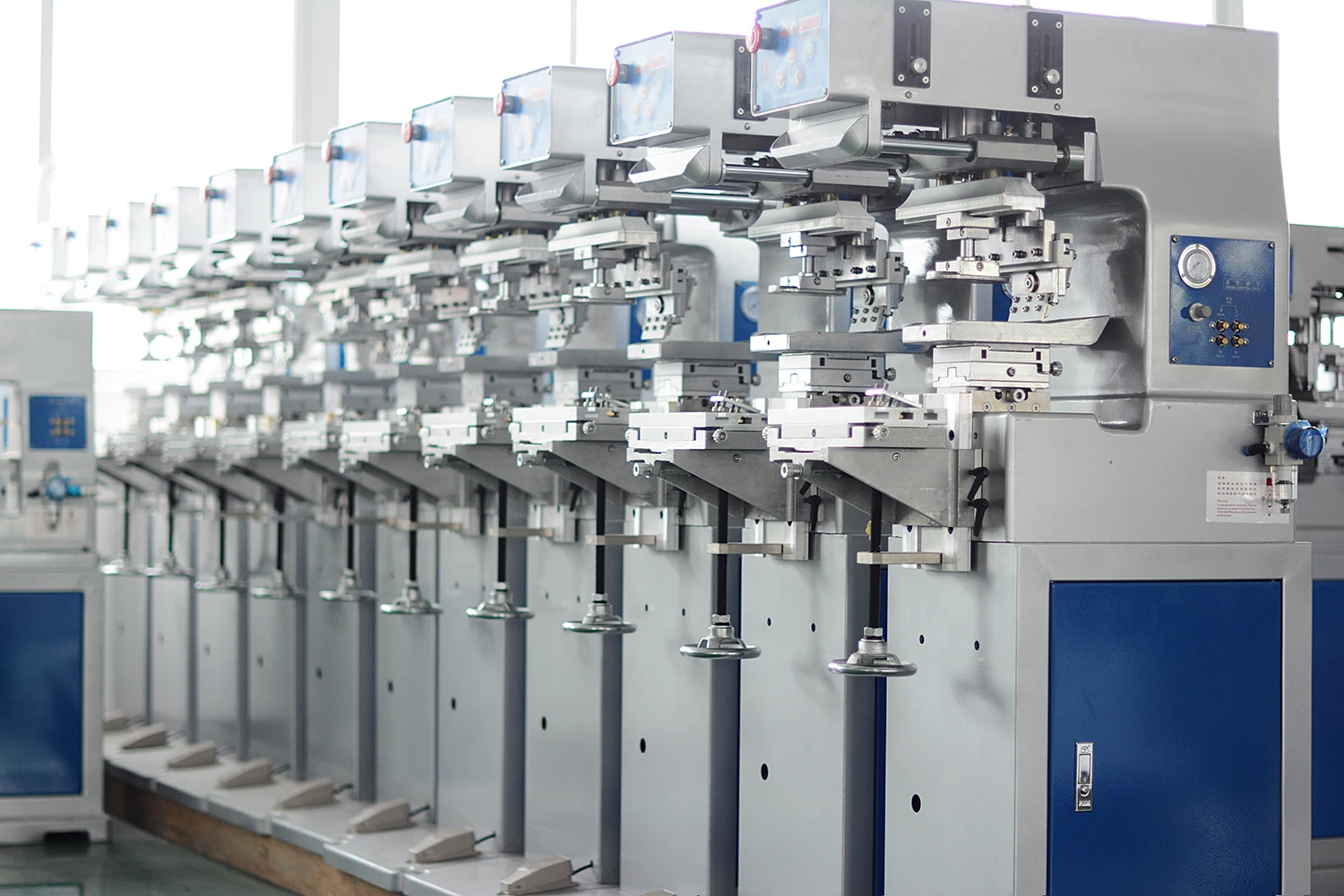

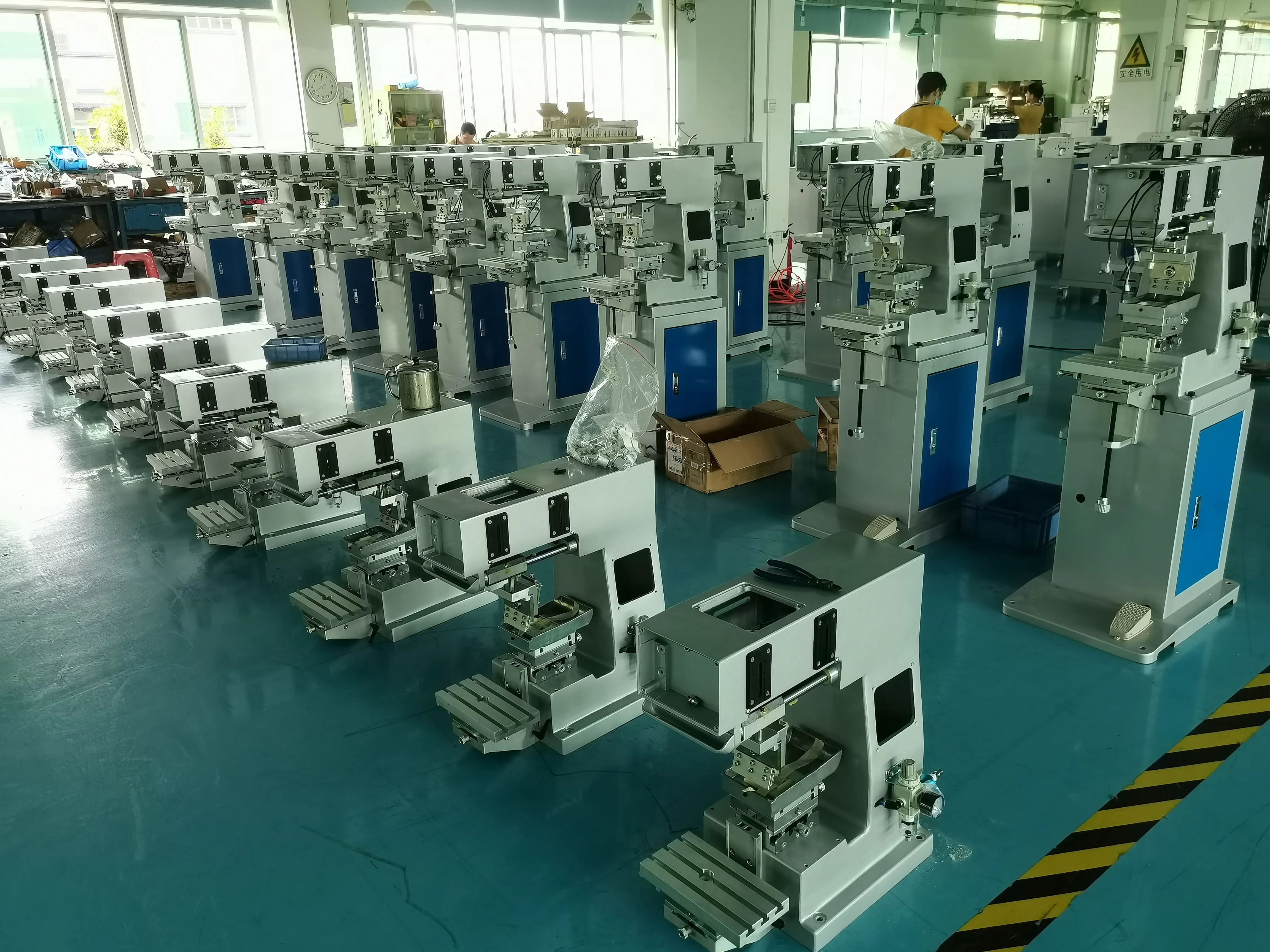

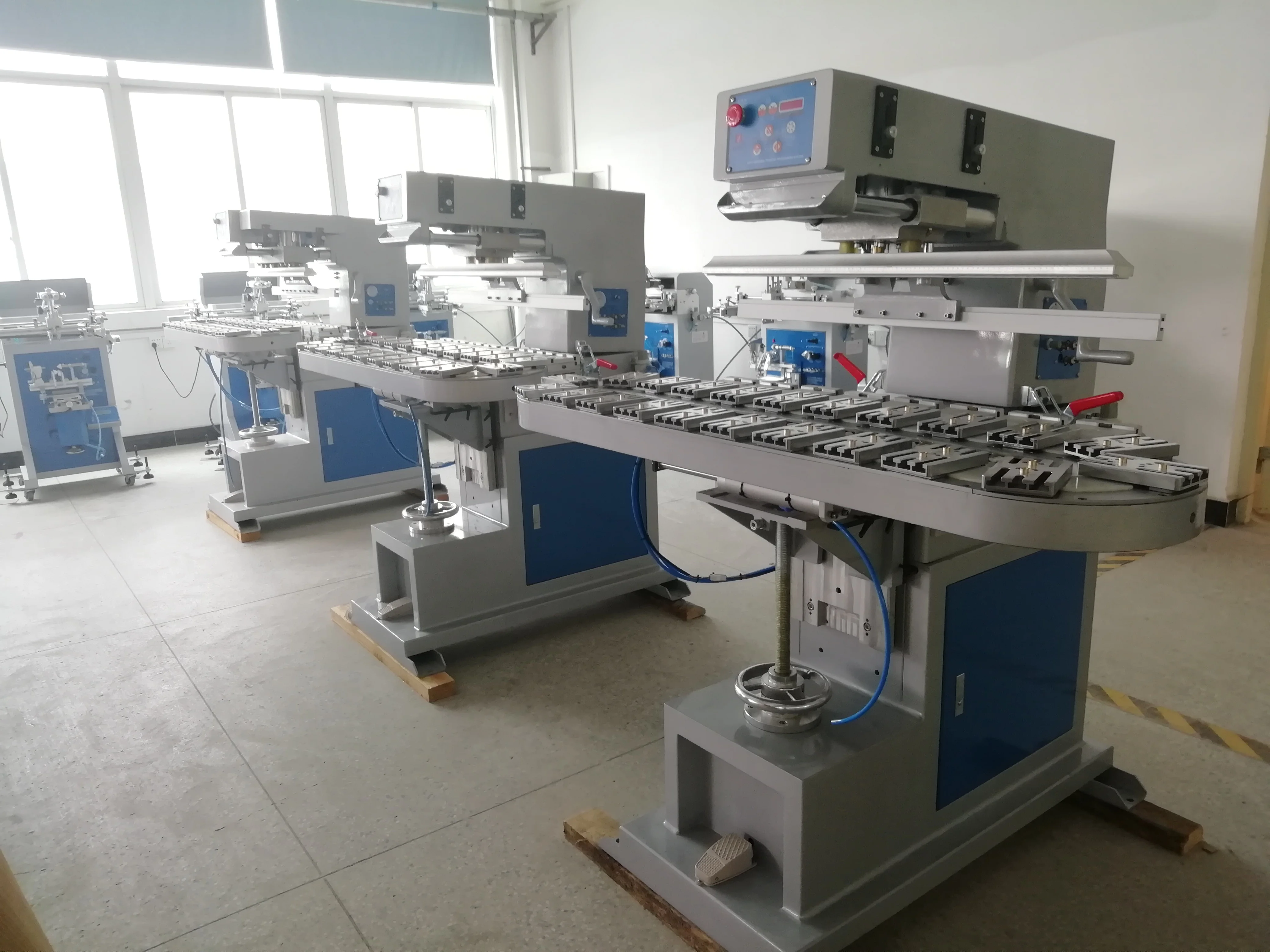

Assembling workshop
Company Profile
COMPANY PROFILE
SHENFA Company was founded in 1996. It locates in Huadu Airport Economic Zone of Guangzhou City, with a 50,000 square meter production plant. Shenfa is a manufacturer dedicated to the field of specialty printing equipment, including screen printing machine, hot-stamping machine, pad printing machine, labeling machine and 3D Digital inkjet printing machine.
SHENFA company sets up professional teams of Engineering R&D Center, CNC Machinging Center, Assembling and Commissioning Center, Marketing and After-Sales Service Center.
R&D Center
CNC Center
Assembling Center
Commissioning Center
Sales Center
After-Sale Service Center
